Rear Bumper: Removal

1. Remove the 9 screws and 7 clips.
2. Put protective tape under the quarter panel.
   Fig 1: Identifying Rear Bumper Cover Screws And Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Detach the 12 claws and remove the bumper cover.
   Fig 2: Identifying Rear Bumper Cover Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

When removing the bumper protector, heat the bumper protector.

Standard heating temperature

1. Using a moulding remover, remove the bumper protector.
   Fig 3: Identifying Bumper Protector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the screw and reflex reflector.
   Fig 4: Identifying Screw And Reflex Reflector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedures described for the LH side.

1. Remove the 6 bolts and reinforcement.
   Fig 5: Identifying Bolts And Reinforcement

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 screws.
2. Using a screwdriver, detach the claw and remove the bumper side support.

   HINT:

   Tape the screwdriver tip before use.

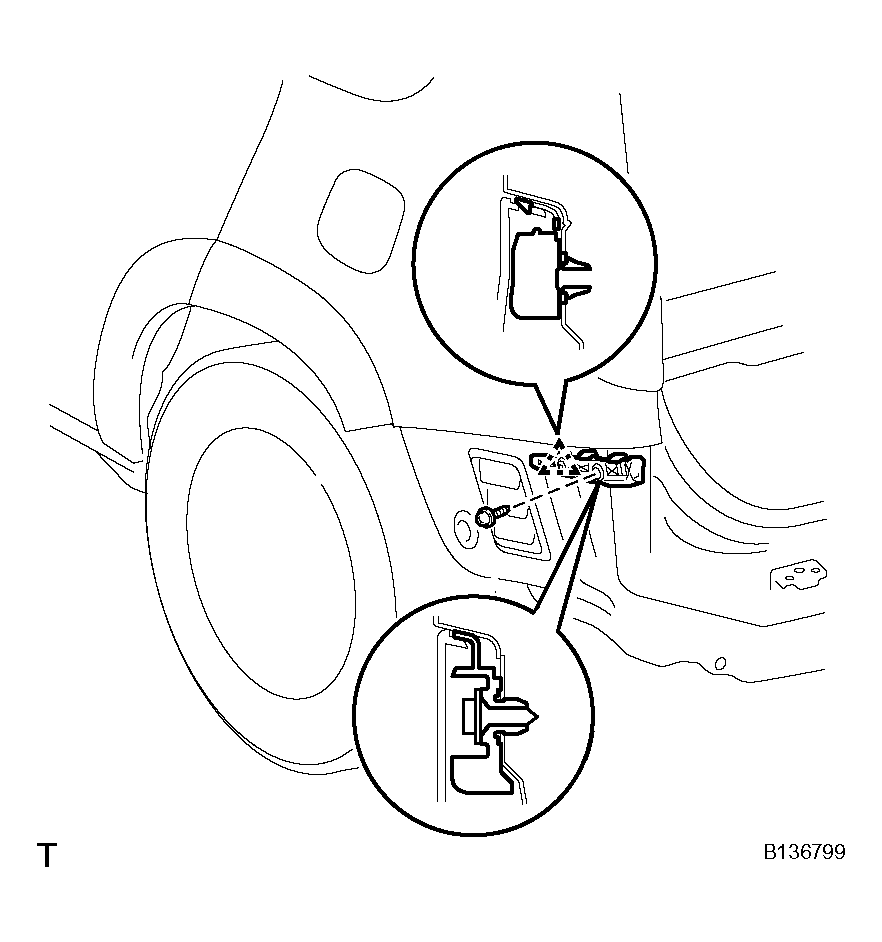

Fig 6: Identifying Claw And Bumper Side Support
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedures described for the LH side.

1. Remove the screw.
2. Using a screwdriver, detach the claw and remove the side retainer.

   HINT:

   Tape the screwdriver tip before use.

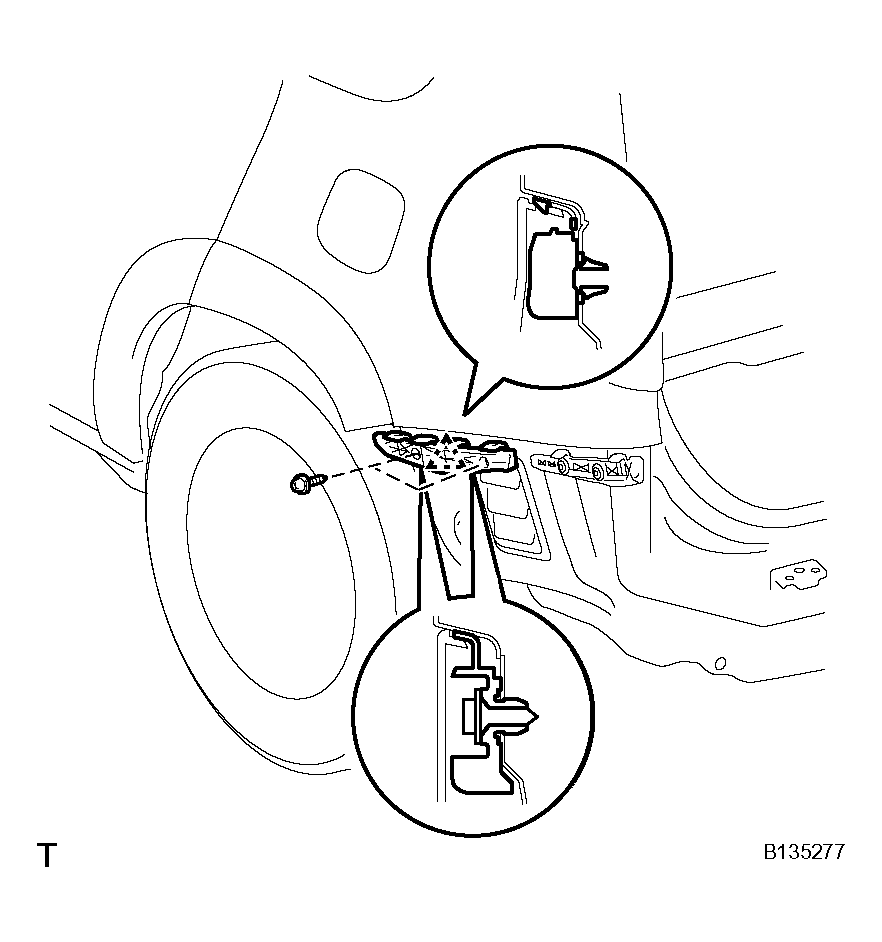

Fig 7: Identifying Claw And Side Retainer
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedures described for the LH side.

1. Detach the 5 outside moulding retainers and remove the moulding.
   NOTE:

   • If reusing the extension, take care not to damage the moulding.
   • Be careful not to damage the vehicle body.

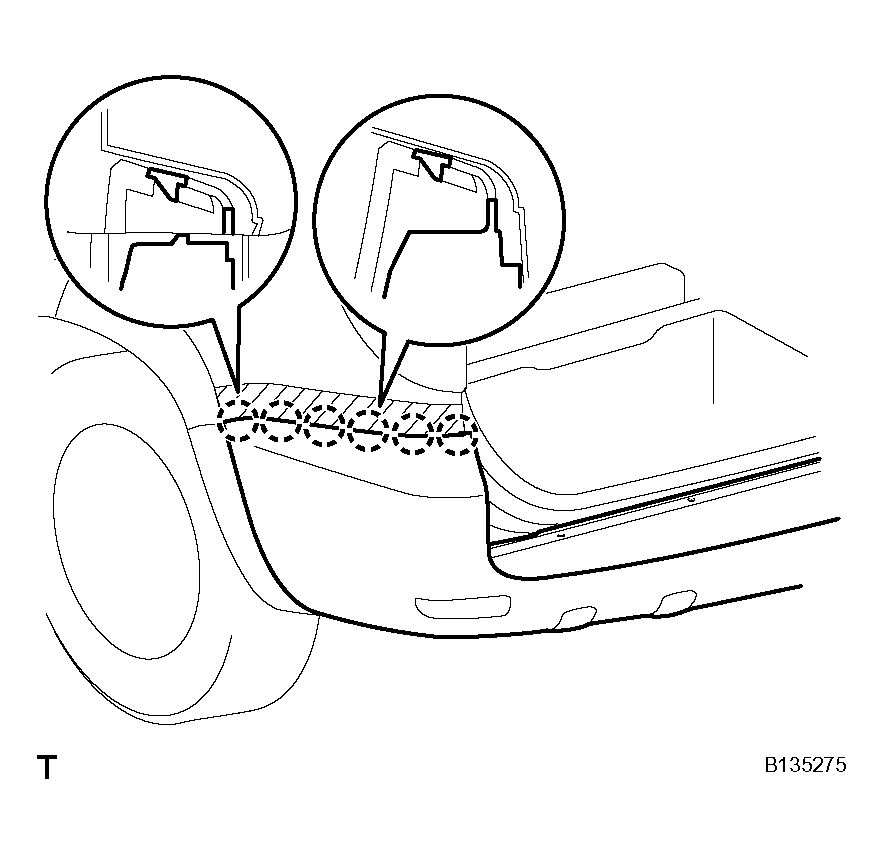

   Fig 8: Identifying Rear Bumper Side Moulding Sub-Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedures described for the LH side.
