RADIATOR GRILLE (for 2GR-FE): Reassembly

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL RADIATOR GRILLE EMBLEM
1. Attach the 3 claws to install the emblem.

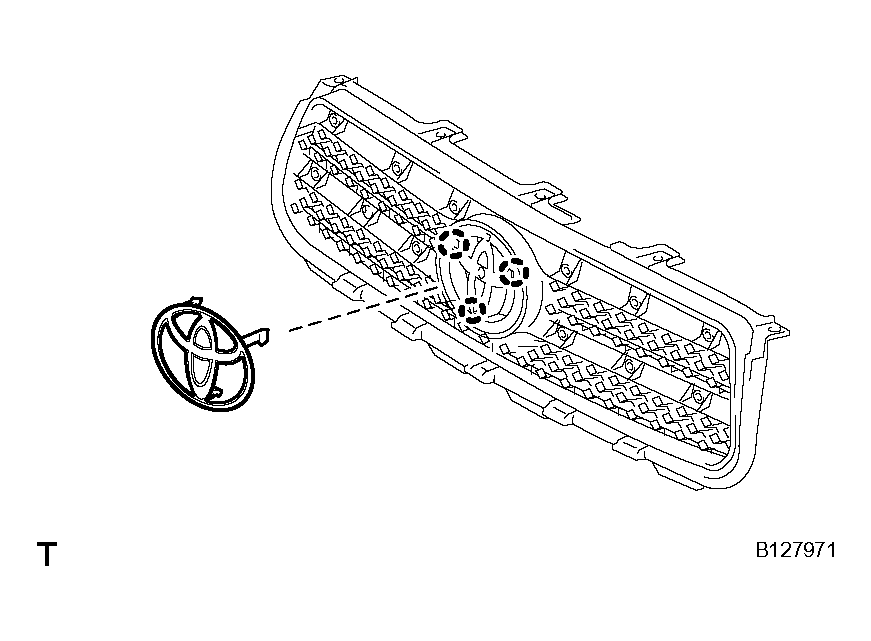

  Fig 1: Identifying Claws And Emblem From Radiator Grille
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RADIATOR GRILLE ORNAMENT PLATE (for Separate Type)
1. Install the ornament plate with the 12 screws.

  Fig 2: Identifying Ornament Plate With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 RADIATOR GRILLE EMBLEM
1. Attach the claw to install the emblem.
2. Install the 2 screws.

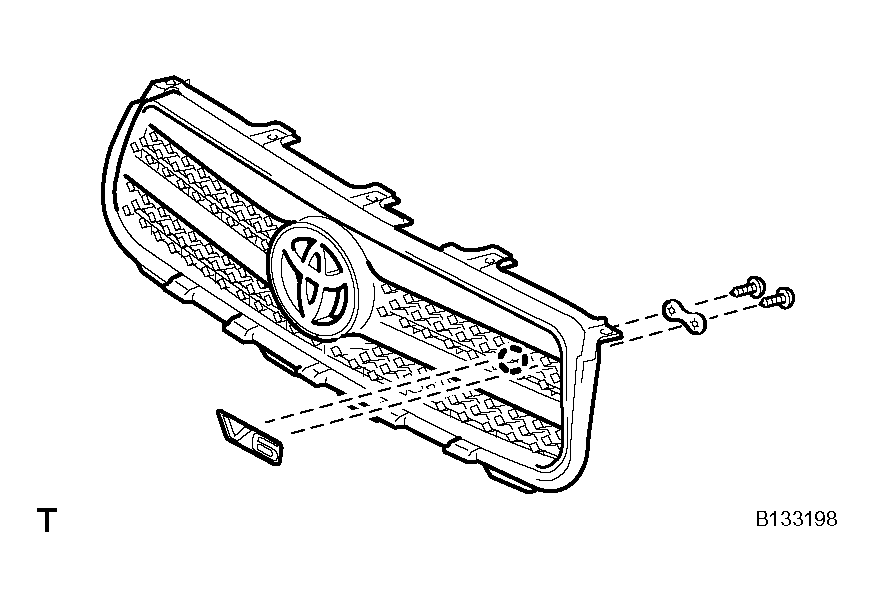

  Fig 3: Identifying No. 2 Radiator Grille Emblem Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
