RADIATOR GRILLE (for 2GR-FE): Disassembly

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE NO. 2 RADIATOR GRILLE EMBLEM
1. Remove the 2 screws.
2. Detach the claw and remove the emblem.

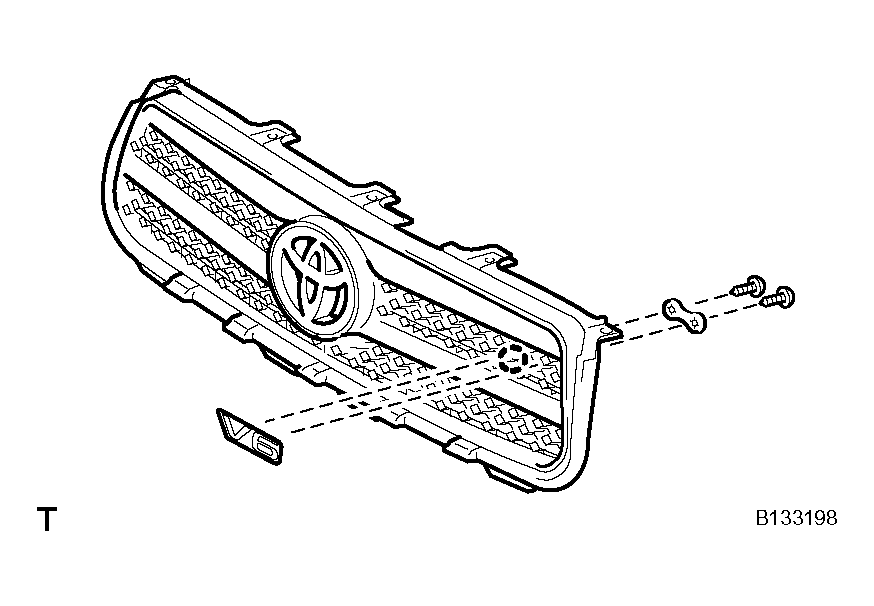

  Fig 1: Identifying Claw And Emblem
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIATOR GRILLE ORNAMENT PLATE (for Separate Type)
1. Remove the 12 screws and ornament plate.

  Fig 2: Identifying Ornament Plate With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIATOR GRILLE EMBLEM
1. Using a screwdriver, detach the 3 claws and remove the emblem from the radiator grille.
  HINT:

  Tape the screwdriver tip before use.
  NOTE:
  - If reusing the emblem, take care not to damage the emblem.
  - Be careful not to damage the emblem base.

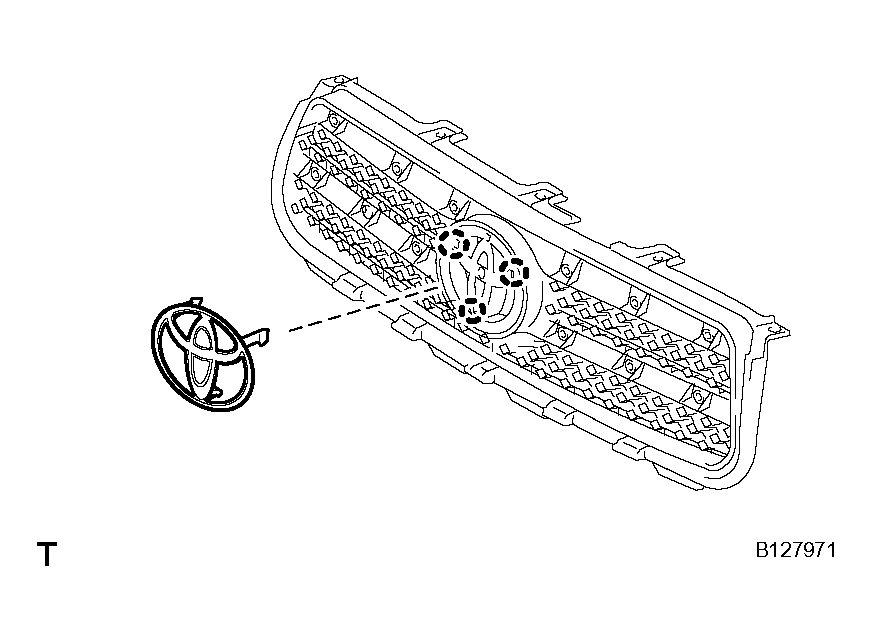

    Fig 3: Identifying Claws And Emblem From Radiator Grille
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
