RADIATOR GRILLE (for 2AZ-FE): Disassembly

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not heat the emblem base and emblem excessively.

REMOVE RADIATOR GRILLE ORNAMENT PLATE (for Separate Type)
1. Remove the 12 screws and ornament plate.

  Fig 1: Identifying Screws And Ornament Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIATOR GRILLE EMBLEM
1. Using a screwdriver, detach the 3 claws and remove the emblem from the radiator grille.
  HINT:

  Tape the screwdriver tip before use.
  NOTE:
  - If reusing the emblem, take care not to damage the emblem.
  - Be careful not to damage the emblem base.

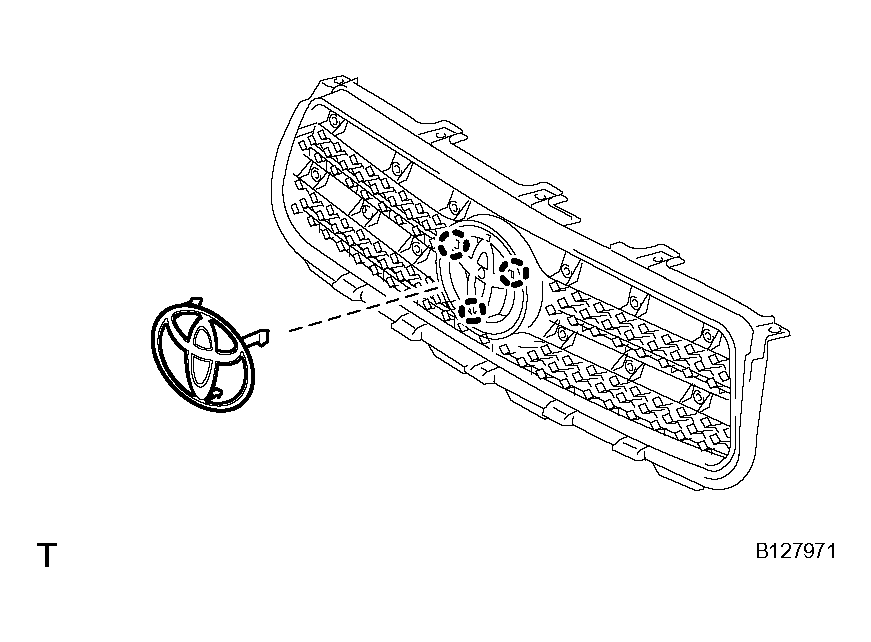

    Fig 2: Identifying Claws And Emblem From Radiator Grille
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
