Name Plate: Installation

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Do not heat the vehicle body, emblem and name plate excessively.

HINT:

When installing the emblem and name plate, heat the vehicle body, emblem and name plate using a heat light.

Standard heating temperature

STANDARD HEATING TEMPERATURE SPECIFICATION

Item Specified Condition
Vehicle body 40 to 60°C (104 to 140°F)
Name plate 20 to 30°C (68 to 86°F)
  1. INSTALL NO. 4 BACK DOOR NAME PLATE (for 4WD)
    1. Clean the vehicle body surface.
      1. Using a heat light, heat the vehicle body surface.
      2. Remove the double-sided tape from the vehicle body.
      3. Wipe off any tape adhesive residue with cleaner.
    2. If reusing the name plate:

      Clean the name plate.

      1. Using a heat light, heat the name plate.
      2. Remove the double-sided tape from the name plate.
      3. Wipe off any tape adhesive residue with cleaner.
      4. Apply new double-sided tape to the name plate.
    3. Install the name plate.
      1. Using a heat light, heat the vehicle body and name plate.
      2. Remove the peeling paper from the face of the name plate.

        HINT:

        After removing the peeling paper, keep the exposed adhesive free from foreign matter.

      3. Install the name plate.
        NOTE: Install the name plate exactly according to the specifications below.

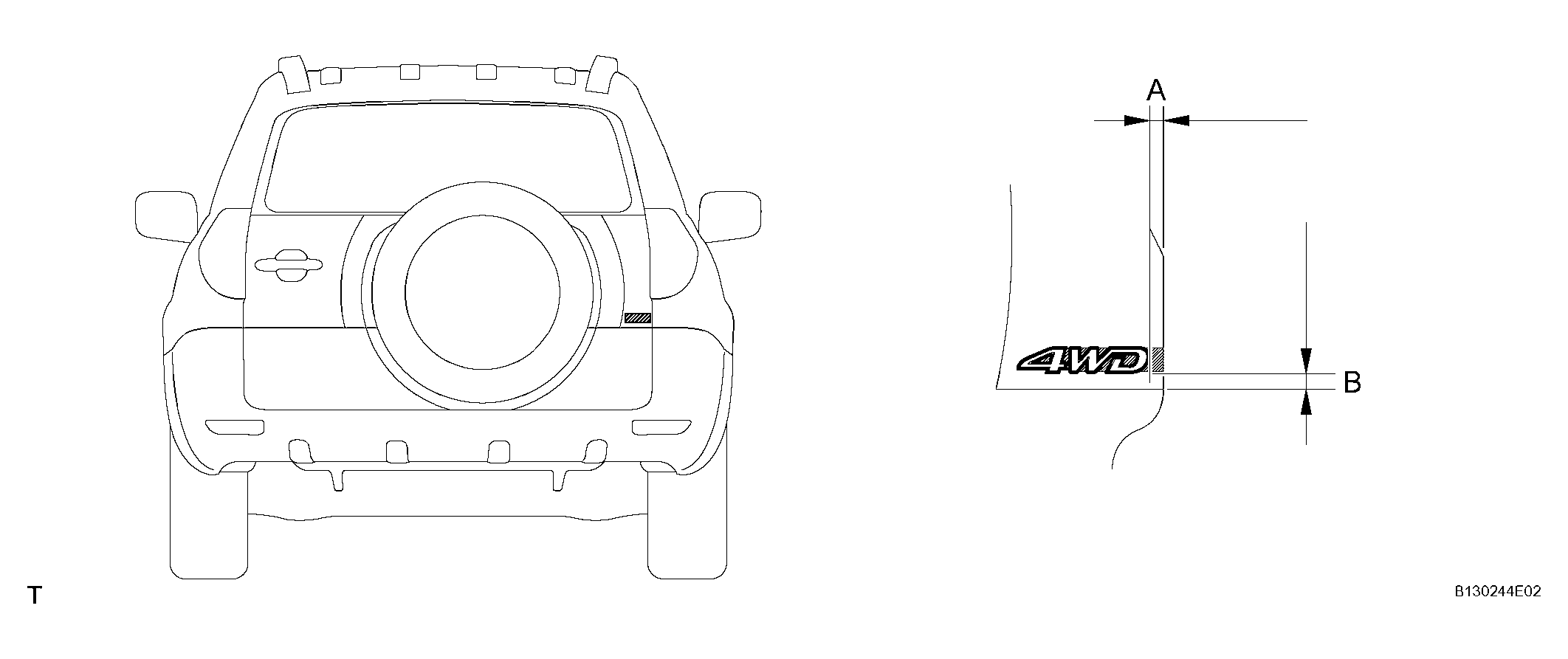

        Fig 1: Identifying No. 4 Back Door Name Plate (For 4WD) Dimension
        G04492277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard measurement

        AREA AND SPECIFIED CONDITION CHART

        Area Specified Condition
        A 8 mm (0.314 in.)
        B 8.6 mm (0.338 in.)
  2. INSTALL NO. 1 BACK DOOR EMBLEM
  3. INSTALL BACK DOOR NAME PLATE
  4. INSTALL NO. 1 BACK DOOR EMBLEM ASSEMBLY
    1. Clean the vehicle body surface.
      1. Using a heat light, heat the vehicle body surface.
      2. Remove the double-sided tape from the vehicle body.
      3. Wipe off any tape adhesive residue with cleaner.
    2. If reusing the name plate and emblem:

      Clean the name plate and emblem.

      1. Using a heat light, heat the name plate and emblem.
      2. Remove the double-sided tape from the name plate and emblem.
      3. Wipe off any tape adhesive residue with cleaner.
      4. Apply new double-sided tape to the name plate and emblem.
    3. Install the name plate and emblem.
      1. Using a heat light, heat the vehicle body, name plate and emblem.
      2. Remove the peeling paper from the face of the name plate and emblem.

        HINT:

        After removing the peeling paper, keep the exposed adhesive free from foreign matter.

      3. Install the name plate and emblem.
        NOTE: Install the name plate and emblem exactly according to the specifications below.

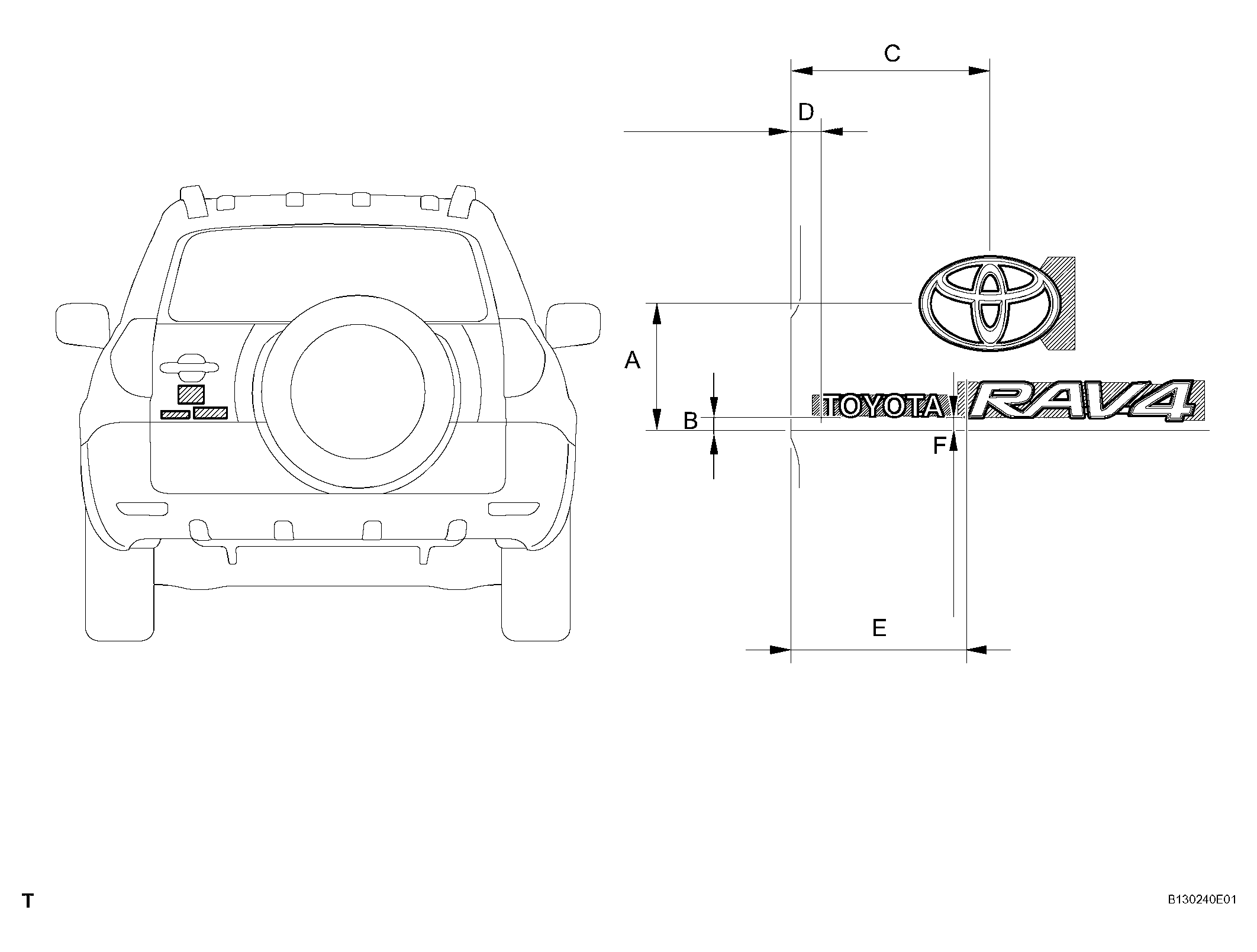

        Fig 2: Identifying No. 1 Back Door Emblem Assembly Dimension
        G04492278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard measurement

        AREA AND SPECIFIED CONDITION CHART

        Area Specified Condition
        A 92.8 mm (3.653 in.)
        B 9.3 mm (0.366 in.)
        C 157.5 mm (6.200 in.)
        D 25.3 mm (0.996 in.)
        E 138.0 mm (5.433 in.)
        F 8.2 mm (0.322 in.)
