Name Plate: Components

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

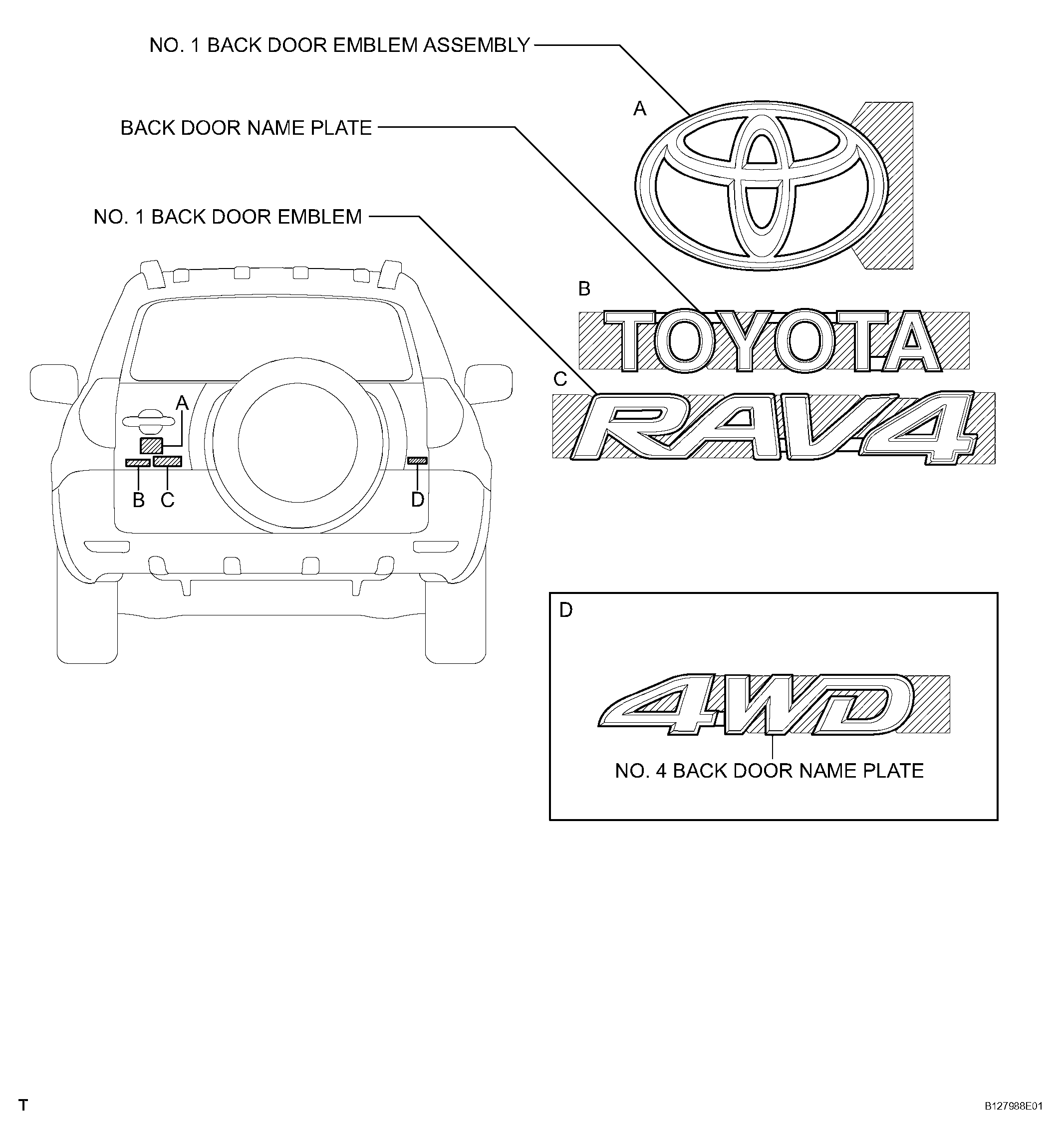

Fig 1: Identifying Name Plate Components
G04492271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

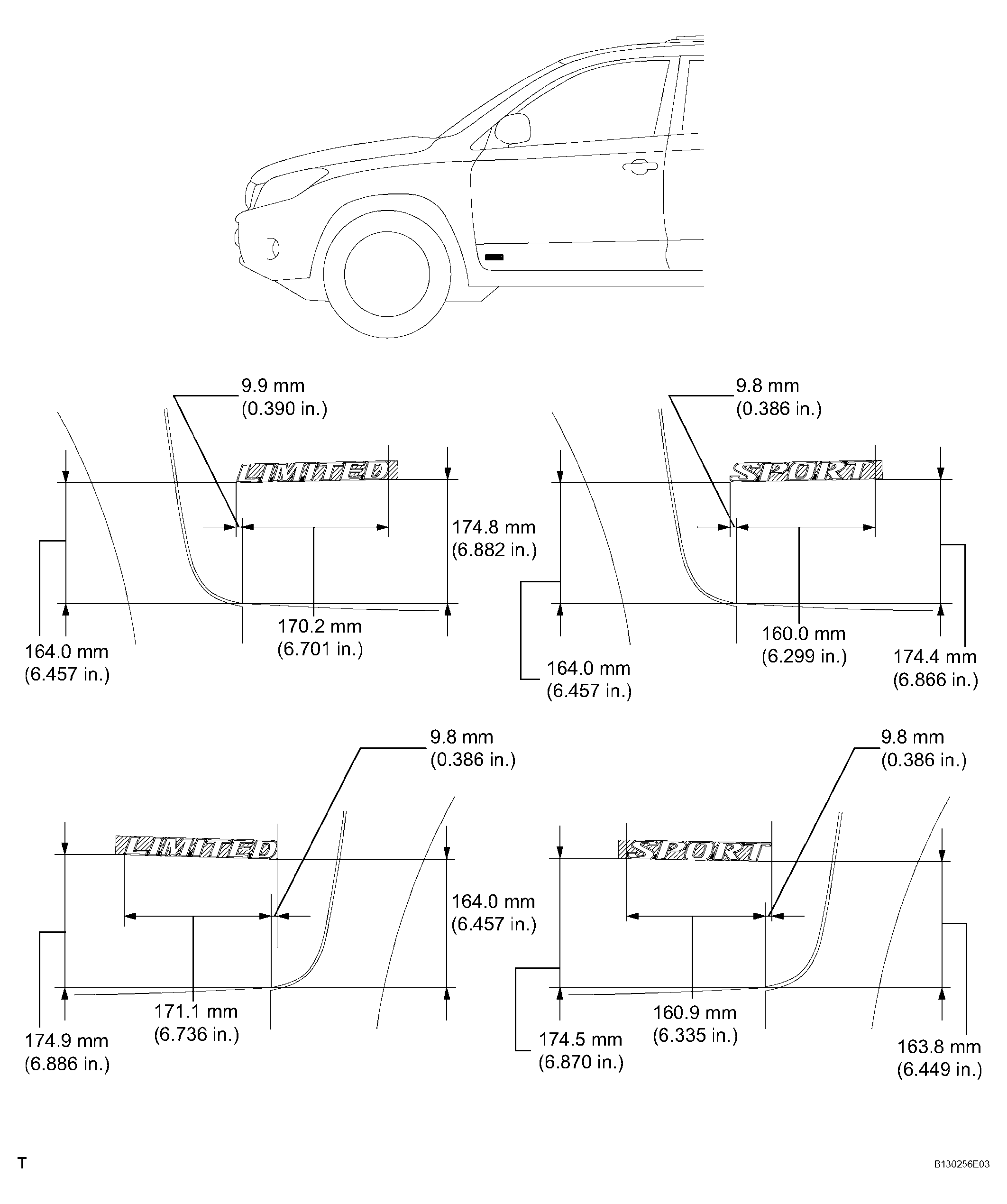

Fig 2: Identifying Name Plate Positioning Specifications
G04492272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
