Front Bumper: Disassembly

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE HOOD TO RADIATOR GRILLE SEAL
    1. Detach the 9 clips and remove the hood to radiator grille seal.
    Fig 1: Identifying Hood To Radiator Grille Seal Clips
    G04492202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE RADIATOR GRILLE SUB-ASSEMBLY
    1. Remove the 4 bolts and 4 nuts.
    2. Detach the 6 claws and remove the radiator grille.

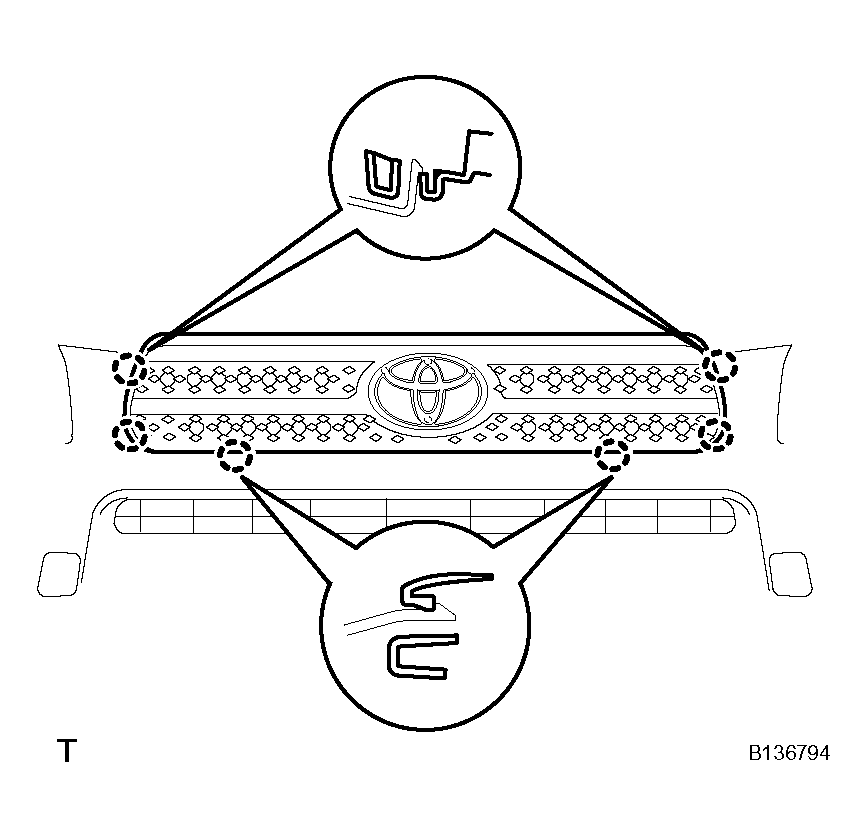

      Fig 2: Identifying Radiator Grille Sub-Assembly Claws
      G04492203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 1 RADIATOR GRILLE LOWER
    1. Detach the 18 claws and remove the radiator grille.
      Fig 3: Identifying Radiator Grille Lower Claws
      G04492204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 2 RADIATOR GRILLE LOWER
    1. Detach the 16 claws and remove the radiator grille.
      Fig 4: Identifying Radiator Grille Claws
      G04492205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT BUMPER ARM HOLE COVER LH
    1. Detach the 2 claws and disconnect the arm hole cover.
    2. Remove the hook and bumper arm hole cover.
      Fig 5: Identifying Claws And Arm Hole Cover
      G04492206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE FRONT BUMPER ARM HOLE COVER RH
    1. Use the same procedures described for the LH side.
  7. REMOVE FOG LIGHT ASSEMBLY LH
    1. Remove the screw and fog light.
    2. Remove the 3 bolts and fog light mounting bracket.
    Fig 6: Identifying Fog Light Mounting Bracket
    G04492207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FOG LIGHT ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  9. REMOVE FRONT BUMPER HOLE COVER LH (w/o Fog Light)
    1. Remove the 3 bolts, bumper hole cover and fog light mounting bracket.
      Fig 7: Identifying Bumper Hole Cover And Fog Light Mounting Bracket
      G04492208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT BUMPER HOLE COVER RH (w/o Fog Light)

    HINT:

    Use the same procedures described for the LH side.

  11. REMOVE FRONT BUMPER EXTENSION LH (for Wide Body)
    1. Detach the 7 outside moulding retainers and remove the extension LH.
      NOTE:
      • If reusing the extension, take care not to damage the extension.
      • Be careful not to damage the vehicle body.
      Fig 8: Identifying Outside Moulding Retainers And Extension LH
      G04492209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FRONT BUMPER EXTENSION RH (for Wide Body)

    HINT:

    Use the same procedures described for the LH side.
