Purge Valve: Removal

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE V-BANK COVER SUB-ASSEMBLY (See  REMOVAL  )
  3. REMOVE PURGE VSV
    1. Disconnect the purge VSV connector.
    2. Disconnect the wire harness clamp.
    3. Disconnect the 2 purge line hoses from the purge VSV.
    4. Remove the bolt and purge VSV.

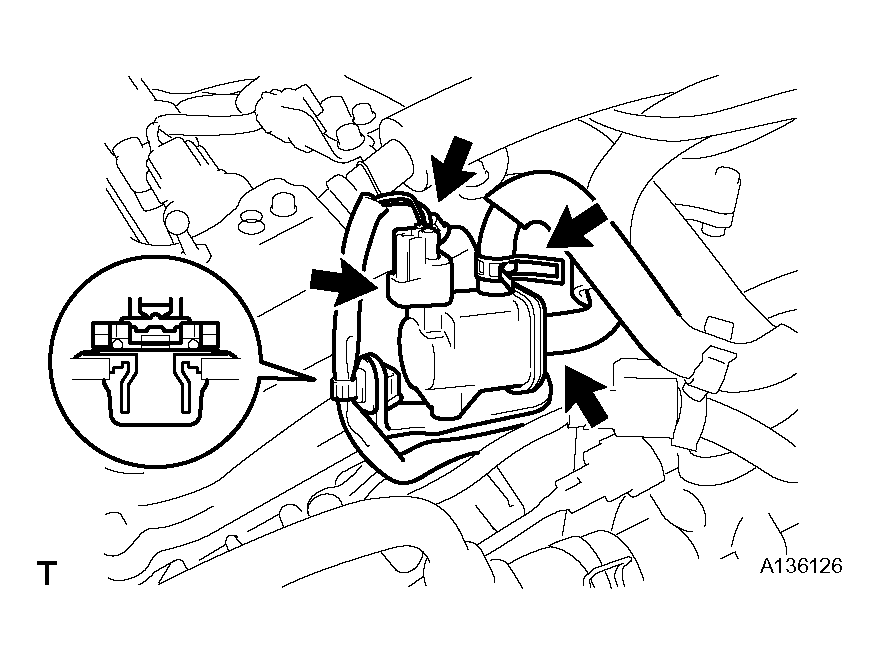

      Fig 1: Identifying Purge VSV
      G04485687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
