INSTALL CANISTER

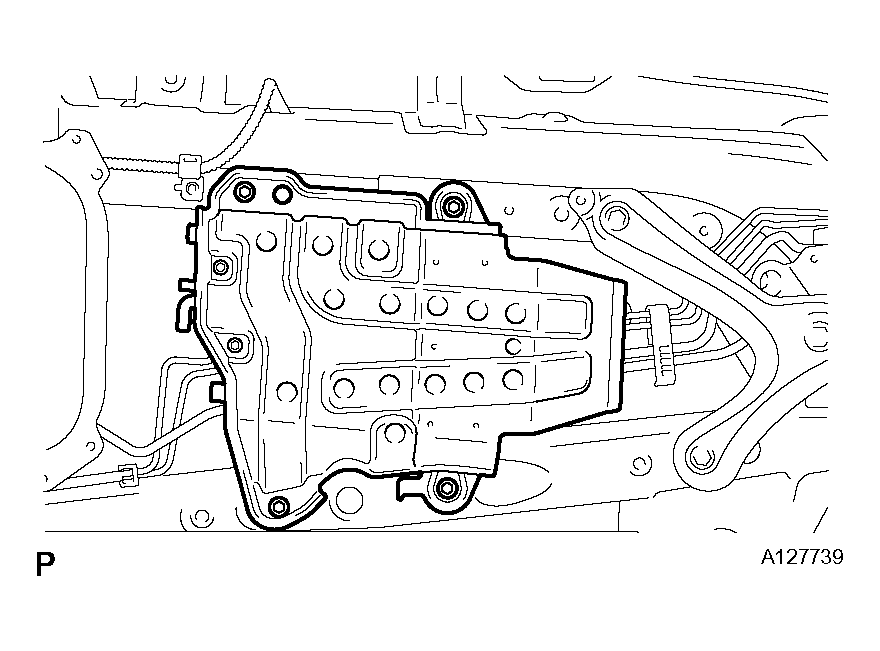

1. Install the canister with the 4 bolts and clip.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

  Fig 1: Identifying Canister Clip And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the air inlet line tube to the canister (leak detection pump).
3. Install the vent line tube.

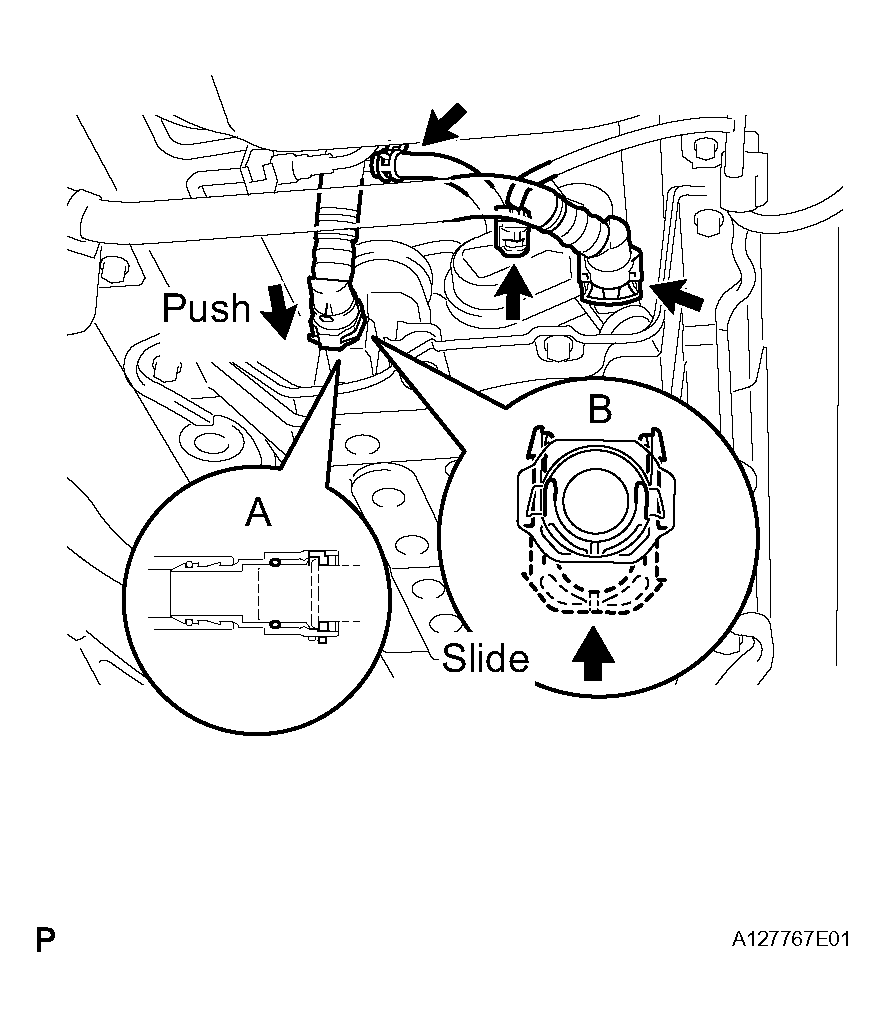

  1. Connect the pipe to the fuel tube connector, as shown in A in the illustration. Then push up the retainer to lock the claws, as shown in B in the illustration.

    Fig 2: Identifying Vent Line Tube
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    Check that there are no scratches or foreign objects around the connected part of the fuel tube connector and pipe before performing this work.

    After connecting the fuel tank vent line tube, check that the fuel tank vent line tube is securely connected by pulling the fuel tube connector and pipe.
4. Connect the purge line hose.
  HINT:

  Install the hose to the canister, and then attach the retainer.
5. Connect the connector to the canister (leak detection pump).
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
