Parts Location

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

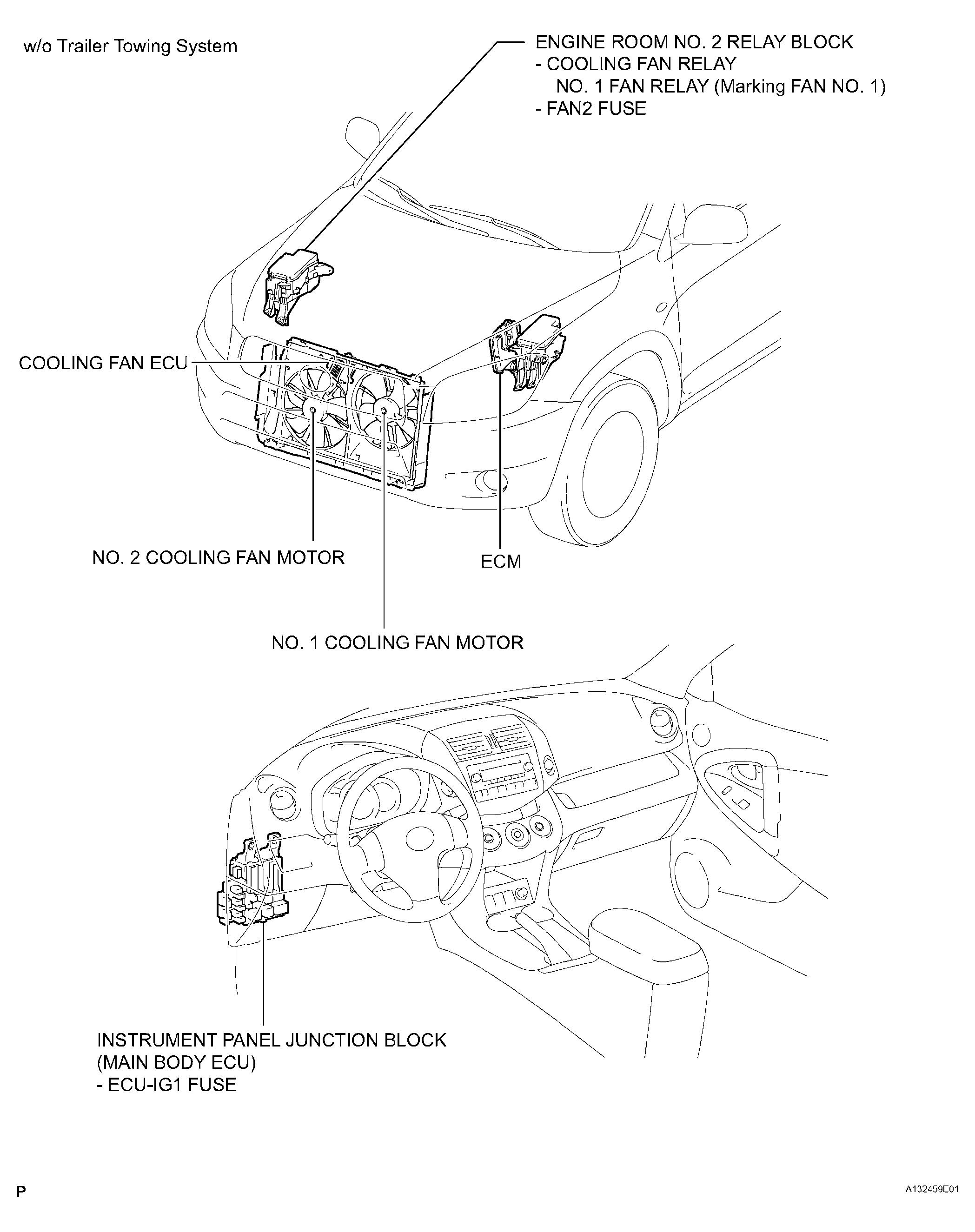

Fig 1: Identifying Cooling Fan System Parts Location (1 Of 2)
G04485812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

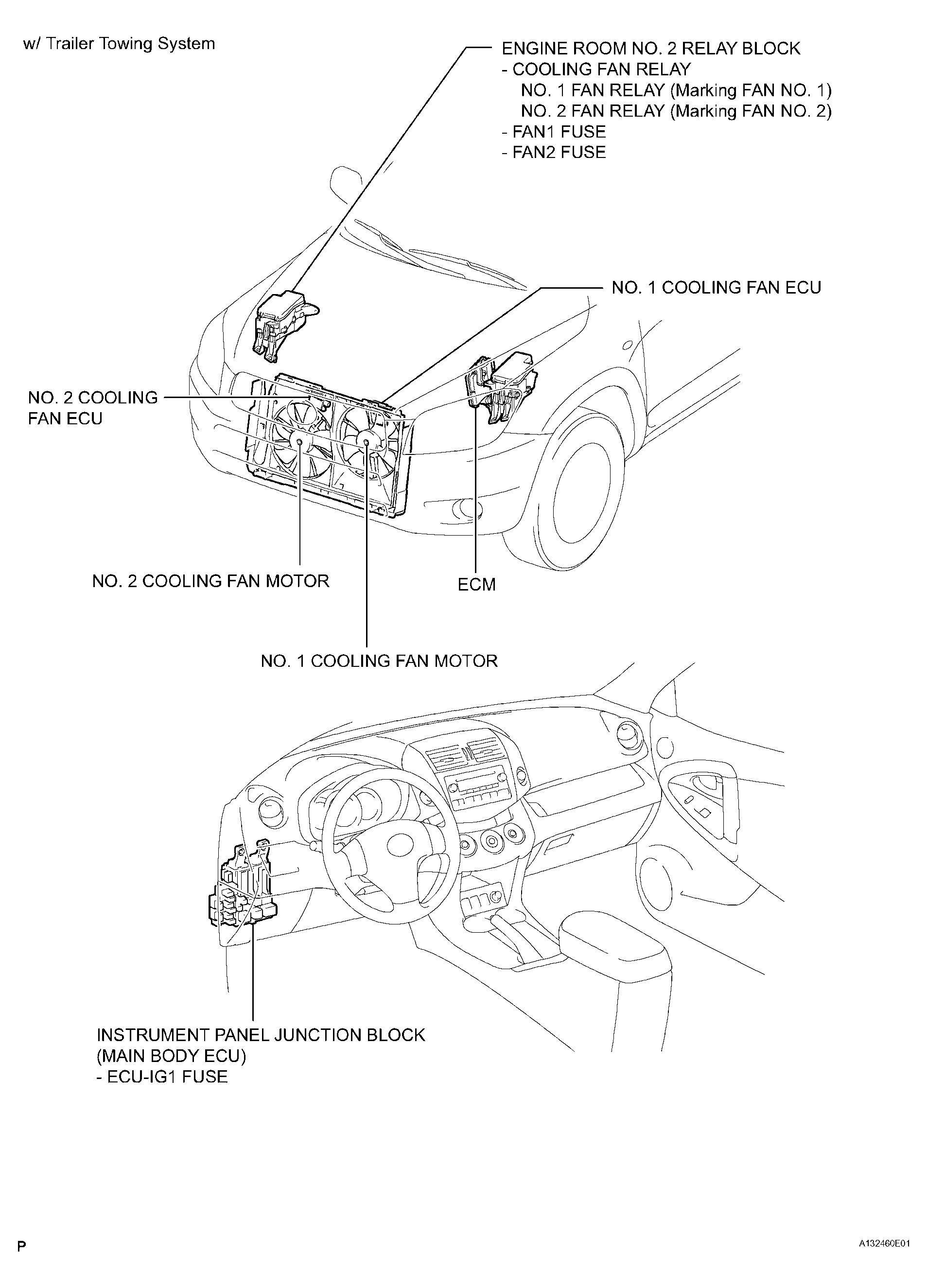

Fig 2: Identifying Cooling Fan System Parts Location (2 Of 2)
G04485813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
