Cooling Fan Motor: Reassembly

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL NO. 2 COOLING FAN MOTOR
1. Install the fan motor with the 3 screws.
  Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
INSTALL NO. 1 COOLING FAN MOTOR
1. Install the fan motor with the 3 screws.
  Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

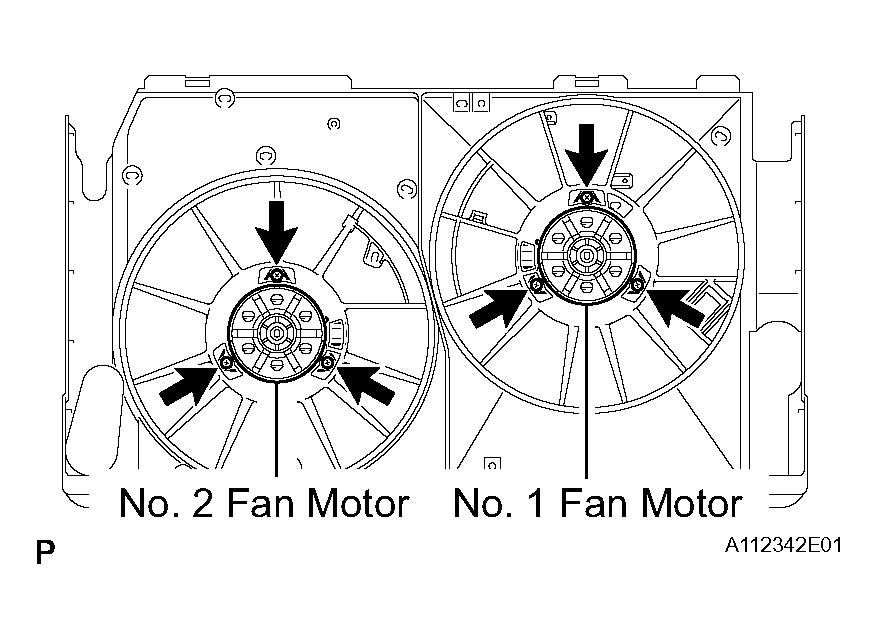

  Fig 1: Installing No. 1 & Or No. 2 Fan Motors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FAN
1. Install the 2 fans with the 2 nuts.
  Torque: 6.3 N*m (64 kgf*cm, 55 in.*lbf)
2. Check the fan motor operation.

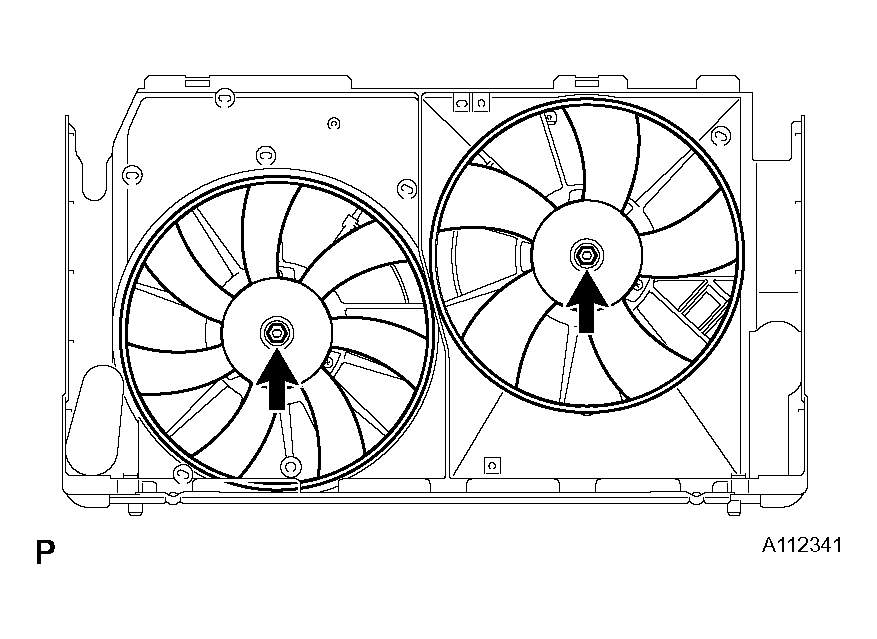

  Fig 2: Installing Fans With Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
