Cooling Fan Motor: Disassembly

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FAN
    1. Remove the 2 nuts and 2 fans.

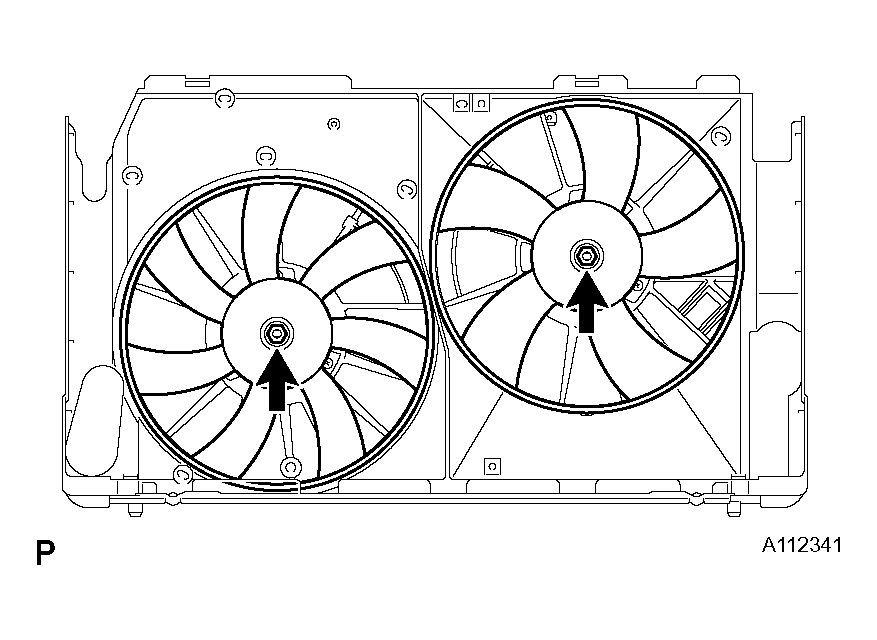

      Fig 1: Removing Nuts & Fans
      G04485862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE NO. 1 COOLING FAN MOTOR
    1. Remove the 3 screws and fan motor. (See Fig 2).
  3. REMOVE NO. 2 COOLING FAN MOTOR
    1. Remove the 3 screws and fan motor.

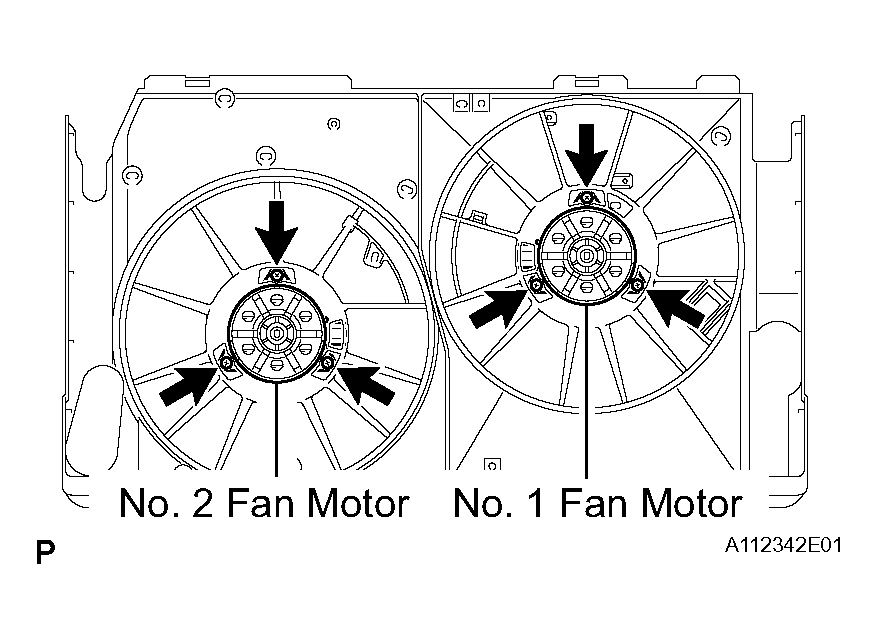

      Fig 2: Removing No. 1 & No. 2 Fan Motors
      G04485863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
