On-Vehicle Inspection

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK COOLING FAN ECU (w/o Trailer Towing System)
    1. Disconnect the B12 ECU connector.
    2. Measure the voltage and resistance of the wire harness side connector.
      Fig 1: Disconnecting B12 ECU Connector
      G04485866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      B12-3 (+B) - Body ground Ignition switch ON 9 to 14 V

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      B12-1 (E1) - Body ground Always Below 1 Ω

      If the result is not as specified, inspect the power source system (fusible link, fuse, wire harness and relay).

    3. Connect the B12 ECU connector.
  2. CHECK COOLING FAN ECU (w/Trailer Towing System)
    1. Disconnect the B10 and B11 ECU connector.
    2. Measure the voltage and resistance of the wire harness side connector.

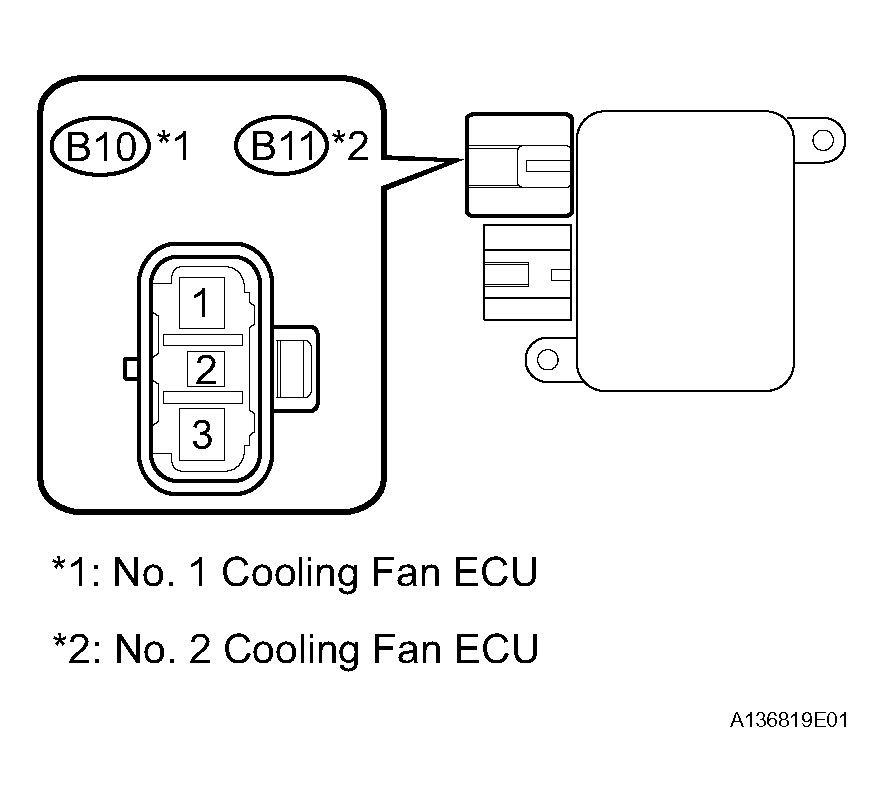

      Fig 2: Measuring Voltage & Resistance Of Wire Harness Side Connector
      G04485867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard voltage

      STANDARD VOLTAGE CONDITION CHART

      Tester Connection Condition Specified Condition
      B10-1 (+B1) - Body ground Ignition switch ON 9 to 14 V
      B11-1 (+B2) - Body ground Ignition switch ON 9 to 14 V

      Standard resistance

      TESTER CONNECTION RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      B10-3 (E1) - Body ground Always Below 1 Ω
      B11-3 (E2) - Body ground Always Below 1 Ω

      If the result is not as specified, inspect the power source system (fusible link, fuse, wire harness and relay).

    3. Connect the B10 and B11 ECU connector.
