Fuel Injector: Components

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Fuel Injector Replacement Components With Torque Specifications (1 Of 2)
G04485534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

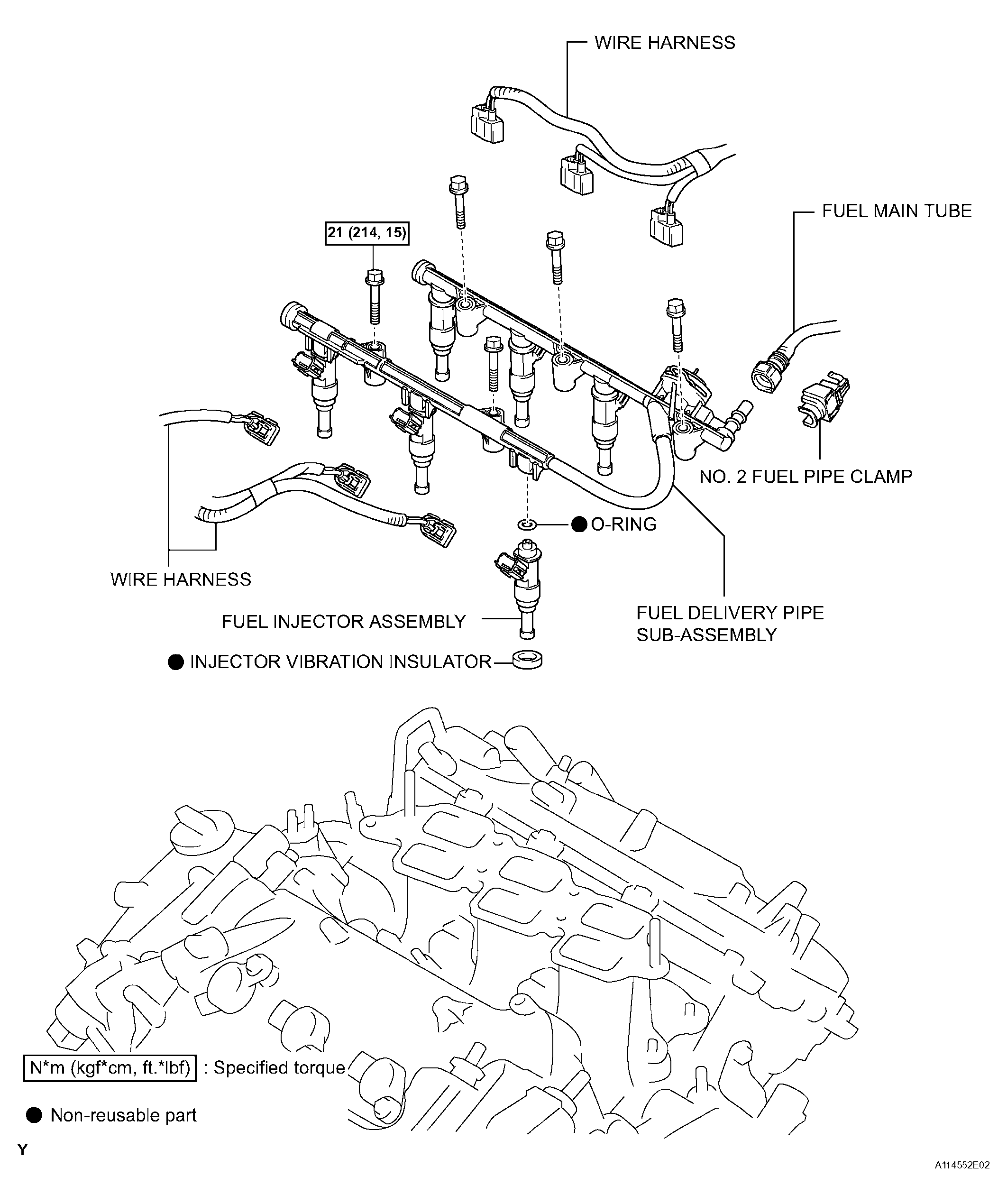

Fig 2: Fuel Injector Replacement Components With Torque Specifications (2 Of 2)
G04485535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
