Ignition Switch: Installation

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL IGNITION SWITCH ASSEMBLY

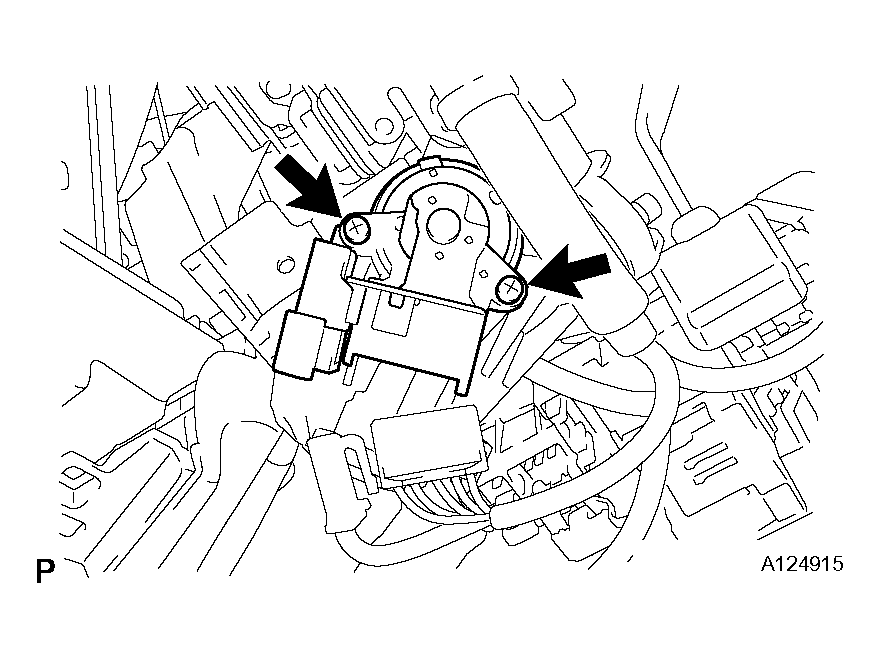

1. Install the ignition switch with the 2 screws.

  Fig 1: Installing Ignition Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

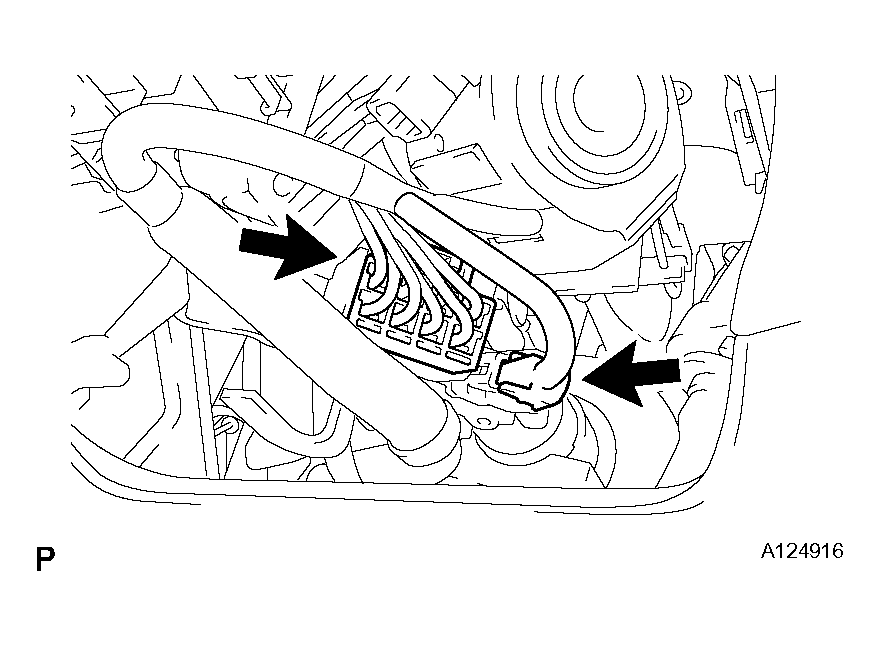

2. Install the ignition key cylinder light connector.
3. Install the ignition switch connector.

  Fig 2: Installing Ignition Switch Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEERING COLUMN COVER LOWER

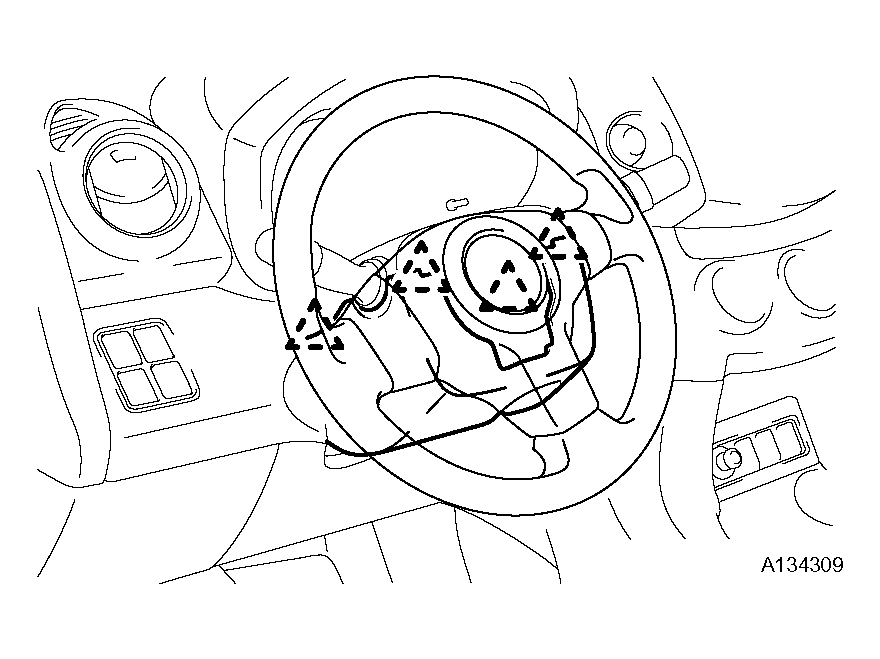

1. Attach the 4 claws to install the steering column lower cover.

  Fig 3: Installing Steering Column Cover Lower
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
