Propeller Shaft Assembly: Removal

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE PROPELLER SHAFT WITH CENTER BEARING SHAFT ASSEMBLY
1. Remove the 2 bolts and 2 adjusting washers, and disconnect the propeller with center bearing shaft. See Fig 1.
  NOTE:
  - During the removal, do not exert excessive force on the universal joint.
  - When removing, transporting or storing the propeller with center bearing shaft assembly, do not allow the No. 2 joint angle to exceed 20°.

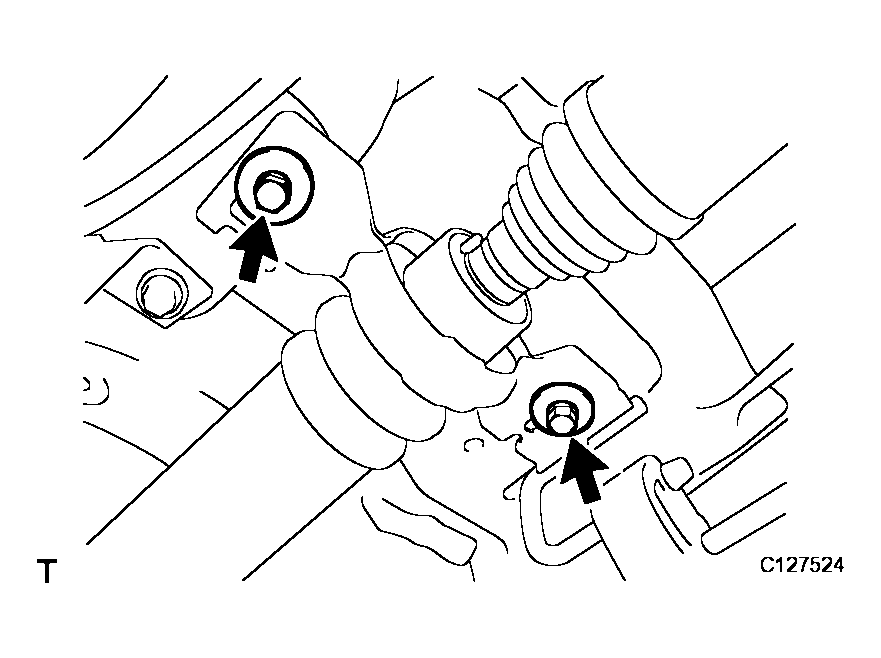

    Fig 1: Disconnecting Propeller With Center Bearing Shaft
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Place matchmarks on the differential carrier and propeller shaft.
3. Remove the 4 nuts and 4 washers, and disconnect the propeller shaft and differential carrier.

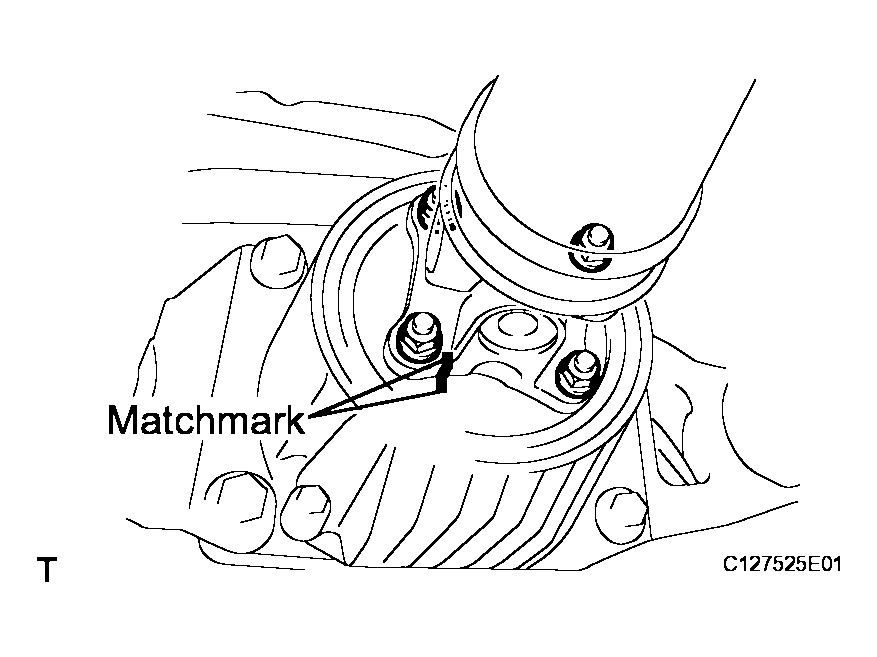

  Fig 2: Placing Matchmarks On Differential Carrier And Propeller Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Place matchmarks on the transfer and propeller shaft.
5. Remove the 4 nuts and 4 washers, and disconnect the propeller shaft from the transfer.

  Fig 3: Placing Matchmarks On Transfer And Propeller Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
