Propeller Shaft Assembly: Installation

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

TEMPORARILY INSTALL PROPELLER SHAFT WITH CENTER BEARING SHAFT ASSEMBLY
1. Align the matchmarks of the transfer and propeller shaft.
2. Temporarily install the propeller shaft with center bearing with the 4 nuts and 4 washers.

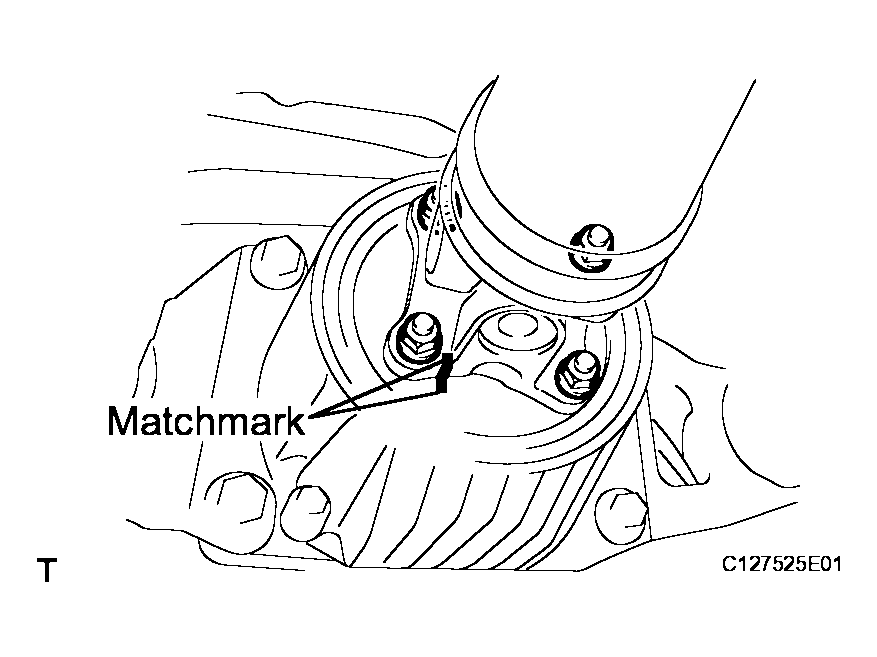

  Fig 1: Aligning Matchmarks Of Transfer And Propeller Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Align the matchmarks of the differential carrier and propeller shaft.
4. Temporarily install the propeller shaft with center bearing with the 4 bolts and 4 washers.

  Fig 2: Aligning Matchmarks Of Differential Carrier And Propeller Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Temporarily install the center support bearing and center support bearing washer with the 2 bolts.

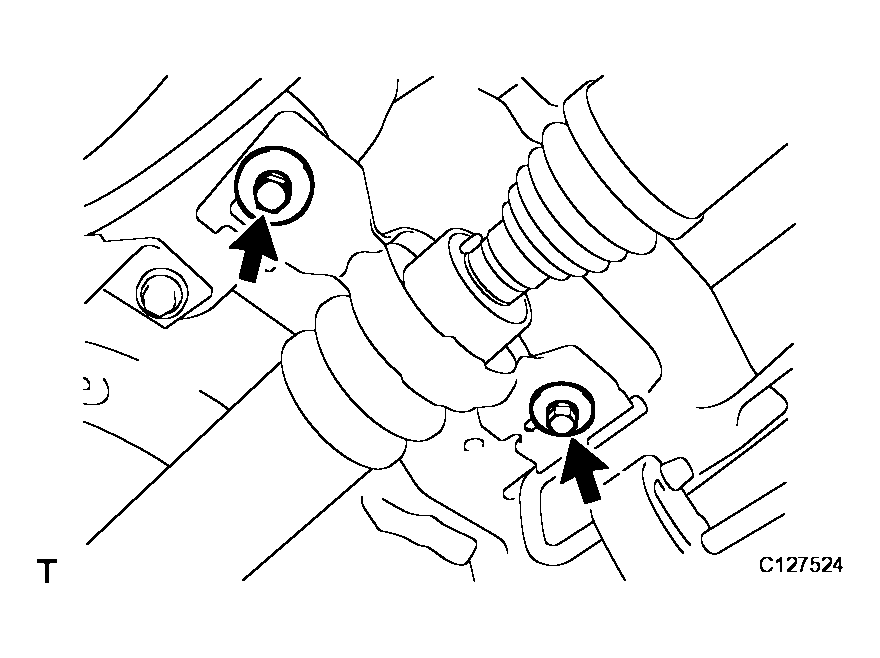

  Fig 3: Installing Center Support Bearing And Center Support Bearing Washer With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TIGHTEN PROPELLER SHAFT WITH CENTER BEARING SHAFT ASSEMBLY
1. Tighten the 4 nuts of the propeller shaft and transfer to the torque specification.
  Torque: 35 N.m (357 kgf*cm, 26 ft.*lbf)
2. Tighten the 4 nuts of the propeller shaft and differential carrier to the torque specification.
  Torque: 35 N.m (357 kgf*cm, 26 ft.*lbf)
3. Check that the center line of the center support bearing housing is perpendicular to the axis of the propeller shaft.
4. Tighten the 2 bolts of the center support bearing to the torque specification.
  Torque: 36.8 N.m (375 kgf*cm, 27 ft.*lbf)
INSPECT JOINT ANGLE (See INSPECTION )
