Purge Valve: Installation

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL PURGE VSV
    1. Install the purge VSV onto the air cleaner hose.

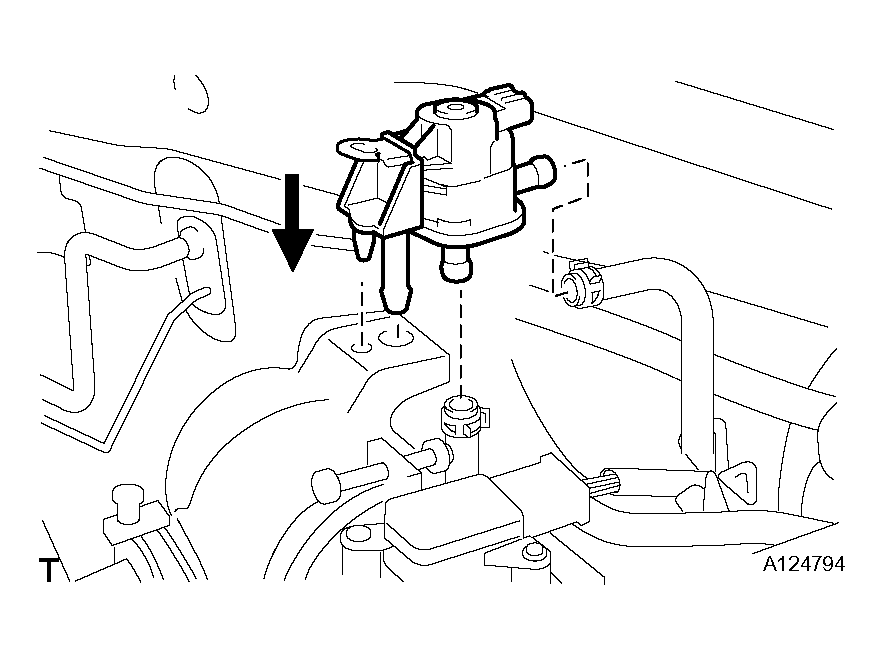

      2. Fig 1: Installing Purge VSV Onto Air Cleaner Hose
      G04485643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 2 purge line hoses to the purge VSV.

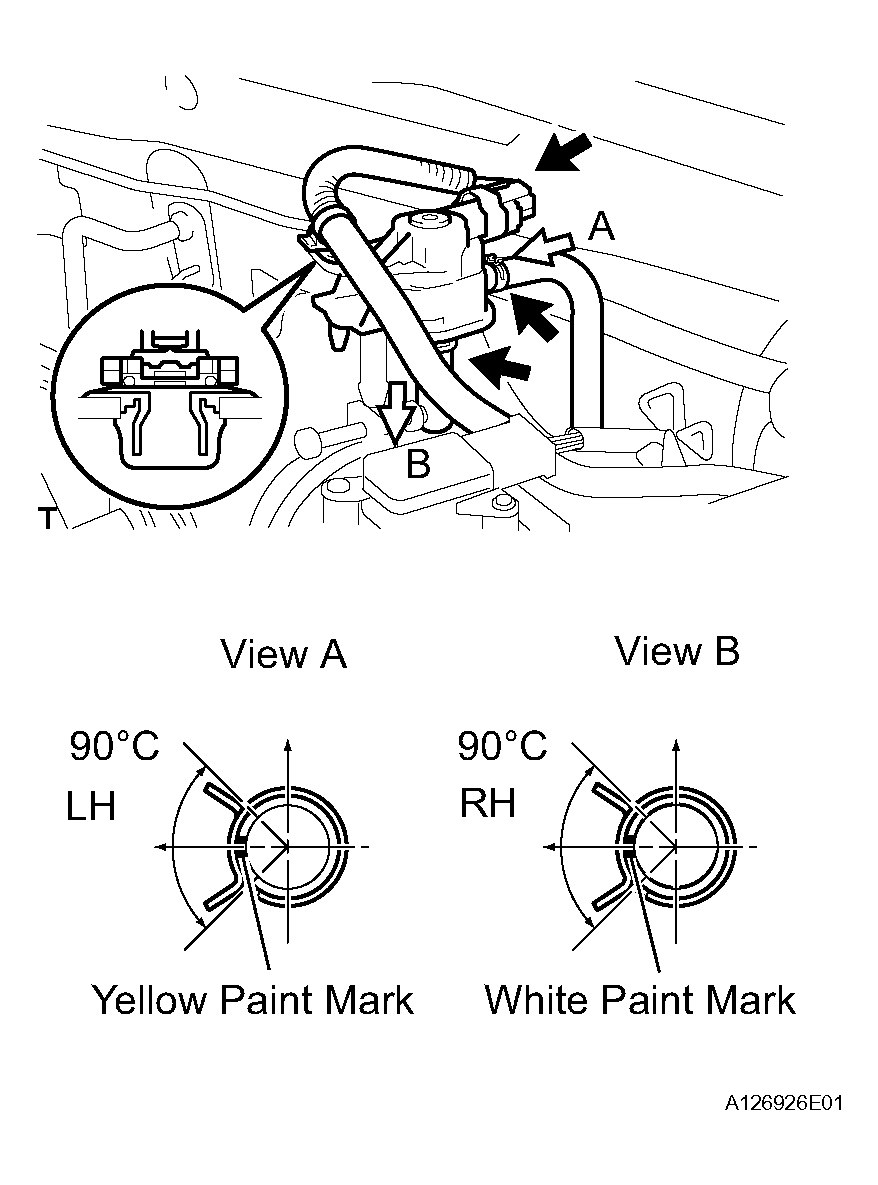

      3. Fig 2: Connecting Purge Line Hoses To Purge VSV
      G04485644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the wire harness clamp.
    4. Connect the purge VSV connector.
  2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
