Air Fuel Ratio Sensor: Installation

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)
1. Using SST, install the sensor to the exhaust manifold.
  SST 09224-00010

  Torque:

  40 N*m (408 kgf*cm, 30 ft.*lbf) for use with SST

  44 N*m (449 kgf*cm, 32 ft.*lbf) for use without SST

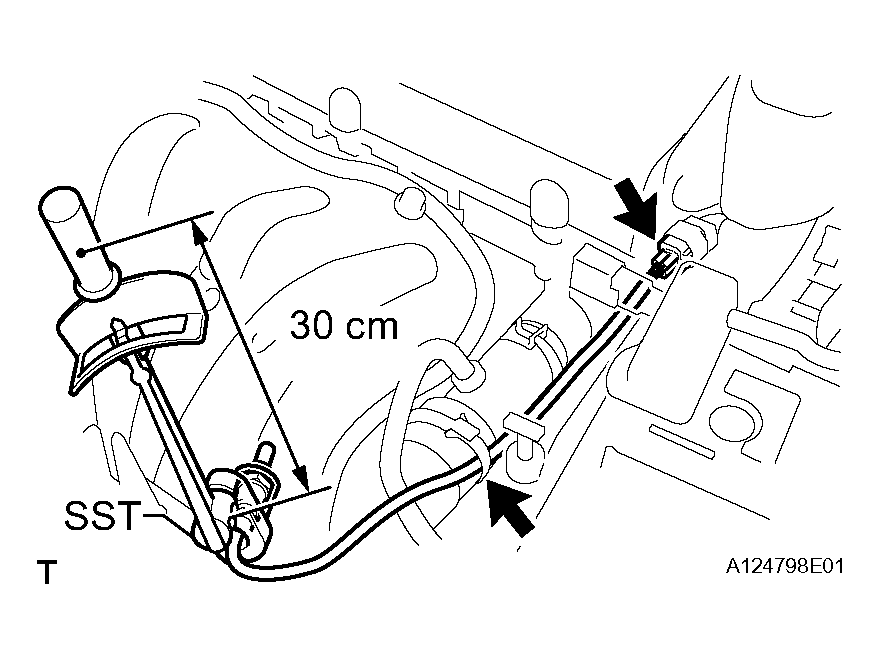

  Fig 1: Identifying Air Fuel Ratio Sensor (For Bank 1 Sensor 1)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:
  - Use a torque wrench with a fulcrum length of 30 cm (11.81 in.).
  - Make sure SST and wrench are connected in a straight line.
2. Connect the sensor connector.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
CHECK FOR EXHAUST GAS LEAKS
