On-Vehicle Inspection

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT REAR DOOR PANEL SUB-ASSEMBLY LH

Check that the clearance measurements of areas A to J are within the standard range.

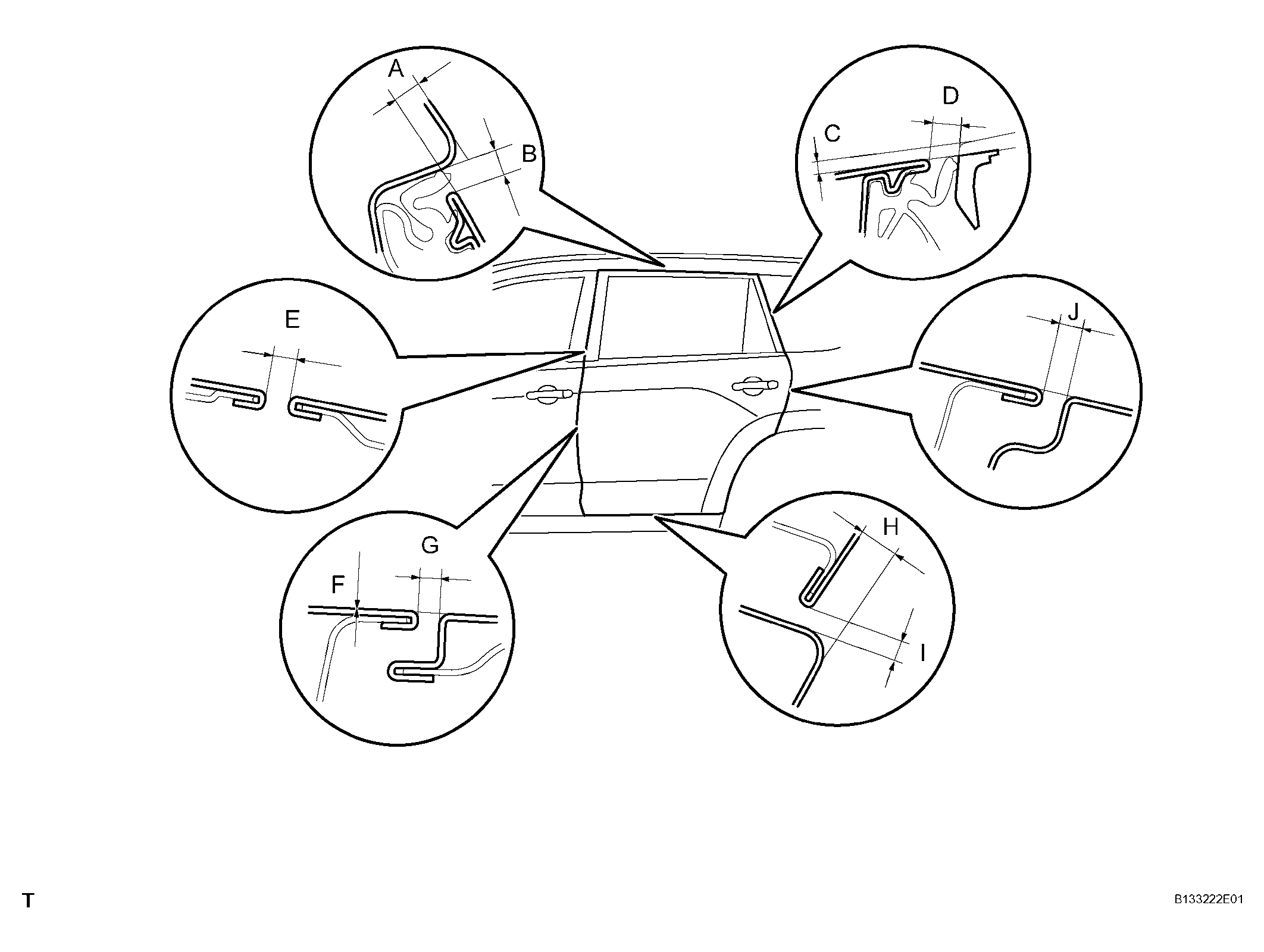

Fig 1: Checkng Rear Door Panel Clearances

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard measurement

STANDARD MEASUREMENT SPECIFIED AREA (REAR DOOR)

Area	Specified Condition	Area	Specified Condition
A	6.2 +- 1.5 mm (0.244 +- 0.059 in.)	F	0.0 +- 1.5 mm (0.000 +- 0.059 in.)
B	5.3 +- 1.5 mm (0.209 +- 0.059 in.)	G	4.5 +- 1.5 mm (0.177 +- 0.059 in.)
C	2.9 +- 1.5 mm (0.114 +- 0.059 in.)	H	9.5 +- 1.5 mm (0.374 +- 0.059 in.)
D	6.3 +- 1.5 mm (0.248 +- 0.059 in.)	I	5.1 +- 1.5 mm (0.201 +- 0.059 in.)
E	4.5 +- 1.5 mm (0.177 +- 0.059 in.)	J	3.9 +- 1.5 mm (0.154 +- 0.059 in.)
