On-Vehicle Inspection

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT HOOD SUB-ASSEMBLY
    1. Check that the clearance measurements of areas A to J are within the standard range.

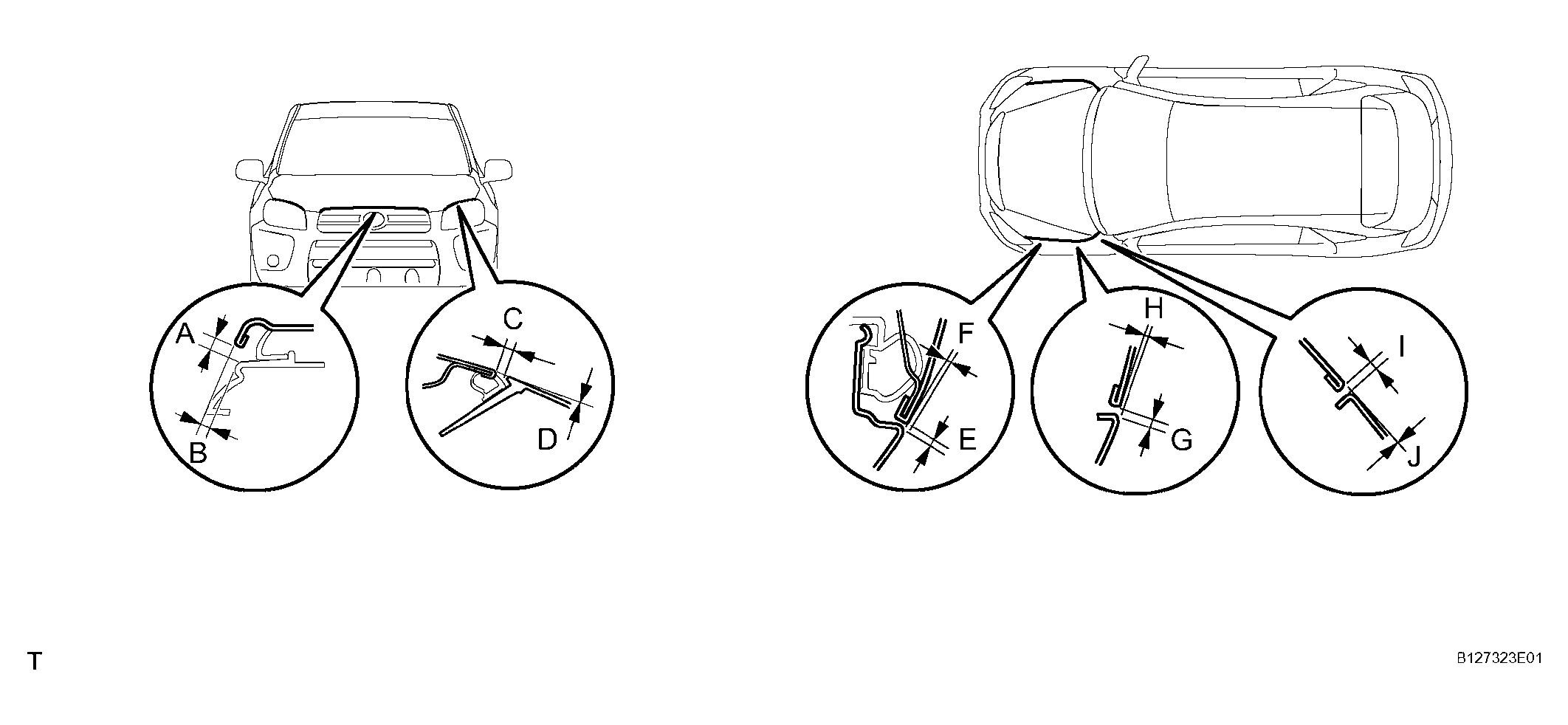

      Fig 1: Checking Hood Clearances
      G04491989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard measurement

      STANDARD MEASUREMENT SPECIFIED AREA (HOOD)

      Area Specified Condition Area Specified Condition
      A 7.1 +- 2.5 mm (0.278 +- 0.098 in.) F 0.6 +- 1.5 mm (0.024 +- 0.059 in.)
      B 3.6 +- 2.5 mm (0.140 +- 0.098 in.) G 3.5 +- 1.5 mm (0.138 +- 0.059 in.)
      C 5.9 +- 2.5 mm (0.230 +- 0.098 in.) H 0.5 +- 1.5 mm (0.020 +- 0.059 in.)
      D 0.2 +- 2.5 mm (0.006 +- 0.098 in.) I 3.5 +- 1.5 mm (0.138 +- 0.059 in.)
      E 3.5 +- 1.5 mm (0.150 +- 0.138 in.) J 0.0 +- 1.5 mm (0.000 +- 0.059 in.)
