Fuel Pressure Regulator: Installation

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FUEL PRESSURE REGULATOR ASSEMBLY
1. Apply a light coat of gasoline to 2 new O-rings, and install them onto the fuel pressure regulator.

  Fig 1: Applying Light Coat Of Gasoline To O-Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the fuel pressure regulator to the fuel filter.

  Fig 2: Identifying Fuel Pressure Regulator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL PUMP ASSEMBLY
1. Connect the pump harness connector.

  Fig 3: Identifying Pump Harness Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply gasoline to a new O-ring and install the O-ring to the fuel filter.

  Fig 4: Identifying Fuel Filter O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Attach the 5 claws to the claw holes and install the fuel pump.
INSTALL BRACKET
1. Attach the 2 claws to the claw holes and install the bracket.

  Fig 5: Identifying Bracket Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL SUB-TANK ASSEMBLY
1. Attach the 2 claws to the claw holes and install the fuel sub-tank.

  Fig 6: Identifying Sub-Tank Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the wire harness.

  Fig 7: Identifying Wire Harness
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the spring to the fuel suction plate shaft and install it to the sub-tank.

  Fig 8: Identifying Springs From Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using needle-nose pliers, install a new E-ring.
  HINT:

  Slightly lower the sub-tank to install the E-ring.

  Fig 9: Removal/Installation Of E-Ring Using Needle Nose Pliers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL SUCTION WITH PUMP ASSEMBLY
1. Install a new gasket onto the fuel pump.

  Fig 10: Identifying Gasket From Fuel Pump
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

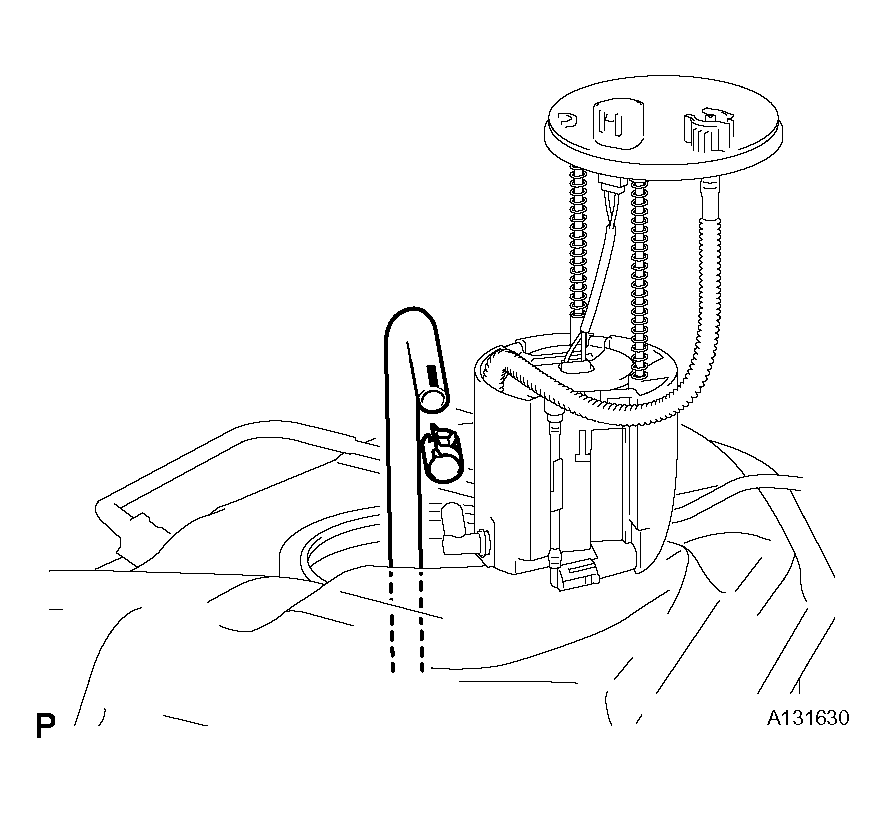

2. Connect the fuel hose and install the fuel pump into the fuel tank.
  NOTE: Do not damage the fuel pump filter.

  Fig 11: Connecting Fuel Hose And Installing Fuel Pump Into Fuel Tank
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL TANK VENT TUBE SET PLATE
1. Install the set plate with the 8 bolts.
  Torque: 4.0 N.m (41 kgf.cm, 35 in.lbf)

  Fig 12: Identifying Set Plate With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL TANK MAIN TUBE SUB-ASSEMBLY
1. Install the fuel tube with the joint clips.

  Fig 13: Installing Fuel Tube With Joint Clips (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 14: Installing Fuel Tube With Joint Clips (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

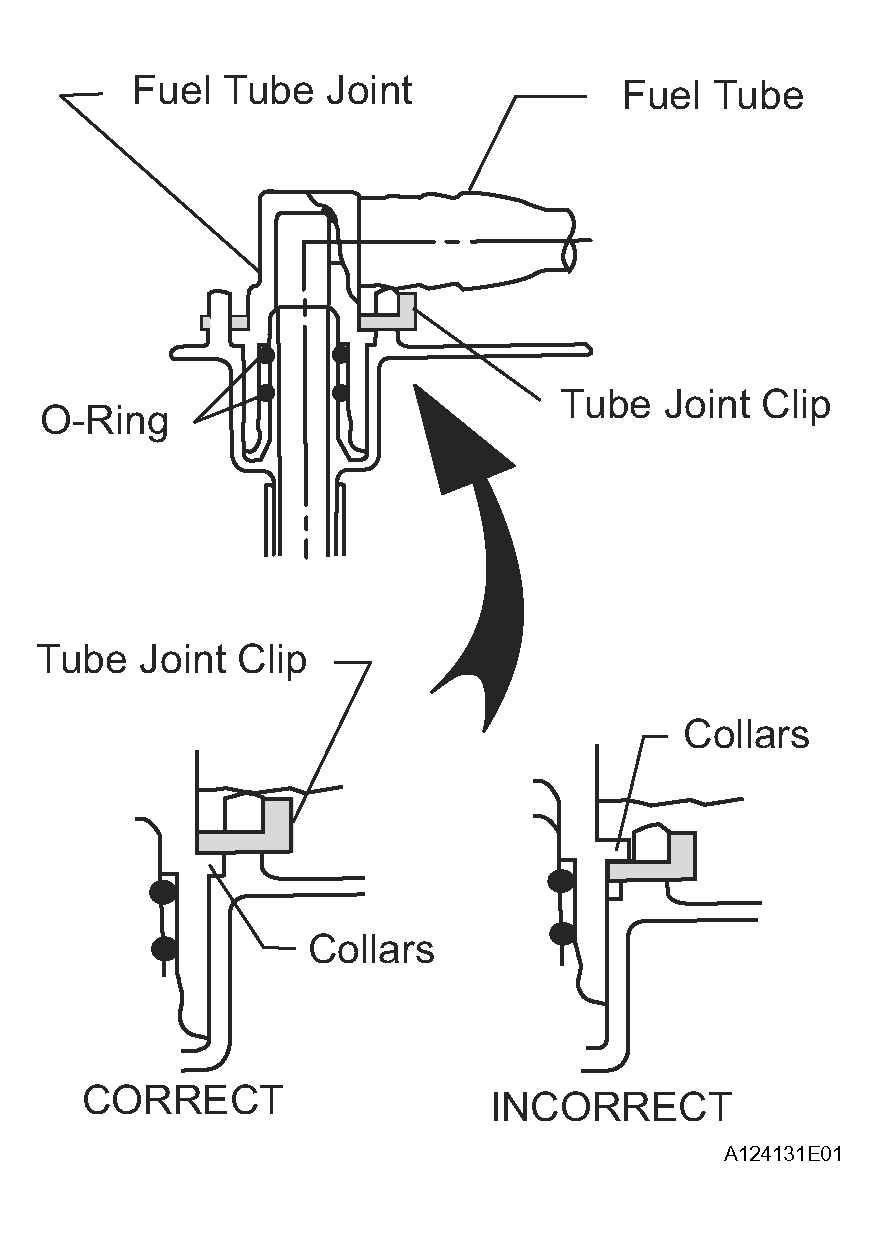

  CAUTION:
  - Check that there are no scratches or foreign objects on the connecting parts.
  - Check that the fuel tube joint is inserted securely.
  - Check that the fuel tube joint clip is on the collars of the fuel tube joint.
  - After installing the tube joint clip, check that the fuel tube joint has not been pulled off.
  - Be careful not to damage the clip. If the clip is damaged, replace it.
INSTALL FUEL TANK ASSEMBLY
1. Install the fuel tank (see REASSEMBLY ).
