Fuel Pressure Regulator: Components

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

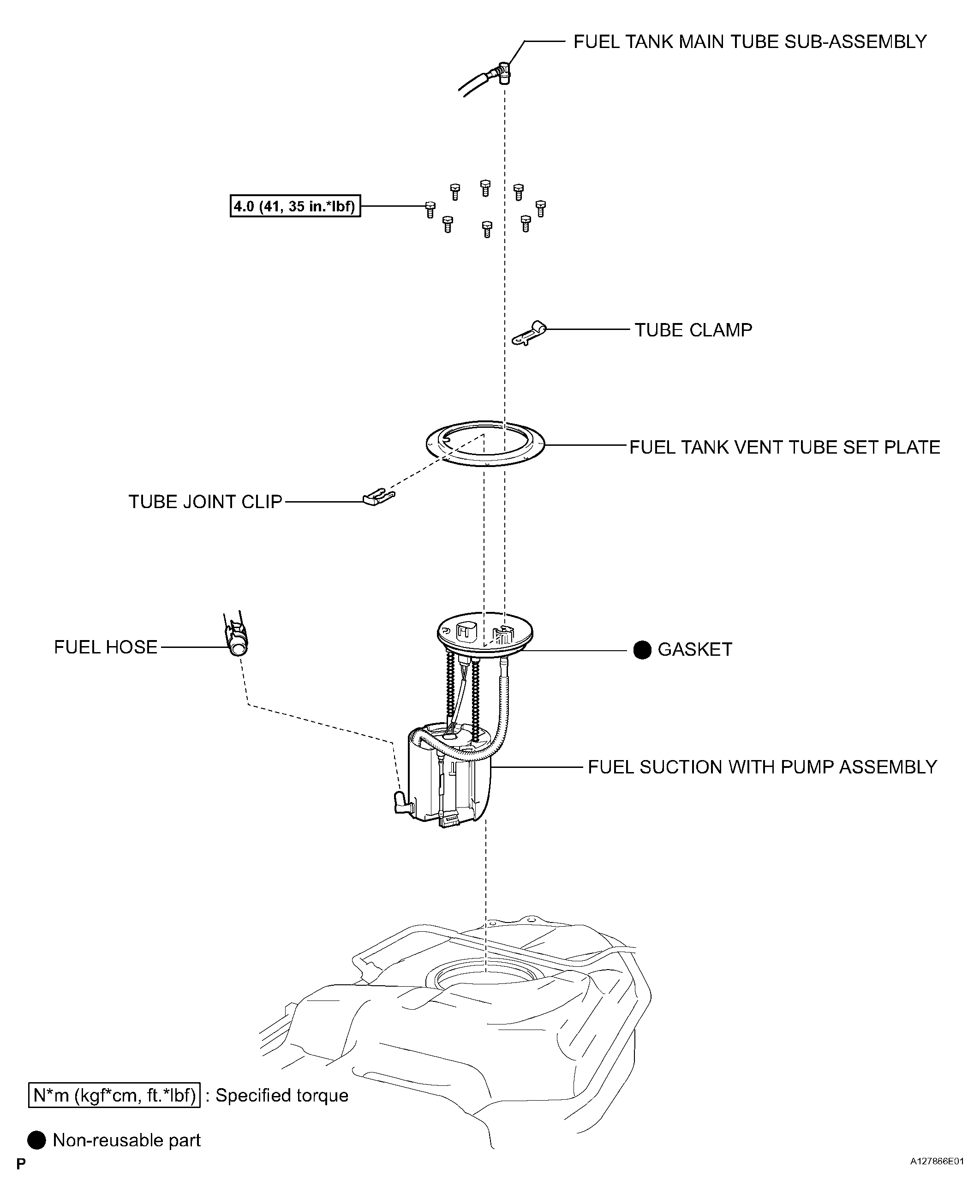

Fig 1: Fuel Pressure Regulator Replacement Components With Torque Specifications (1 Of 2)
G04485429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

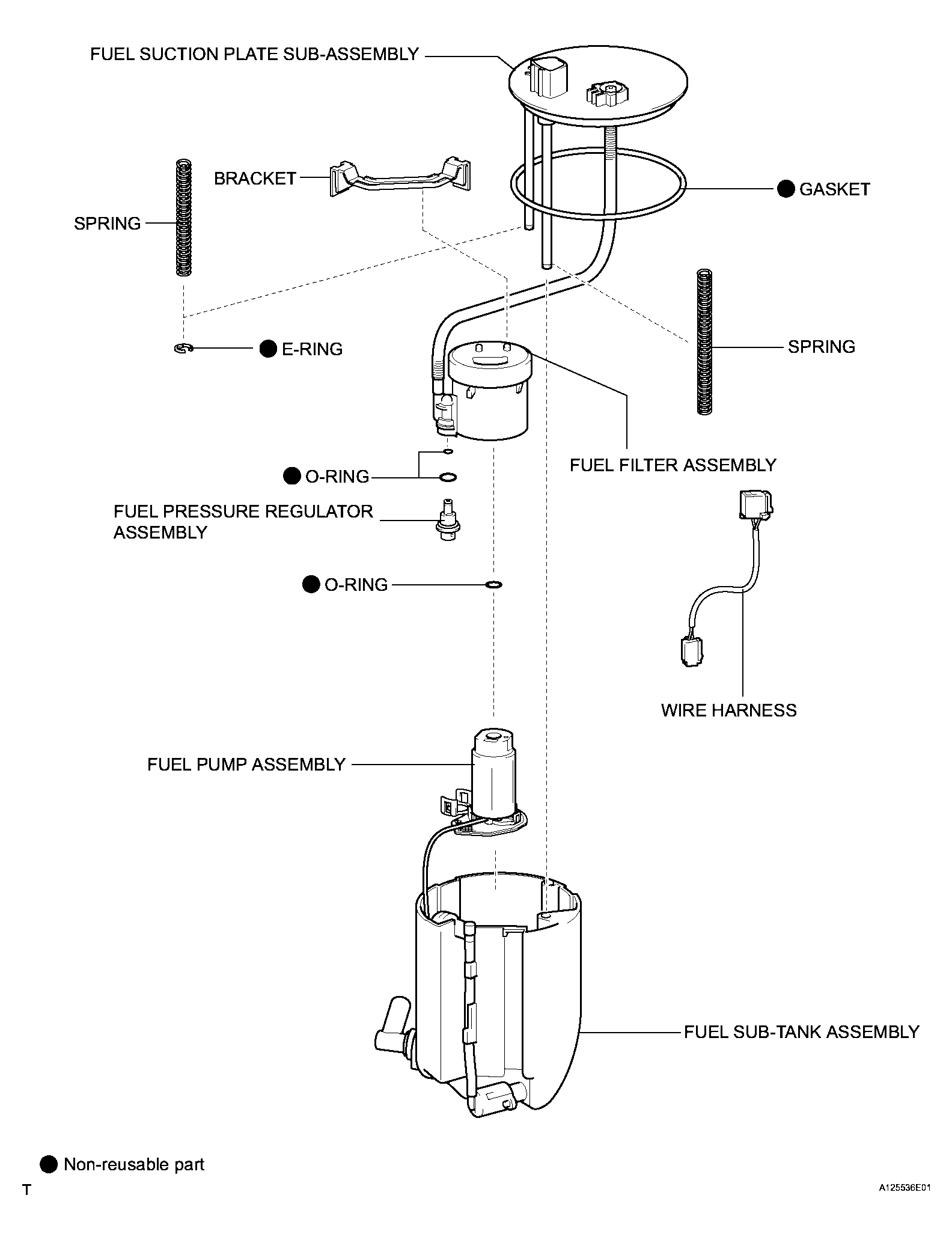

Fig 2: Identifying Fuel Pressure Regulator Components (2 Of 2)
G04485430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
