Fuel Pressure Pulsation Damper: Installation

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FUEL PRESSURE PULSATION DAMPER ASSEMBLY
1. Apply a light coat of gasoline or spindle oil to the O-ring of the fuel pressure pulsation damper.

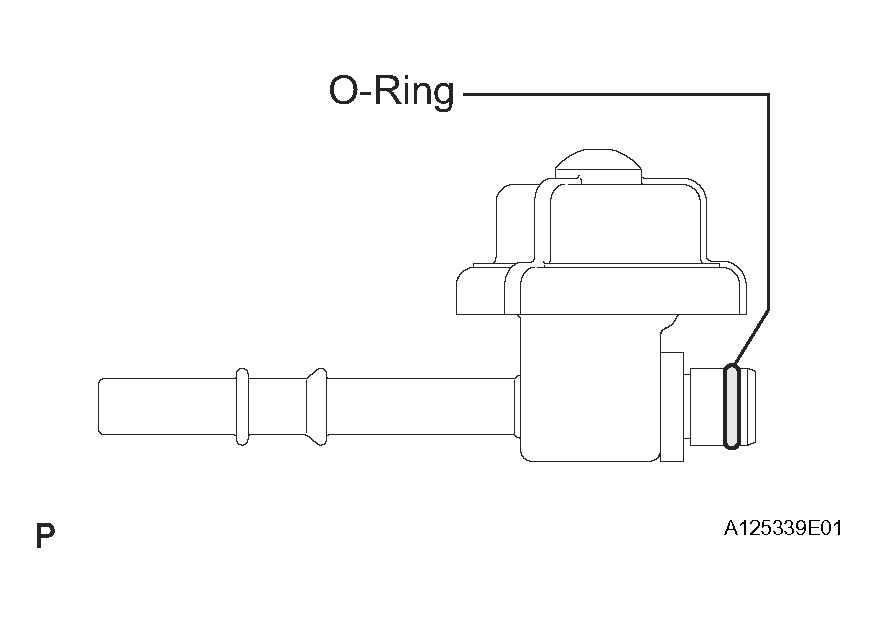

  Fig 1: Applying Light Coat Of Gasoline Or Spindle Oil To O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the fuel pressure pulsation damper with the 2 bolts.
  Torque: 9.0 N.m (90 kgf.cm, 80 in.lbf)

  NOTE: Make sure that the O-ring is not cracked or jammed when installing.

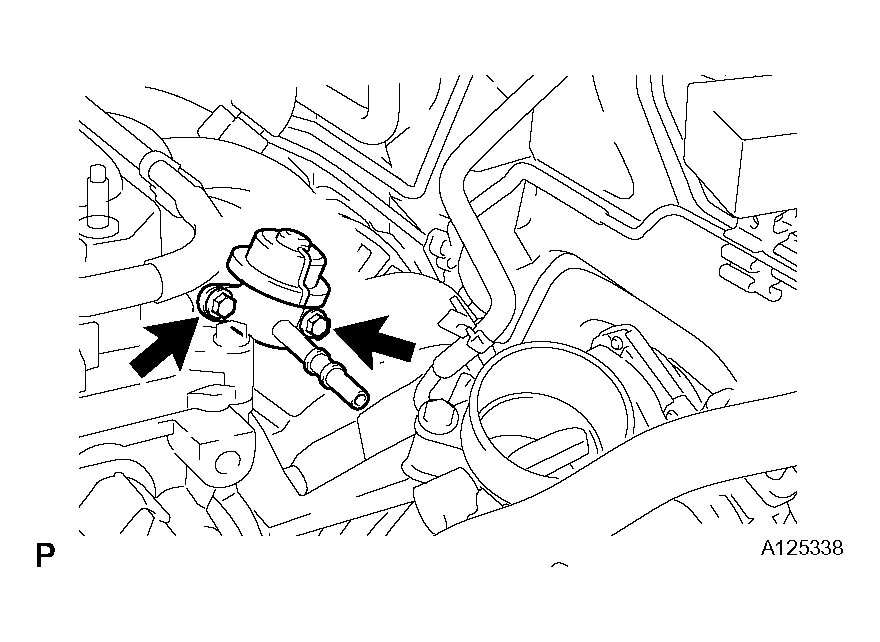

  Fig 2: Identifying Fuel Pressure Pulsation Damper Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL MAIN TUBE (See appropriate step(s) under INSTALLATION )
INSTALL AIR CLEANER CAP SUB-ASSEMBLY (See appropriate step(s) under INSTALLATION )
INSTALL NO. 1 ENGINE COVER (See appropriate step(s) under INSTALLATION )
CONNECT CABLE TO BATTERY NEGATIVE TERMINAL
INSPECT FOR FUEL LEAKS (See 8 ).
