Section 165 (Charging System (2AZ-FE)): Generator: Disassembly

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE GENERATOR PULLEY WITH CLUTCH

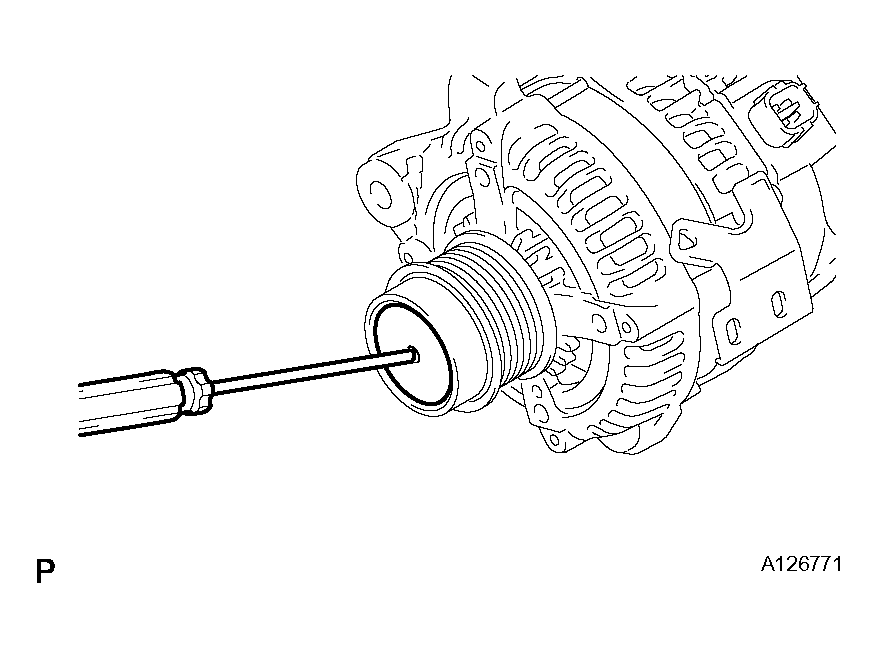

1. Remove the cap from the pulley.
  1. Using a screwdriver, puncture the center of the cap and pry it off.
    NOTE: Do not reuse the cap.

    Fig 1: Removing Cap From Pulley
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install SST to the pulley and vise as shown in Fig 2.
  SST 09820-63020
3. Mount SST (A) in a vise.

  Fig 2: Installing SST (A) In Vise
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

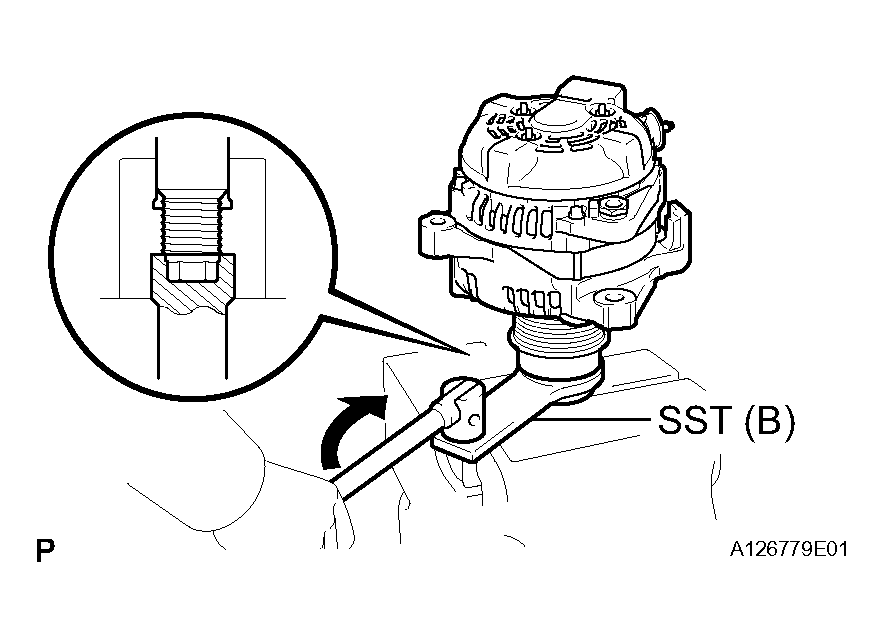

4. Turn SST (B) clockwise to loosen the pulley.
5. Remove the pulley.

  Fig 3: Installing SST (B) Clockwise To Loosen Pulley
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GENERATOR BRUSH HOLDER ASSEMBLY
1. Remove the 3 nuts and generator rear end cover.

  Fig 4: Removing Generator Brush Holder Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

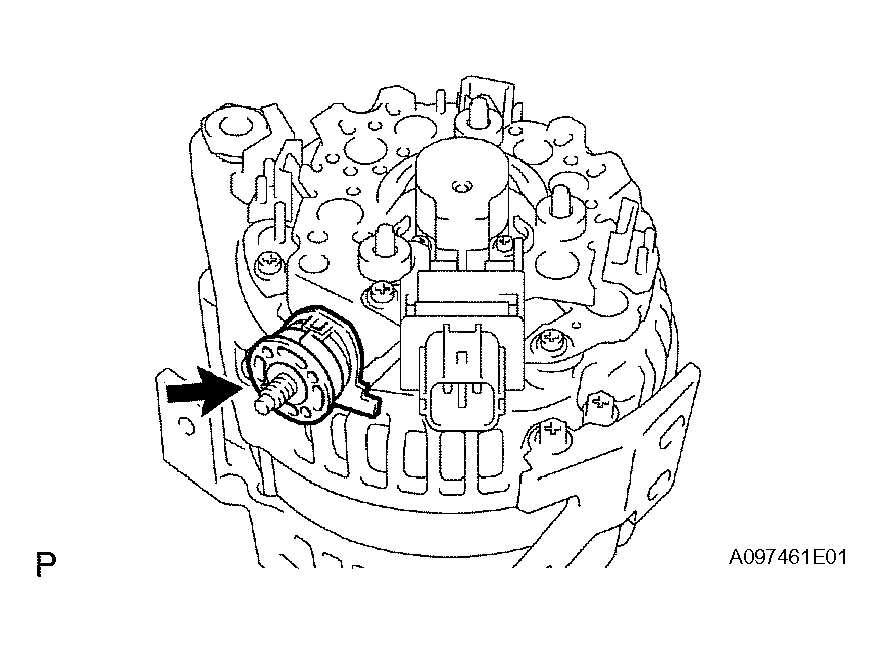

2. Remove the terminal insulator.

  Fig 5: Removing Terminal Insulator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

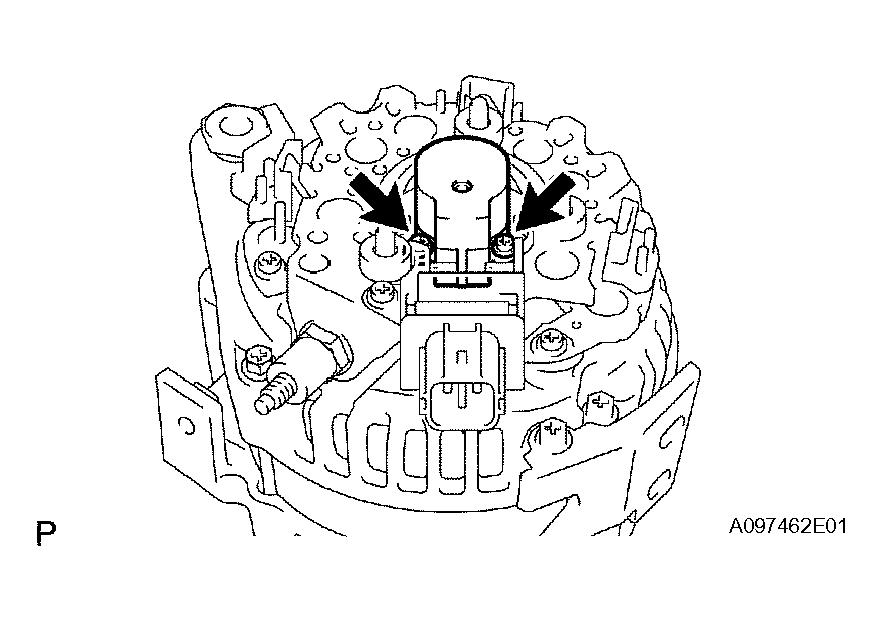

3. Remove the 2 screws and generator brush holder.

  Fig 6: Removing Generator Brush Holder
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GENERATOR ROTOR ASSEMBLY

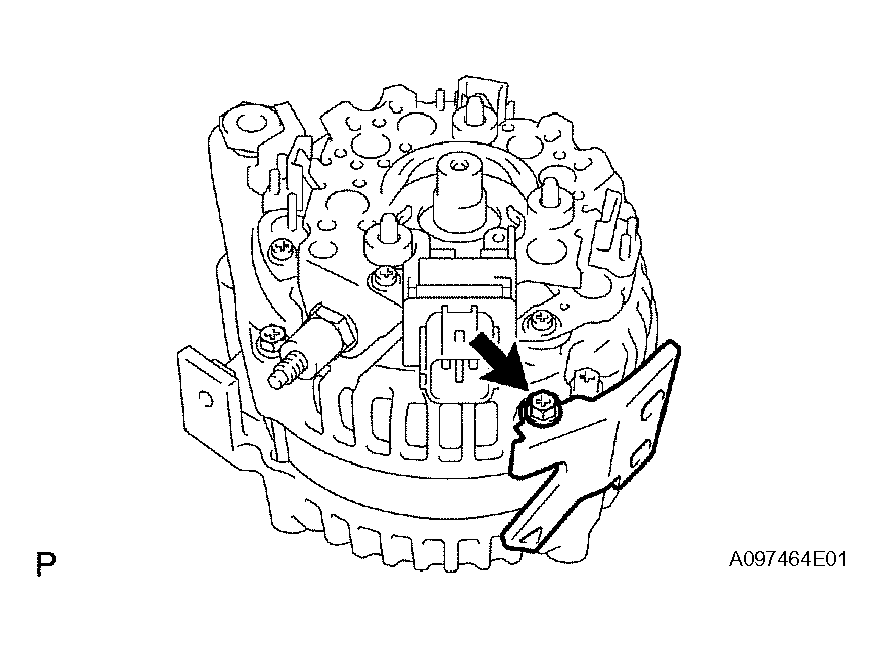

1. Remove the bolt and cord clip.

  Fig 7: Removing Cord Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

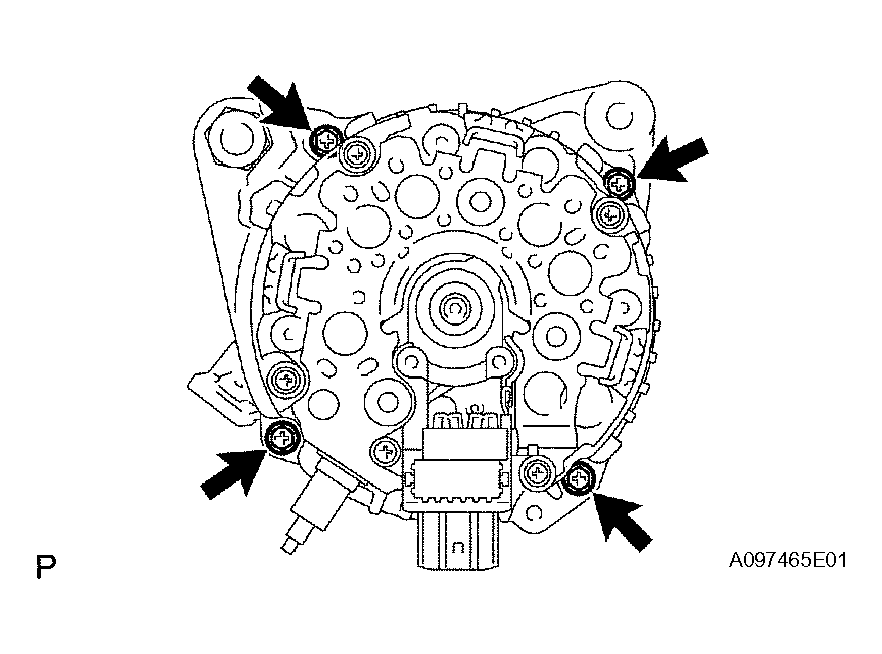

2. Remove the 4 bolts.

  Fig 8: Removing Generator Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST, remove the coil.
  SST 09950-40011 (09951-04020, 09952-04010, 09953-04020, 09954-04010, 09955-04071, 09957-04010)

  Fig 9: Removing Coil
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the washer.
5. Remove the generator rotor.
