On-Vehicle Inspection
WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK BATTERY CURRENT SENSOR ASSEMBLY

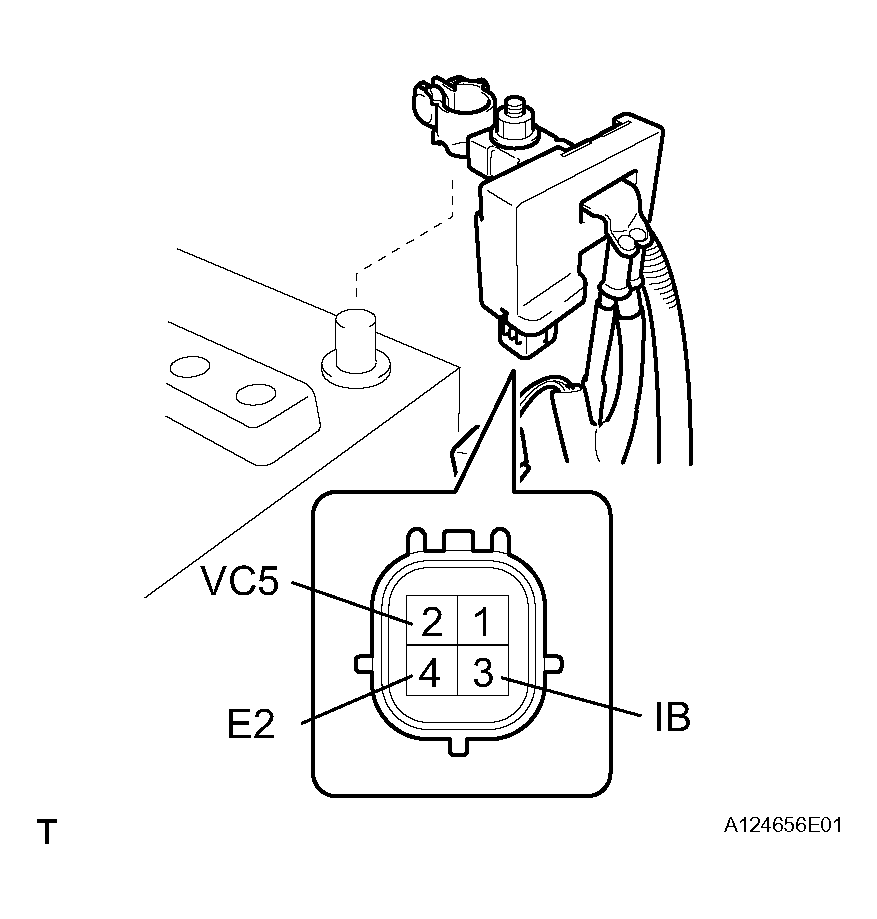

- Measure the resistance of the sensor.
Standard resistance
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Specified Condition 2 (VC5) - 4 (E2) 3 to 10 kΩ 2 (VC5) - 3 (IB) Below 0.5 kΩ 3 (IB) - 4 (E2) 3 to 10 kΩ If the result is not as specified, replace the sensor assembly.

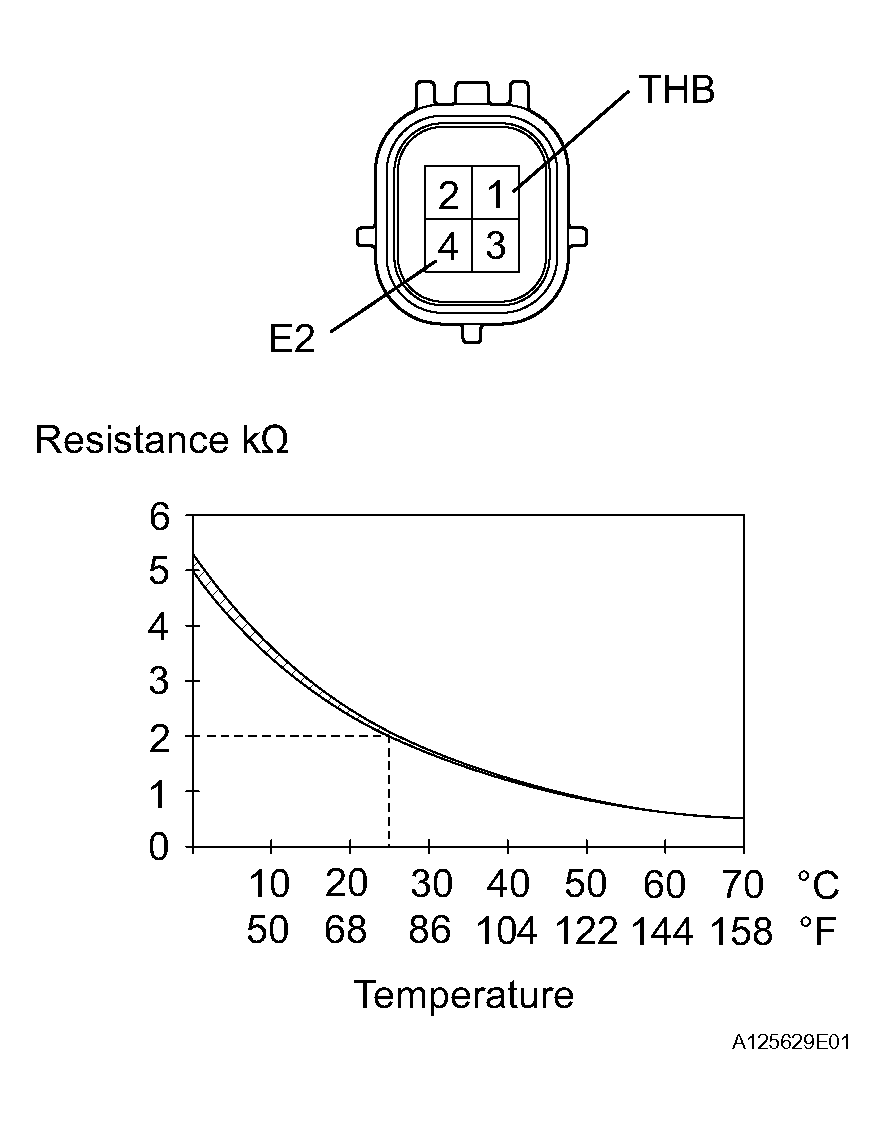

- Measure the resistance of the sensor.
Standard resistance
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Condition Specified Condition 1 (THB) - 4 (E2) 20 to 30°C (68 to 86°F) 1.5 to 2.5 kΩ If the result is not as specified, replace the sensor assembly.
- Measure the resistance of the sensor.
