Ignition Coil: Installation

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL IGNITION COIL ASSEMBLY
1. Install the 4 ignition coils with the 4 bolts.
  Torque: 9.0 Nm (92 kgf.cm, 80 in.lbf)

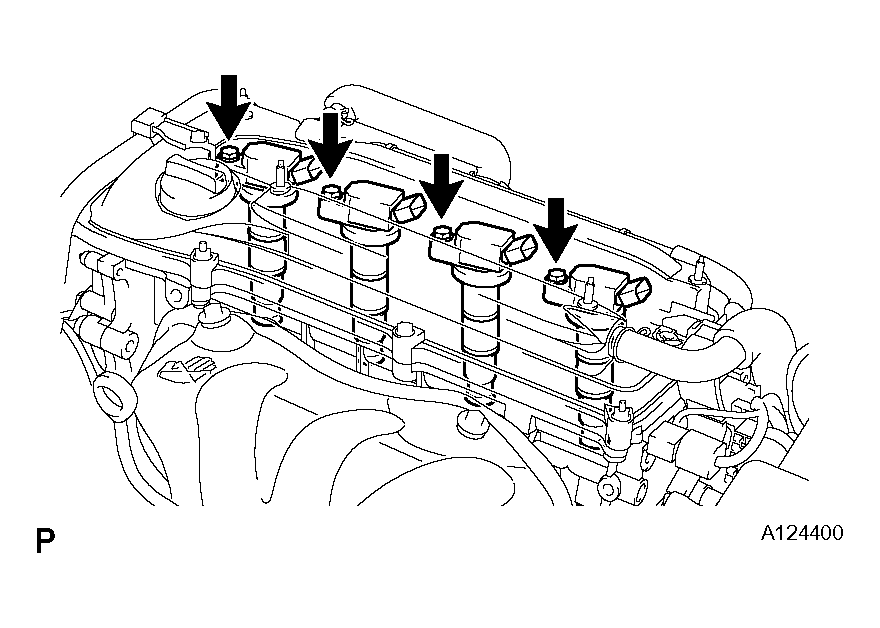

  Fig 1: Installing Ignition Coils
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 4 ignition coil connectors.
INSTALL NO. 1 ENGINE COVER (Under INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
