Oil Pump: Replacement

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

REPLACE TIMING CHAIN COVER OIL SEAL
1. Using a screwdriver, pry out the oil seal.
  HINT:

  Tape the screwdriver tip before use.

  NOTE: Do not damage the surface of the oil seal press fit hole.

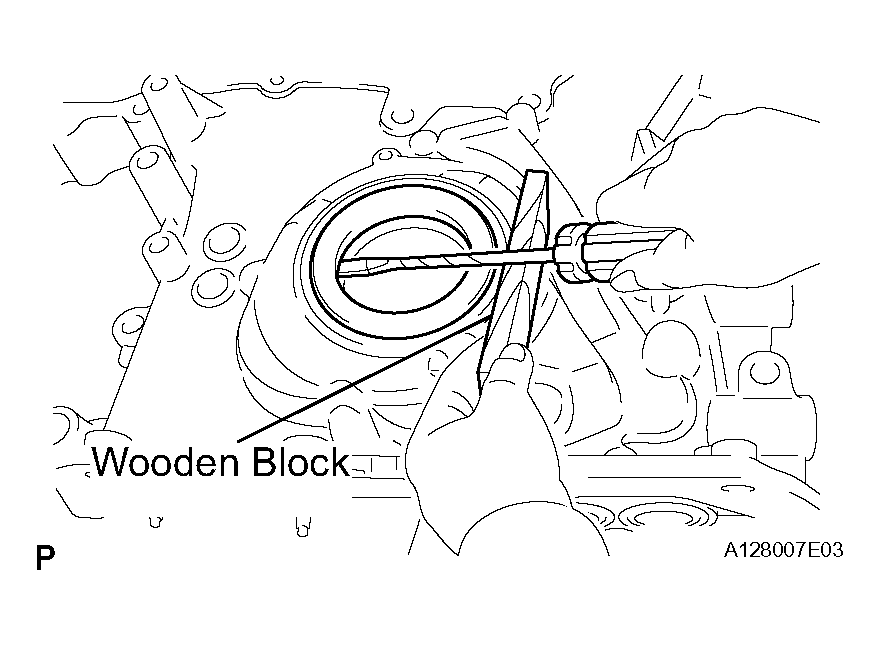

  Fig 1: Prying Out Timing Chain Cover Oil Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a hammer, tap in a new oil seal until its surface is flush with the timing chain cover edge.
  SST 09316-60011 (09316-00011)

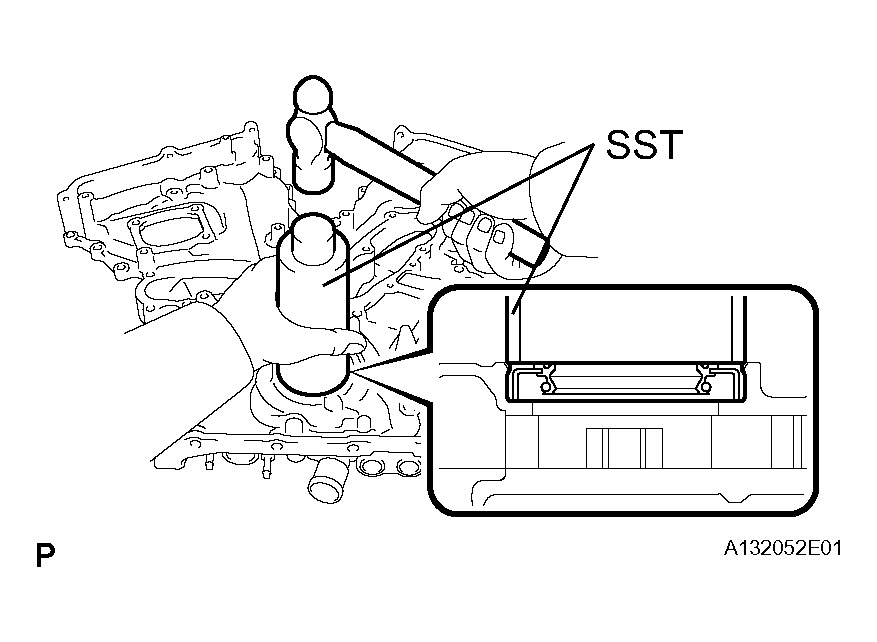

  Fig 2: Installing Out Timing Chain Cover Oil Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Keep the lip free from foreign matter.
  - Do not tap the oil seal at an angle.
  - Make sure that the oil seal edge does not stick out of the timing chain case.
3. Apply MP grease to the lip of the oil seal.
