Oil Pump: Reassembly

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL OIL PUMP COVER

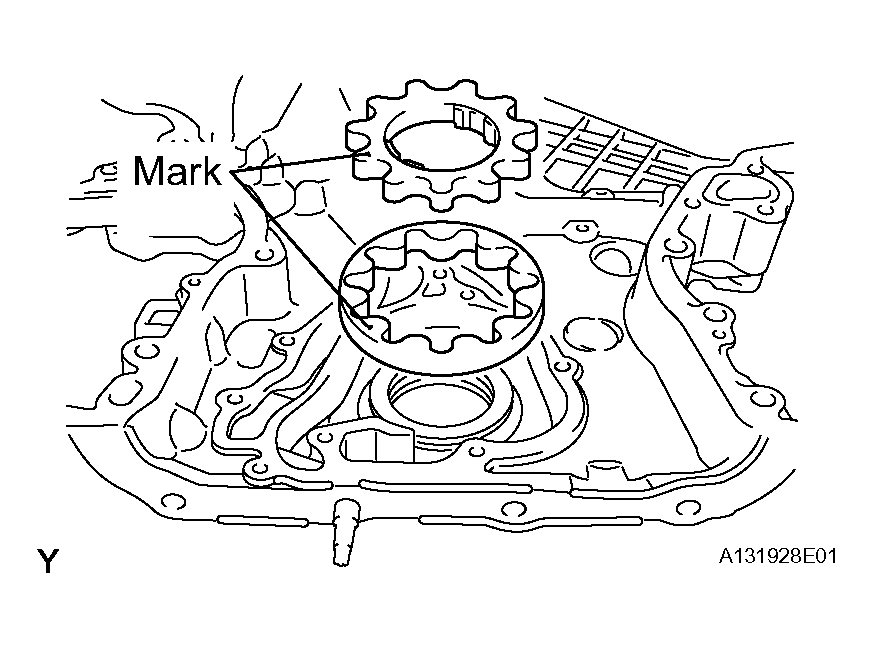

1. Install the drive and driven rotors into the timing chain cover with the rotors' marks facing the cylinder block side. Check that the rotors revolve smoothly.

  Fig 1: Installing Drive & Driven Rotors Into Timing Chain Cover With Rotors Marks Facing Cylinder Block Side
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

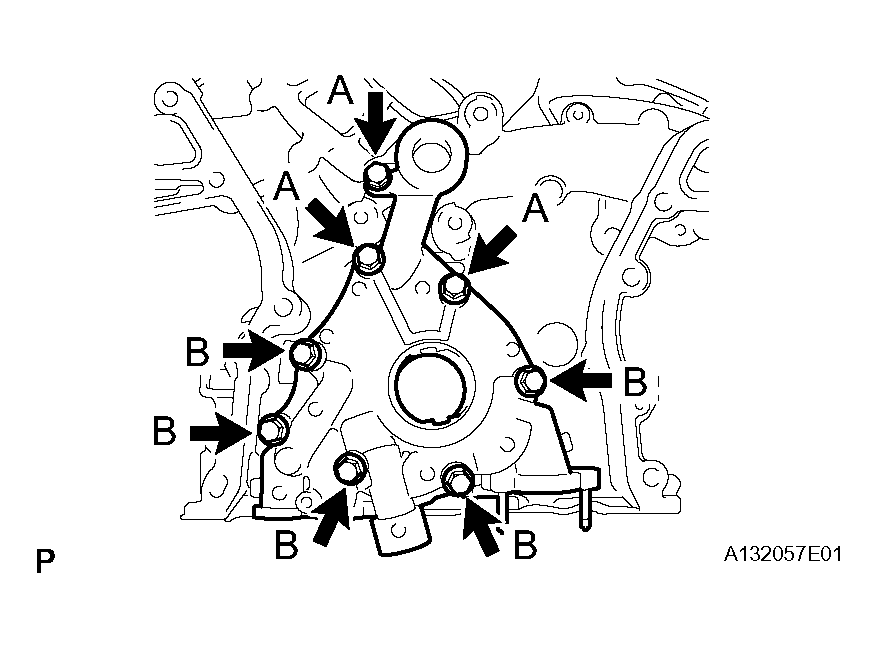

2. Install the oil pump cover with the 8 bolts. (See Fig 2)
  Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

  HINT:

  Bolt length:

  22 mm (0.87 in.) for bolt A

  40 mm (1.58 in.) for bolt B

  Fig 2: Installing Relief Valve & Relief Valve Spring Into Timing Chain Cover Hole
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OIL PUMP RELIEF VALVE
1. Coat the oil pump relief valve with engine oil.
2. Install the relief valve and relief valve spring into the timing chain cover hole.
3. Using a 27 mm socket wrench, install the plug.
  Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)

  Fig 3: Installing Oil Pump Relief Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
