Oil Pump: Disassembly

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE OIL PUMP RELIEF VALVE
1. Using a 27 mm socket wrench, remove the plug.
2. Remove the valve spring and oil pump relief valve.

  Fig 1: Removing Plug, Valve Spring & Oil Pump Relief Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE OIL PUMP COVER
1. Remove the 8 bolts, oil pump cover, drive rotor and driven rotor.
  NOTE: Be careful not to damage the drive and driven rotors.

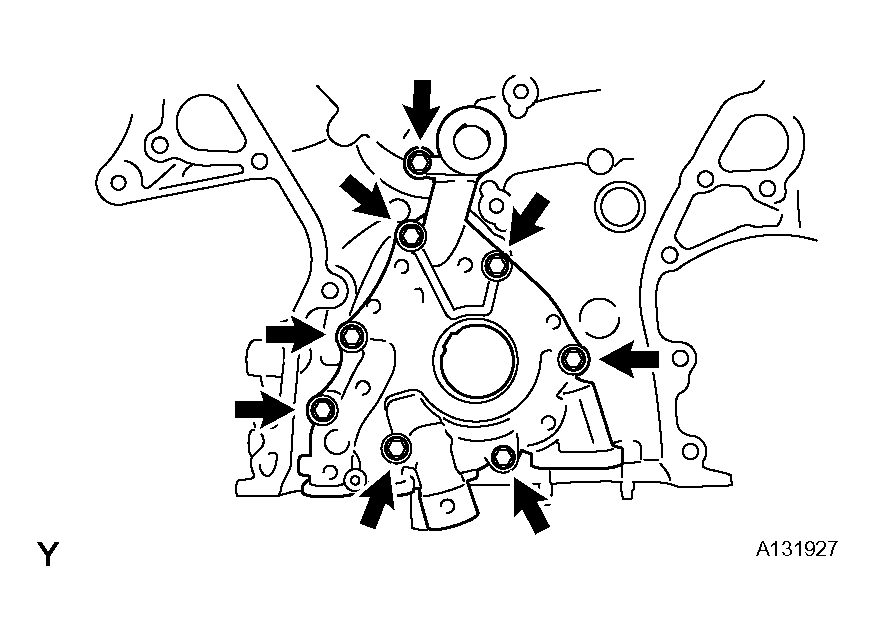

  Fig 2: Removing Oil Pump Cover Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
