On-Vehicle Inspection

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

CHECK ENGINE OIL LEVEL
1. Warm up the engine, stop the engine and wait for 5 minutes. The oil level should be between the dipstick's low and full level marks.
  If the oil level is low, check for leakage and add oil up to the full level mark.

  NOTE: Do not fill engine oil above the full level mark.
CHECK ENGINE OIL QUALITY
1. Check the oil for deterioration, water contamination, discoloring or thinning.
  If the quality is visibly poor, replace the oil.

  HINT:
  - TOYOTA Genuine Motor Oil is in this vehicle when it is shipped.
  - Use TOYOTA approved TOYOTA Genuine Motor Oil or equivalent to satisfy the following grade and viscosity.
  Oil grade: ILSAC multigrade engine oil is recommended. SAE 5W-30 is the best choice for good fuel economy and good starting in cold weather.

  If SAE 5W-30 in not available, SAE 10W-30 may be used. However, it should be replaced with SAE 5W-30 at the next oil change.

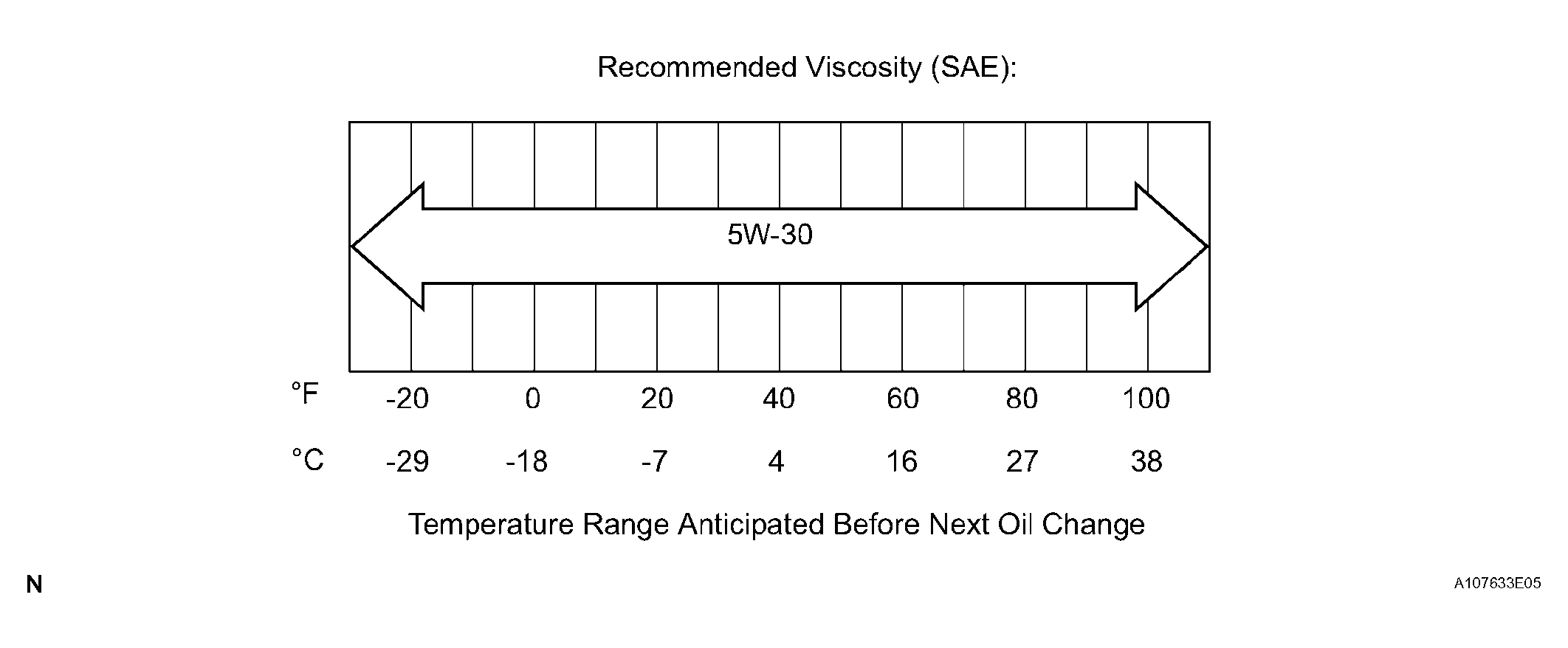

  Fig 1: Oil Viscosity Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CHECK ENGINE OIL PRESSURE

Disconnect the oil pressure switch connector.
Using a 24 mm deep socket wrench, remove the oil pressure switch.

Fig 2: Removing Oil Pressure Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install the oil pressure gauge.

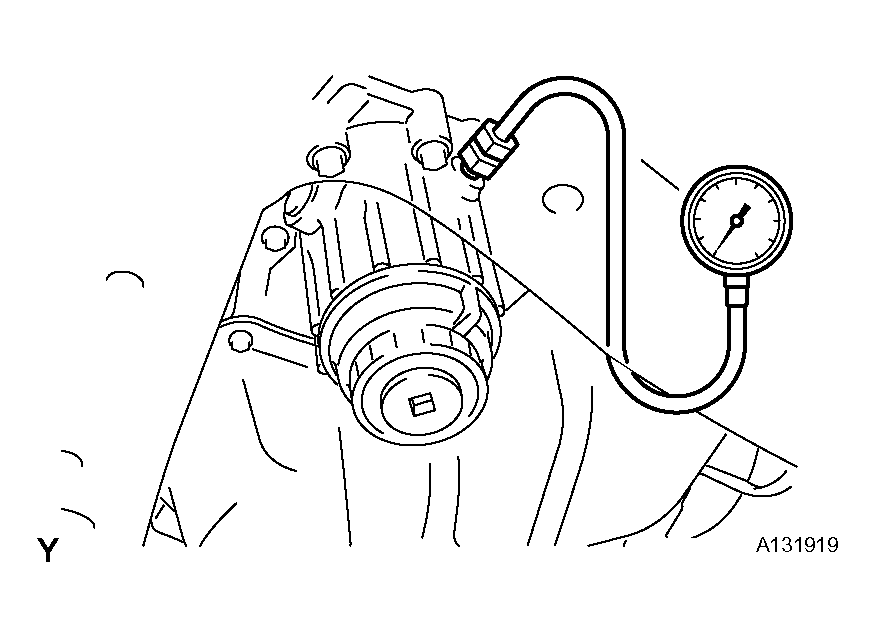

Fig 3: Installing Oil Pressure Gauge
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Warm up the engine.

Measure the oil pressure.

Standard oil pressure

STANDARD OIL PRESSURE SPECIFICATION

Condition	Specified Condition
Idle	80 kPa (0.8 kgf/cm² , 11.6 psi) or more
6,000 RPM	380 kPa (3.9 kgf/cm² , 55.5 psi) or more

If the oil pressure is not as specified, check the oil pump.

Remove the oil pressure gauge.
Apply adhesive to 2 or 3 threads of the oil pressure switch.
Adhesive: Toyota Genuine Adhesive 1344, Three Bond 1344 or Equivalent

Fig 4: Applying Adhesive To Threads Of Oil Pressure Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install the oil pressure switch.

Fig 5: Installing Oil Pressure Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

NOTE: Do not start the engine for at least 1 hour after installation of the switch.
Connect the oil pressure switch connector.
Start the engine and check for engine oil leaks.
