Oil Pump: Removal

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE CHAIN SUB-ASSEMBLY
    1. Remove the chain (see appropriate step(s) under REMOVAL ).
  2. REMOVE OIL PUMP ASSEMBLY
    1. Remove the 3 bolts, oil pump and gasket.

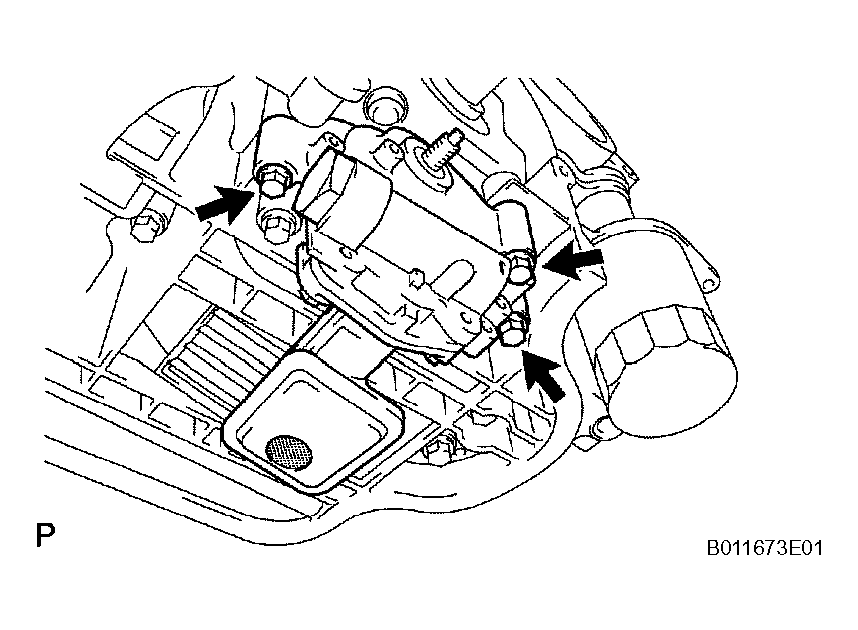

      Fig 1: Removing Oil Pump & Gasket
      G04485908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
