Rear Seat Outer Belt Assembly
>>
Components
Rear Seat Outer Belt Assembly: Components
WARNING:
This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

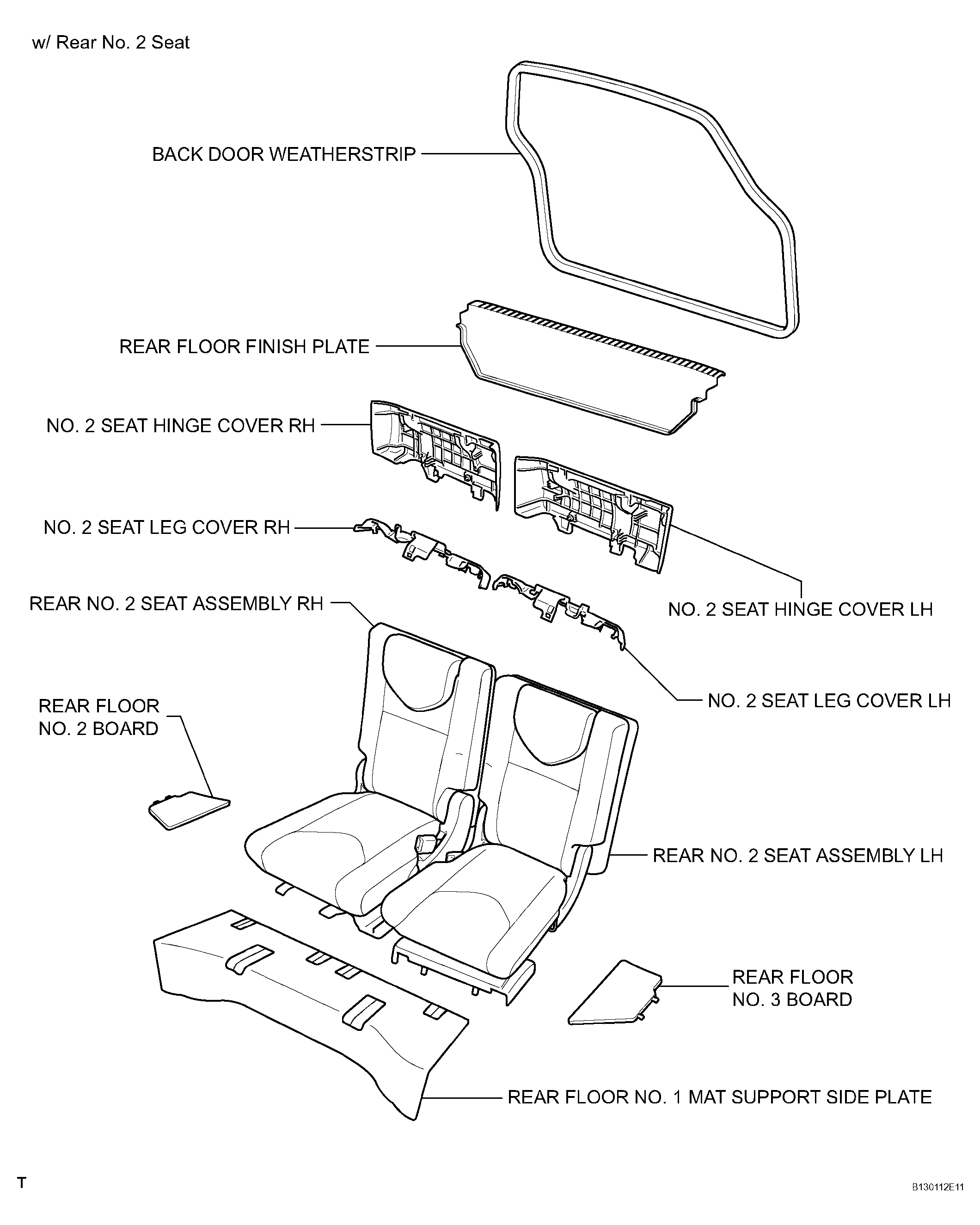

Fig 1: Identifying Rear Seat Outer Belt Assembly Components (1 Of 4 )
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

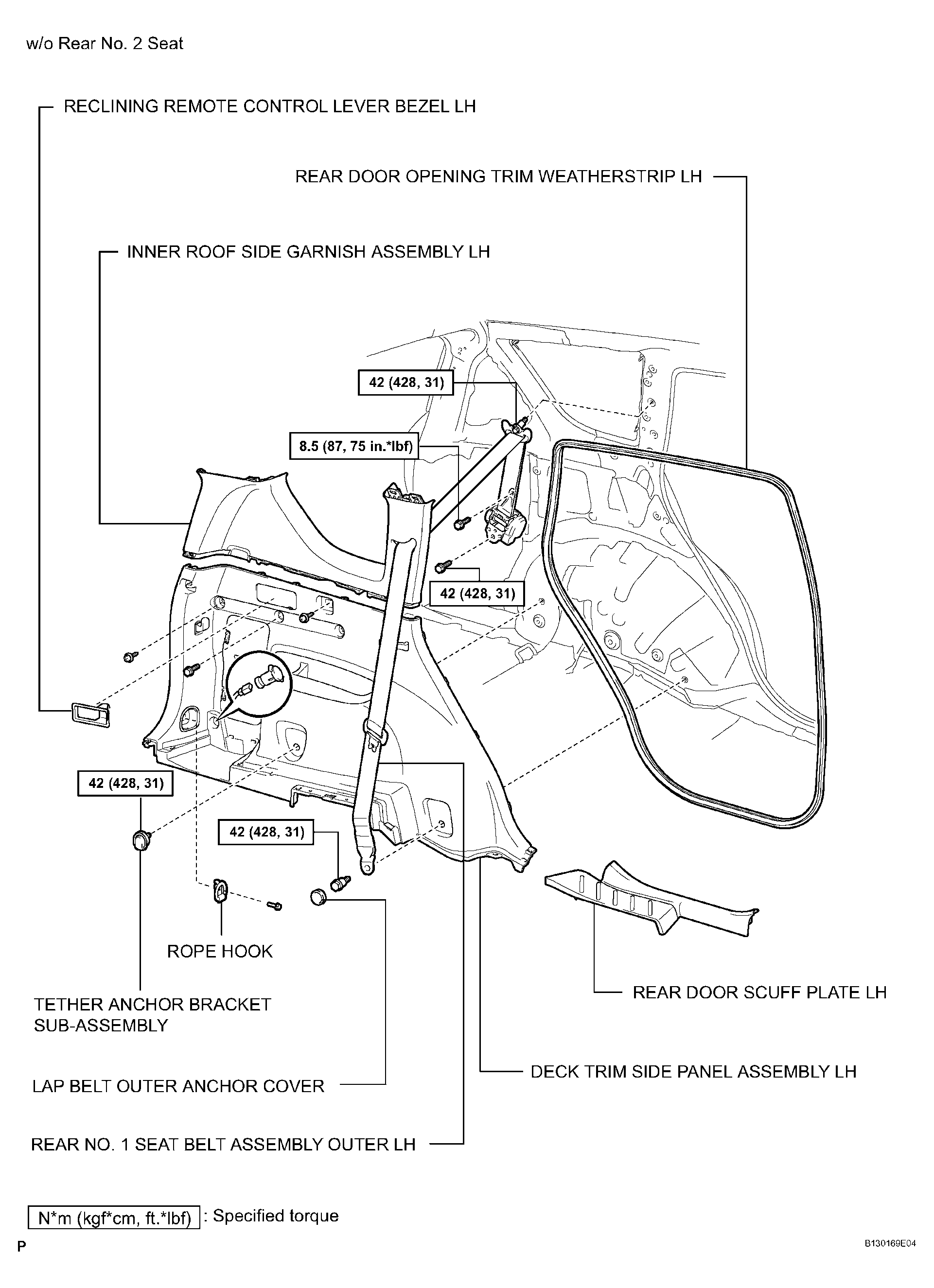

Fig 2: Rear Seat Outer Belt Assembly Replacement Components With Torque Specifications (2 Of 4 )
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

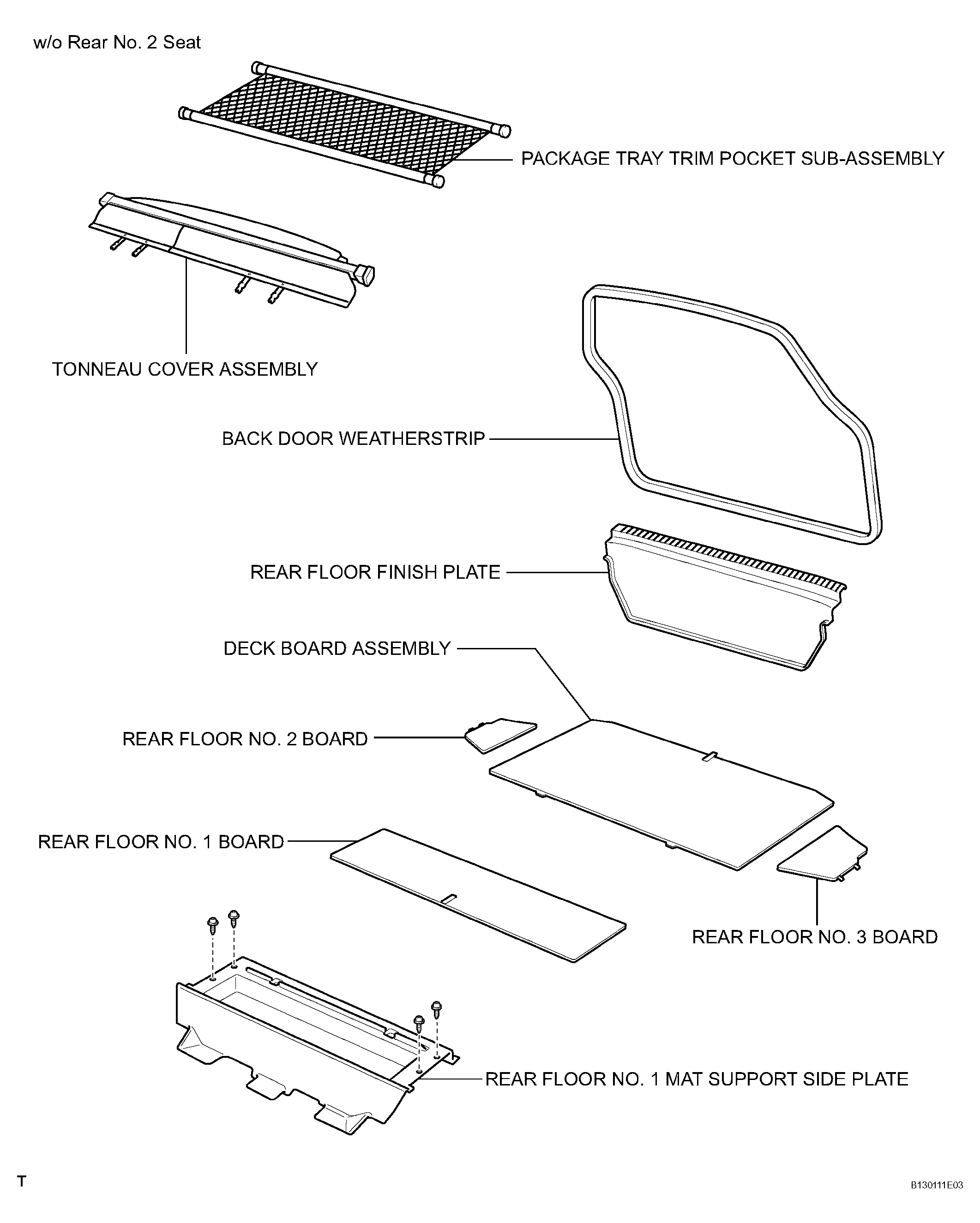

Fig 3: Rear Seat Outer Belt Assembly Replacement Components With Torque Specifications (3 Of 4 )
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

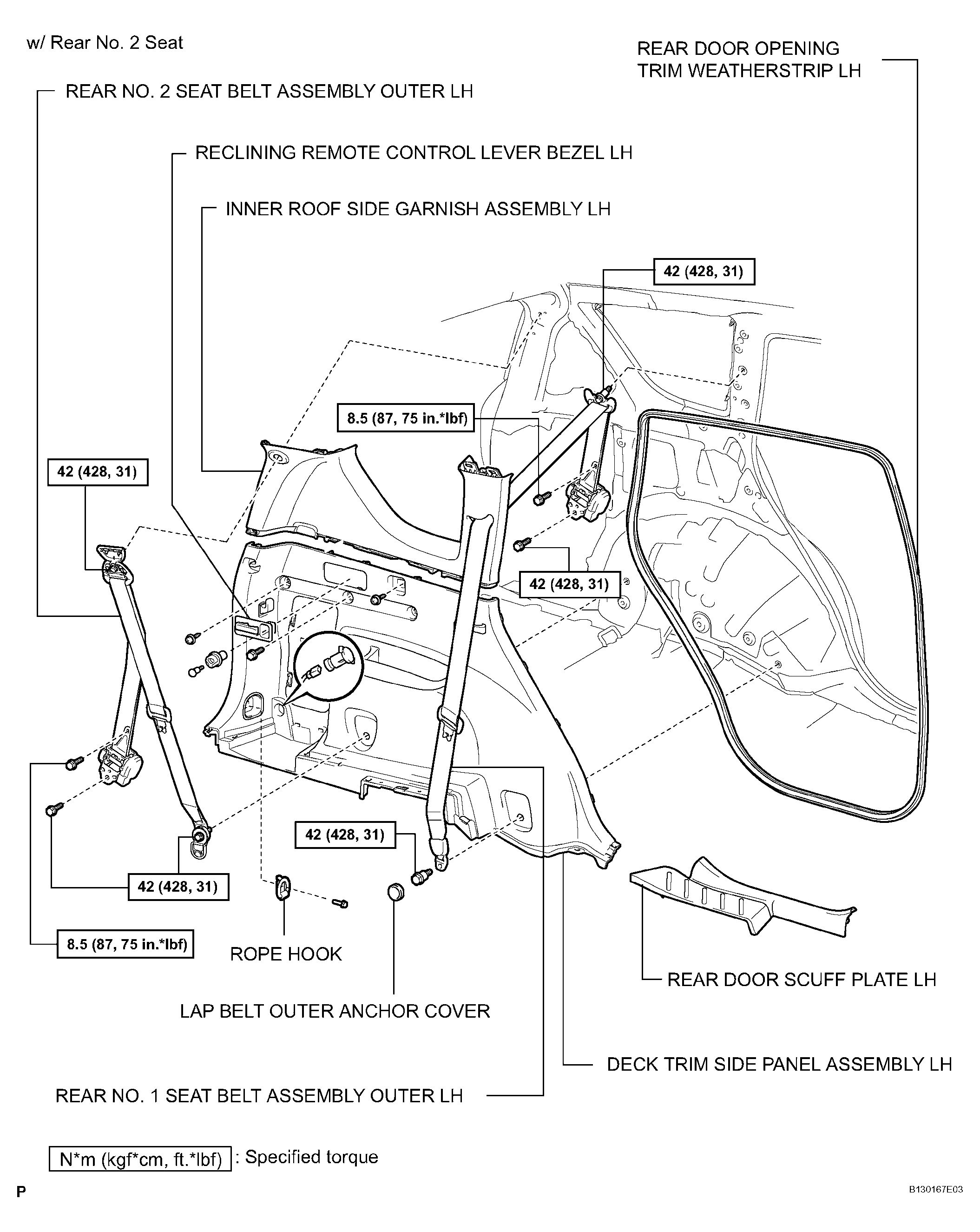

Fig 4: Identifying Rear Seat Outer Belt Assembly Components (4 Of 4 )
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
