Rear Center Seat Outer Belt Assembly: Removal

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

HINT: Refer to appropriate step(s) under "Removal and Disassembly".

REMOVE SHOULDER BELT ANCHOR COVER RH
1. Using a screwdriver, remove the 4 claws and cover.

  Fig 1: Removing Shoulder Belt Anchor Cover RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
REMOVE ROOF HEADLINING ASSEMBLY
HINT:

It is not necessary to completely remove the roof headlining. Slightly lower the rear section of the roof headlining.
1. Partially remove the roof headlining (see REMOVAL ).
REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY
1. Remove the 2 bolts and seat belt.

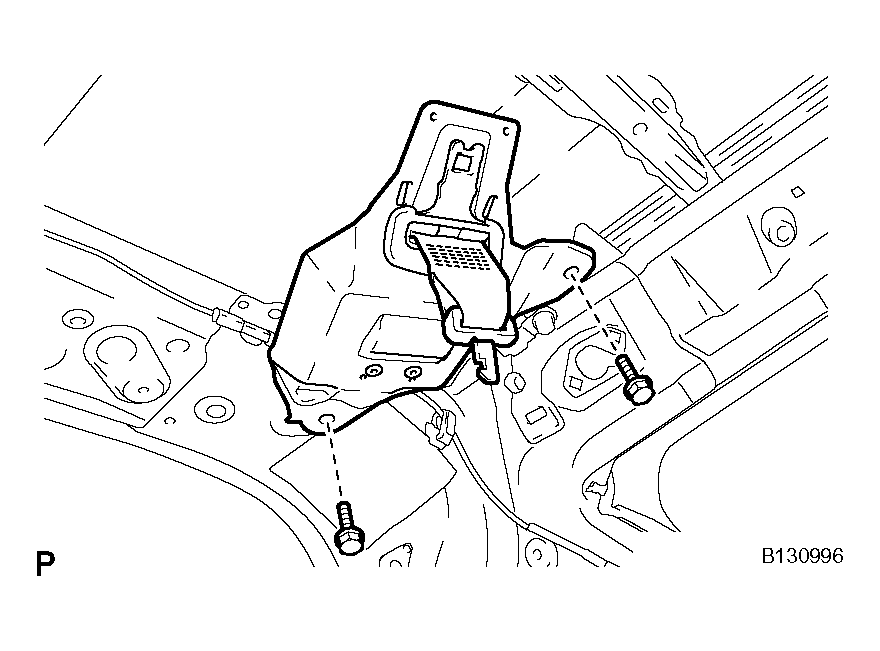

  Fig 2: Removing Rear Center Seat Outer Belt Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
