Rear Center Seat Outer Belt Assembly: Installation

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT: Refer to appropriate step(s) under "Reassembly and Installation".

INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY
1. Install the seat belt with the 2 bolts.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

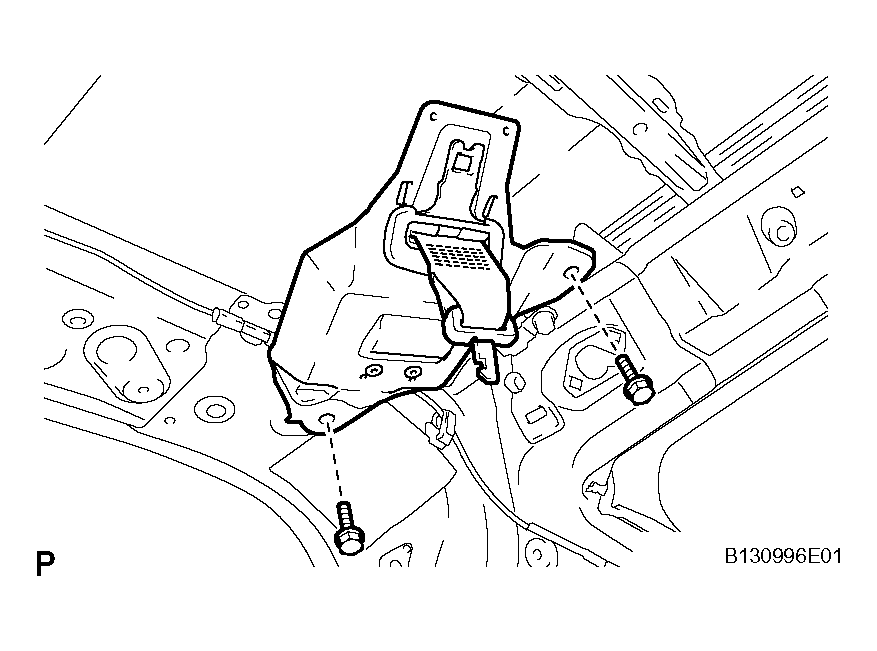

  Fig 1: Installing Rear Center Seat Outer Belt Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF HEADLINING ASSEMBLY
1. Install the roof headlining (see INSTALLATION ).
INSTALL SHOULDER BELT ANCHOR COVER RH
1. Install the cover with the 4 claws.

  Fig 2: Installing Cover With 4 Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
