Front Seat Outer Belt Assembly With PRETENSIONER: Installation

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the LH side and RH side.
The procedures listed below are for the LH side.
A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).
Refer to appropriate step(s) under "Reassembly and Installation".

INSTALL FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY
1. Align the adjuster positioning hole with the claw, and install the adjuster with the 2 bolts as shown in Fig 1.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  Fig 1: Installing Front Shoulder Belt Anchor Adjuster Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY LH
1. Install the plate as shown in Fig 2.
  HINT:

  Make sure the plate is firmly set into the garnish's claws.

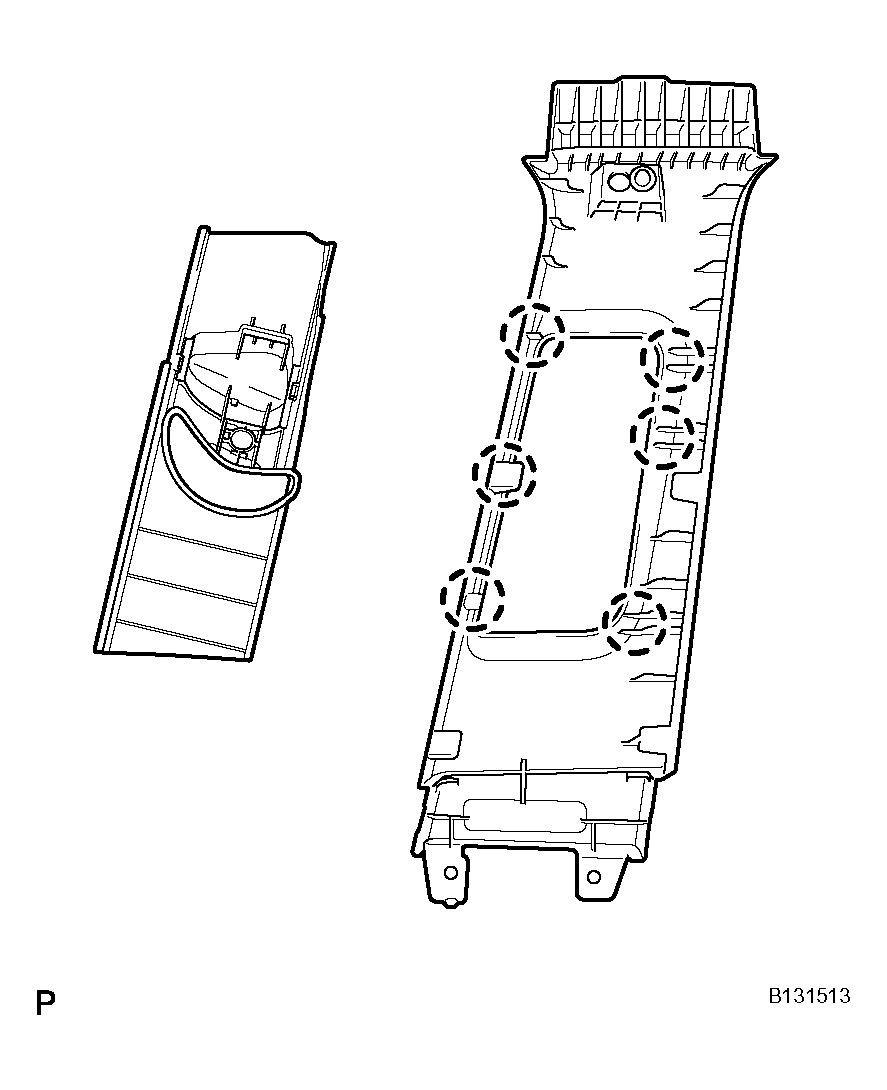

  Fig 2: Installing Front Shoulder Belt Anchor Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEAT OUTER BELT ASSEMBLY LH
NOTE: Do not disassemble the retractor.
1. Align the 2 claws with the seat belt positioning holes, and install the retractor of the outer belt with the bolt as shown in Fig 3.
  Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

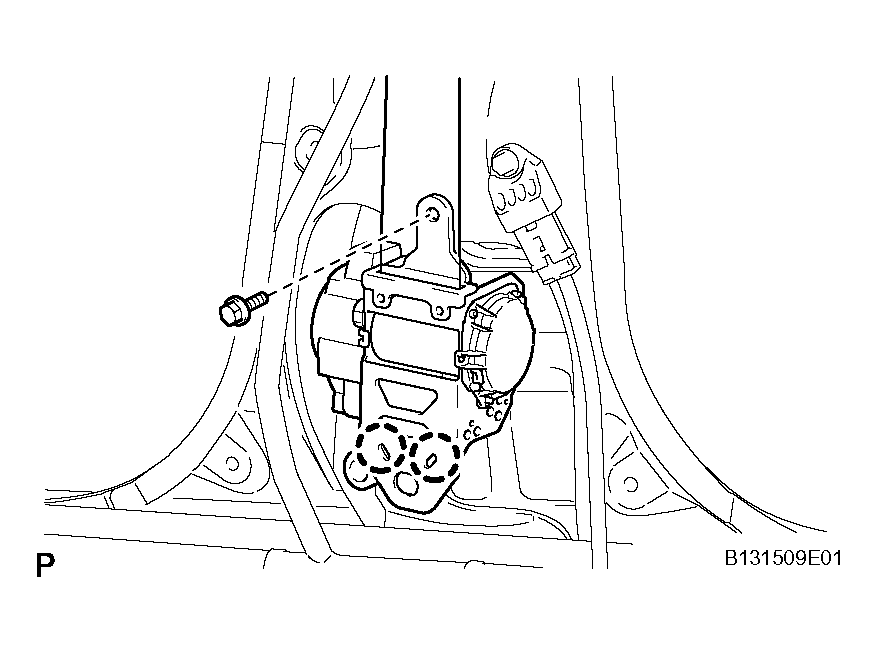

  Fig 3: Installing Belt Retractor (Outer Belt)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the pretensioner connector.

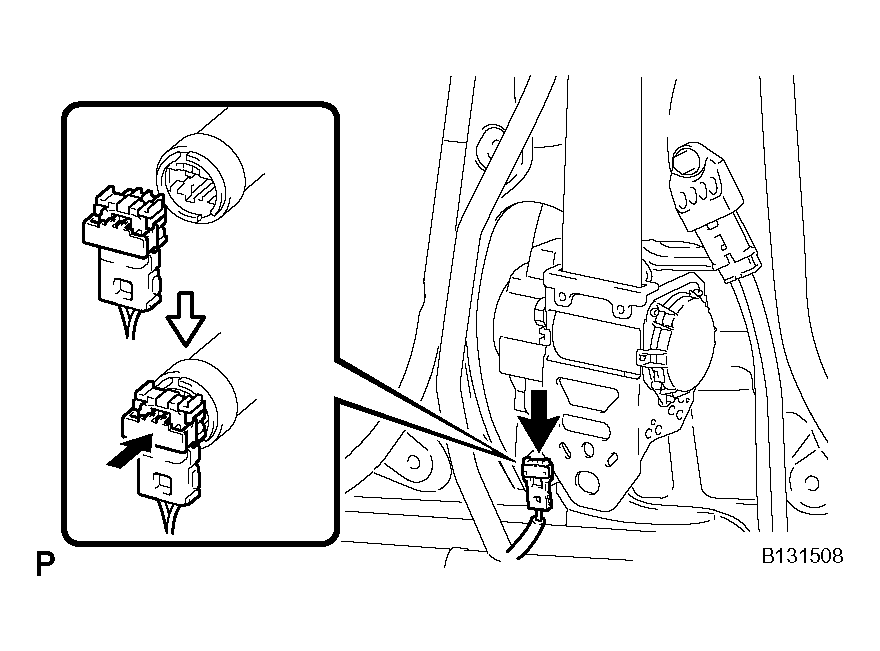

  Fig 4: Connecting Pretensioner Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the outer belt with the shoulder anchor's bolt.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  Fig 5: Connecting Shoulder Belt To Belt Anchor Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CENTER PILLAR GARNISH LH
1. Pass the outer belt anchor through the center pillar garnish.
2. Attach the clip.
3. Install the garnish with the 2 screws.

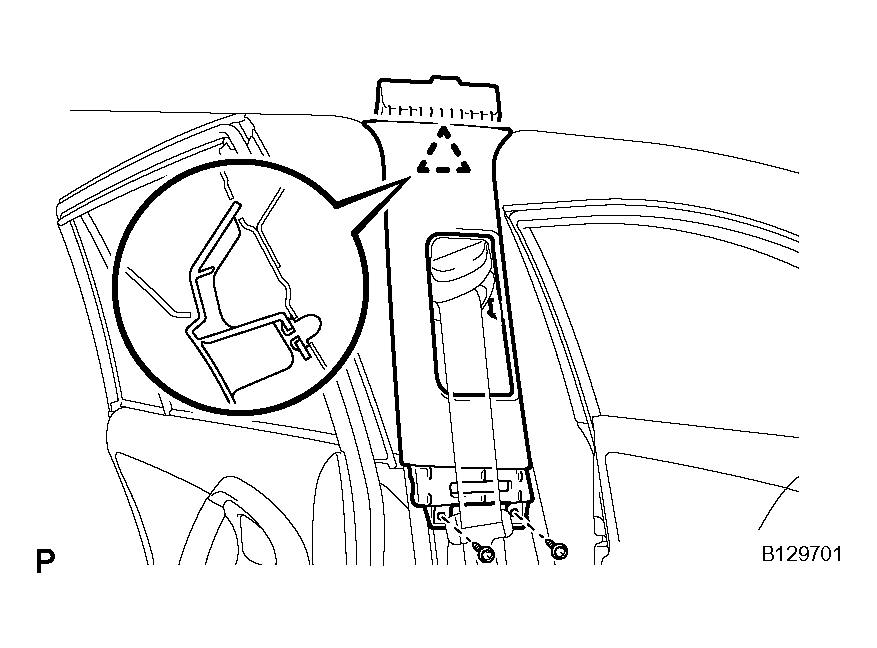

  Fig 6: Installing Center Pillar Garnish LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CENTER PILLAR GARNISH LOWER LH
1. Attach the 2 claws and 2 clips to install the garnish.
2. Connect the floor anchor with the bolt.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

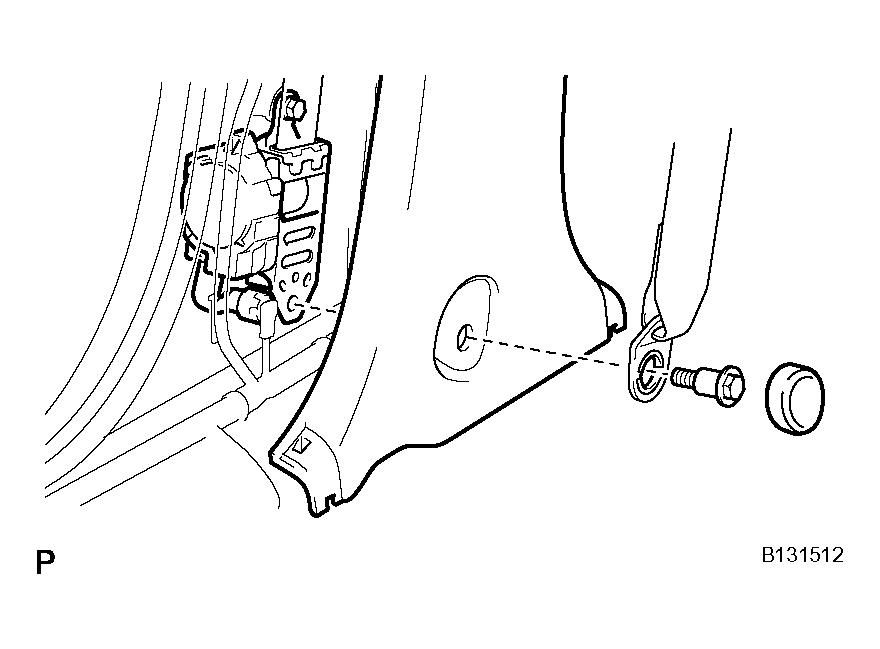

  Fig 7: Installing Center Pillar Garnish Lower LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Attach the lap belt outer anchor cover.
INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH
INSTALL REAR DOOR SCUFF PLATE LH (See INSTALLATION )
INSTALL FRONT DOOR SCUFF PLATE LH (See INSTALLATION )
INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
