Child Restraint Seat Tether Anchor: Components

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

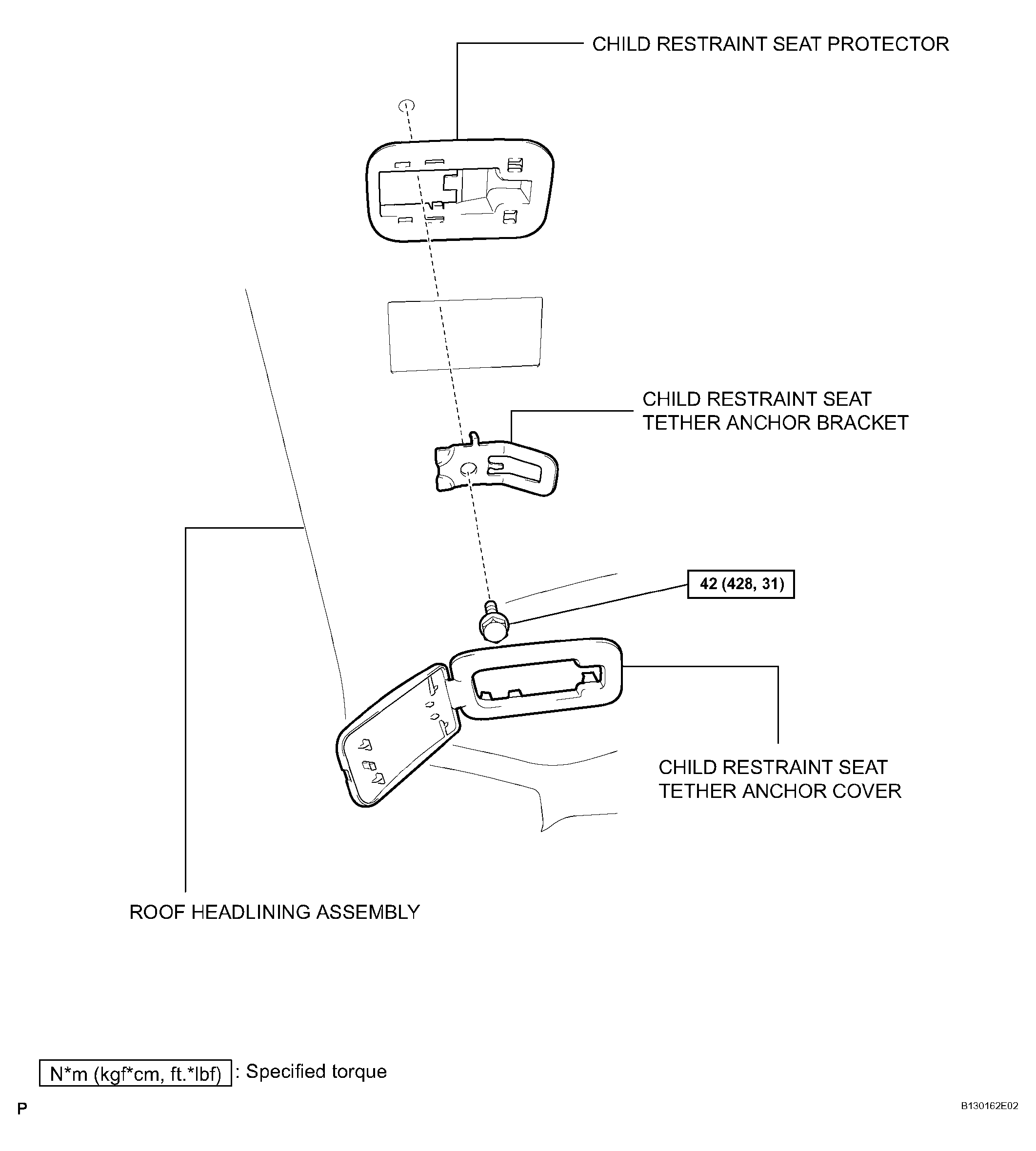

Fig 1: Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

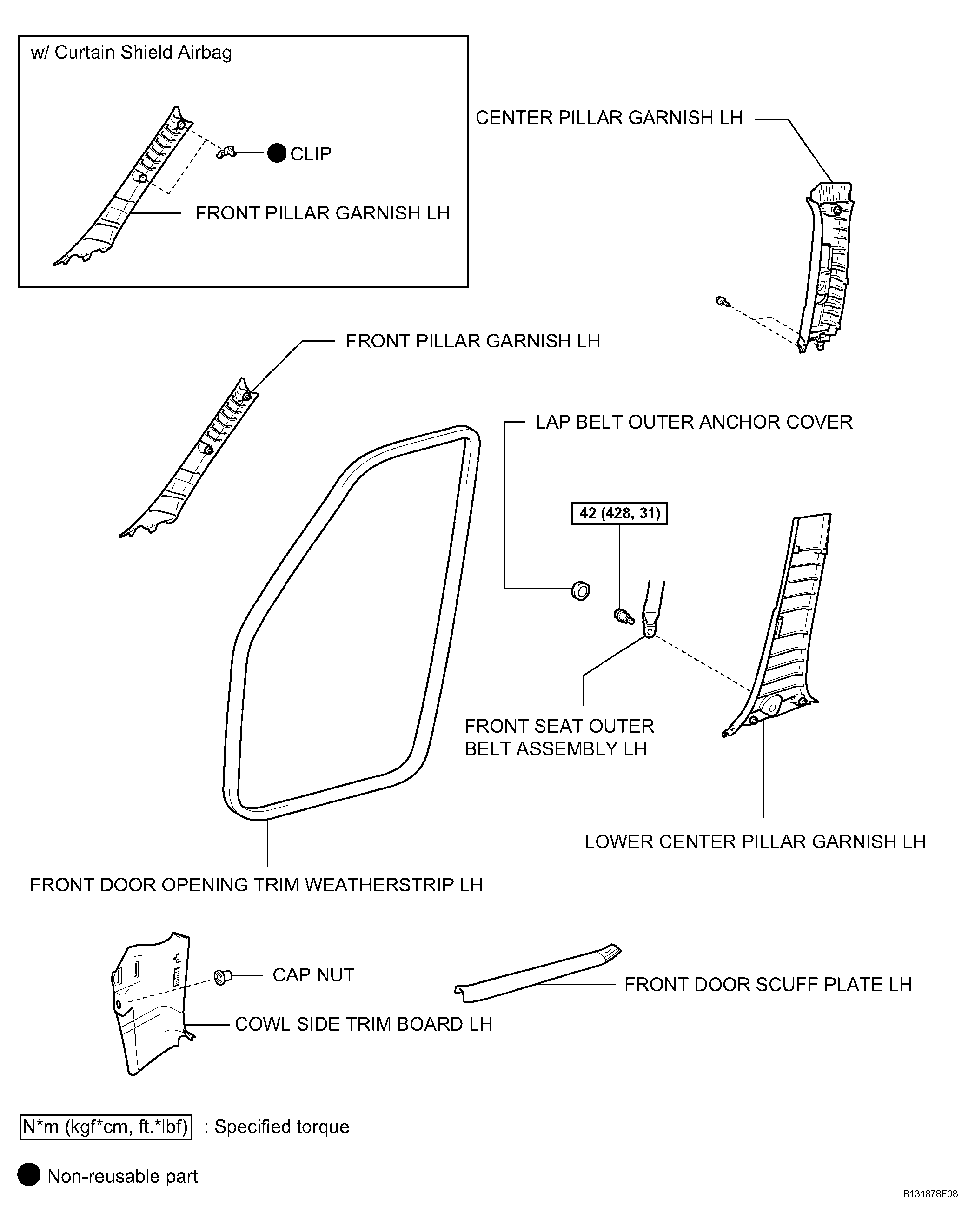

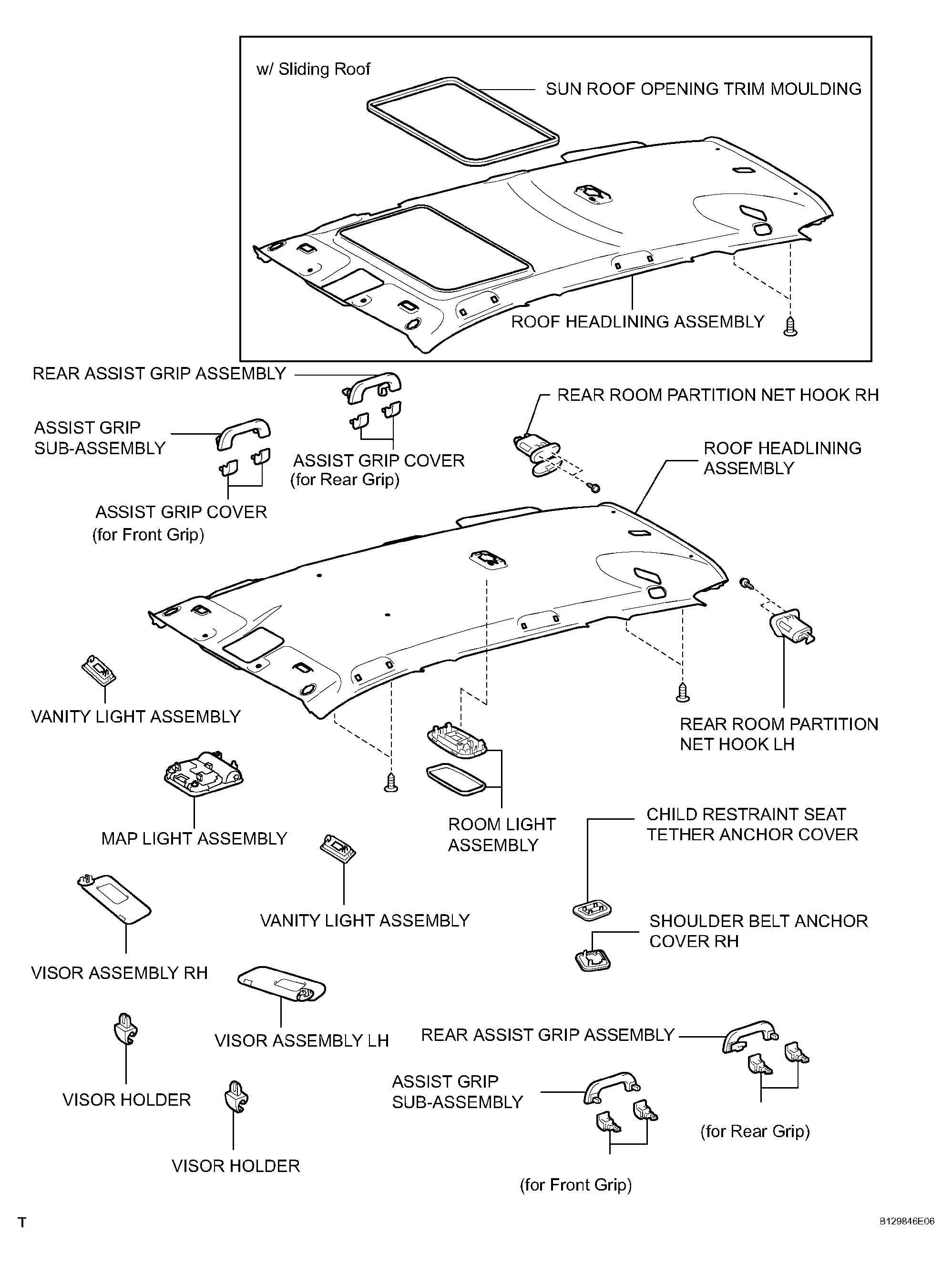

Fig 2: Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications (W/Curtain Shield Airbag) (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications (W/Curtain Shield Airbag) (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

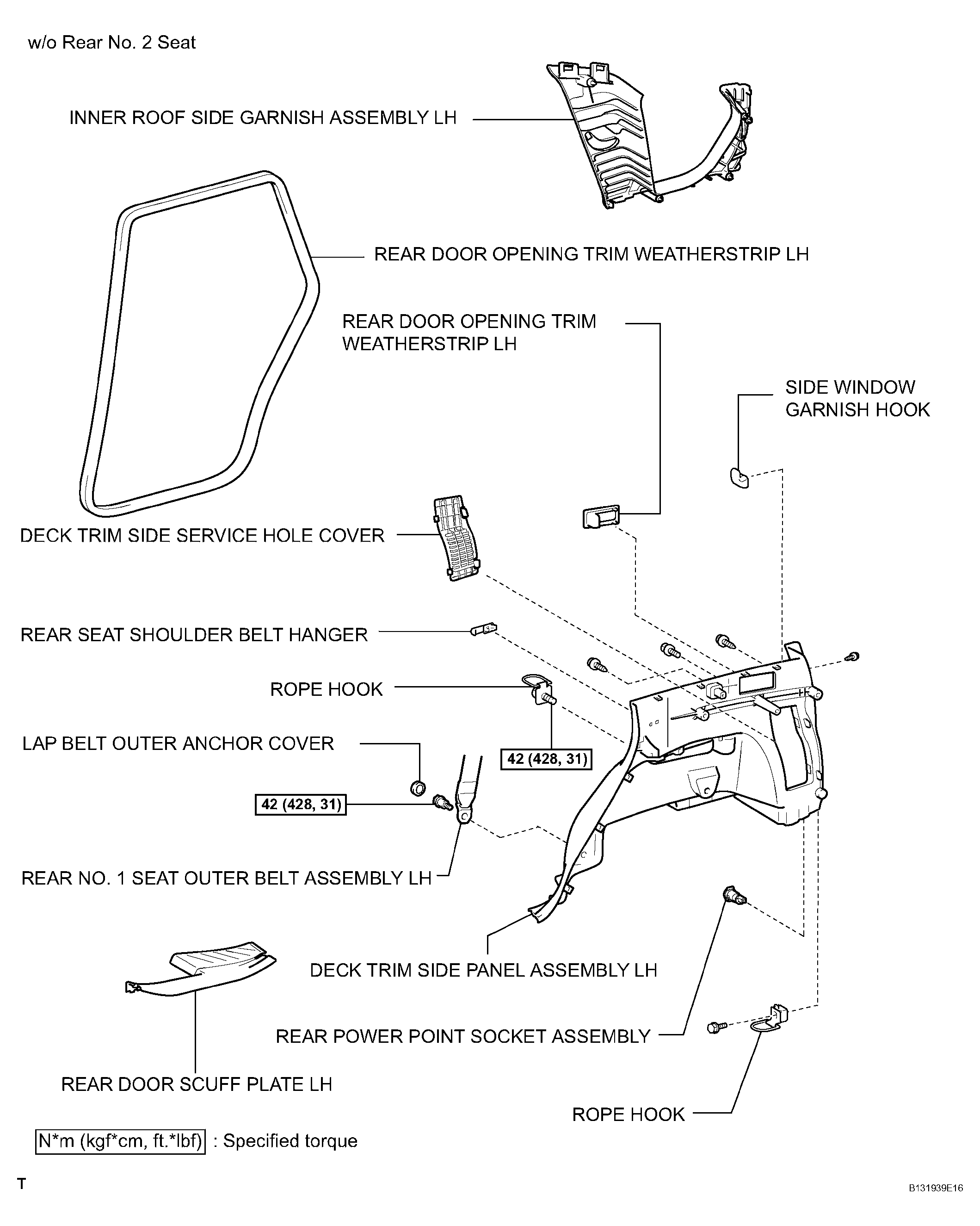

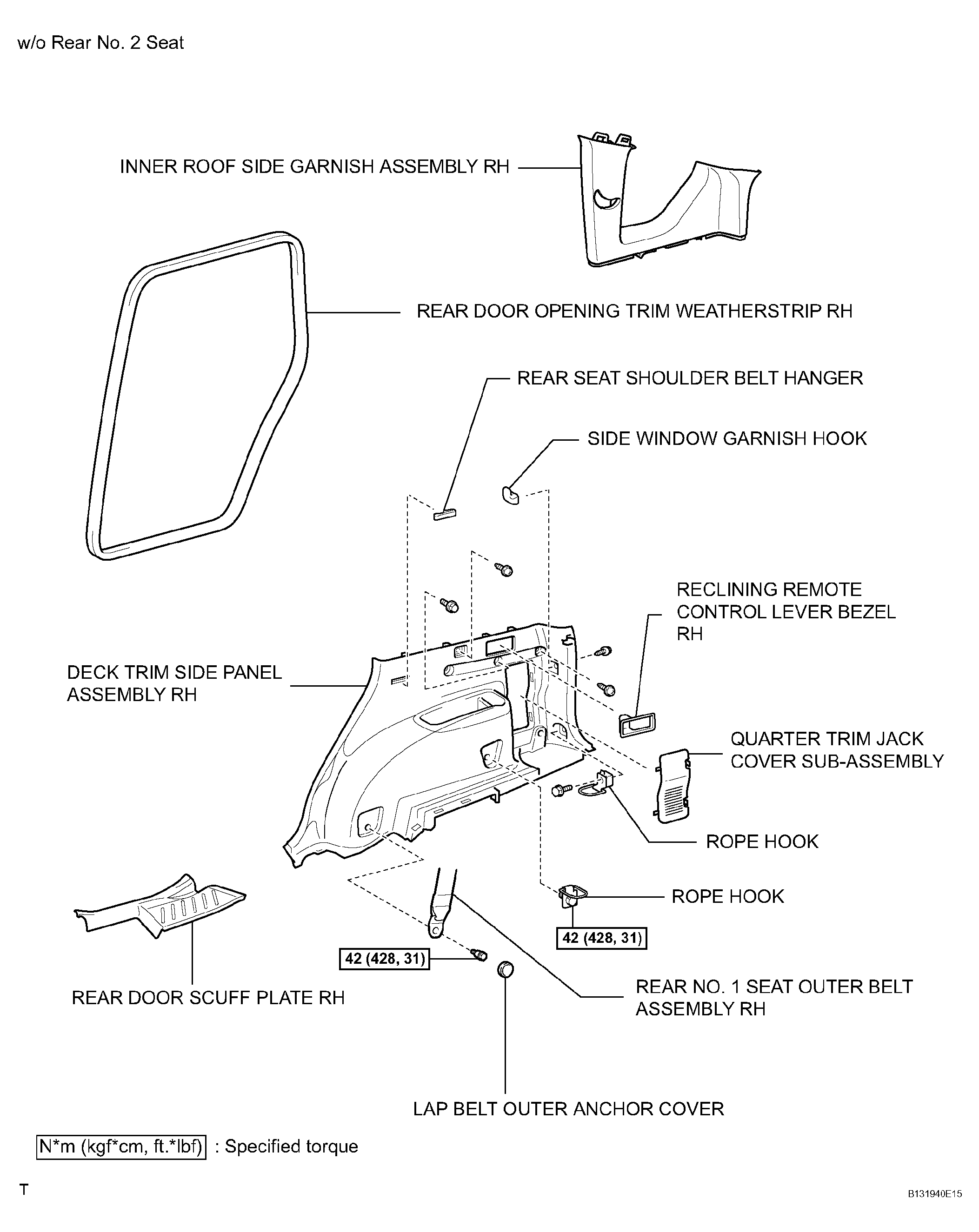

Fig 4: Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications (W/O Rear No. 2 Seat)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

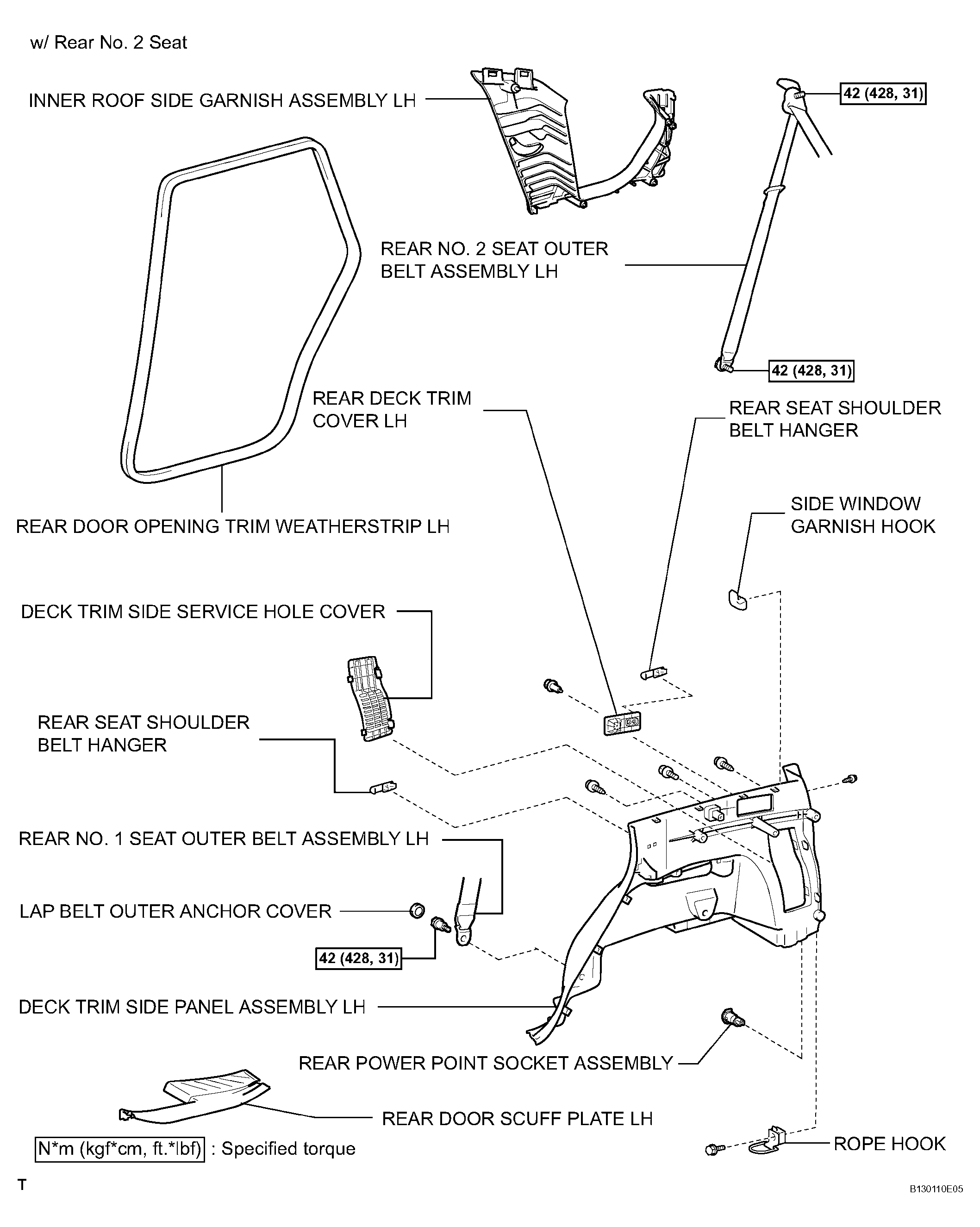

Fig 5: Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications (W/Rear No. 2 Seat)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

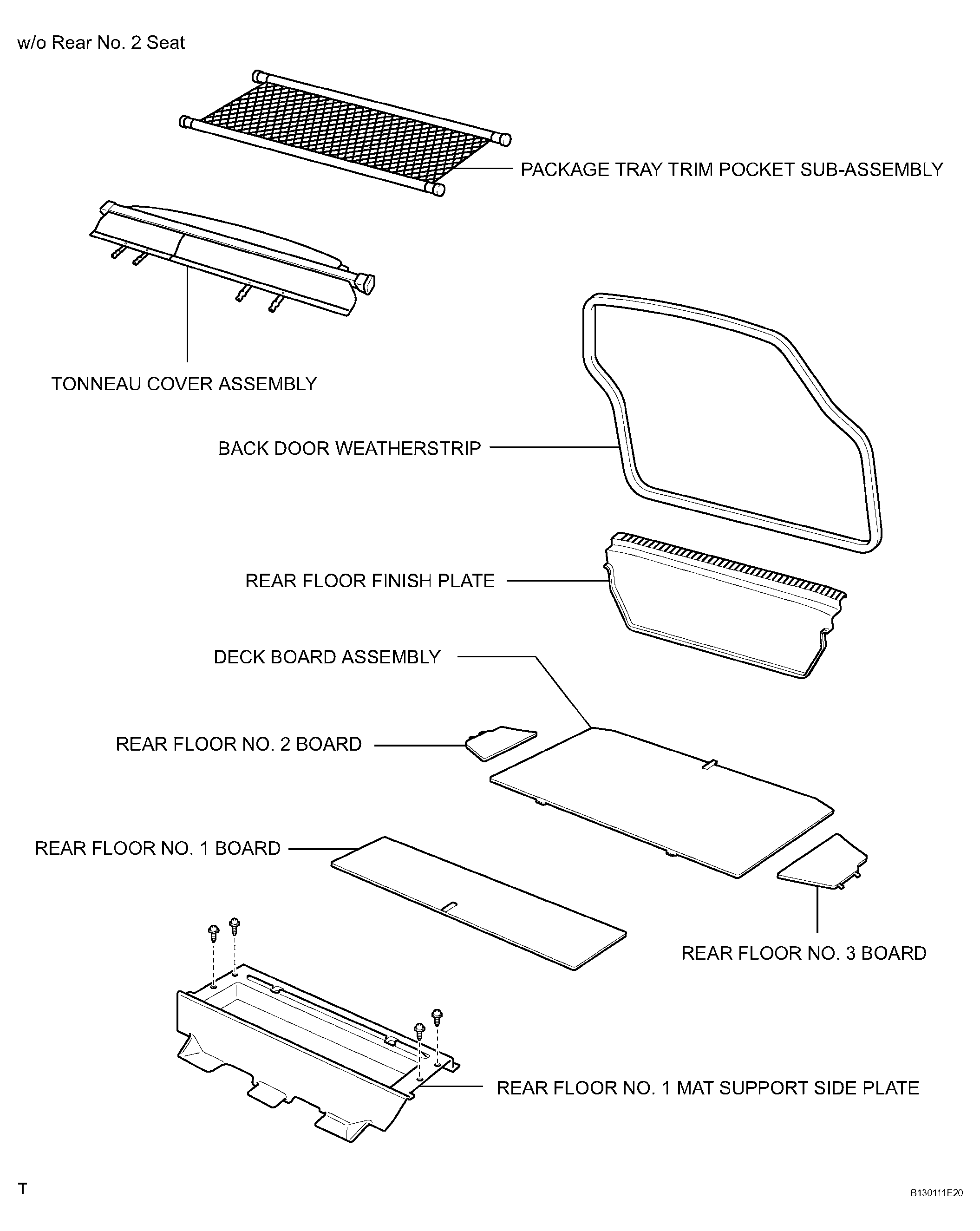

Fig 6: Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications (W/O Rear No. 2 Seat)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

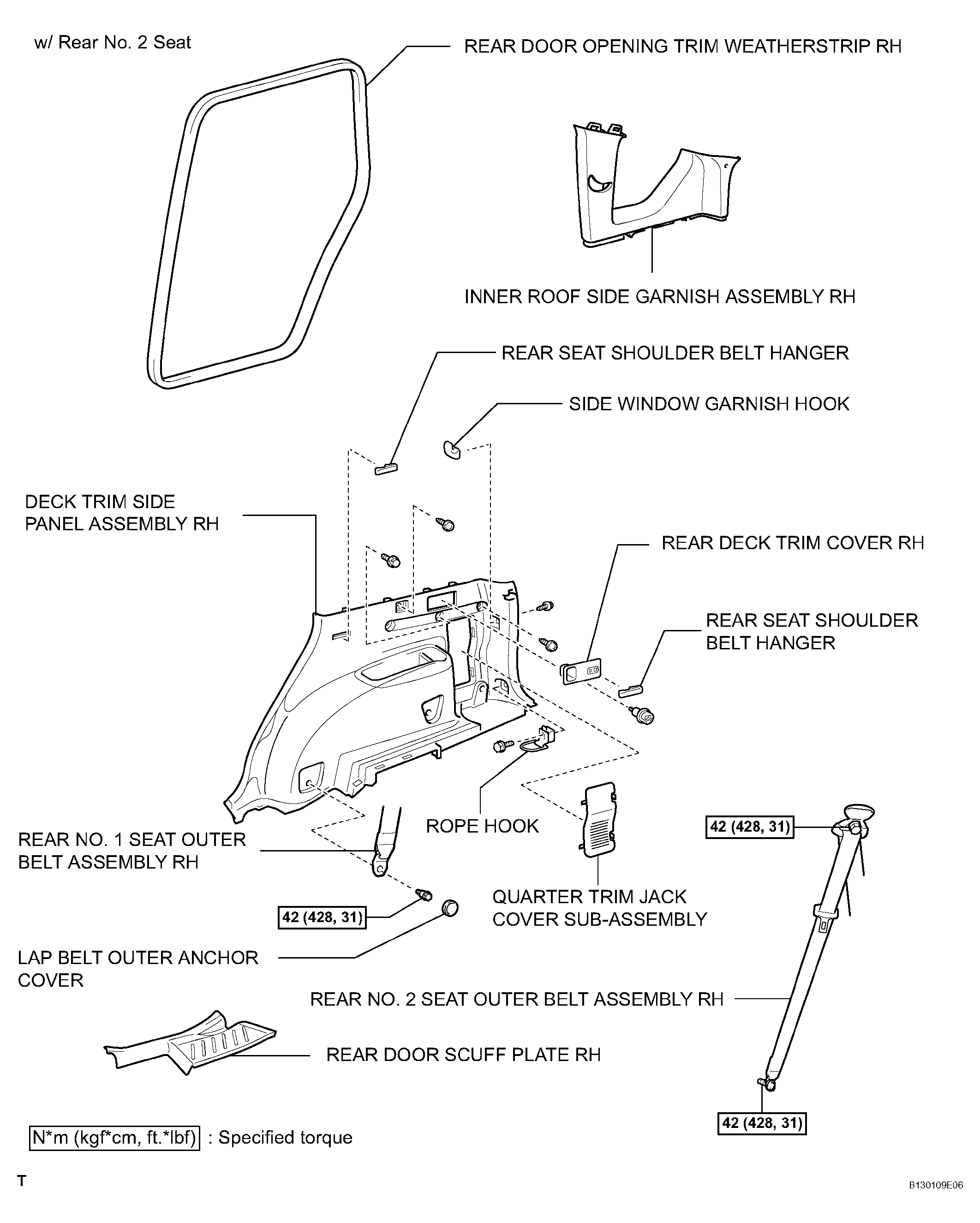

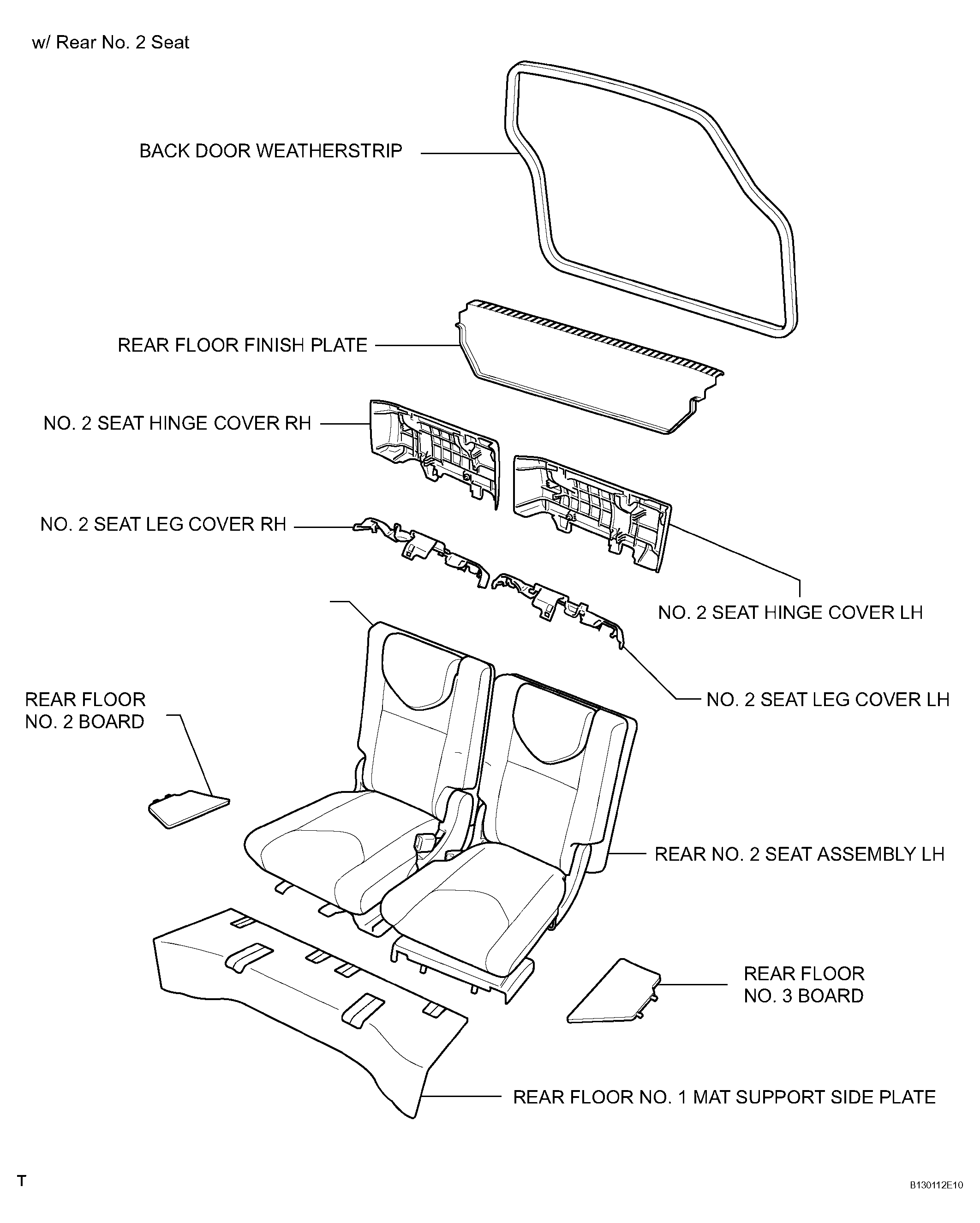

Fig 7: Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications (W/Rear No. 2 Seat)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Identifying Child Restraint Seat Tether Anchor Components (W/O Rear No. 2 Seat)

Fig 9: Identifying Child Restraint Seat Tether Anchor Components (W/Rear No. 2 Seat)

Fig 10: Identifying Child Restraint Seat Tether Anchor Components (1 Of 2)

Fig 11: Identifying Child Restraint Seat Tether Anchor Components (2 Of 2)
