Rear No. 2 Seat Assembly: Installation

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

INSTALL NO. 2 SEAT LEG BOX PROTECTOR
1. Attach the clip to install the protector.
2. Install the clip.

  Fig 1: Installing Protector Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE
INSTALL REAR NO. 2 SEAT ASSEMBLY
1. Fully tilt the seatback forward.
2. Place the seat onto the lock striker.
3. Fully lock the seat to the lock striker.
  HINT:
  - Lock the rear side, then lock the front side.
  - Confirm that the seat is firmly locked to the lock striker.

    Fig 2: Placing Seat Onto Lock Striker
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the rear No. 2 seat link with the 2 nuts.
  Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

  Fig 3: Installing Rear No. 2 Seat Link With Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the seat to the rear No. 2 seat link with the 2 bolts.
  Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

  Fig 4: Installing Seat To Rear No. 2 Seat Link With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

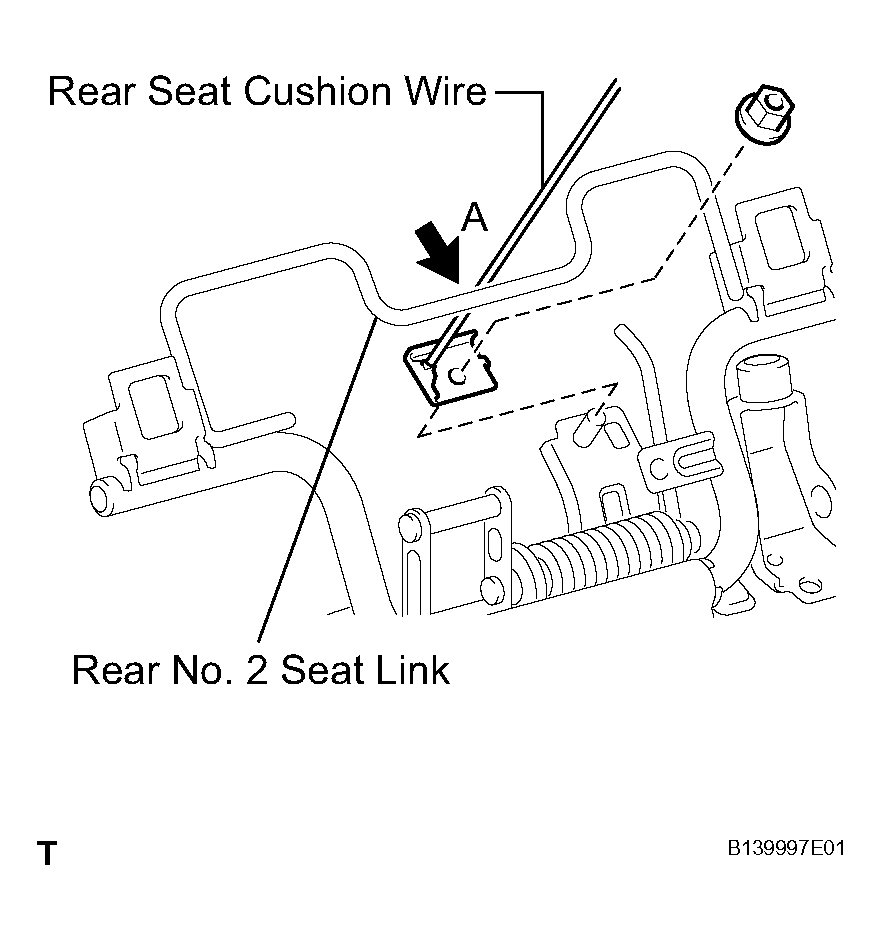

6. Pass the rear seat cushion wire underneath the rear No. 2 seat link part labeled A.
  NOTE: If the wire is not installed as described, the seat will not move properly.
7. Install the rear seat cushion wire to the rear No. 2 seat link with the nut.
  Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

  Fig 5: Installing Rear Seat Cushion Wire To Rear No. 2 Seat Link With Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

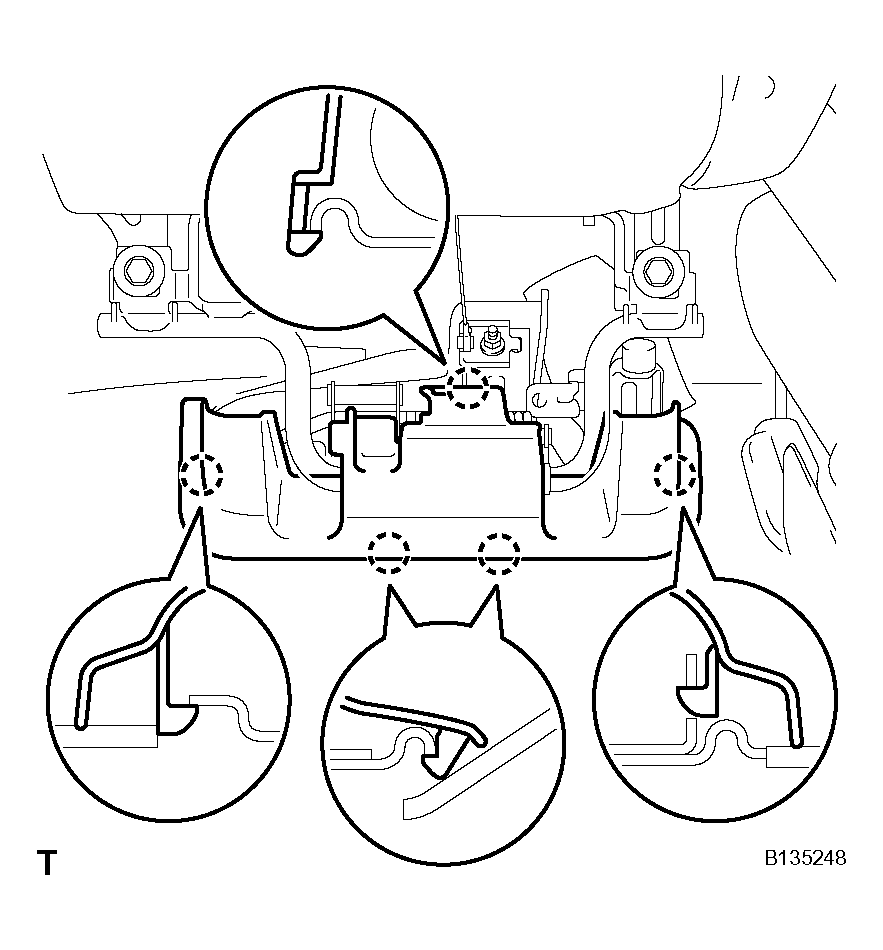

INSTALL NO. 2 SEAT LEG COVER LH
1. Attach the 5 claws to install the leg cover.

  Fig 6: Installing No. 2 Seat Leg Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 SEAT HINGE COVER LH
1. Push the hinge cover in the direction indicated by the arrow in the illustration to attach the 2 claws.

  Fig 7: Pushing Hinge Cover In Direction
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Attach the 2 claws and clip to install the hinge cover.
3. Return the seatback to the upright position.

  Fig 8: Attaching Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
