REAR NO. 1 SEAT ASSEMBLY (for RH Side): Reassembly

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Wear protective gloves. Sharp areas on the seatback frame, seat cushion frame and reclining adjuster may injure your hands.

HINT:

A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

INSTALL REAR SEATBACK COVER RH
1. Attach the 2 claws to install the cover.
2. Install the 2 screws.

  Fig 1: Installing Rear Seatback Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT COVER (w/o Rear No. 2 Seat)
1. Attach the 2 claws to install the cover.
2. Install the 2 screws.

  Fig 2: Installing Rear Seat Cover (W/O Rear No. 2 Seat)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT COVER (w/Rear No. 2 Seat)
1. Install the cover with the 2 screws.
INSTALL REAR NO. 1 SEATBACK COVER
NOTE:
- Be careful not to damage the cover.
- When installing the hog rings, avoid wrinkling the cover.

  Fig 3: Installing Rear Seat Cover (W/Rear No. 2 Seat)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using hog ring pliers, install the seatback cover to the seatback pad with 3 new hog rings.
2. Install the seatback cover (with pad) to the seatback frame.

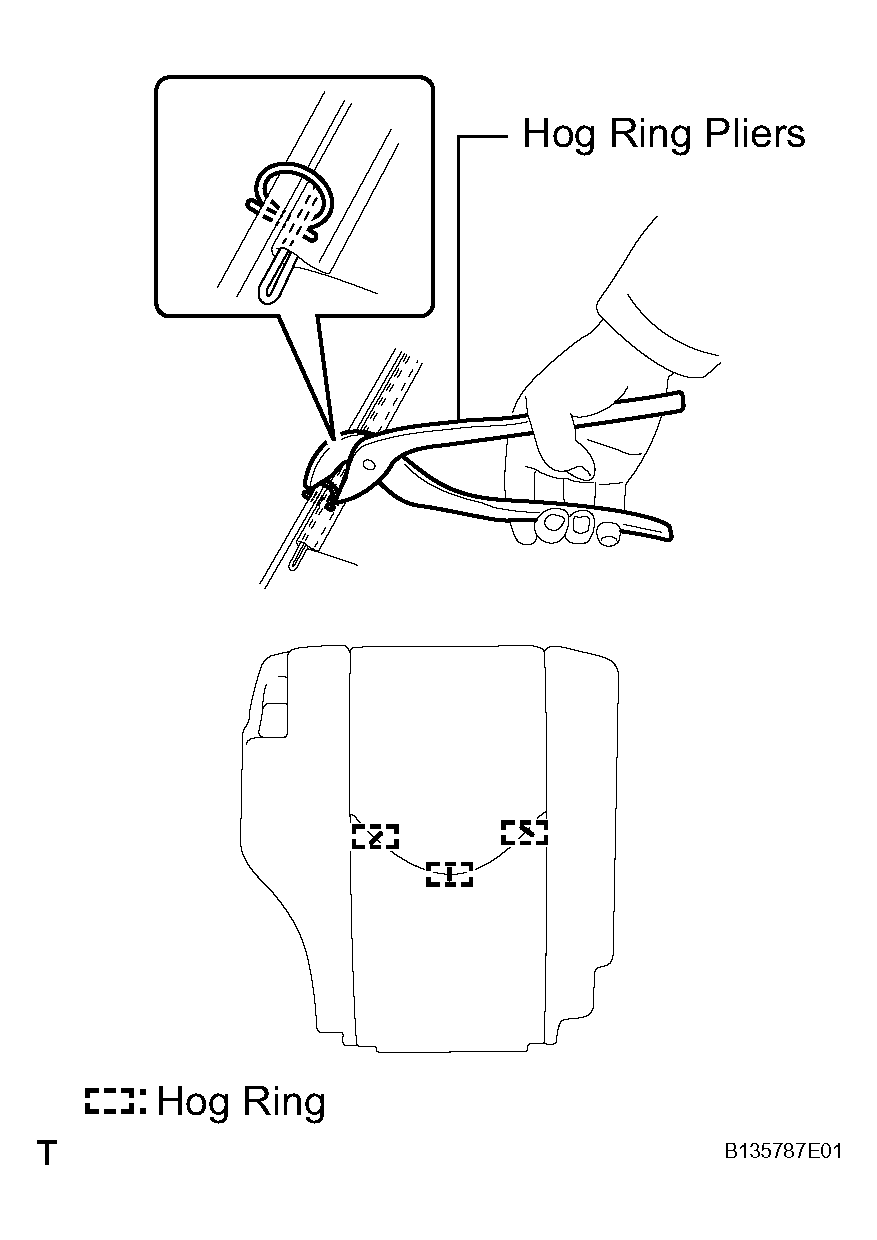

  Fig 4: Installing Seatback Cover To Seatback Pad With Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Attach the 4 claws to install the 2 headrest supports.

  Fig 5: Identifying Headrest Supports
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Lift up the seatback cover and install the 13 hog rings.

  Fig 6: Installing Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEATBACK PROTECTOR
1. Install the protector with the 2 nuts.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
2. Attach the clip.

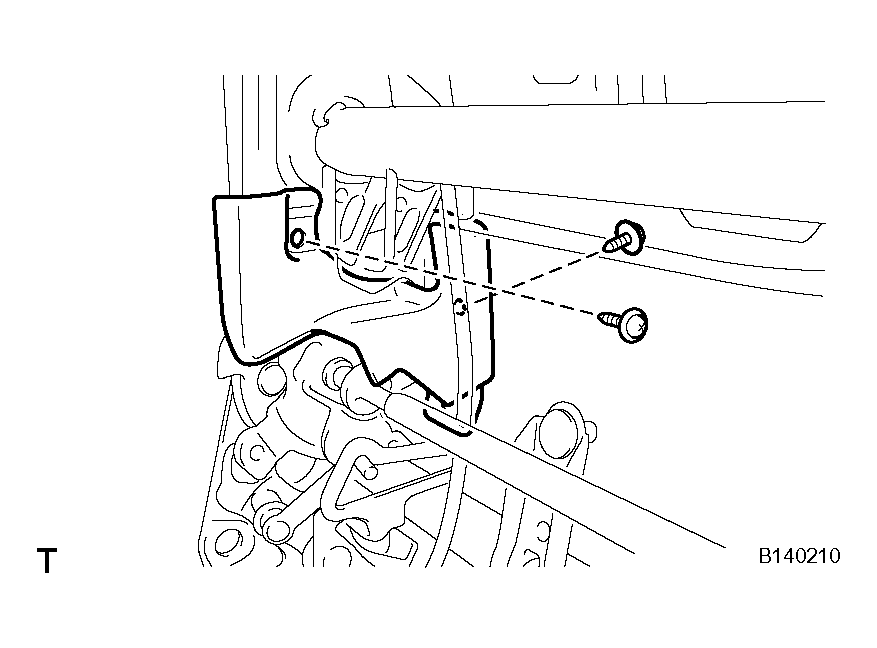

  Fig 7: Installing Protector With Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Attach the 2 clips and close the fastening tape.

  Fig 8: Identifying Fastening Tape
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR NO. 1 SEATBACK ASSEMBLY RH (w/o Rear No. 2 Seat)
1. Install the seatback with the 5 bolts.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

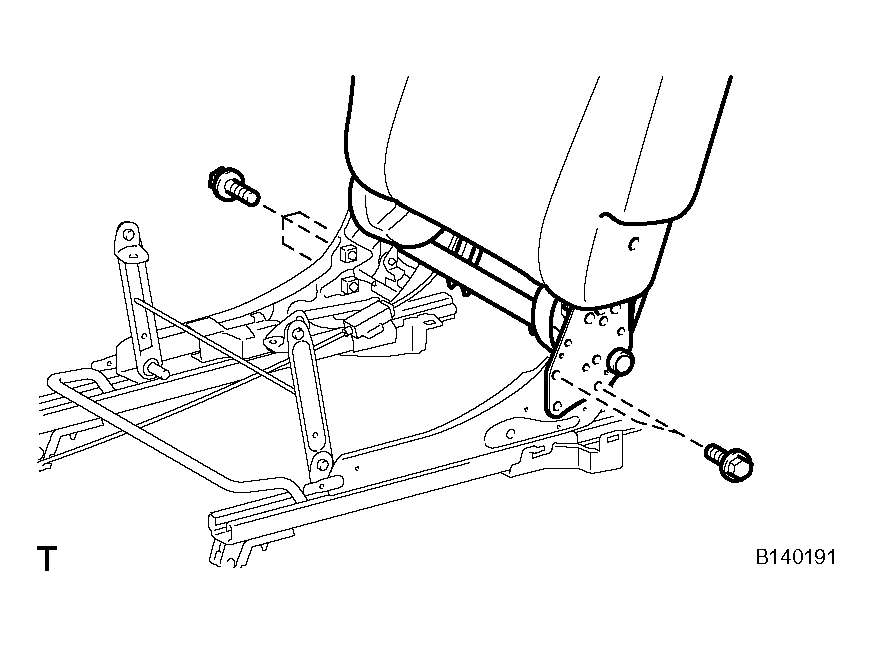

  Fig 9: Installing Seatback With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Attach the 2 clamps and connect the cable to the reclining adjuster.

  Fig 10: Connecting Cable To Reclining Adjuster
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR NO. 1 SEATBACK ASSEMBLY RH (w/Rear No. 2 Seat)

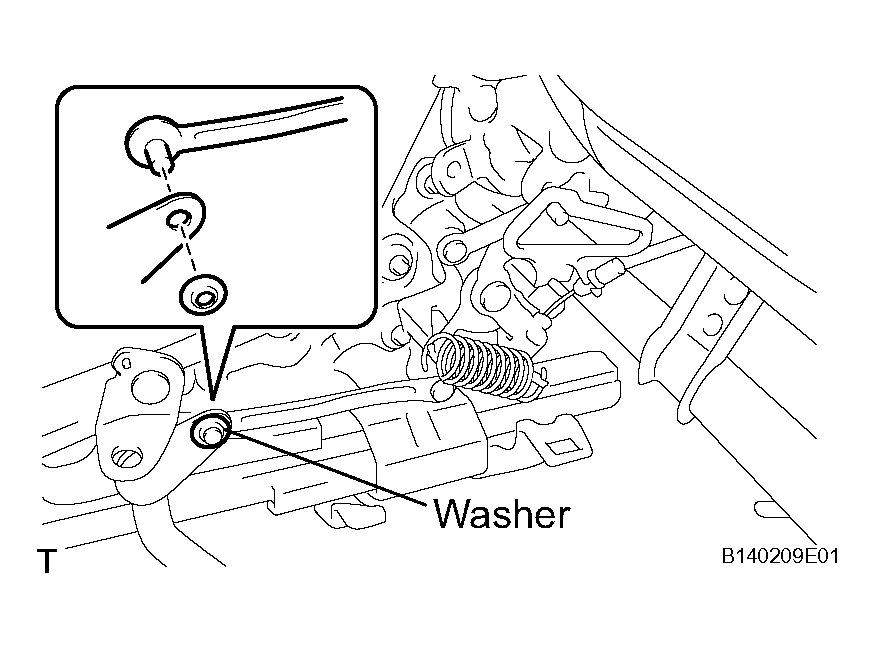

1. Connect the W/I unit to the reclining adjuster with the washer.

  Fig 11: Connecting W/I Unit To Reclining Adjuster With Washer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

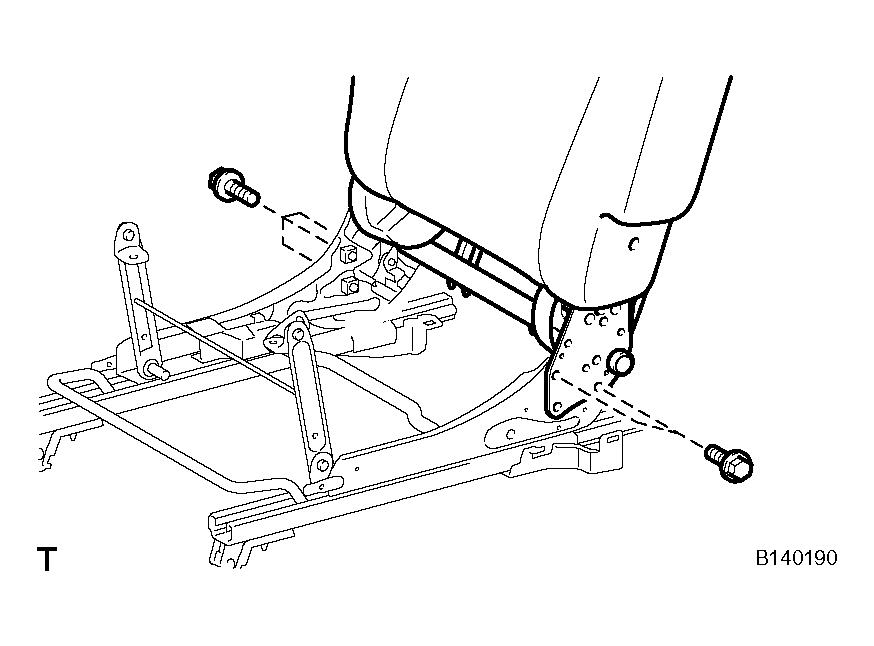

2. Install the seatback with the 5 bolts.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  Fig 12: Installing Seatback With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

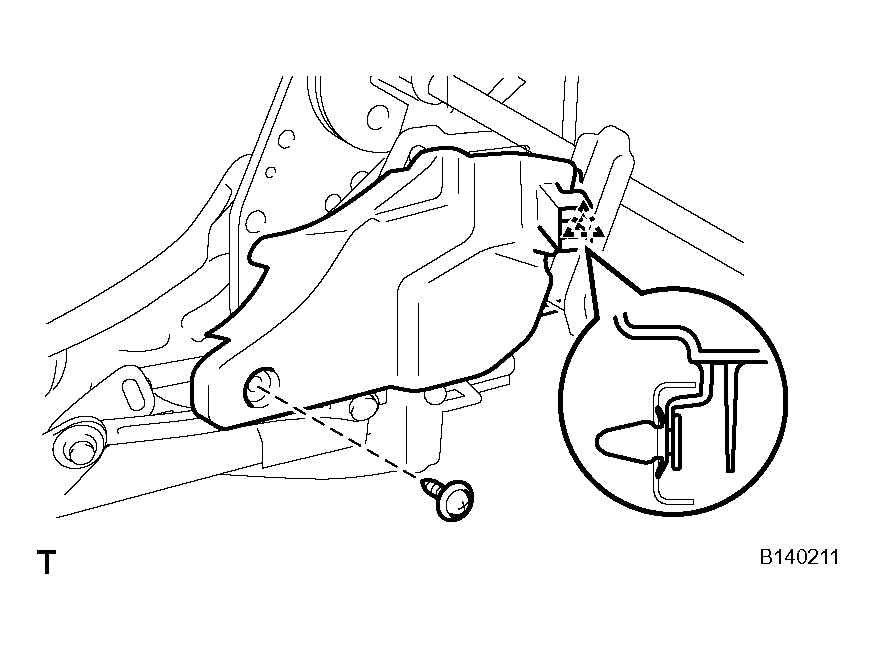

INSTALL REAR SEAT RECLINING INNER PROTECTOR RH (w/Rear No. 2 Seat)
1. Attach the clip to install the inner protector.
2. Install the screw.

  Fig 13: Installing Rear Seat Reclining Inner Protector RH (W/Rear No. 2 Seat)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEATBACK LOCK CONTROL LEVER BASE RH (w/o Rear No. 2 Seat)
1. Attach the 2 claws to install the lever base.
2. Install the screw.

  Fig 14: Installing Rear Seatback Lock Control Lever Base RH (W/O Rear No. 2 Seat)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEATBACK LOCK CONTROL LEVER BASE RH (w/Rear No. 2 Seat)
1. Attach the 2 claws to install the lever base.
2. Install the screw.

  Fig 15: Installing Rear Seatback Lock Control Lever Base RH (W/Rear No. 2 Seat)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

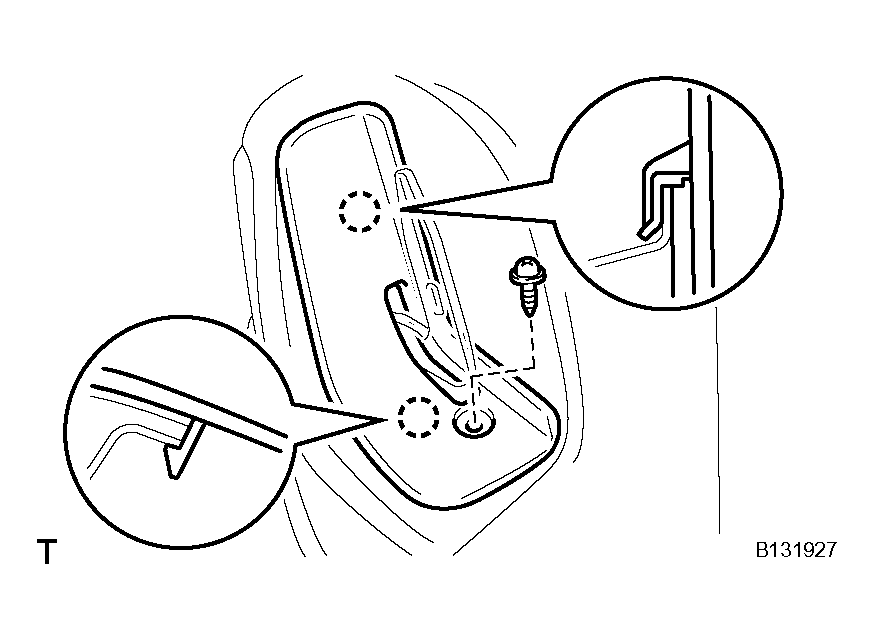

INSTALL REAR SEAT RECLINING RELEASE LEVER (w/o Rear No. 2 Seat)
1. Attach the claw to install the release lever.

  Fig 16: Installing Rear Seat Reclining Release Lever (W/O Rear No. 2 Seat)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the cover with the 2 screws.

  Fig 17: Installing Cover With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

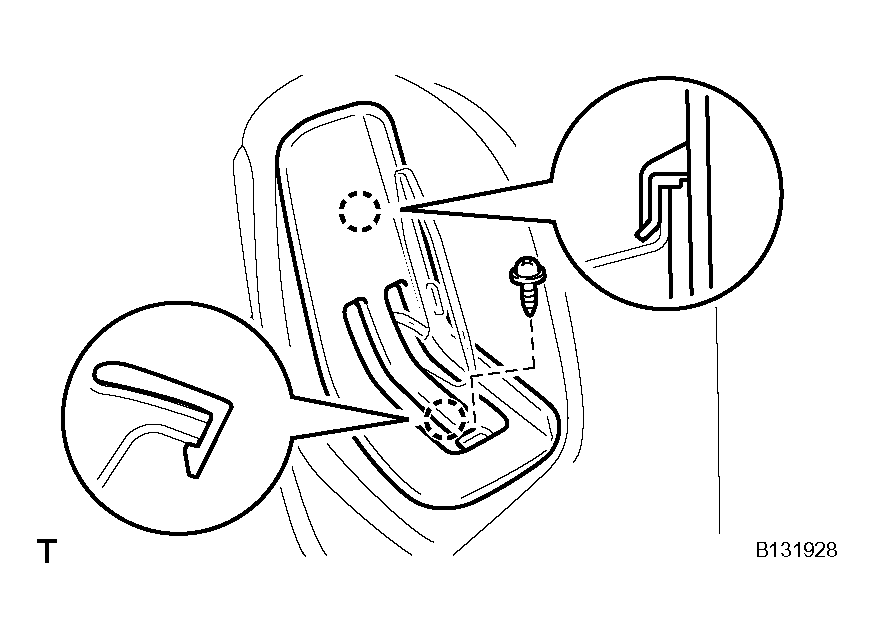

INSTALL REAR SEAT RECLINING CONTROL LEVER (w/Rear No. 2 Seat)
1. Attach the claw to install the control lever.

  Fig 18: Installing Rear Seat Reclining Control Lever (W/Rear No. 2 Seat)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the cover with the 2 screws.

  Fig 19: Installing Cover With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT RECLINING RELEASE LEVER (w/Rear No. 2 Seat)
1. Attach the claw to install the release lever.

  Fig 20: Attaching Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the cover with the 2 screws.

  Fig 21: Installing Cover With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

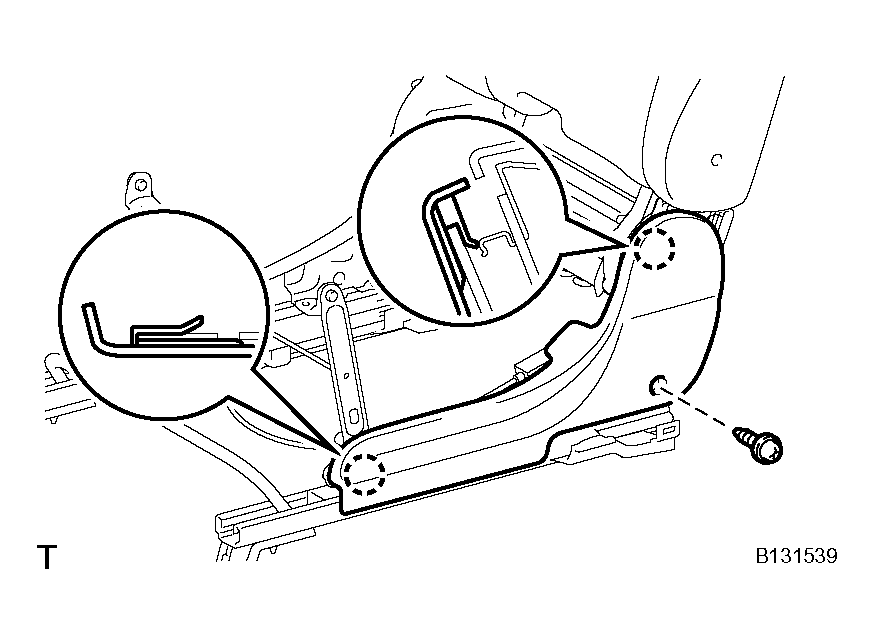

INSTALL REAR SEAT CUSHION REAR MOULDING RH
1. Attach the 2 claws to install the moulding.
2. Install the screw.
Fig 22: Installing Rear Seat Cushion Moulding
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT CUSHION MOULDING RH
HINT:

Use the same procedures described for the rear seat cushion rear moulding RH.
INSTALL REAR SEAT REAR BRACKET COVER RH

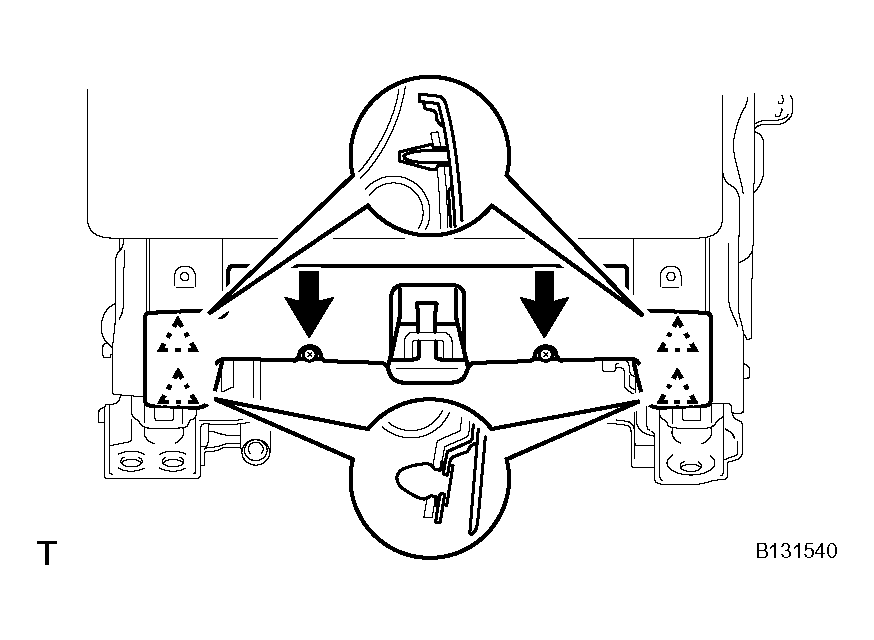

1. Open the lower part of the seatback cover. Then attach the 4 clips to install the bracket cover.
2. Install the 2 screws.
INSTALL REAR NO. 1 SEAT CUSHION COVER
NOTE:
- Be careful not to damage the cover.
- When installing the hog rings, avoid wrinkling the cover.

  Fig 23: Installing Rear Seat Rear Bracket Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

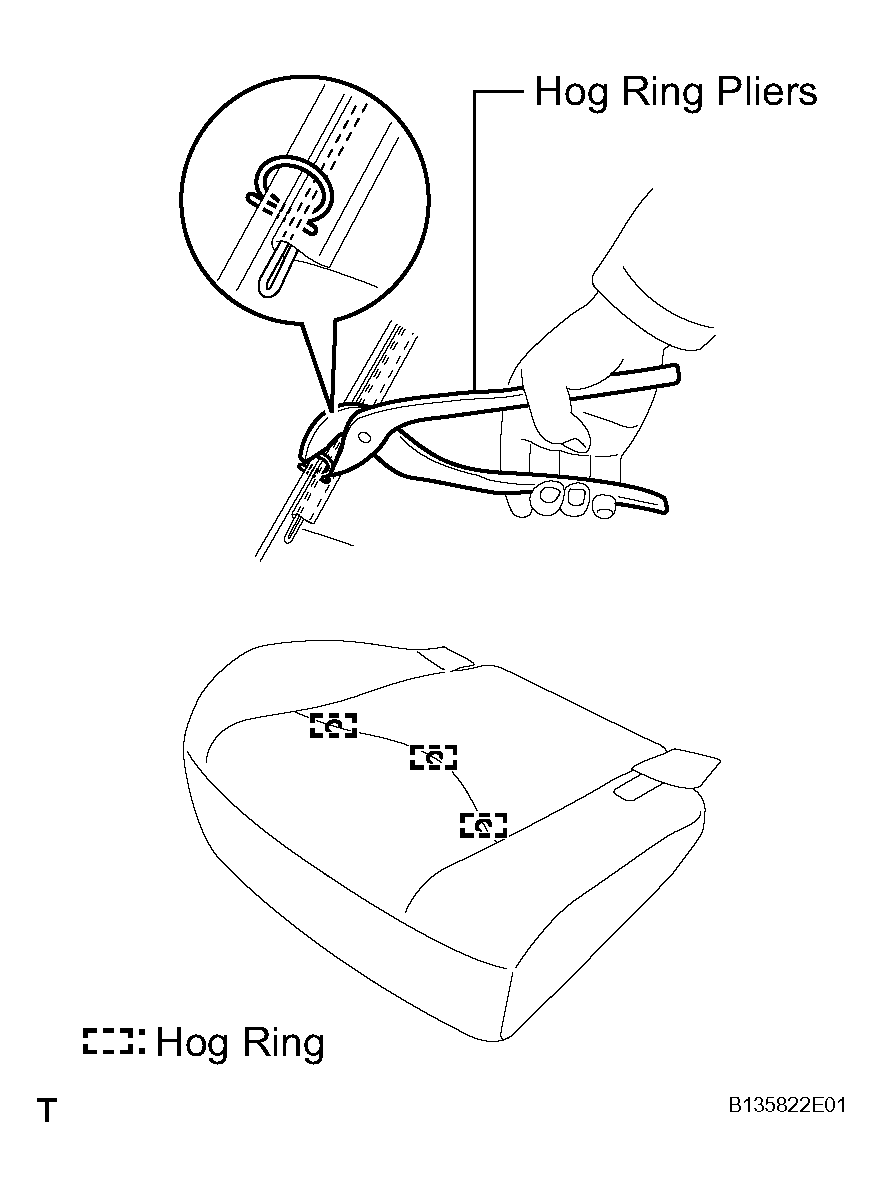

1. Using hog ring pliers, install the seat cushion cover to the seat cushion pad with 3 new hog rings.

  Fig 24: Installing Seat Cushion Cover To Seat Cushion Pad With Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using hog ring pliers, install the seat cushion cover (with pad) to the seat cushion frame with 18 new hog rings.

  Fig 25: Installing Seat Cushion Cover (With Pad) To Seat Cushion Frame With Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Attach the 2 hooks.

  Fig 26: Attaching Hooks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR NO. 1 SEAT CUSHION ASSEMBLY RH
1. Install the cushion with the 2 bushes and 2 bolts.
  Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

  Fig 27: Installing Cushion With Bushes And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 2 bolts.
  Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)
3. Connect the rubber band of the seatback cover to the seat cushion frame.
INSTALL REAR SEAT INNER BELT ASSEMBLY RH (See appropriate step(s) under INSTALLATION )

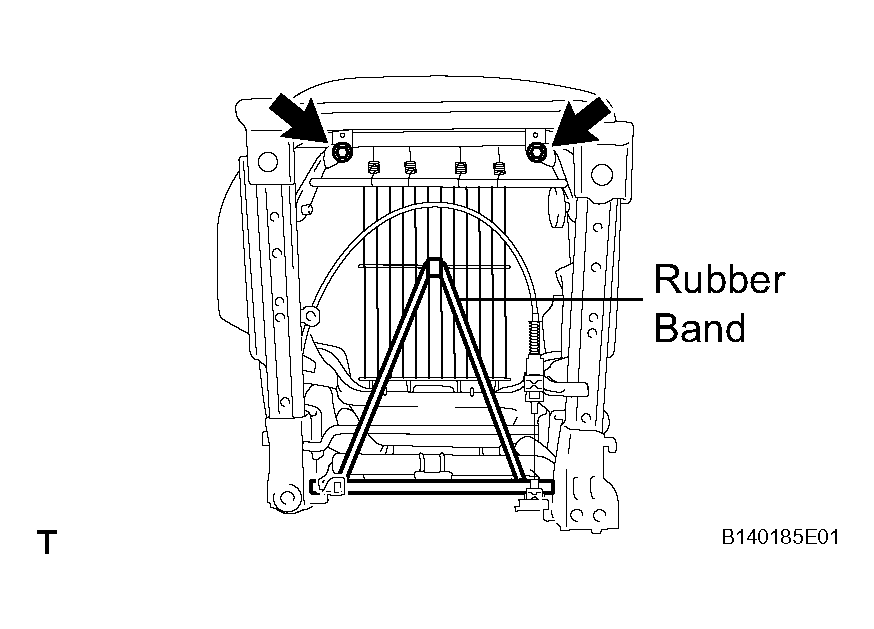

Fig 28: Connecting Rubber Band Of Seatback Cover To Seat Cushion Frame
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR NO. 2 SEAT CUSHION HINGE COVER
1. Attach the 5 claws to install the hinge cover.

  Fig 29: Attaching Claws To Hinge Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR NO. 1 SEAT CUSHION HINGE COVER
HINT:

Use the same procedures described for the rear No. 2 seat cushion hinge cover.
INSTALL REAR SEAT HEADREST ASSEMBLY
