REAR NO. 1 SEAT ASSEMBLY (for LH Side): Reassembly

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Wear protective gloves. Sharp areas on the seatback frame, seat cushion frame and reclining adjuster may injure your hands.

HINT:

A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

  1. INSTALL REAR SEAT COVER LH
    1. Attach the 2 claws to install the cover.
    2. Install the 2 screws.
      Fig 1: Installing Rear Seat Cover With Screw
      G04491754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL REAR SEATBACK COVER LH
    1. Attach the 2 claws to install the cover.
    2. Install the 2 screws.
  3. INSTALL REAR NO. 1 SEATBACK COVER
    NOTE:
    • Be careful not to damage the cover.
    • When installing the hog rings, avoid wrinkling the cover.
      Fig 2: Installing Rear Seatback Cover With Screw
      G04491755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using hog ring pliers, install the seatback cover to the seatback pad with 3 new hog rings.
    2. Install the seatback cover (with pad) to the seatback frame.

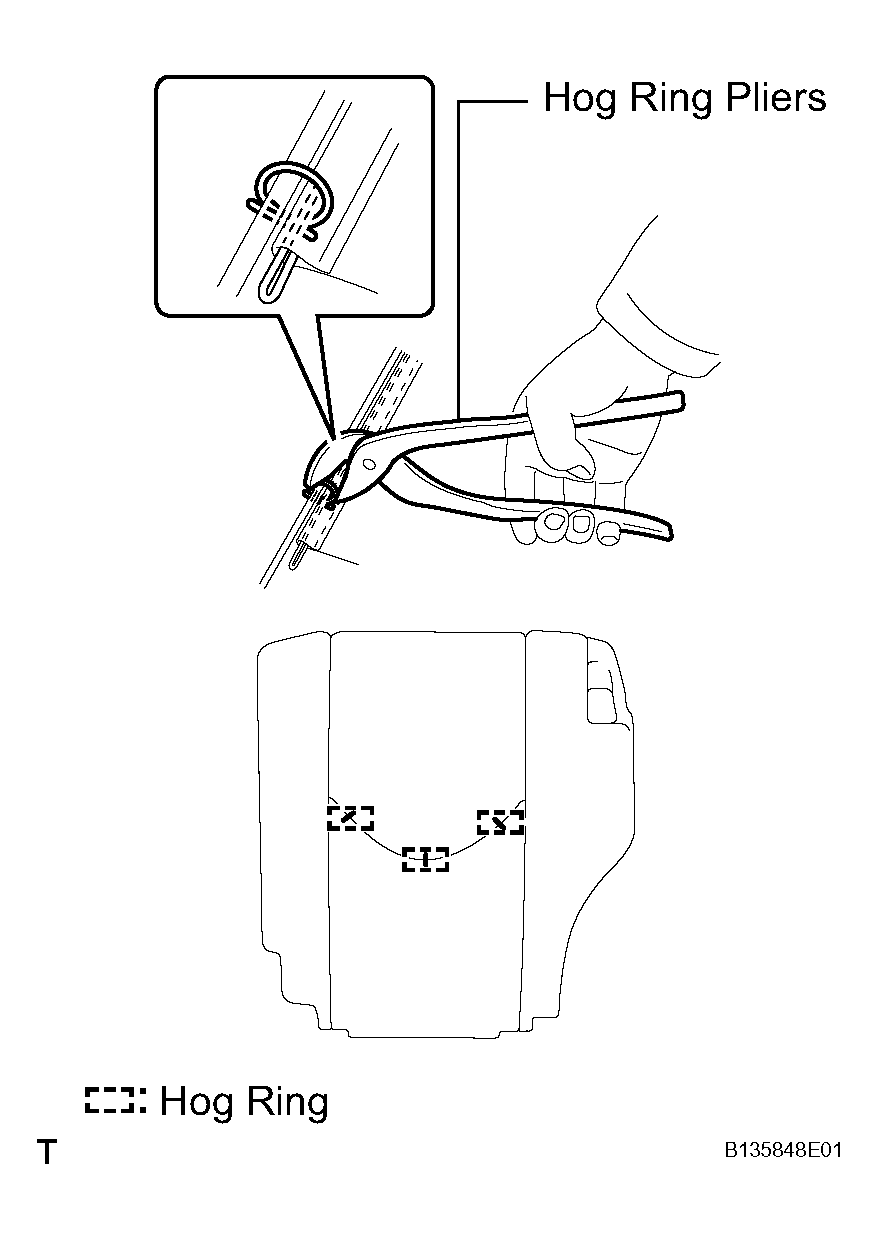

      Fig 3: Installing Seatback Cover To Seatback Pad With Hog Rings
      G04491756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Attach the 4 claws to install the 2 headrest supports.
      Fig 4: Identifying Headrest Supports
      G04491617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Lift up the seatback cover and install the 13 hog rings.
      Fig 5: Installing Hog Rings
      G04491758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL REAR SEATBACK PROTECTOR
    1. Install the protector with the 2 nuts.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

    2. Attach the clip.
      Fig 6: Installing Protector With Nuts
      G04491759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Attach the clips and close the fastening tape.
  5. INSTALL REAR SEAT LAP TYPE CENTER BELT ASSEMBLY LH (See appropriate step(s) under  INSTALLATION  )
    Fig 7: Installing Fastening Tape
    G04491760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL REAR NO. 1 SEATBACK ASSEMBLY LH
    1. Install the seatback with the 5 bolts.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

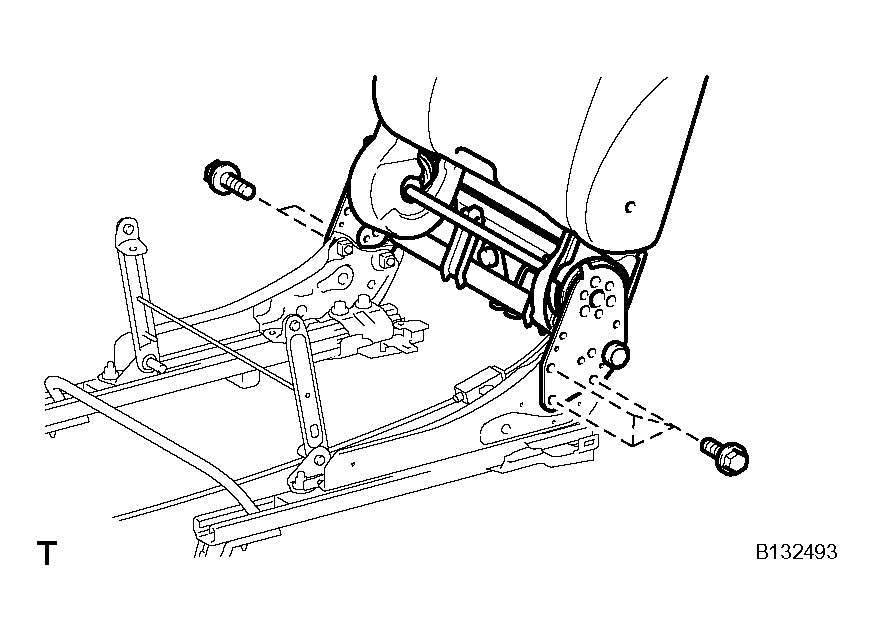

      Fig 8: Installing Seatback With Bolts
      G04491761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/o Rear No. 2 Seat:

      Attach the 2 clamps and connect the cable to the reclining adjuster.

      Fig 9: Connecting Cable To Reclining Adjuster
      G04491762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL REAR SEATBACK LOCK CONTROL LEVER BASE LH
    1. Attach the 2 claws to install the lever base.
    2. Install the screw.

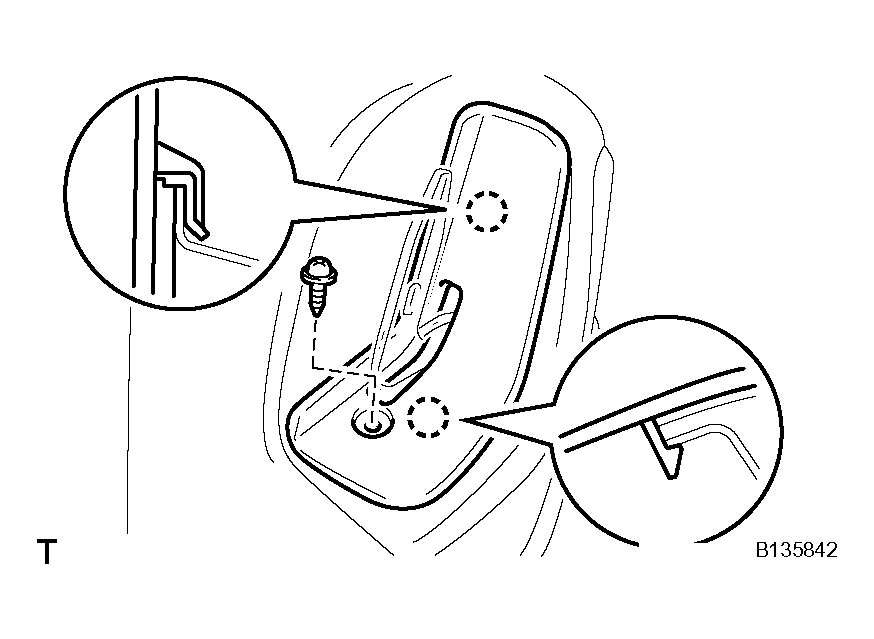

      Fig 10: Installing Rear Seatback Lock Control Lever Base With Screw
      G04491763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL REAR SEAT RECLINING RELEASE LEVER
    1. Attach the claw to install the release lever.
      Fig 11: Installing Rear Seat Reclining Release Lever
      G04491764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the cover with the 2 screws.
      Fig 12: Installing Cover With Screws
      G04491765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL REAR SEAT CUSHION MOULDING LH
    1. Attach the 2 claws to install the moulding.
    2. Install the screw.

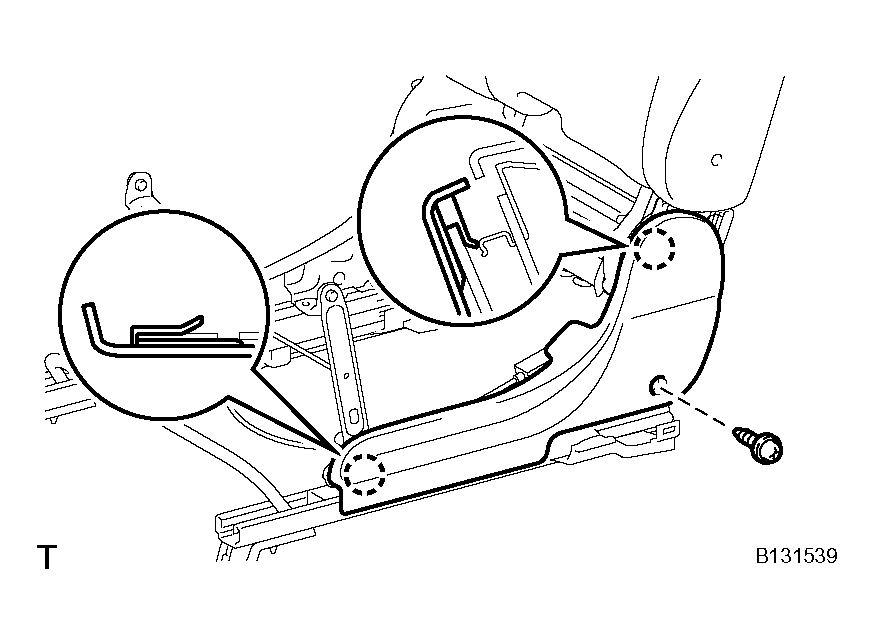

      Fig 13: Installing Rear Seat Cushion Moulding With Screw
      G04491766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL REAR SEAT CUSHION REAR MOULDING LH
    1. Attach the claw to install the moulding.
    2. Install the screw.
      Fig 14: Installing Rear Seat Cushion Rear Moulding With Screw
      G04491767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL REAR SEAT REAR BRACKET COVER LH
    1. Open the lower part of the seatback cover. Then attach the 4 clips to install the bracket cover.
    2. Install the 2 screws.
  12. INSTALL REAR NO. 1 SEAT CUSHION COVER
    NOTE:
    • Be careful not to damage the cover.
    • When installing the hog rings, avoid wrinkling the cover.

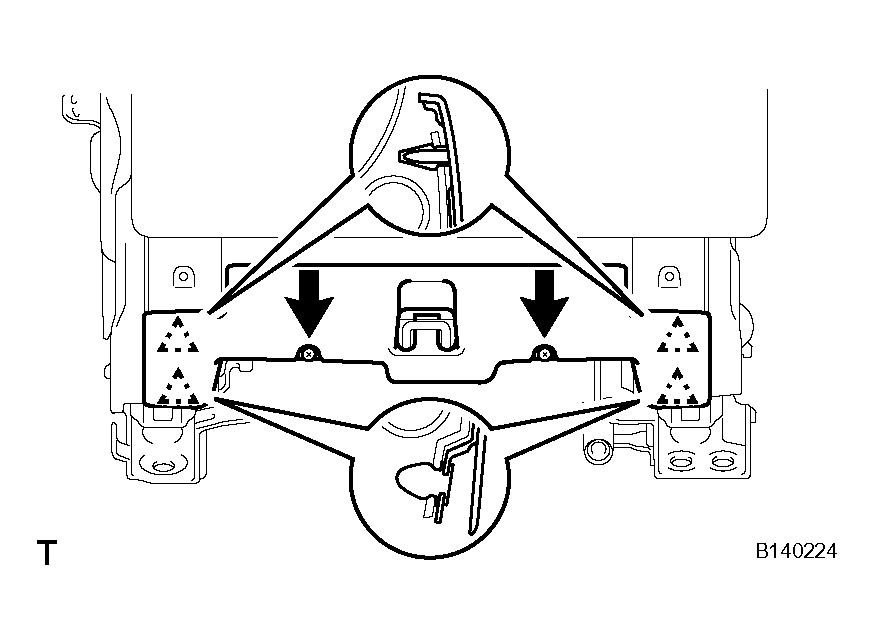

      Fig 15: Installing Rear Seat Rear Bracket Cover With Screw
      G04491768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using hog ring pliers, install the seat cushion cover to the seat cushion pad with 3 new hog rings.

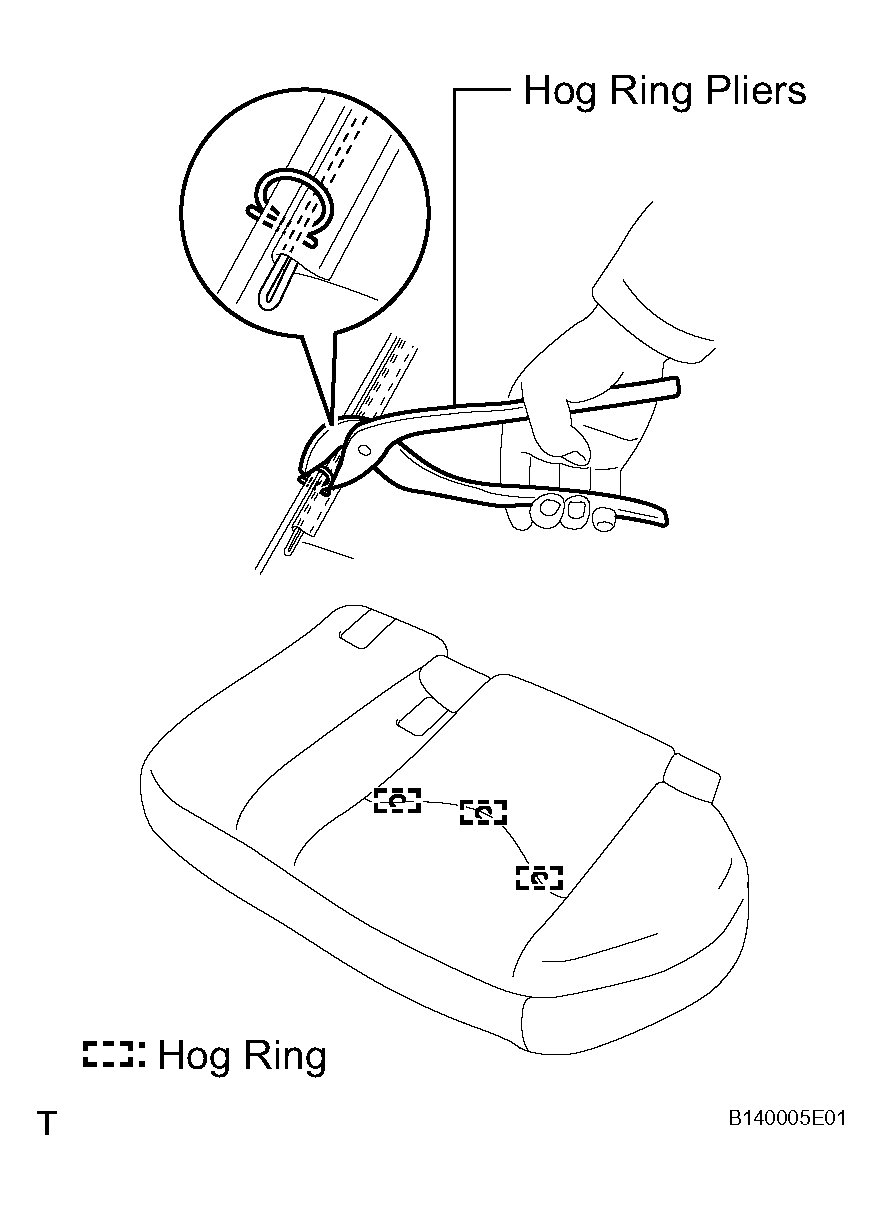

      Fig 16: Installing Seat Cushion Cover To Seat Cushion Pad Hog Rings
      G04491769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using hog ring pliers, install the seat cushion cover (with pad) to the seat cushion frame with 29 new hog rings.

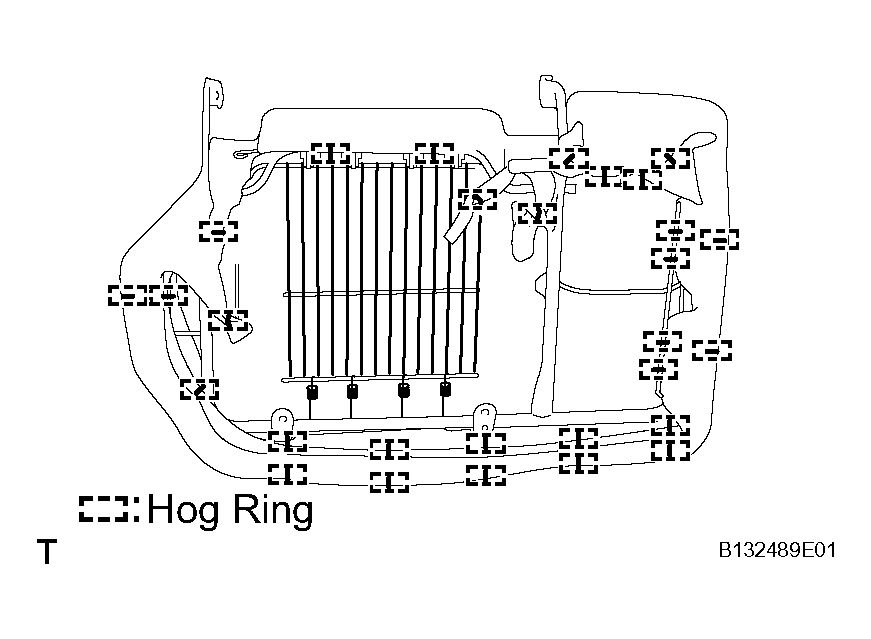

      Fig 17: Installing Seat Cushion Cover (With Pad) To Seat Cushion Frame With Hog Rings
      G04491770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Attach the 2 hooks.
      Fig 18: Locating Hooks
      G04491771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL REAR NO. 1 SEAT CUSHION ASSEMBLY LH
    1. Install the cushion with the 2 bushes and 2 bolts.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

      Fig 19: Installing Cushion With Bushes And Bolts
      G04491772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 bolts.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    3. Connect the rubber band of the seatback cover to the seat cushion frame.

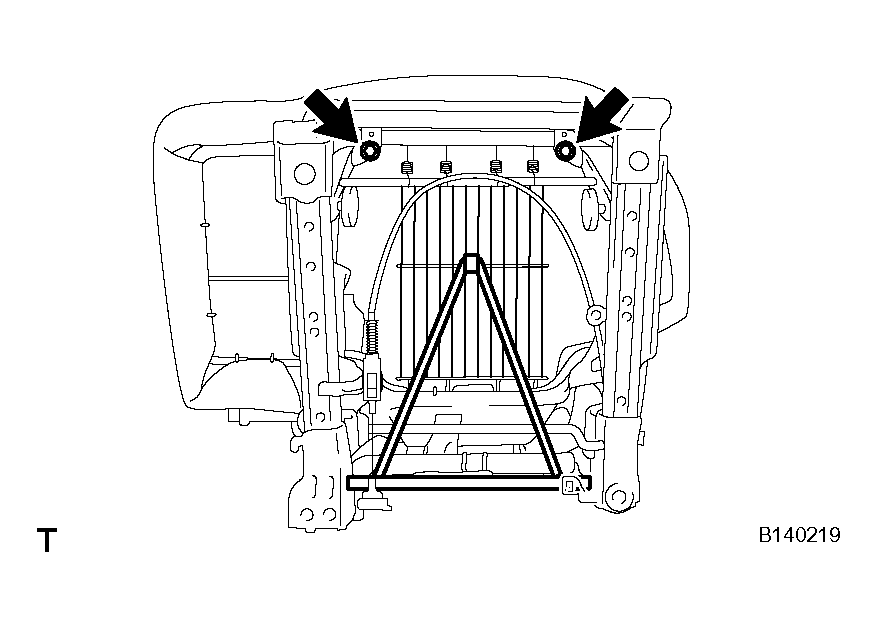

      Fig 20: Connecting Rubber Band Of Seatback Cover To Seat Cushion Frame
      G04491773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL REAR SEAT INNER BELT ASSEMBLY RH (See appropriate step(s) under  INSTALLATION  )
  15. INSTALL REAR SEAT CUSHION LOWER HINGE COVER LH
    1. Attach the 5 claws to install the hinge cover.
      Fig 21: Installing Rear Seat Cushion Lower Hinge Cover
      G04491774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL REAR NO. 3 SEAT CUSHION HINGE COVER
    1. Attach the 6 claws to install the hinge cover.

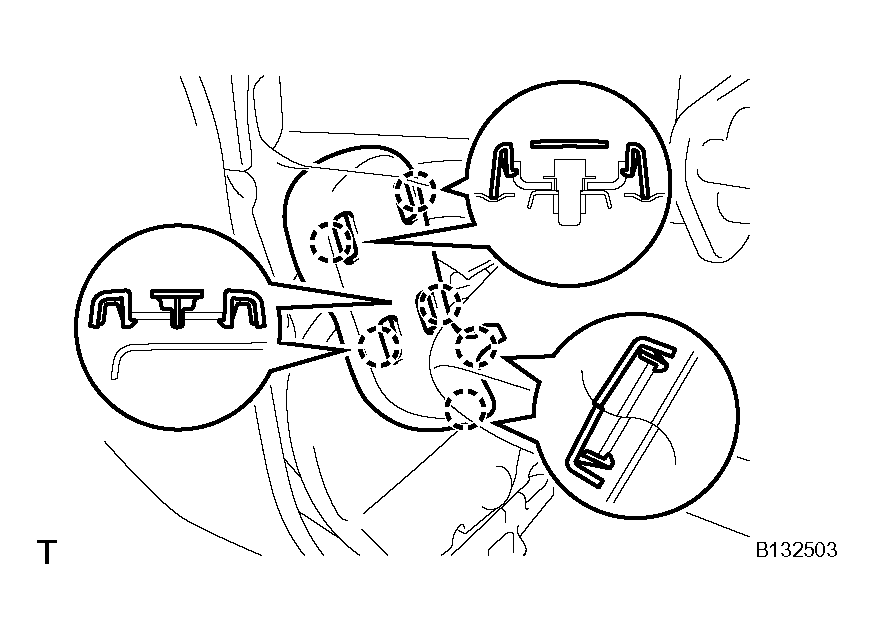

      Fig 22: Installing Rear No. 3 Seat Cushion Hinge Cover
      G04491775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL REAR NO. 1 SEAT ARMREST ASSEMBLY LH
    1. Install the armrest with the 2 nuts.

      Torque: 32 N*m (326 kgf*cm, 24 ft.*lbf)

      Fig 23: Installing Armrest With Nuts
      G04491776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL REAR SEAT CENTER ARMREST COVER
    1. Push the armrest cover in the direction indicated by the arrow in the illustration to attach the 2 claws.
      Fig 24: Pushing Armrest Cover In Direction
      G04491777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the 2 clips to install the armrest cover.
      Fig 25: Attaching Clips To Armrest Cover
      G04491778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL REAR SEAT CENTER ARMREST ASSEMBLY
    1. Install the armrest with the 2 nuts.

      Torque: 32 N*m (326 kgf*cm, 24 ft.*lbf)

      Fig 26: Installing Armrest With Nuts
      G04491779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL CENTER ARMREST HINGE COVER LH
    1. Attach the 4 claws to install the hinge cover.

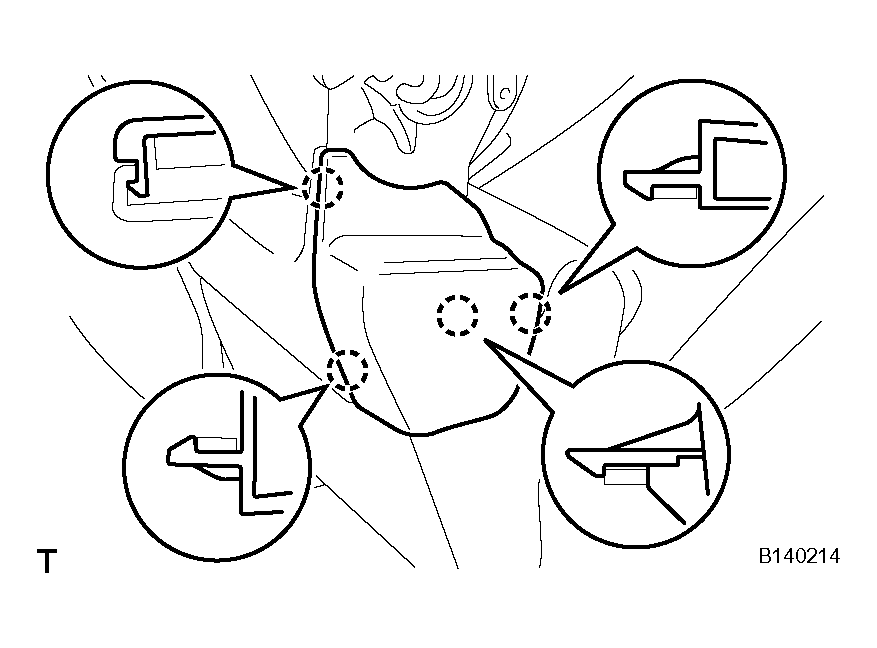

      Fig 27: Attaching Claw To Hinge Cover
      G04491780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL CENTER ARMREST HINGE COVER RH
    1. Pass the seat lock release strap through the hole in the hinge cover.
    2. Attach the claw to install the hinge cover.
    3. Install the 2 screws and 2 rear seatback lock hooks.
      Fig 28: Installing Screws And Rear Seatback Lock Hooks
      G04491781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL REAR SEAT CENTER HEADREST ASSEMBLY
  23. INSTALL REAR SEAT HEADREST ASSEMBLY
