REAR NO. 1 SEAT ASSEMBLY (for LH Side): Installation

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL REAR NO. 1 SEAT ASSEMBLY LH (w/o Rear No. 2 Seat)
    1. Fully tilt the seatback forward.
    2. Place the seat in the cabin.
      NOTE: Be careful not to damage the vehicle body.
    3. Connection procedures of seat to lock cable when reusing seat:
      1. Using a screwdriver, detach the claw and remove the connector case from the seat.

        HINT:

        Tape the screwdriver tip before use.

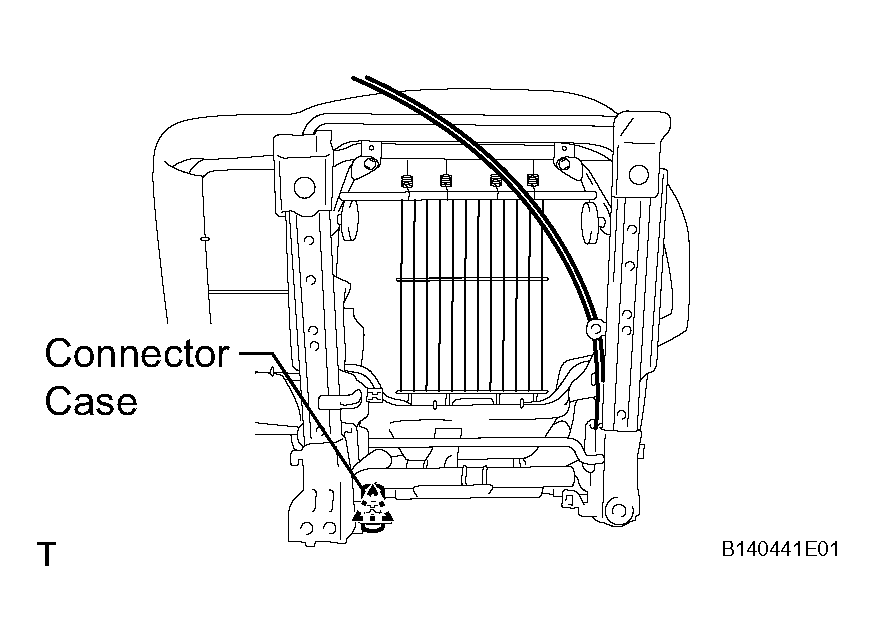

        Fig 1: Installing Connector Case From Seat
        G04491782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Install the connector case to the body's cap.
        Fig 2: Installing Connector Case To Body'S Cap
        G04491783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Pull out the joint piece. Align the slits of the joint piece and connector case.
        Fig 3: Aligning Slits Of Joint Piece And Connector Case
        G04491784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Compress the spring of the adjuster, and pull out the cable from the seat's cap.

        HINT:

        Perform this procedure with the lock of the adjuster released.

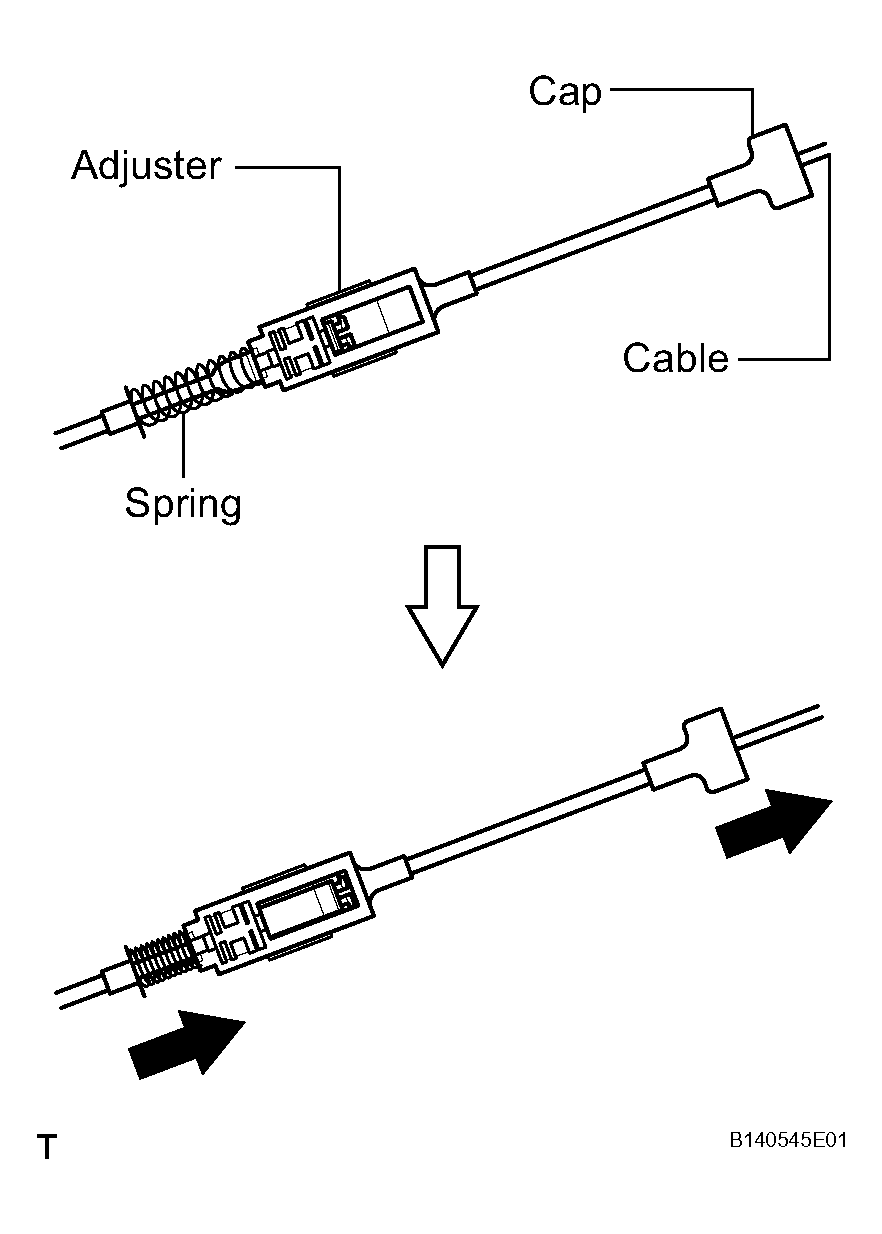

        Fig 4: Compressing Spring Of Adjuster
        G04491785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Install the seat cable's end part to the connector case's slit.
        Fig 5: Installing Seat Cable'S End Part To Connector Case'S Slit
        G04491786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        Position the joint piece cable's end part as shown in the illustration.

        Fig 6: Positioning Joint Piece Cable'S
        G04491787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      6. Install the seat's cap to the connector case.
      7. Temporarily place the seat into the vehicle where it will be installed.
        Fig 7: Installing Seat'S Cap To Connector Case
        G04491788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      8. Return the seatback to the upright position.
        Fig 8: Returning Seatback To Upright Position
        G04491789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      9. Attach the claws of the connector and adjuster, and install them to the seat.

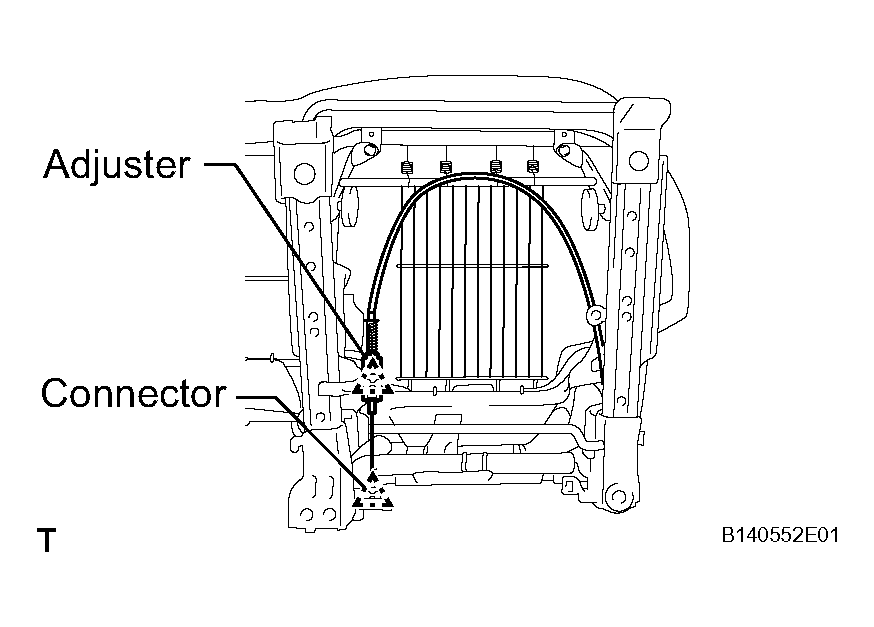

        Fig 9: Connecting Connector And Adjuster To Seat
        G04491790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      10. Press the adjuster's lock piece to lock it.
        NOTE: When pressing the lock piece, make sure the adjuster's spring is not compress.
        Fig 10: Pressing Adjuster'S Lock Piece To Lock
        G04491791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connection procedures of seat to lock cable when replacing seat:
      1. Cut the joint piece on the lock cable, and remove it.

        HINT:

        • A joint piece is included with new seats.
        • This procedure is not necessary when the lock cable is replaced with a new one.
      2. Temporarily place the seat into the vehicle where it will be installed.
        Fig 11: Identifying Cutting Joint Piece On Lock Cable
        G04491792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Install the body's cap to the connector case.
        Fig 12: Installing Body'S Cap To Connector Case
        G04491793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Press the adjuster's lock pin.
        Fig 13: Pressing Adjuster'S Lock Pin
        G04491794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Return the seatback to the upright position.
        Fig 14: Returning Seatback To Upright Position
        G04491795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      6. Press the adjuster's lock piece to lock it.
        NOTE: When pressing the lock piece, make sure the adjuster's spring is not compress.
    5. Lift up the seat track adjusting handle and move the seat to the foremost position.
      Fig 15: Pressing Lock Piece
      G04491796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Tighten the 3 bolts on the rear side of the seat.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      HINT:

      Tighten the bolts in the order indicated in the illustration.

    7. Lift up the seat track adjusting handle and move the seat to the rearmost position.
      Fig 16: Tightening Bolts On Rear Side Of Seat
      G04491797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Tighten the 2 bolts on the front side of the seat.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      HINT:

      Tighten the bolts in the order indicated in the illustration.

  2. INSTALL REAR NO. 1 SEAT ASSEMBLY LH (w/Rear No. 2 Seat)
    1. Fully tilt the seatback forward.
    2. Place the seat in the cabin.
      NOTE: Be careful not to damage the vehicle body.
      Fig 17: Tightening Bolts On Front Side Of Seat
      G04491798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Return the seatback to the upright position.
    4. Lift up the seat track adjusting handle and move the seat to the foremost position.
      Fig 18: Returning Seatback To Upright Position
      G04491799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Tighten the 3 bolts on the rear side of the seat.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      HINT:

      Tighten the bolts in the order indicated in the illustration.

    6. Lift up the seat track adjusting handle and move the seat to the rearmost position.
      Fig 19: Tightening Bolts On Rear Side Of Seat
      G04491800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Tighten the 2 bolts on the front side of the seat.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      HINT:

      Tighten the bolts in the order indicated in the illustration.

      Fig 20: Tightening Bolts On Front Side Of Seat
      G04491801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

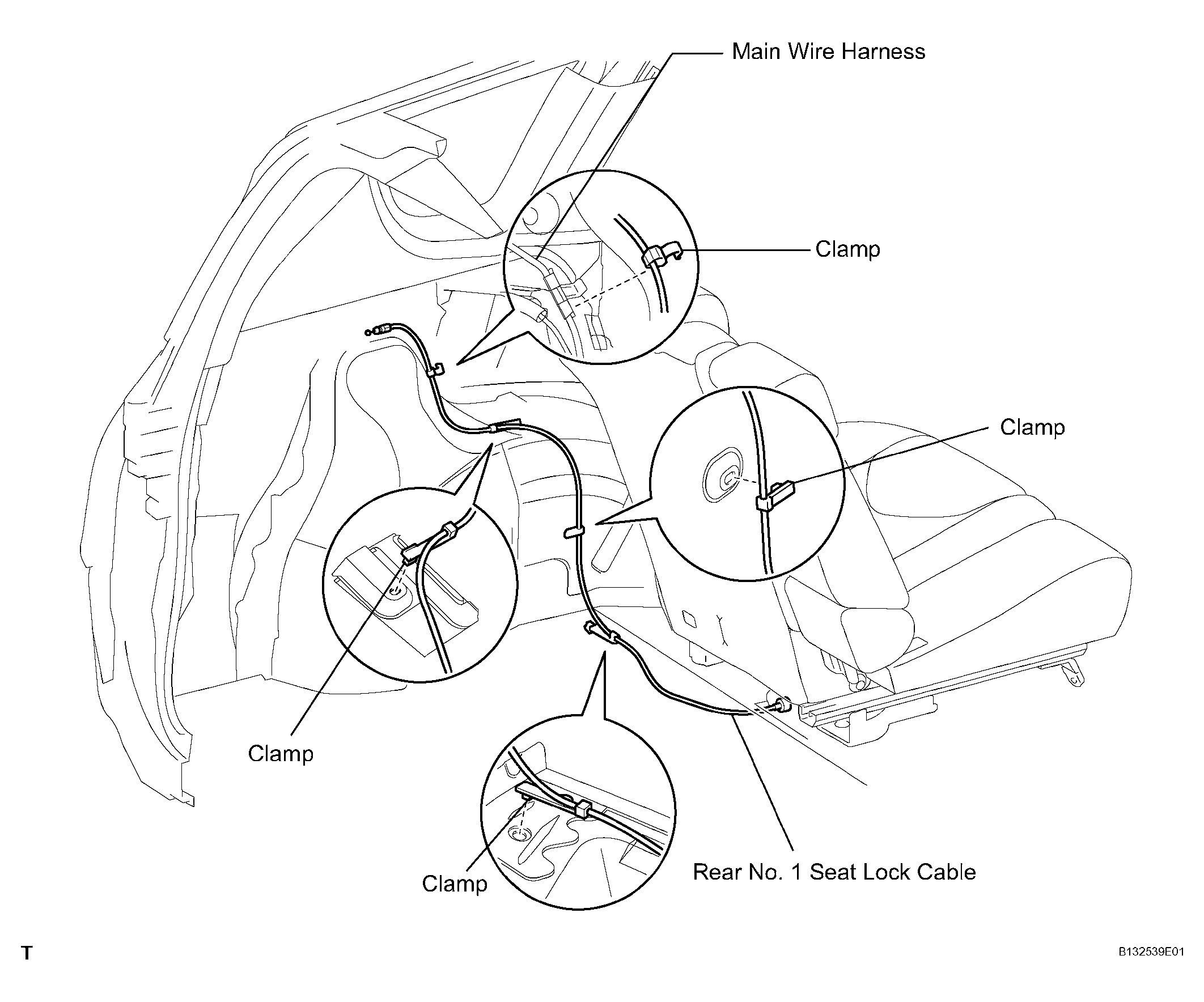

  3. INSTALL REAR NO. 1 SEAT LOCK CABLE ASSEMBLY (w/o Rear No. 2 Seat)
    1. Attach the clamps and install the cable to the vehicle body.
      Fig 21: Attaching Clamps And Installing Cable To Vehicle Body
      G04491802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL REAR SEAT LAP TYPE BELT ASSEMBLY CENTER RH (w/Rear No. 2 Seat) (See appropriate step(s) under  INSTALLATION  )
  5. INSTALL REAR SEAT LAP TYPE BELT CENTER ASSEMBLY RH (w/o Rear No. 2 Seat) (See appropriate step(s) under  INSTALLATION  )
  6. INSTALL REAR SEAT LEG COVER
    1. Attach the 8 claws to install the 2 leg covers.
      Fig 22: Attaching Claws
      G04491803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL REAR NO. 5 SEAT LEG SIDE COVER
    1. Attach the 3 claws and clip to install the side cover.

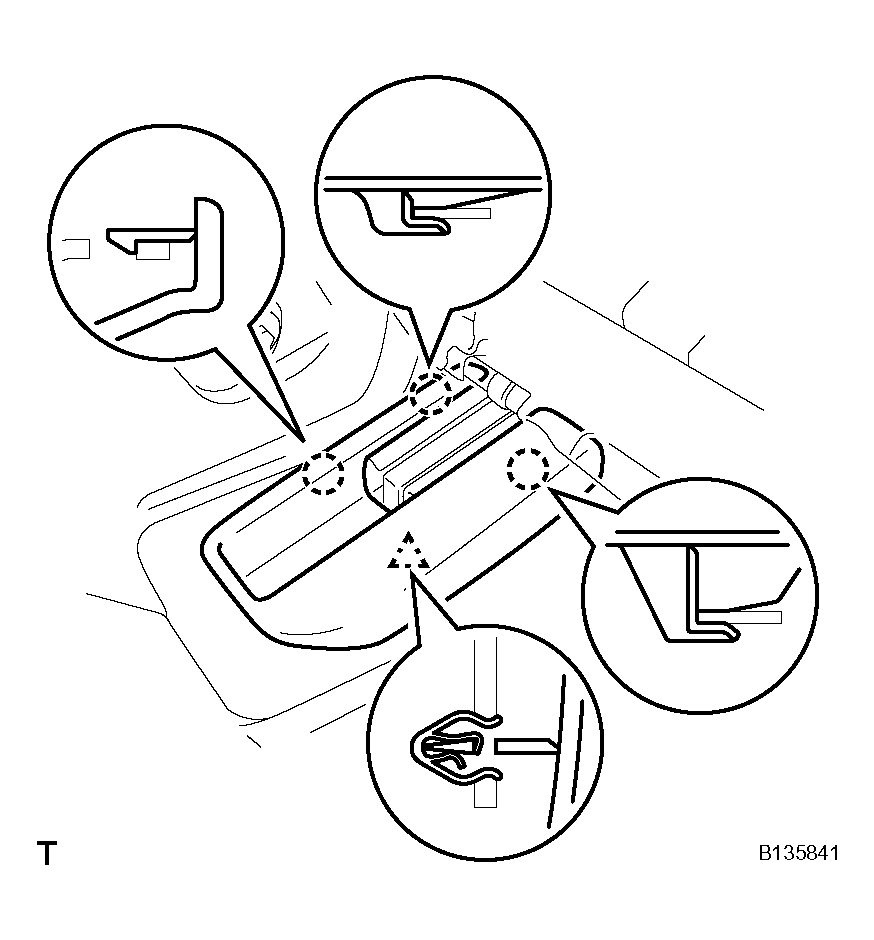

      Fig 23: Installing Rear No. 5 Seat Leg Side Cover
      G04491804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL REAR NO. 4 SEAT LEG SIDE COVER (w/Rear No. 2 Seat)
    1. Attach the 4 claws to install the side cover.

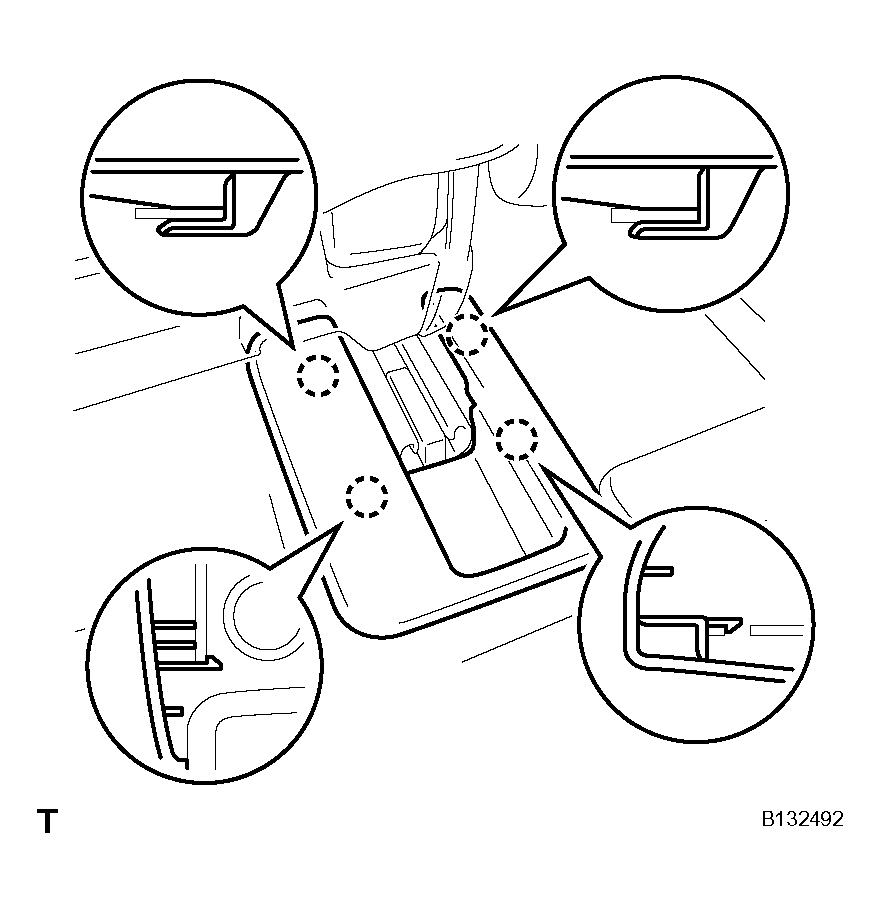

      Fig 24: Installing Rear No. 4 Seat Leg Side Cover (W/Rear No. 2 Seat)
      G04491805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL REAR NO. 4 SEAT LEG SIDE COVER (w/o Rear No. 2 Seat)
    1. Attach the 4 claws to install the rear No. 4 seat leg side cover.

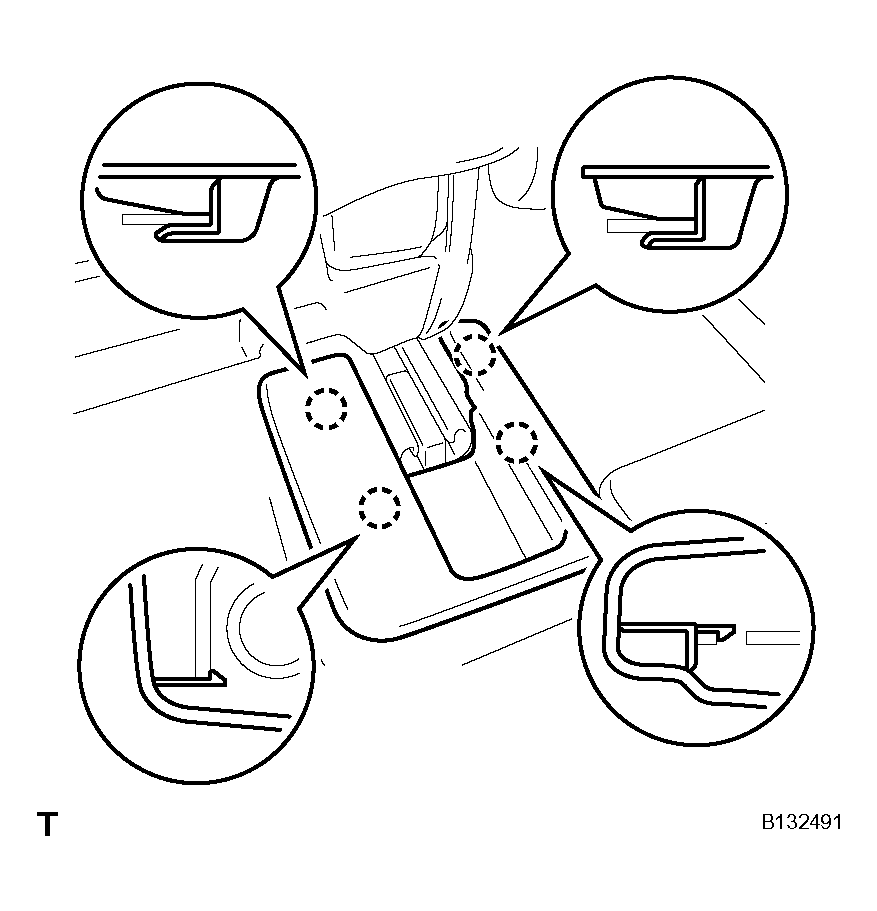

      Fig 25: Installing Rear No. 4 Seat Leg Side Cover (W/O Rear No. 2 Seat)
      G04491806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

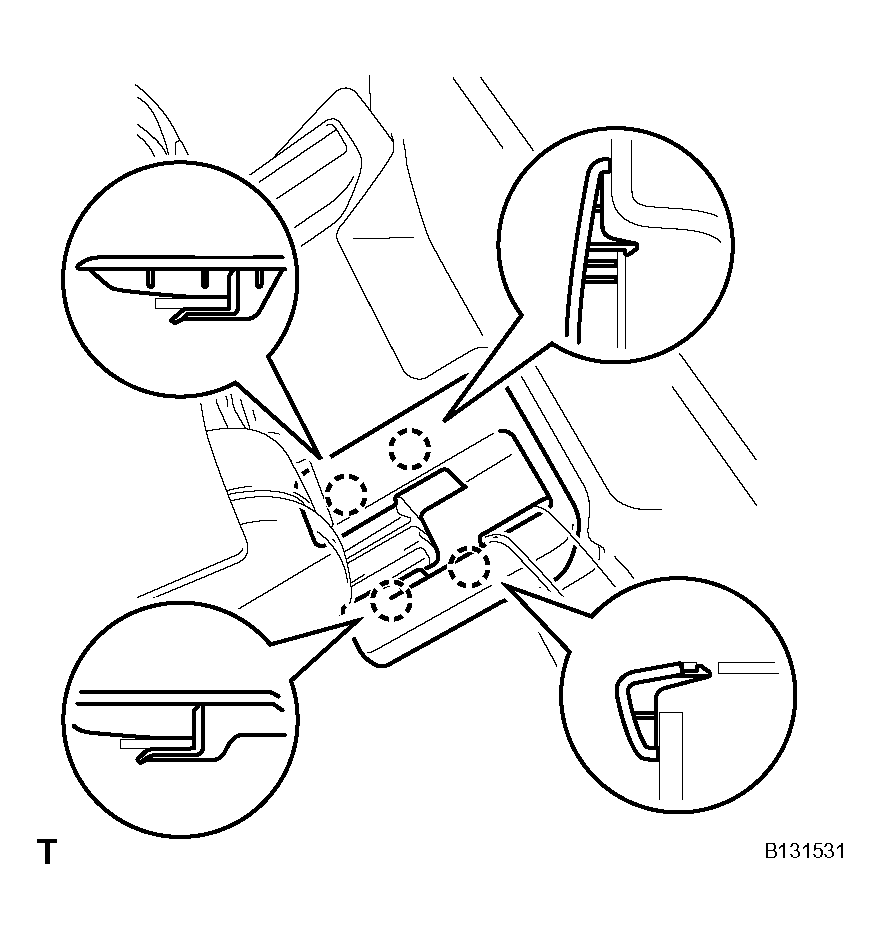

  10. INSTALL REAR NO. 3 SEAT LEG SIDE COVER (w/Rear No. 2 Seat)
    1. Attach the 4 claws to install the side cover.
      Fig 26: Installing Rear No. 3 Seat Leg Side Cover (W/Rear No. 2 Seat)
      G04491807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL REAR NO. 3 SEAT LEG SIDE COVER (w/o Rear No. 2 Seat)
    1. Attach the 4 claws to install the side cover.
  12. INSTALL RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY LH (w/o Rear No. 2 Seat)
    1. Connect the rear No. 1 seat lock cable to the lever.

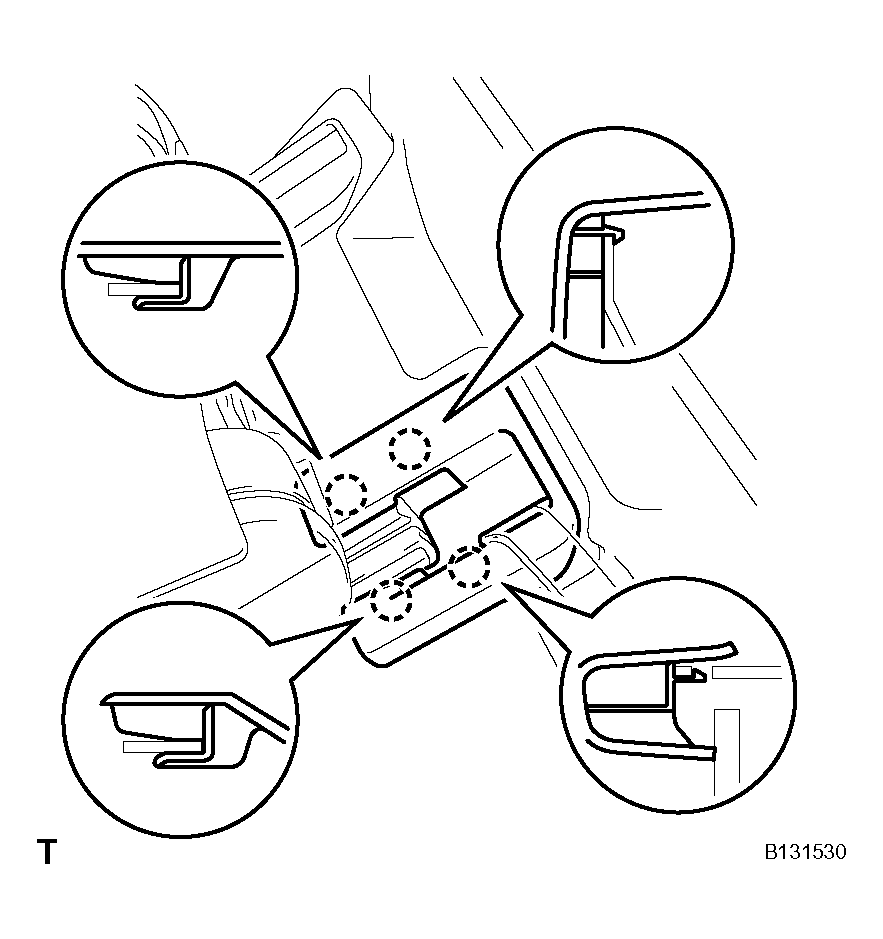

      Fig 27: Installing Rear No. 3 Seat Leg Side Cover (W/O Rear No. 2 Seat)
      G04491808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the lever with the 2 bolts.

      Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

  13. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH (w/o Rear No. 2 Seat) (See appropriate step(s) under  INSTALLATION  )
  14. INSTALL TETHER ANCHOR BRACKET SUB-ASSEMBLY (w/o Rear No. 2 Seat) (See appropriate step(s) under  INSTALLATION  )
    Fig 28: Installing Lever With Bolts
    G04491809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL RECLINING REMOTE CONTROL LEVER BEZEL LH (w/o Rear No. 2 Seat)
    1. Attach the 6 claws to install the bezel.
  16. INSTALL REAR FLOOR FINISH PLATE (w/o Rear No. 2 Seat) (See appropriate step(s) under  INSTALLATION  )
  17. INSTALL BACK DOOR WEATHERSTRIP (w/o Rear No. 2 Seat)
  18. INSTALL REAR FLOOR NO. 1 MAT SUPPORT SIDE PLATE (w/o Rear No. 2 Seat) (See appropriate step(s) under  INSTALLATION  )
  19. INSTALL REAR FLOOR NO. 3 BOARD (w/o Rear No. 2 Seat)
  20. INSTALL REAR FLOOR NO. 2 BOARD (w/o Rear No. 2 Seat)

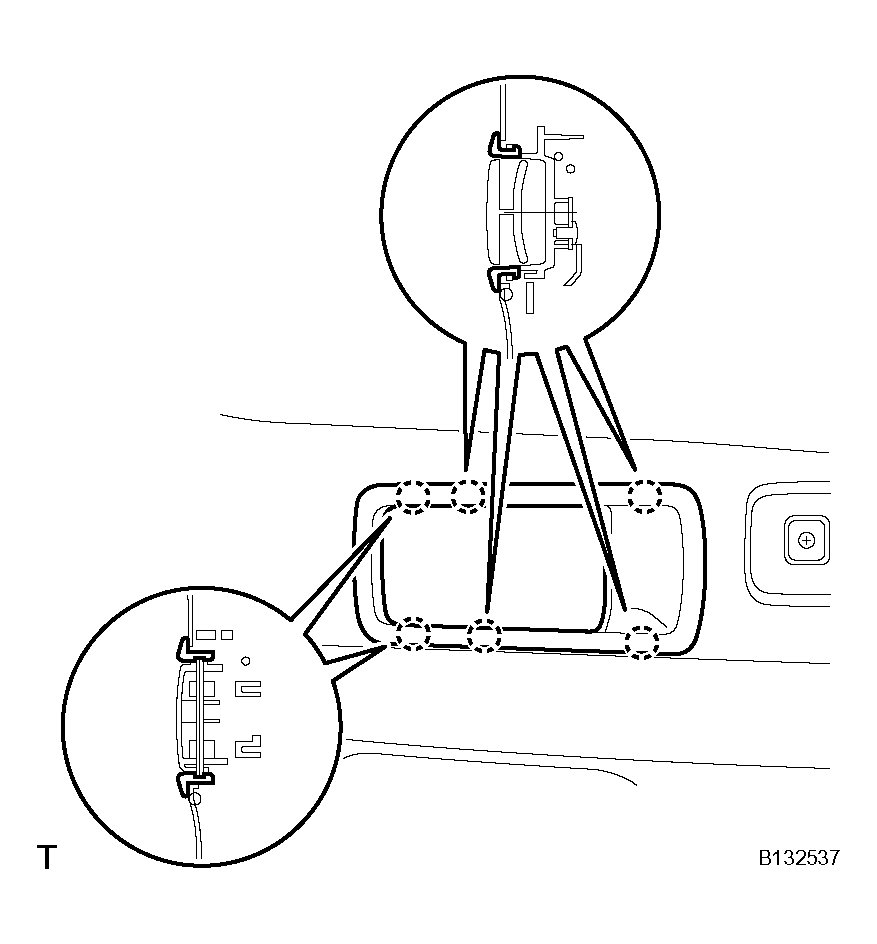

    Fig 29: Attaching Claws
    G04491810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL DECK BOARD ASSEMBLY (w/o Rear No. 2 Seat)
  22. INSTALL REAR FLOOR NO. 1 BOARD (w/o Rear No. 2 Seat)
  23. INSTALL TONNEAU COVER ASSEMBLY (w/o Rear No. 2 Seat)
  24. INSTALL PACKAGE TRAY TRIM POCKET SUB-ASSEMBLY (w/o Rear No. 2 Seat)
