REAR NO. 1 SEAT ASSEMBLY (for LH Side): Components

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

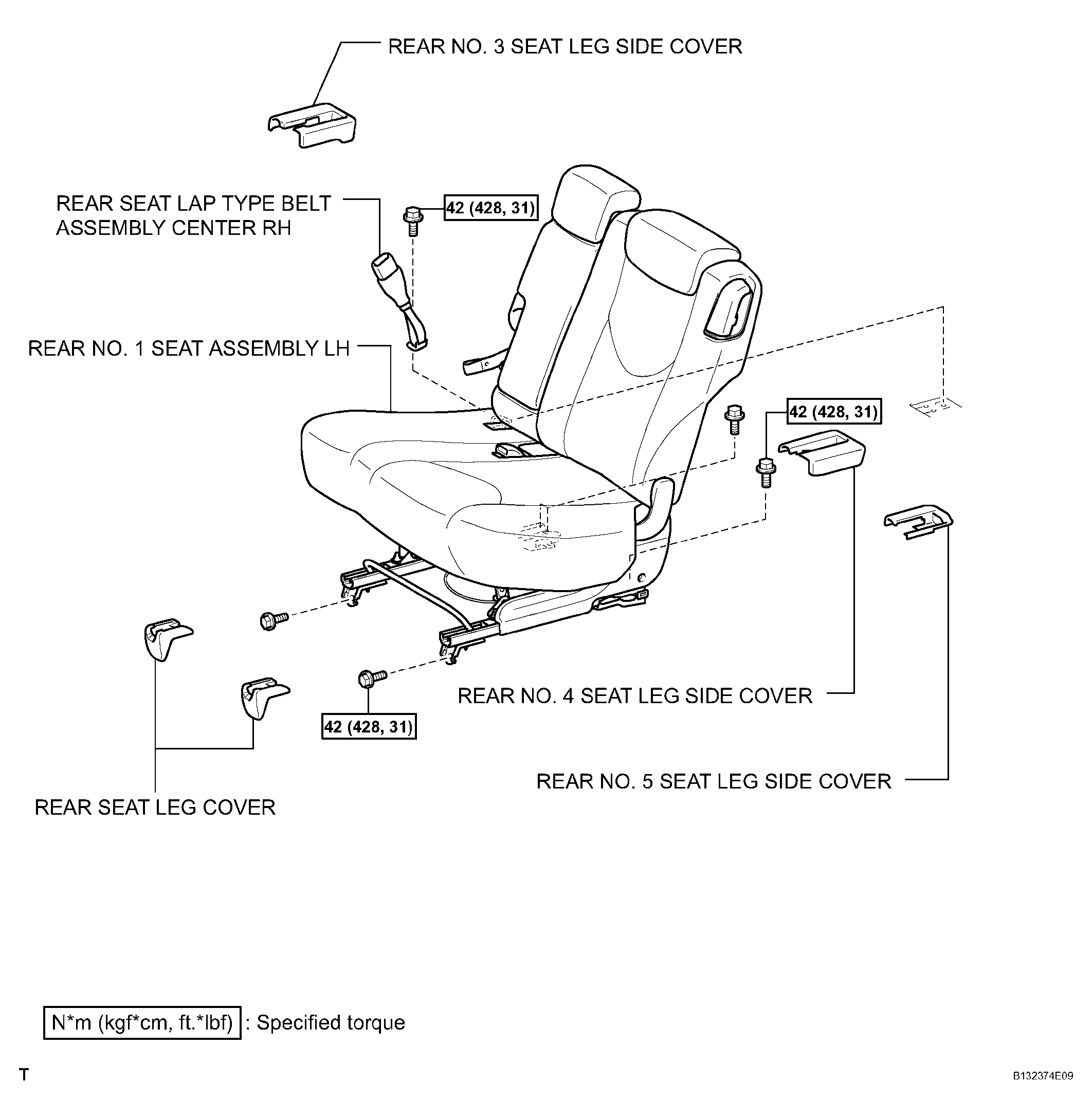

Fig 1: Identifying Rear No. 1 Seat Assembly Components (LH Side) (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

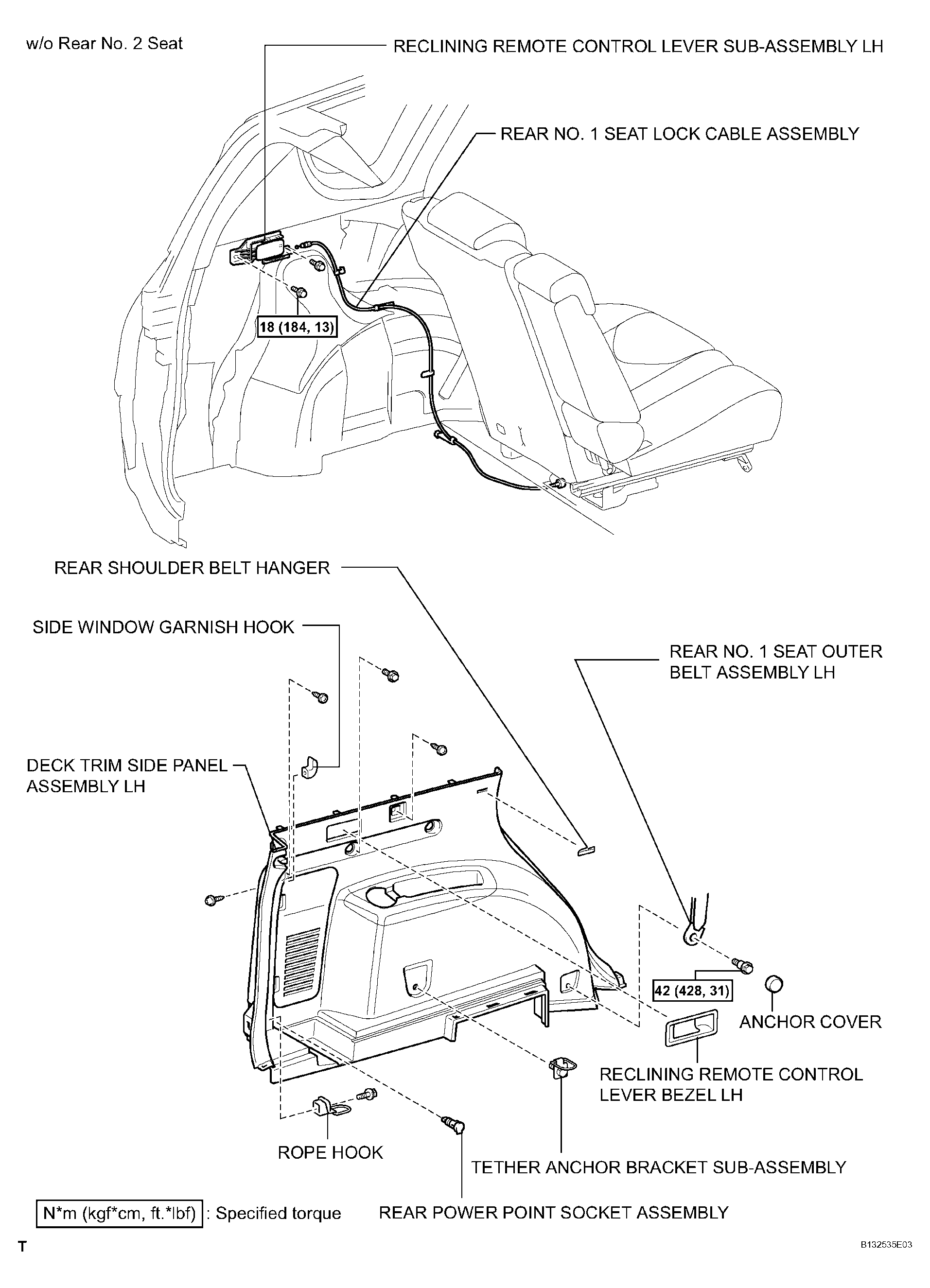

Fig 2: Rear No. 1 Seat Assembly Replacement Components With Torque Specifications (LH Side) (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

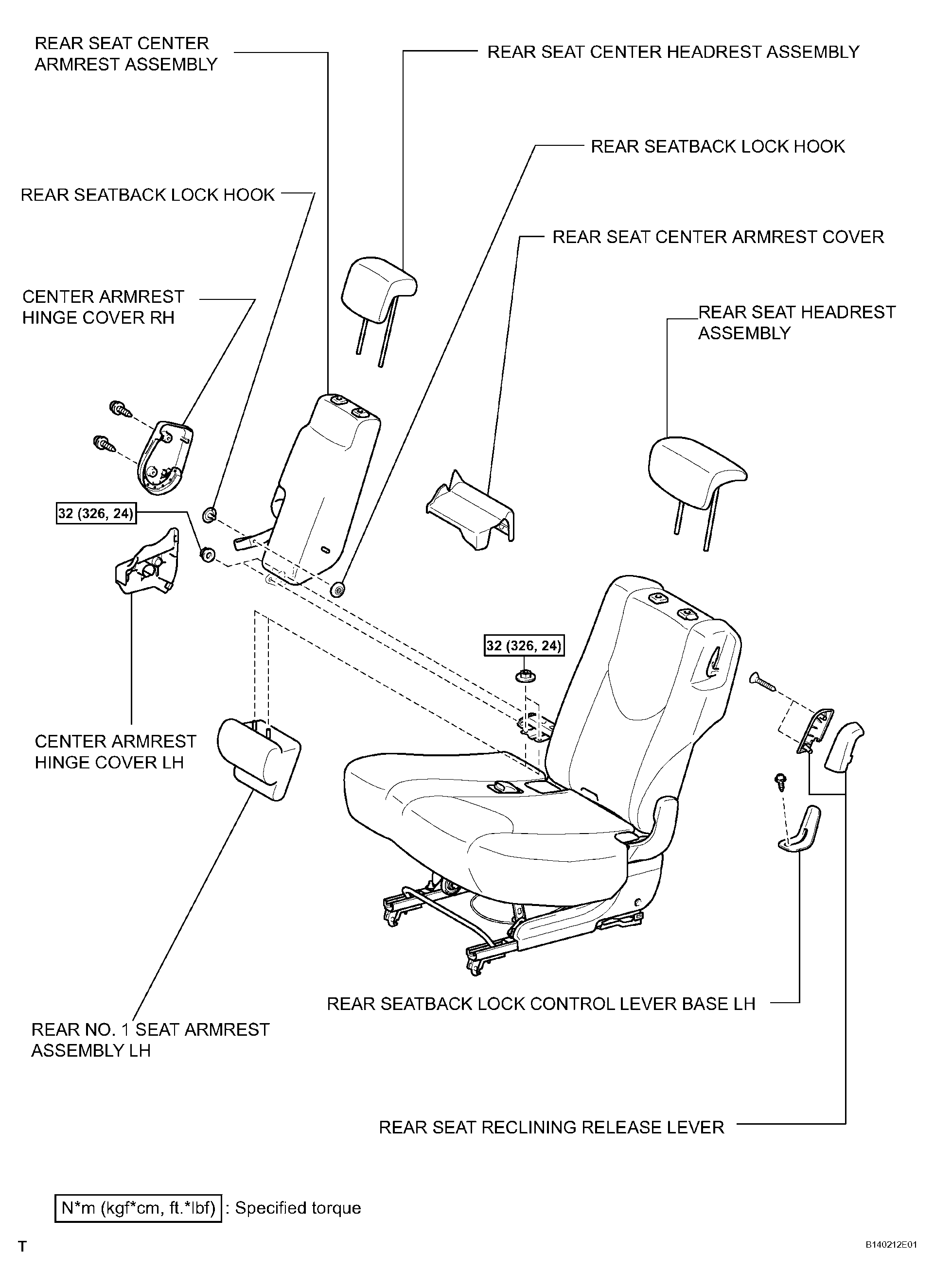

Fig 3: Rear No. 1 Seat Assembly Replacement Components With Torque Specifications (LH Side) (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

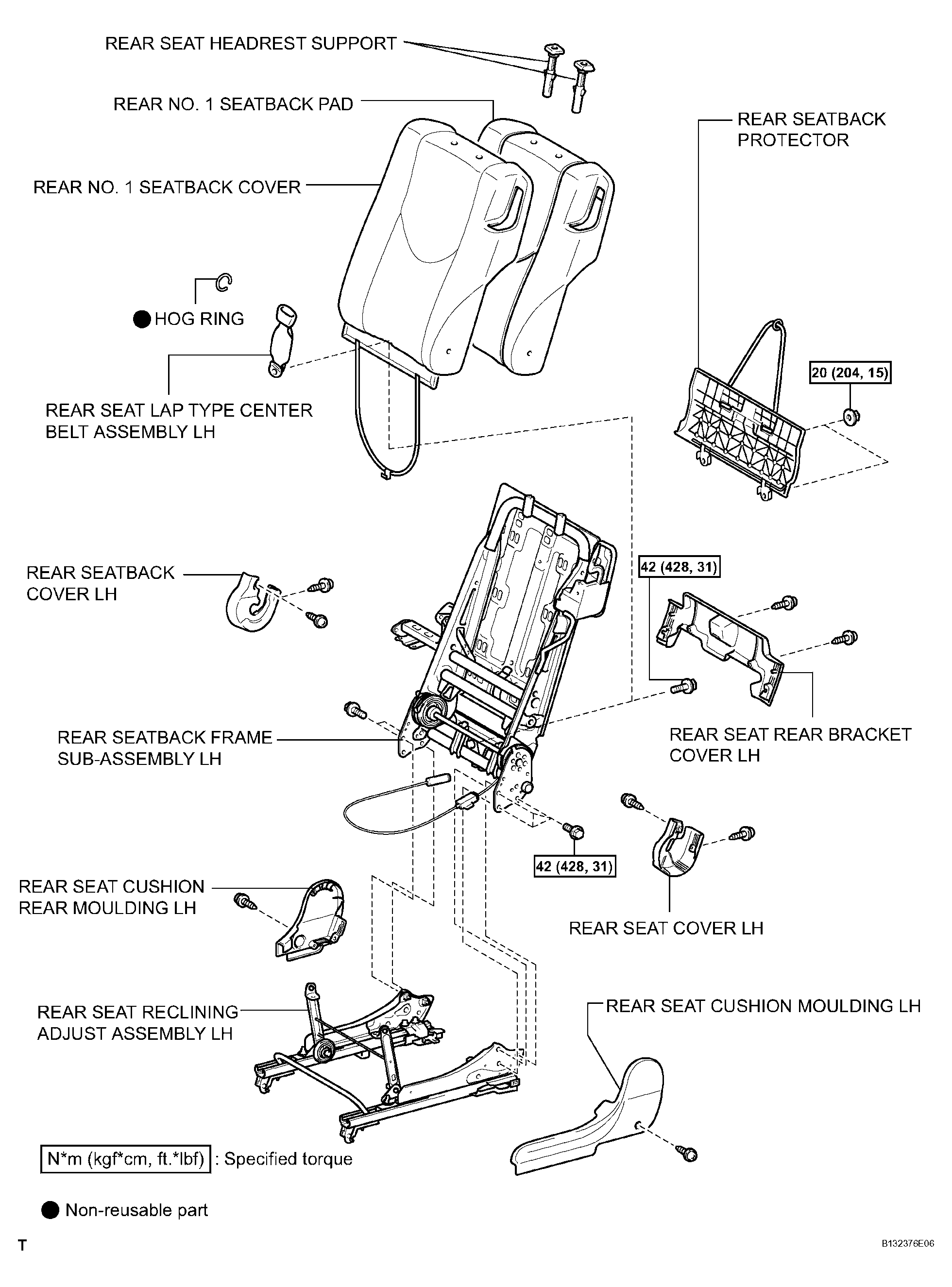

Fig 4: Rear No. 1 Seat Assembly Replacement Components With Torque Specifications (LH Side) (4 Of 6)

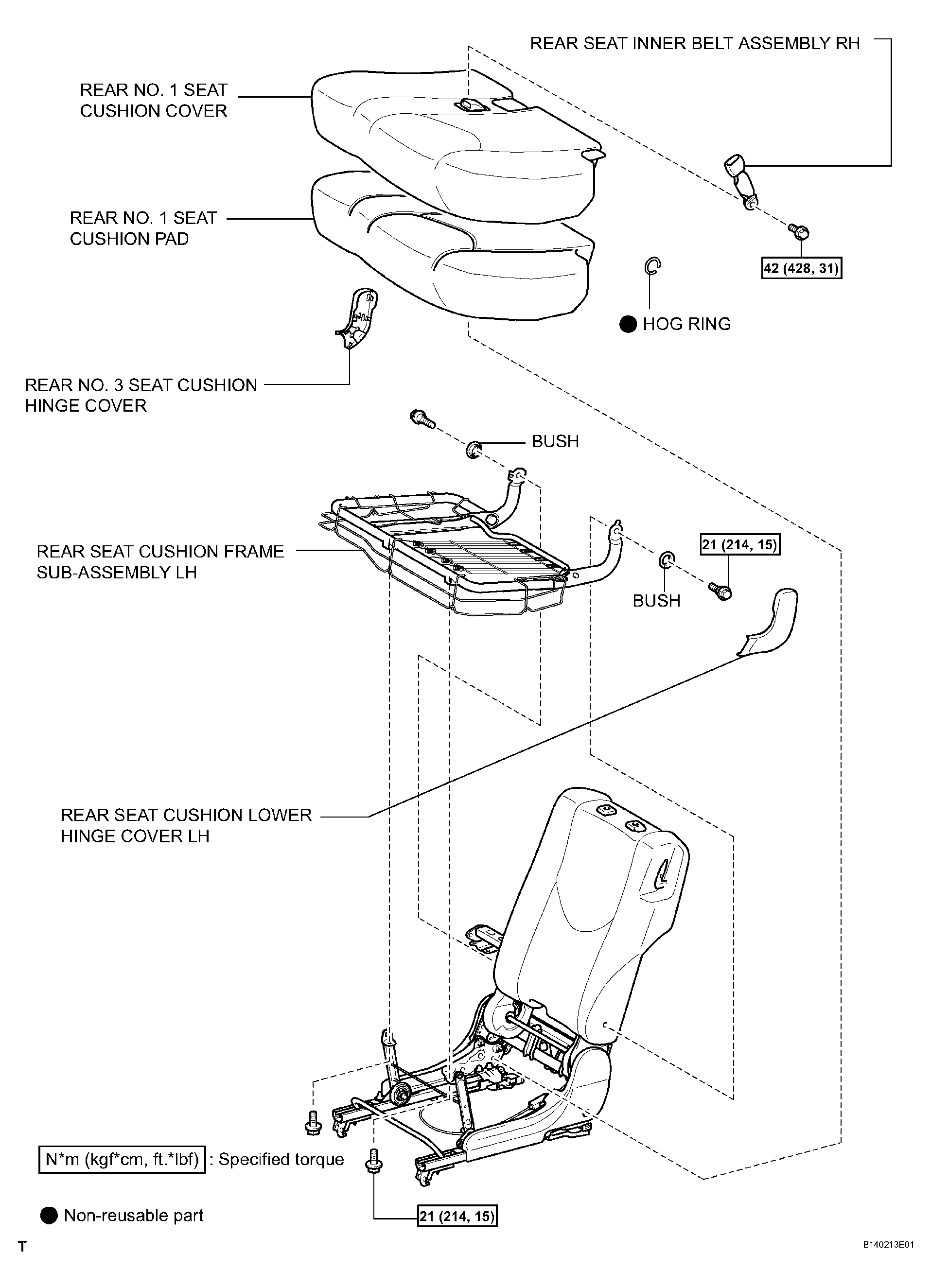

Fig 5: Rear No. 1 Seat Assembly Replacement Components With Torque Specifications (LH Side) (5 Of 6)

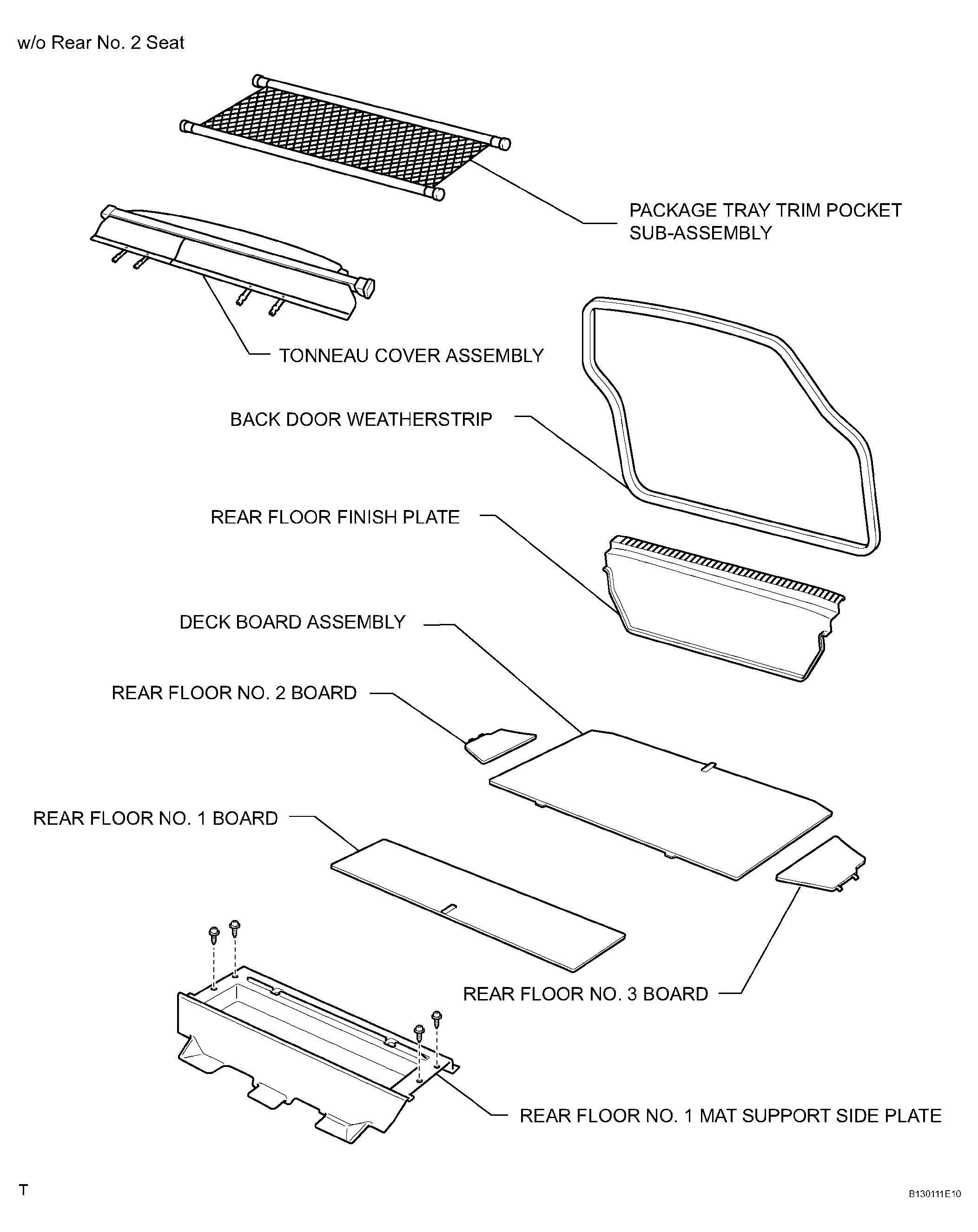

Fig 6: Rear No. 1 Seat Assembly Replacement Components With Torque Specifications (LH Side) (6 Of 6)
