Power Seat Switch: Inspection
WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

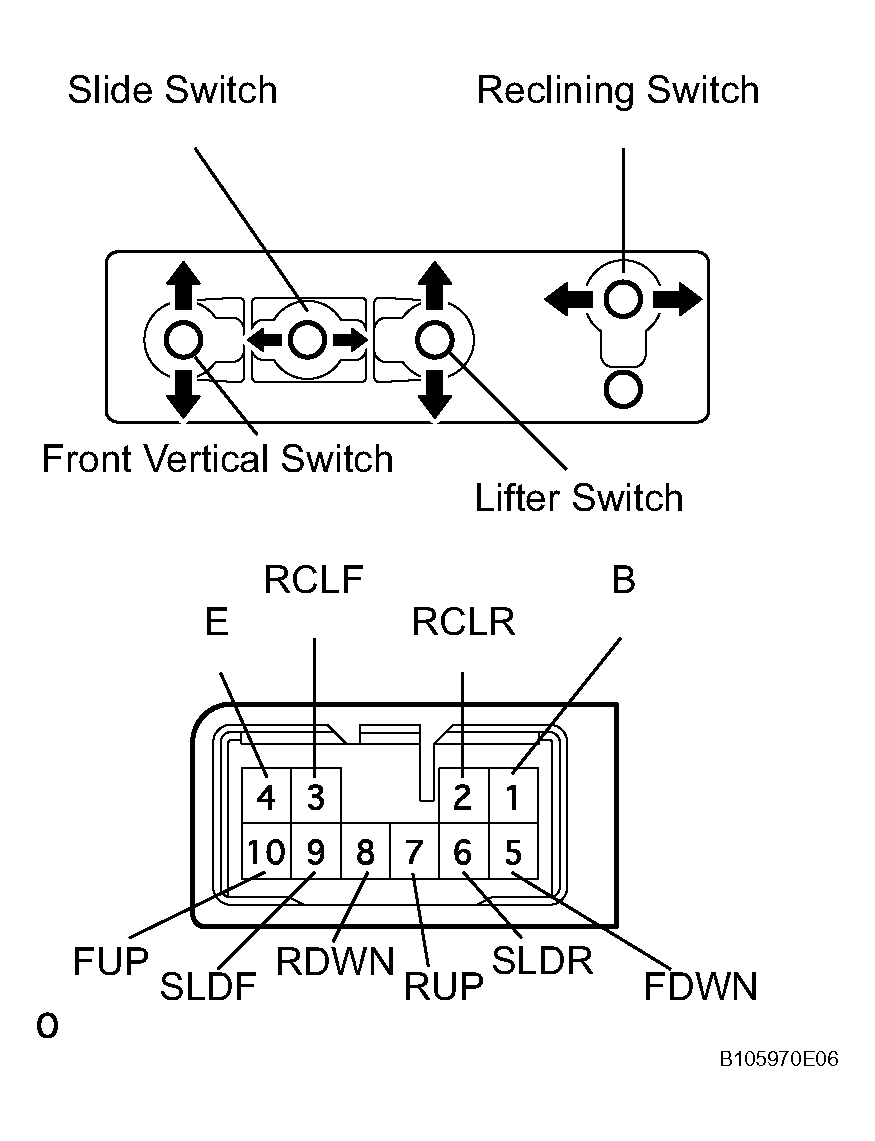

- INSPECT FRONT POWER SEAT SWITCH
- Measure the resistance between the terminals when each switch is operated.
Standard resistance
Slide switch
SLIDE SWITCH-RESISTANCE SPECIFIED CONDITIONTester Connection Switch Condition Specified Condition 1 (B) - 9 (SLDF) FRONT Below 1 Ω 4 (E) - 6 (SLDR) FRONT Below 1 Ω 4 (E) - 6 (SLDR) OFF Below 1 Ω 4 (E) - 9 (SLDF) OFF Below 1 Ω 1 (B) - 6 (SLDR) REAR Below 1 Ω 4 (E) - 9 (SLDF) REAR Below 1 Ω Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Front vertical switch
FRONT VERTICAL SWITCH-RESISTANCE SPECIFIED CONDITIONTester Connection Switch Condition Specified Condition 1 (B) - 10 (FUP) UP Below 1 Ω 4 (E) - 5 (FDWN) UP Below 1 Ω 4 (E) - 5 (FDWN) OFF Below 1 Ω 4 (E) - 10 (FUP) OFF Below 1 Ω 1 (B) - 5 (FDWN) DOWN Below 1 Ω 4 (E) - 10 (FUP) DOWN Below 1 Ω Lifter switch
LIFTER SWITCH-RESISTANCE SPECIFIED CONDITIONTester Connection Switch Condition Specified Condition 1 (B) - 7 (RUP) UP Below 1 Ω 4 (E) - 8 (RDWN) UP Below 1 Ω 4 (E) - 7 (RUP) OFF Below 1 Ω 4 (E) - 8 (RDWN) OFF Below 1 Ω 1 (B) - 8 (RDWN) DOWN Below 1 Ω 4 (E) - 7 (RUP) DOWN Below 1 Ω Reclining switch
RECLINING SWITCH-RESISTANCE SPECIFIED CONDITIONTester Connection Switch Condition Specified Condition 1 (B) - 3 (RCLF) FRONT Below 1 Ω 2 (RCLR) - 4 (E) FRONT Below 1 Ω 2 (RCLR) - 4 (E) OFF Below 1 Ω 3 (RCLF) - 4 (E) OFF Below 1 Ω 1 (B) - 2 (RCLR) REAR Below 1 Ω 3 (RCLF) - 4 (E) REAR Below 1 Ω If the result is not as specified, replace the switch.
- Measure the resistance between the terminals when each switch is operated.
