Front Seat Cushion Heater: Inspection

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT FRONT SEAT CUSHION HEATER ASSEMBLY LH

Measure the resistance of the seat cushion heater.

Standard resistance

SEAT CUSHION HEATER-RESISTANCE SPECIFIED CONDITION

Tester Connection	Condition	Specified Condition
A1 - B6	Seat cushion heater temperature 20°C (68°F)	Below 1 Ω
A1 - A2	Seat cushion heater temperature 20°C (68°F)	Approx. 5.20 Ω

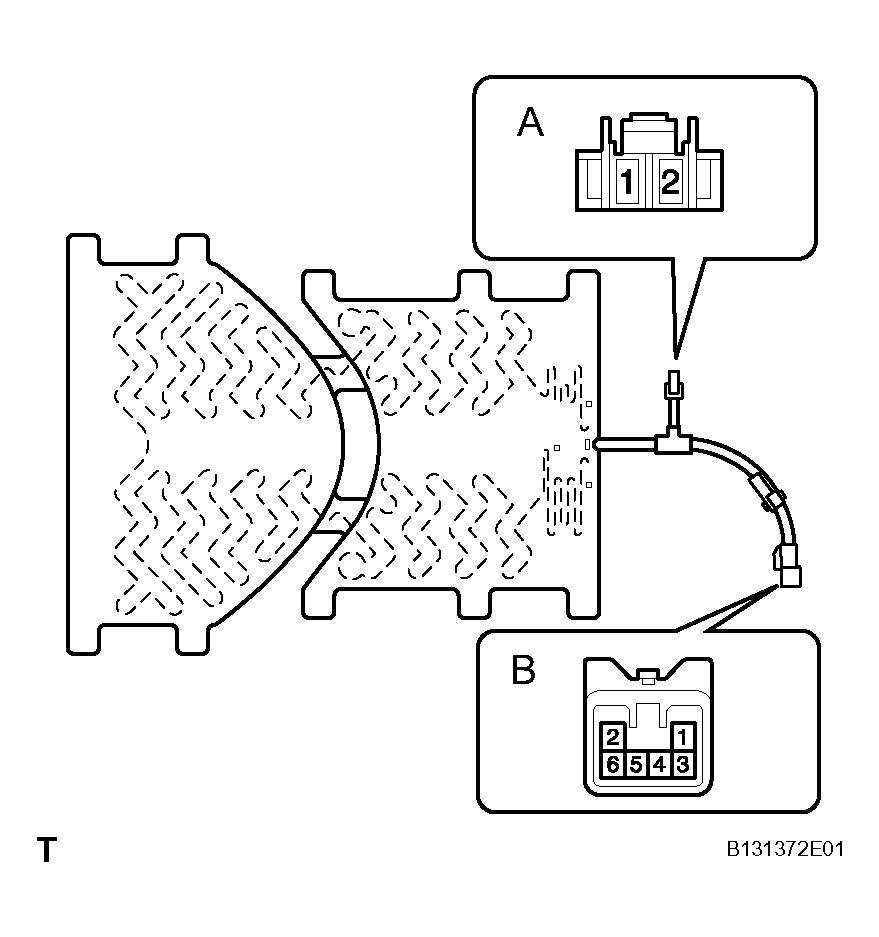

Fig 1: Inspecting Front Seat Cushion Heater Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not as specified, replace the seat cushion heater assembly.

Heat the thermostat with a light.

Measure the resistance of the seat cushion heater (see Fig 1).

Standard resistance

SEAT CUSHION HEATER-RESISTANCE SPECIFIED CONDITION (THERMOSTAT HEATED)

Tester Connection	Condition	Specified Condition
B4 - B6	Seat heater temperature 20°C (68°F)	Approx. 4.85 Ω
B4 - B6	Seat heater temperature 30°C (86°F)	Approx. 5.00 Ω
B4 - B6	Seat heater temperature 30°C (86°F)	Approx. 5.15 Ω

If the result is not as specified, replace the seat cushion heater assembly.

INSPECT FRONT SEAT CUSHION HEATER ASSEMBLY RH
HINT:

Use the same procedures described for the LH side (see INSPECTION ).
