Front Power Seat Lumbar Switch: Inspection

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT FRONT POWER SEAT LUMBAR SWITCH LH
    1. Measure the resistance between the terminals when the switch is operated.

      Standard resistance

      -RESISTANCE SPECIFIED CONDITION

      Tester Connection Switch Condition Specified Condition
      3 (B) - 4 (H) HOLD Below 1 Ω
      1 (R) - 2 (E) HOLD Below 1 Ω
      1 (R) - 2 (E) OFF Below 1 Ω
      4 (H) - 5 (E) OFF Below 1 Ω
      1 (R) - 3 (B) RELEASE Below 1 Ω
      4 (H) - 5 (E) RELEASE Below 1 Ω

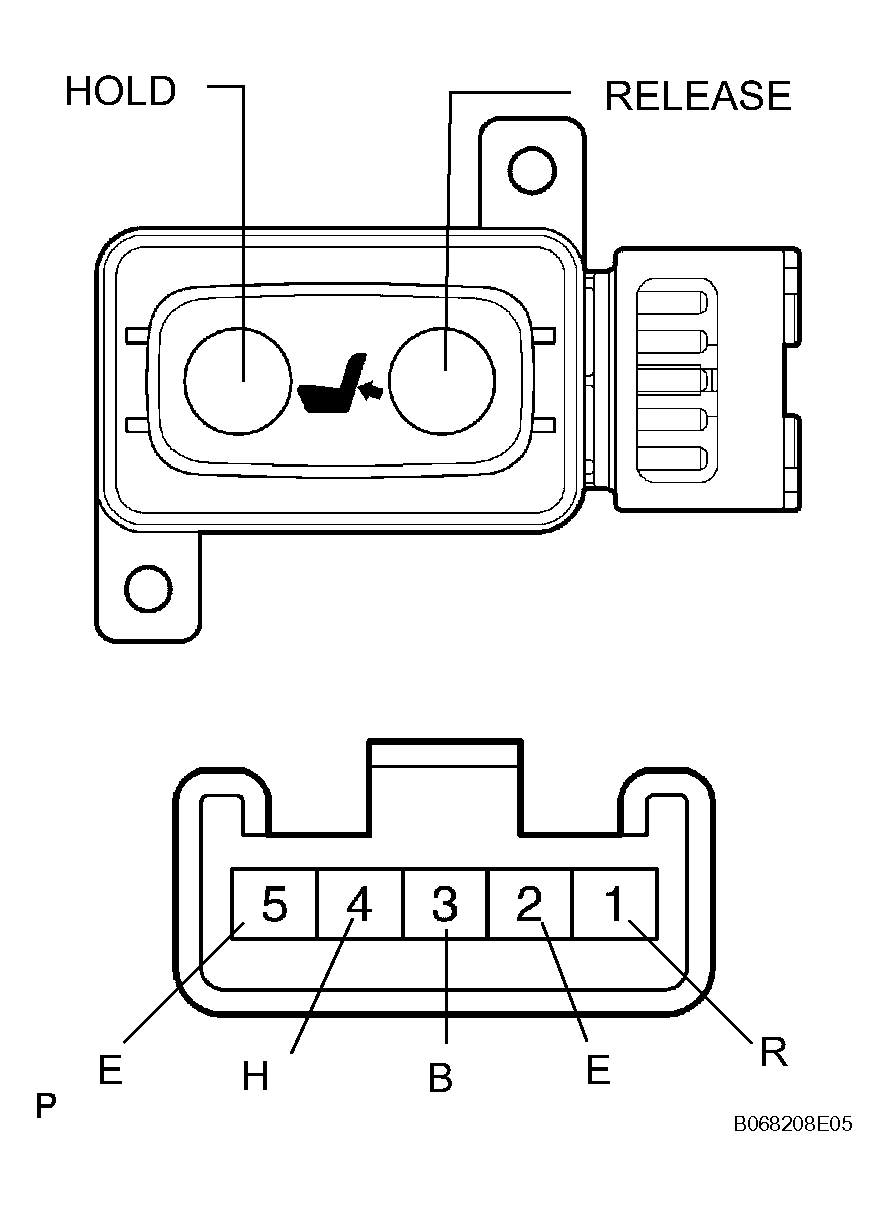

      Fig 1: Identifying Front Power Seat Lumbar Switch Connector Terminal
      G04491977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the result is not as specified, replace the switch.
