FRONT SEAT ASSEMBLY (for Manual Seat): Components

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

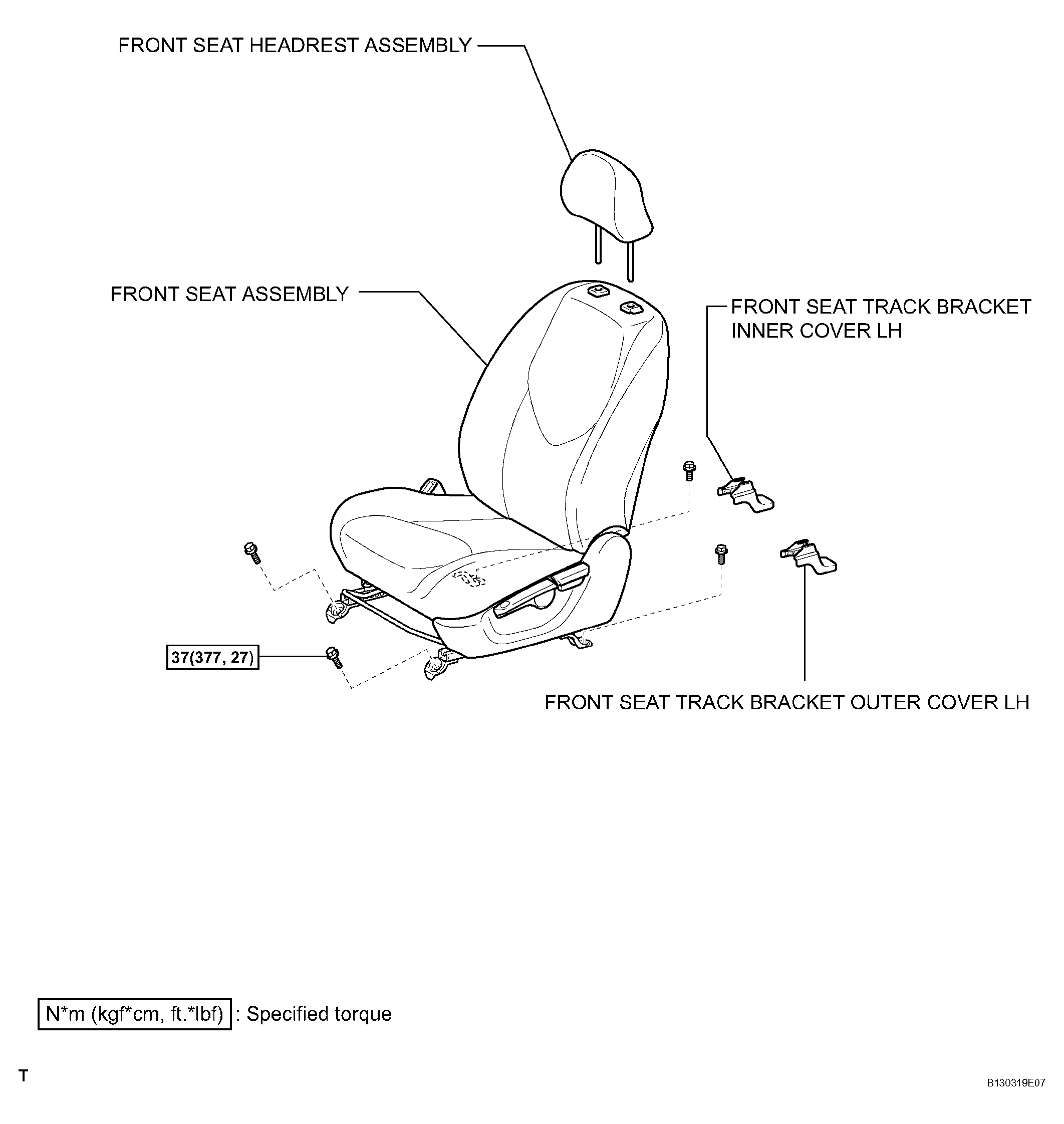

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications (Manual Seat) (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

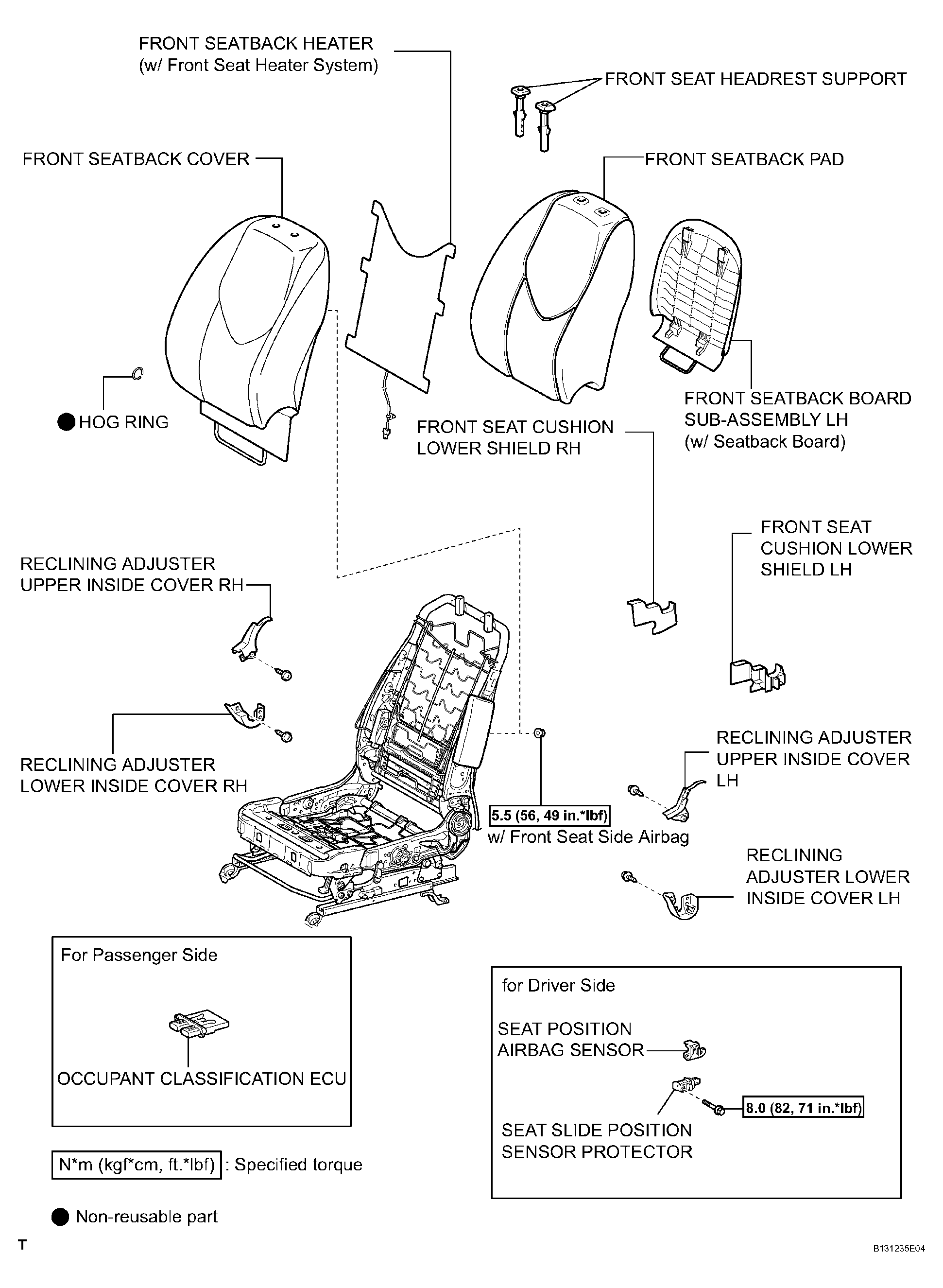

Fig 2: Front Seat Assembly Replacement Components With Torque Specifications (Manual Seat) (2 Of 3)

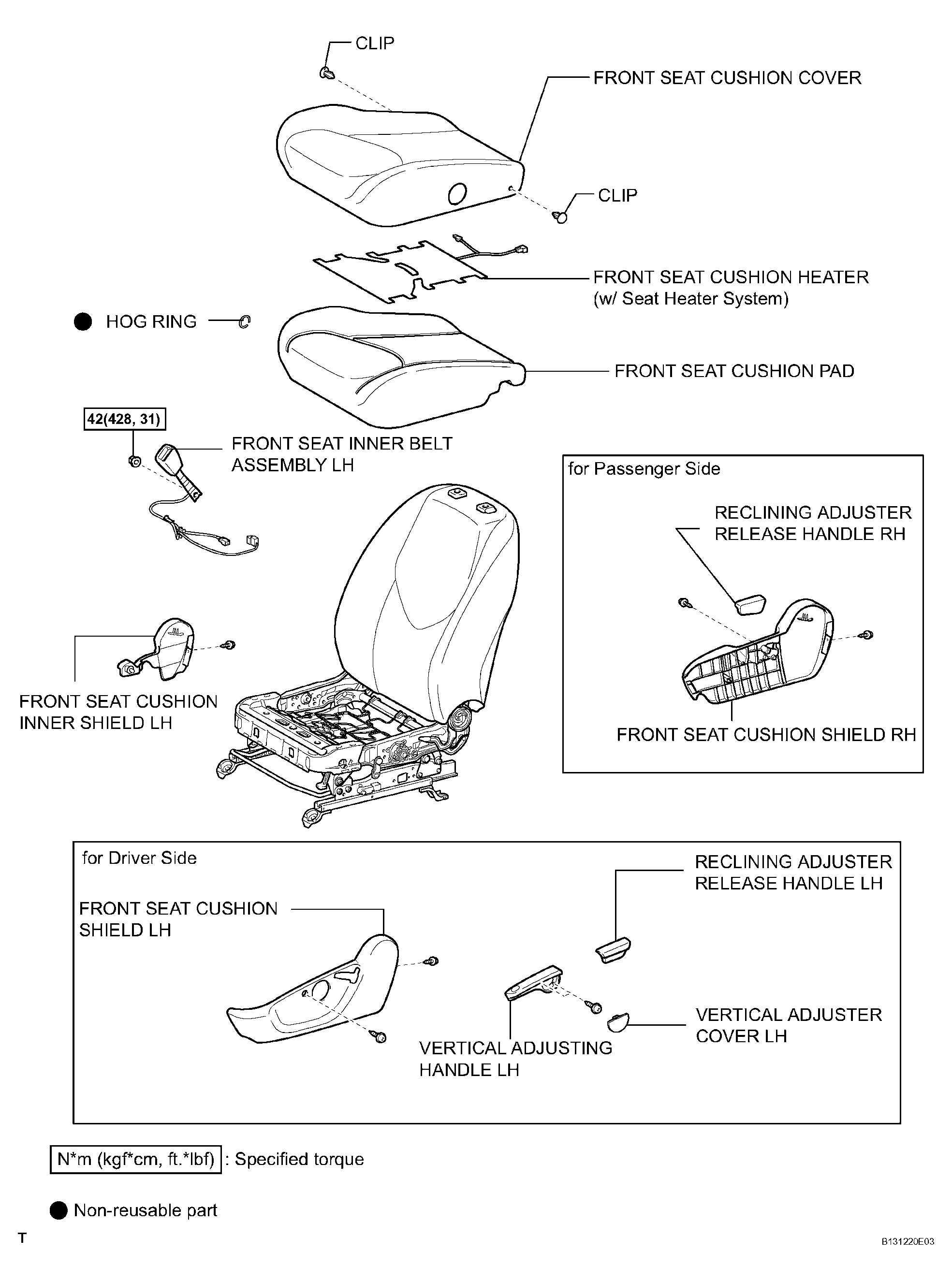

Fig 3: Front Seat Assembly Replacement Components With Torque Specifications (Manual Seat) (3 Of 3)
