Drive Belt: Installation

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FAN AND GENERATOR V BELT
1. Rotate the tensioner pulley counterclockwise, and then install the V-ribbed belt.

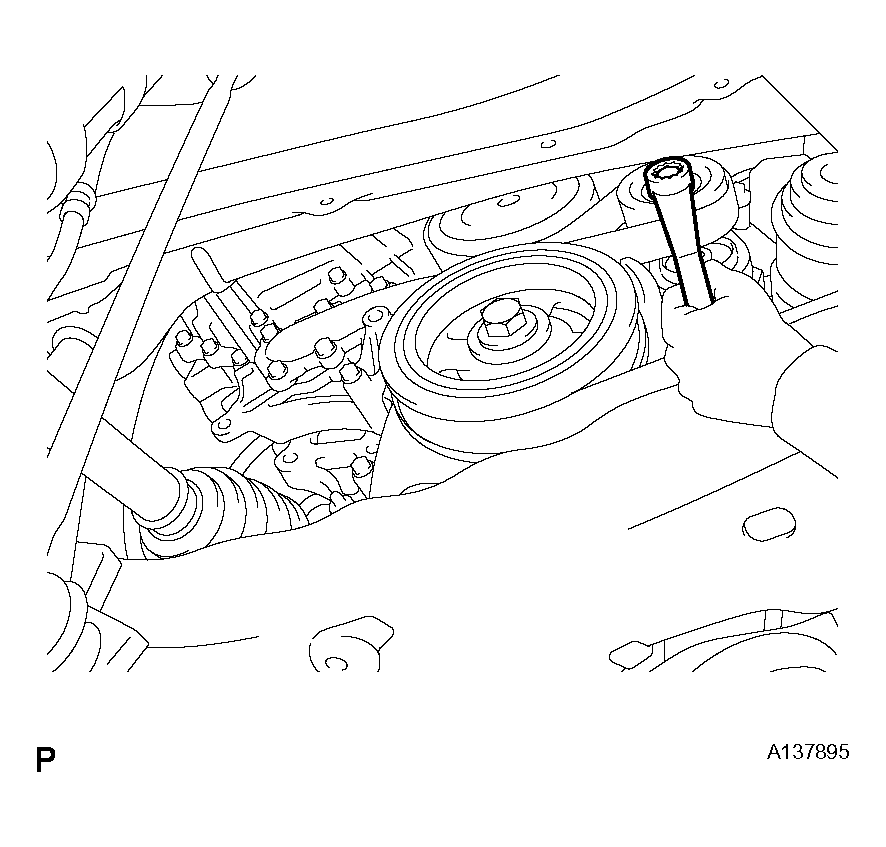

  Fig 1: Removal/Installation Of V-Ribbed Belt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. If it is difficult to install the V-ribbed belt, perform the following procedure.
  1. Put the V-ribbed belt on everything except the tensioner pulley as shown in the illustration.
  2. While releasing the belt tension by turning the belt tensioner counterclockwise, put the V-ribbed belt on the tensioner pulley.
    NOTE:
    Put the backside of the V-ribbed belt on the tensioner pulley and idler pulley.

    Check that the V-ribbed belt is properly set to each pulley.
    Fig 2: Fan And Generator V Belt Routing
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SUSPENSION MEMBER REINFORCEMENT RH
1. Install the reinforcement with the 4 bolts.
  Torque: 95 N*m (969 kgf*cm, 70 ft.*lbf)

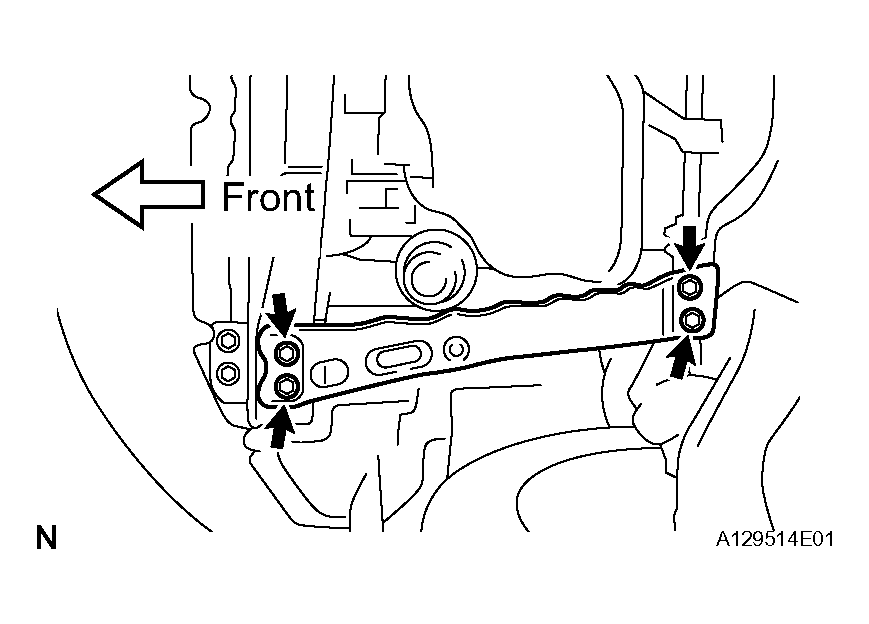

  Fig 3: Identifying Front Suspension Member Reinforcement Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ENGINE UNDER COVER RH
1. Install the engine under cover with the 2 clips.
INSTALL NO. 1 ENGINE UNDER COVER (See INSTALLATION )
CONNECT RADIATOR RESERVOIR TANK ASSEMBLY
1. Connect the reservoir tank with the 2 bolts.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

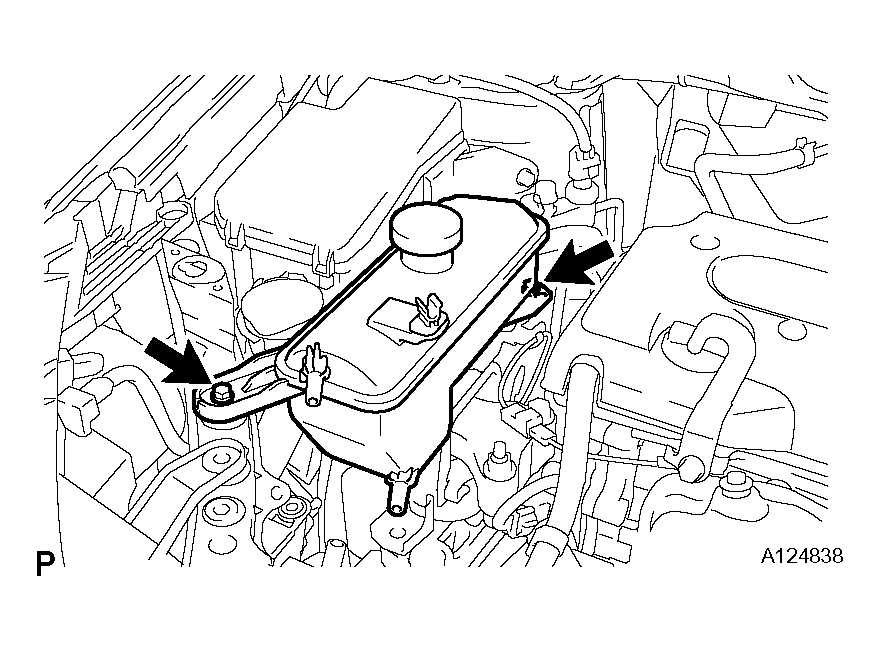

  Fig 4: Identifying Reservoir Tank Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
