Engine Unit: Components

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

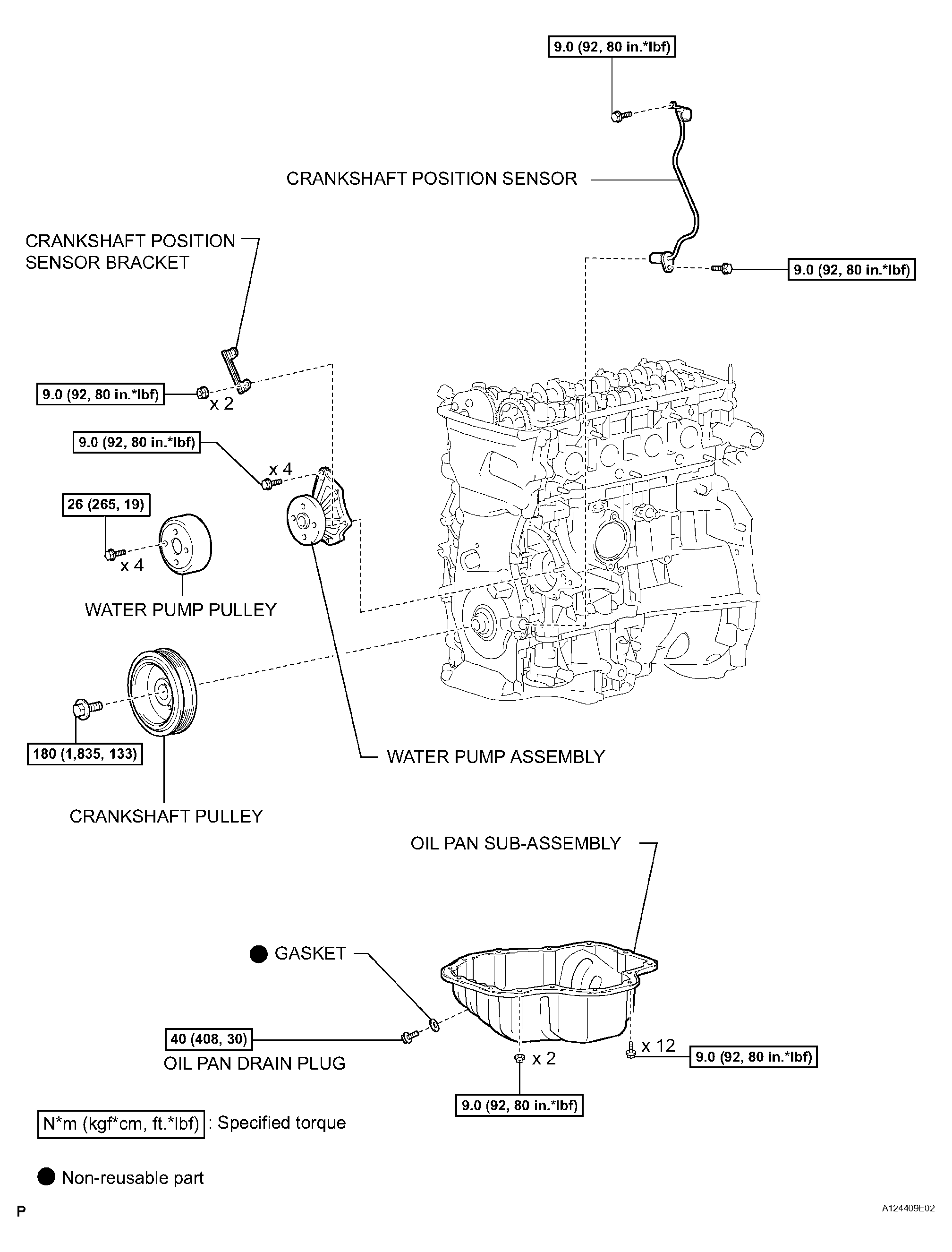

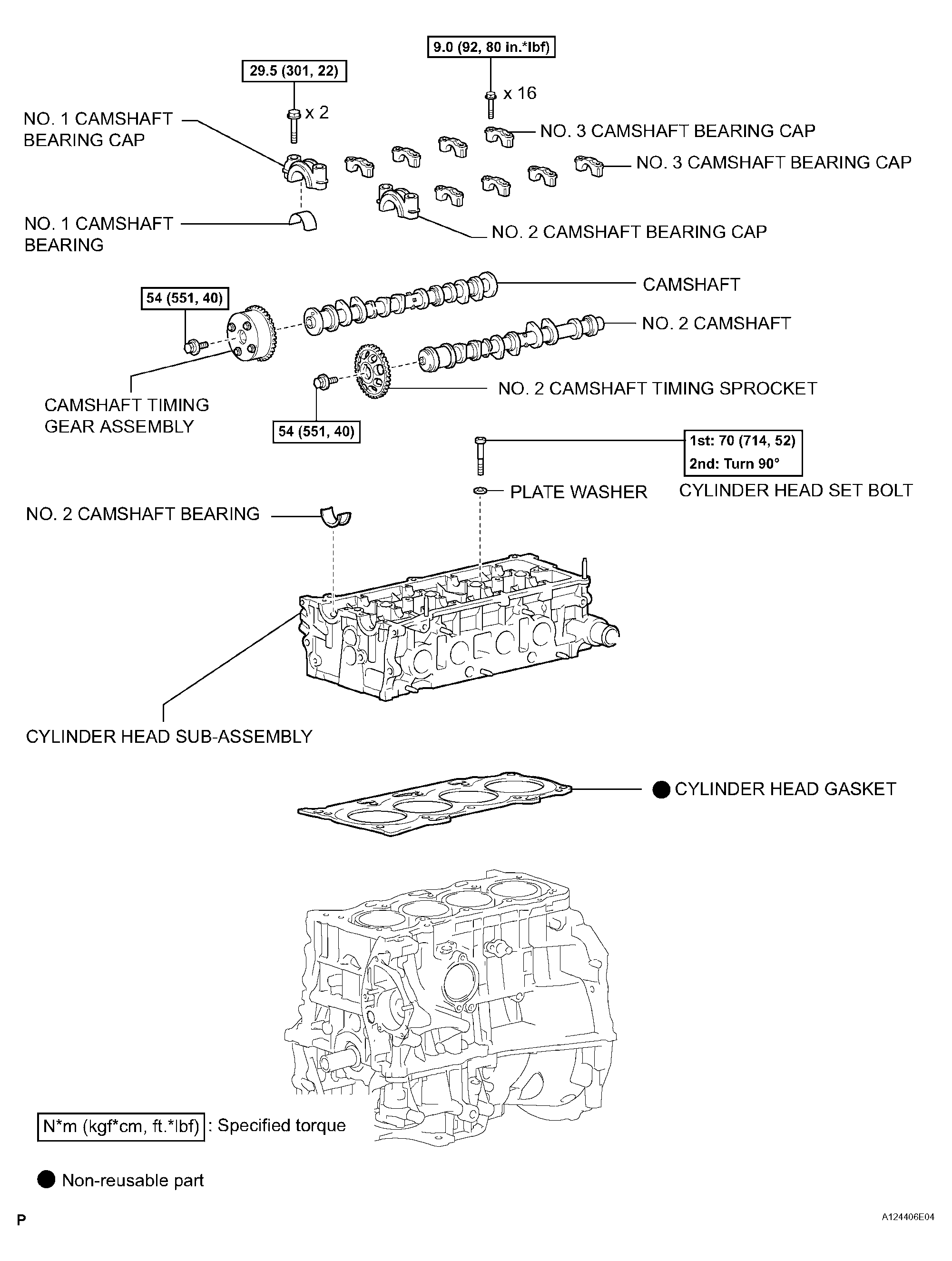

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

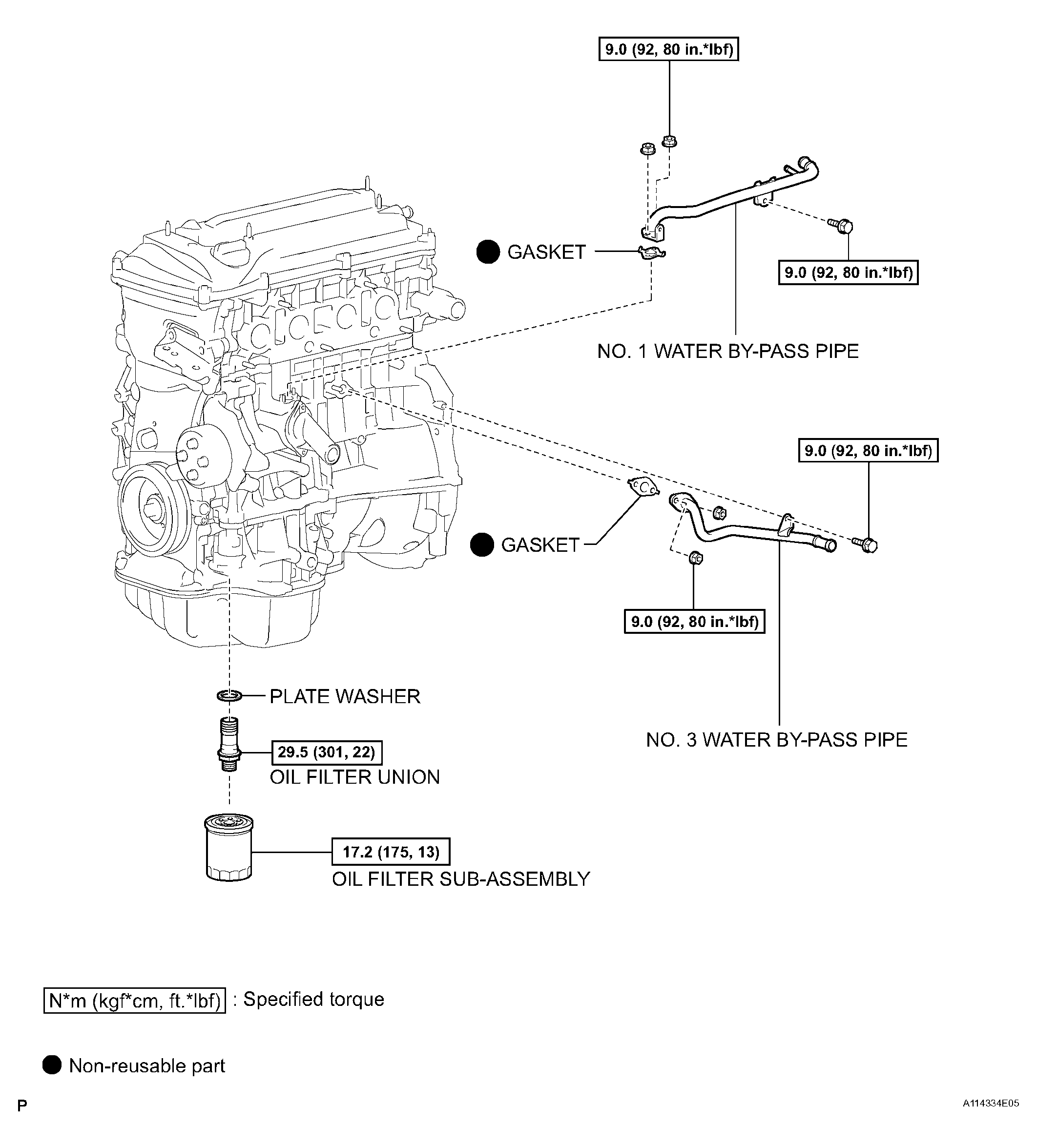

Fig 2: Identifying Engine Unit Replacement Components With Torque Specifications (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

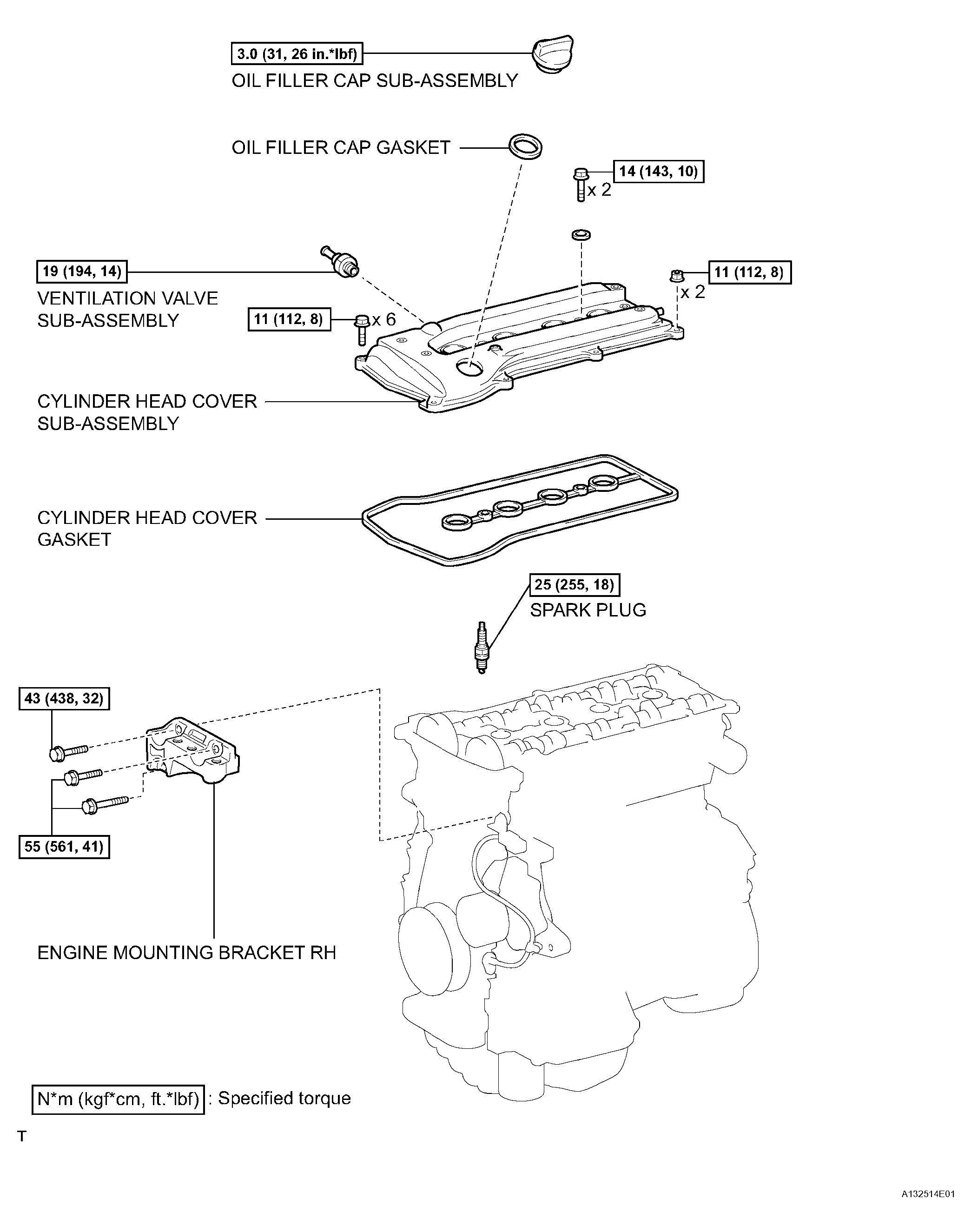

Fig 3: Identifying Engine Unit Replacement Components With Torque Specifications (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

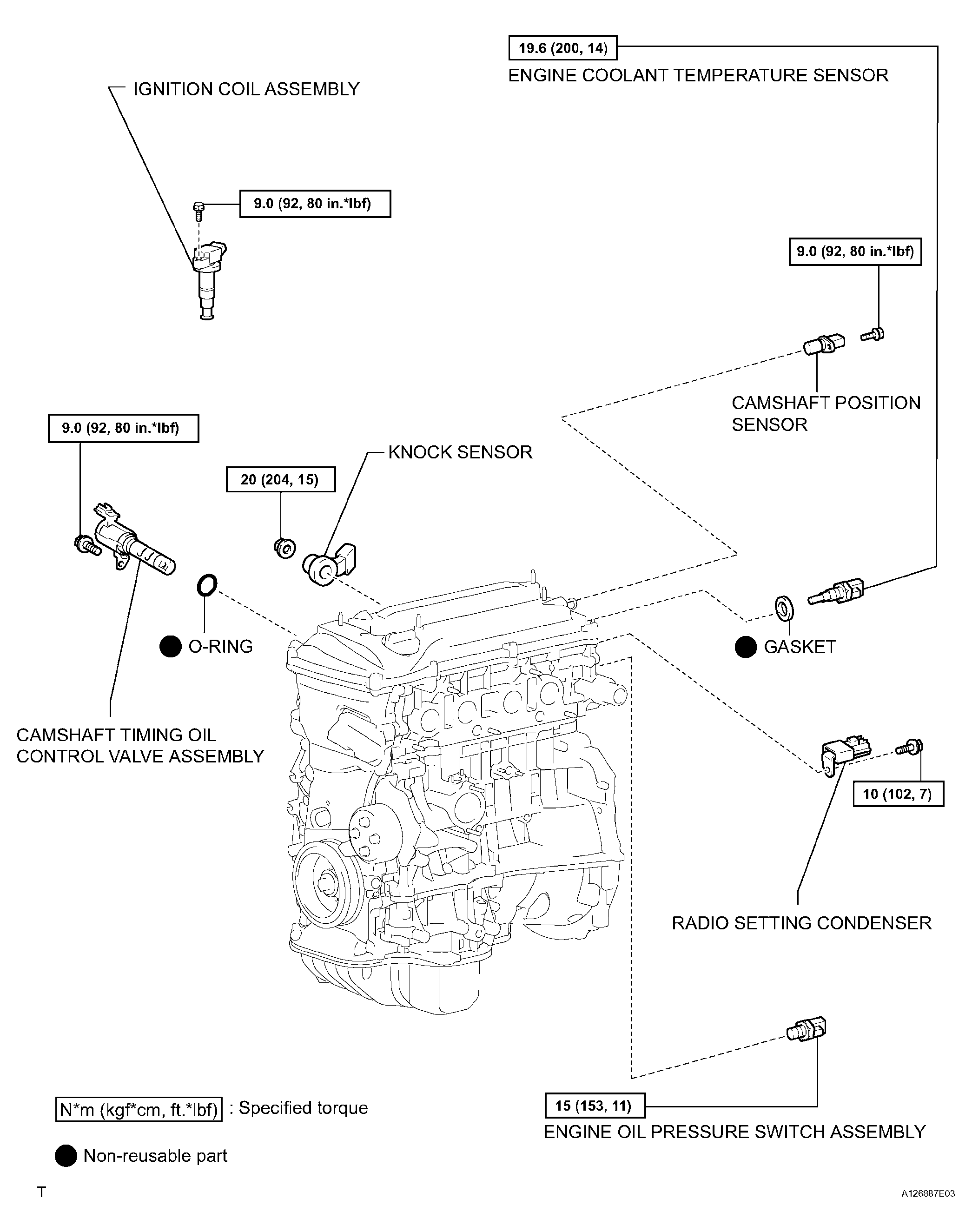

Fig 4: Identifying Engine Unit Replacement Components With Torque Specifications (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

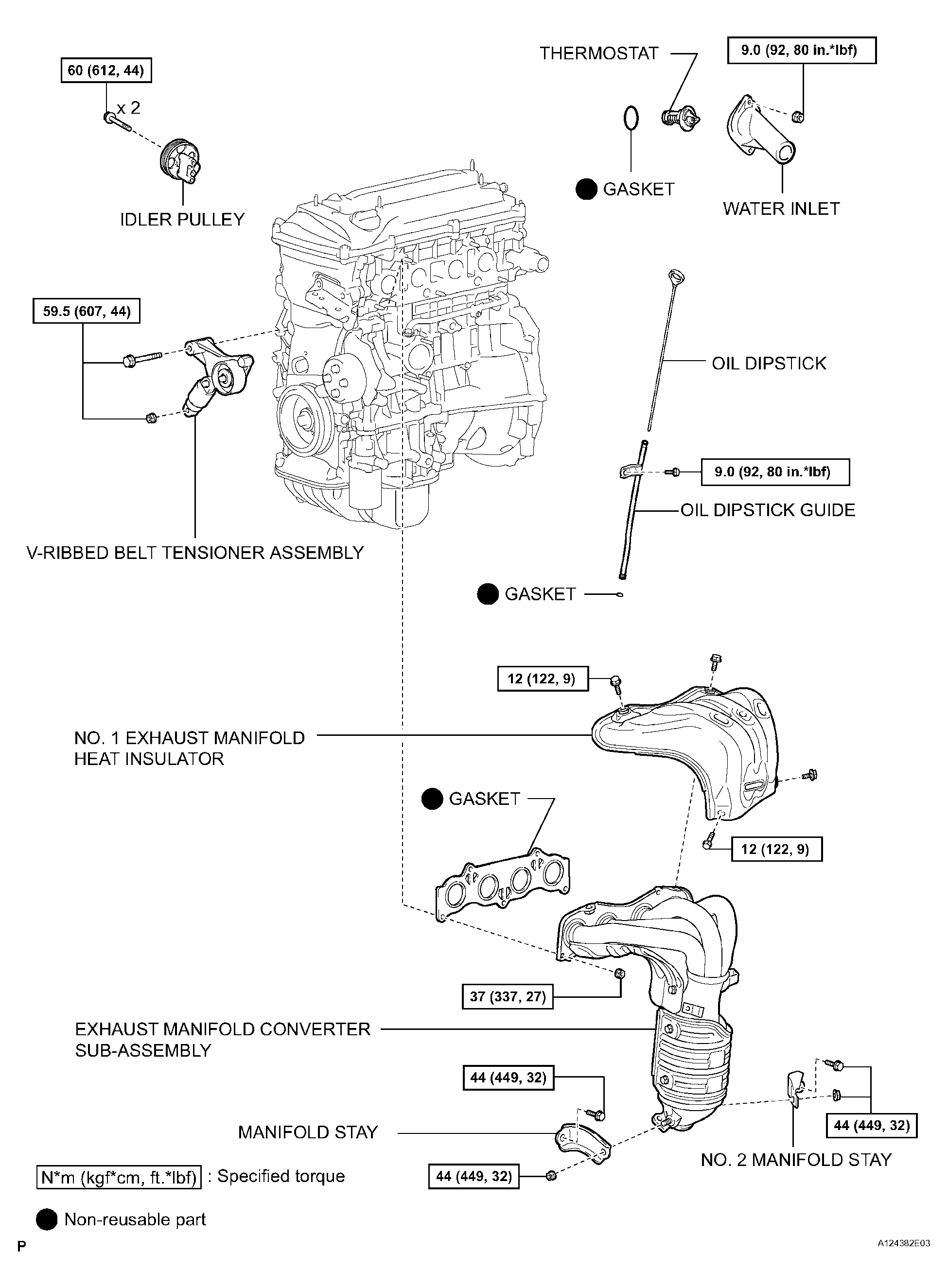

Fig 5: Identifying Engine Unit Replacement Components With Torque Specifications (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

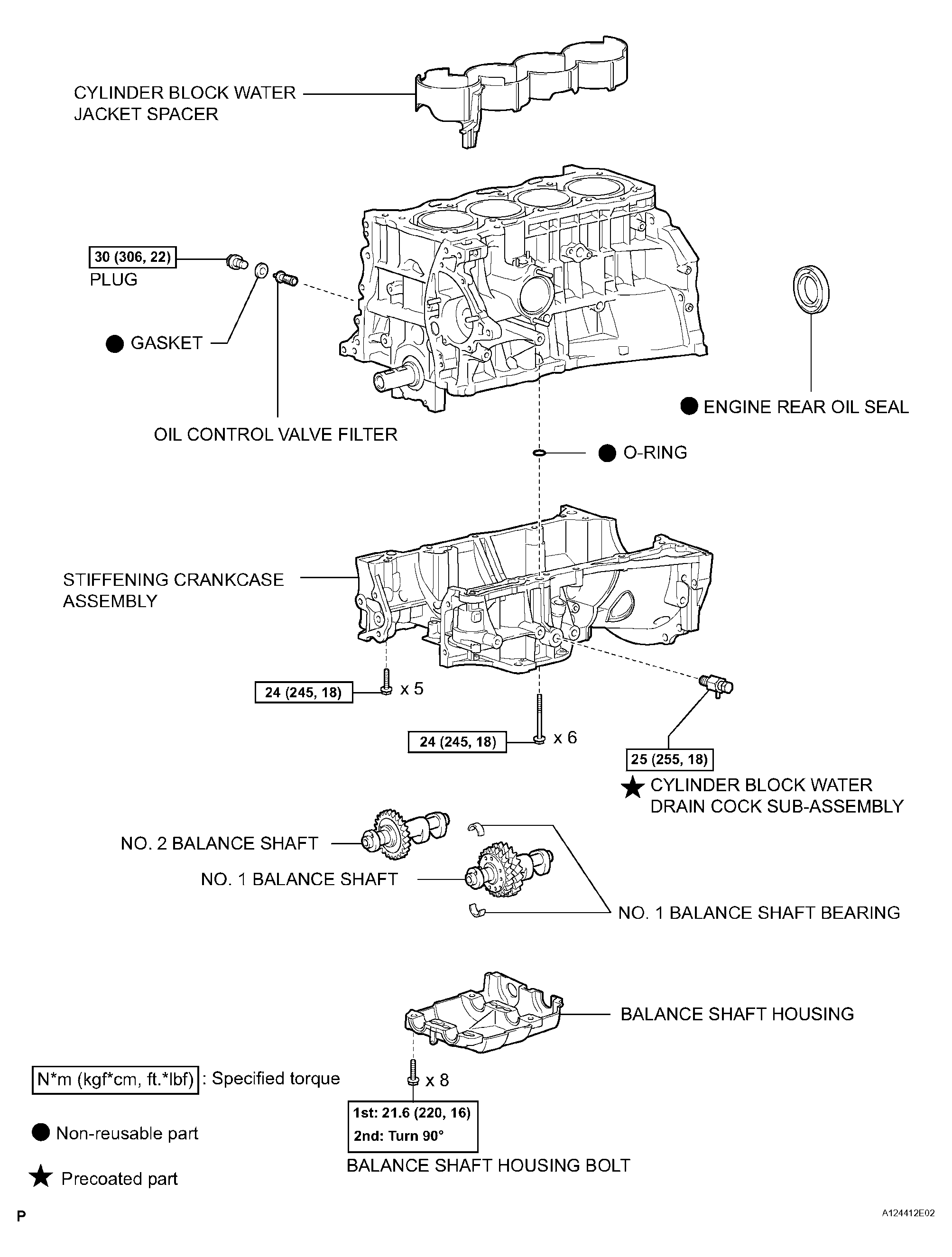

Fig 6: Identifying Engine Unit Replacement Components With Torque Specifications (6 Of 9)

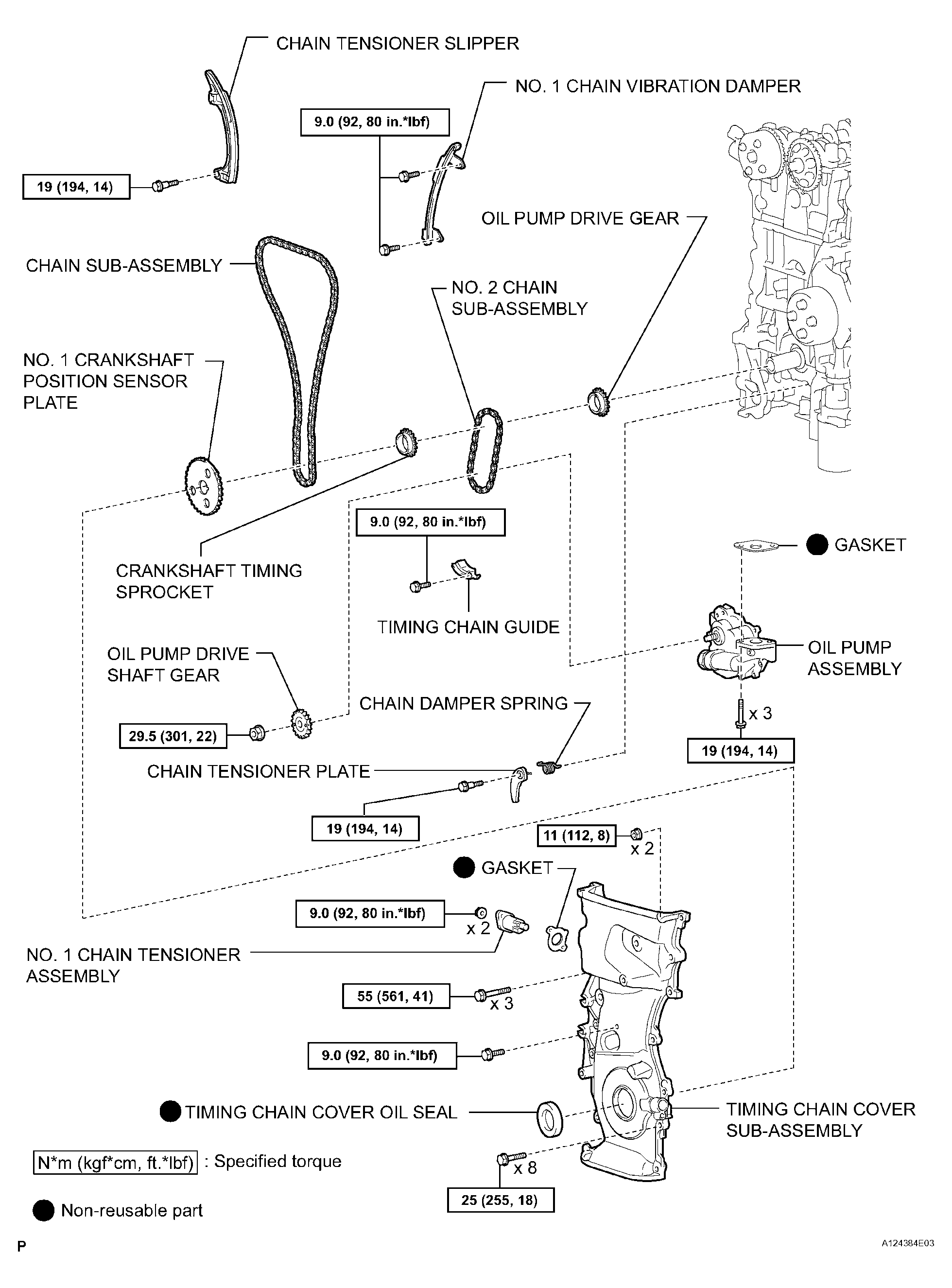

Fig 7: Identifying Engine Unit Replacement Components With Torque Specifications (7 Of 9)

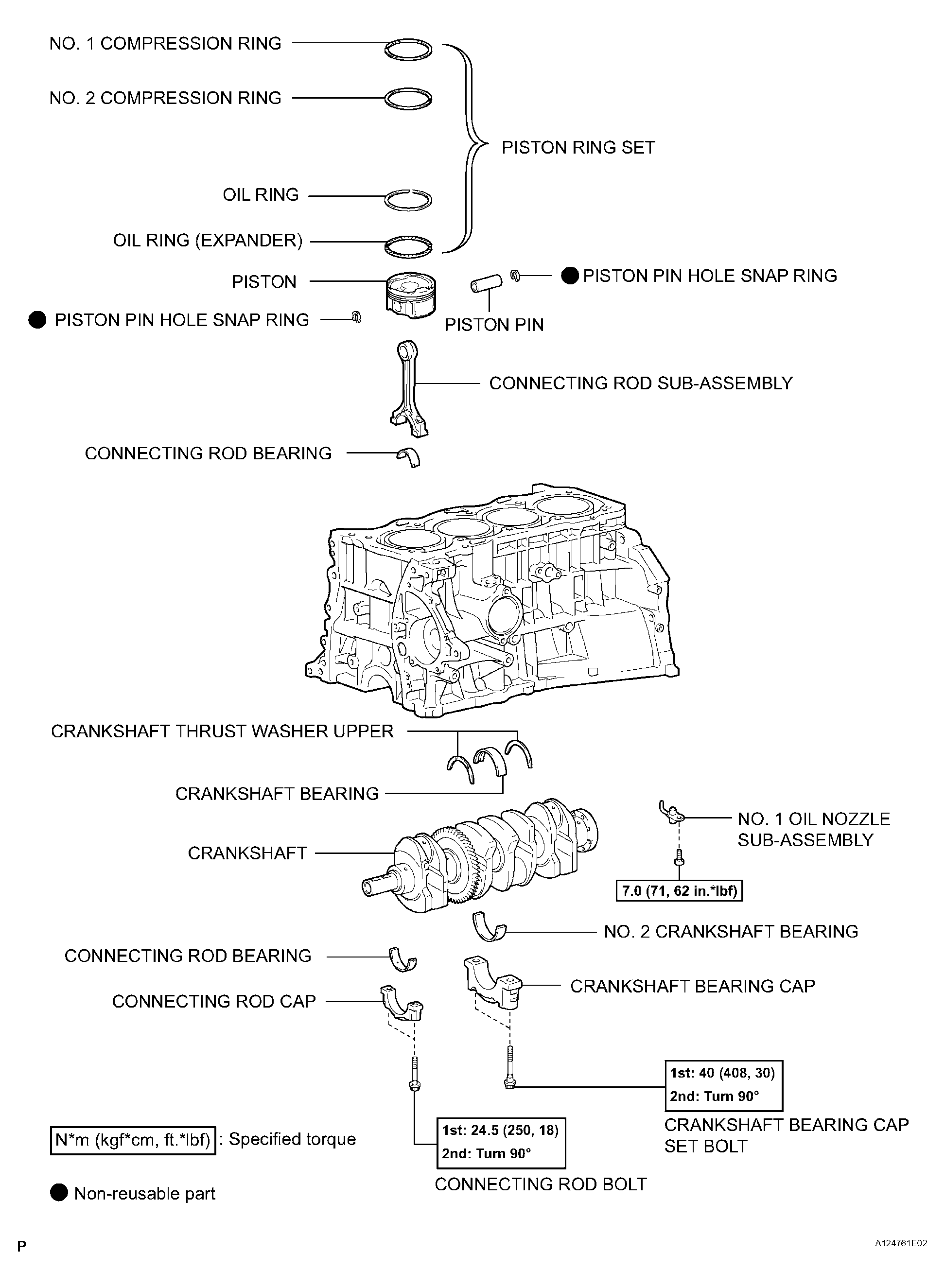

Fig 8: Identifying Engine Unit Replacement Components With Torque Specifications (8 Of 9)

Fig 9: Identifying Engine Unit Replacement Components With Torque Specifications (9 Of 9)
