Cylinder Head: Components

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

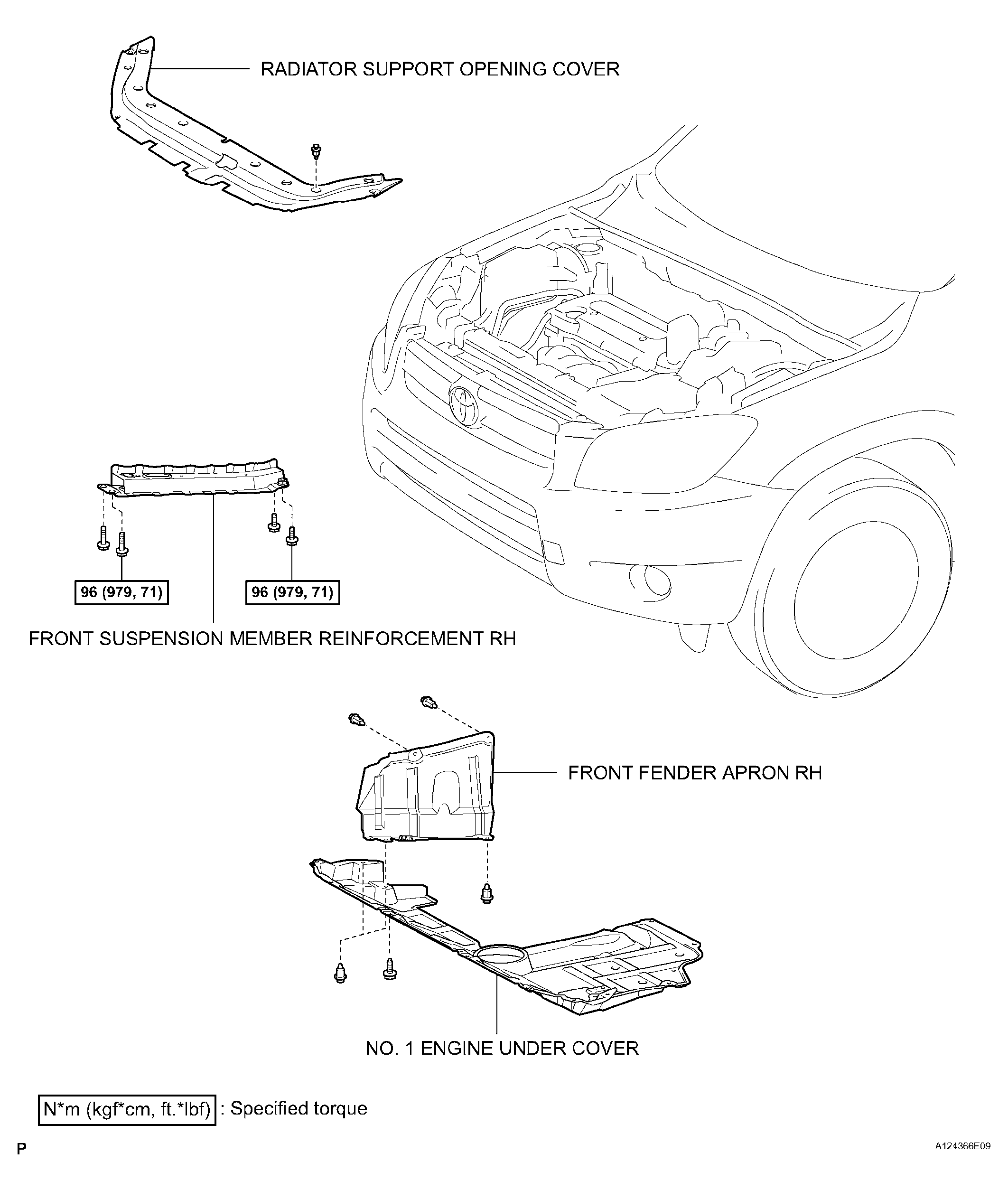

Fig 1: Identifying Cylinder Head Replacement Components With Torque Specifications (1 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

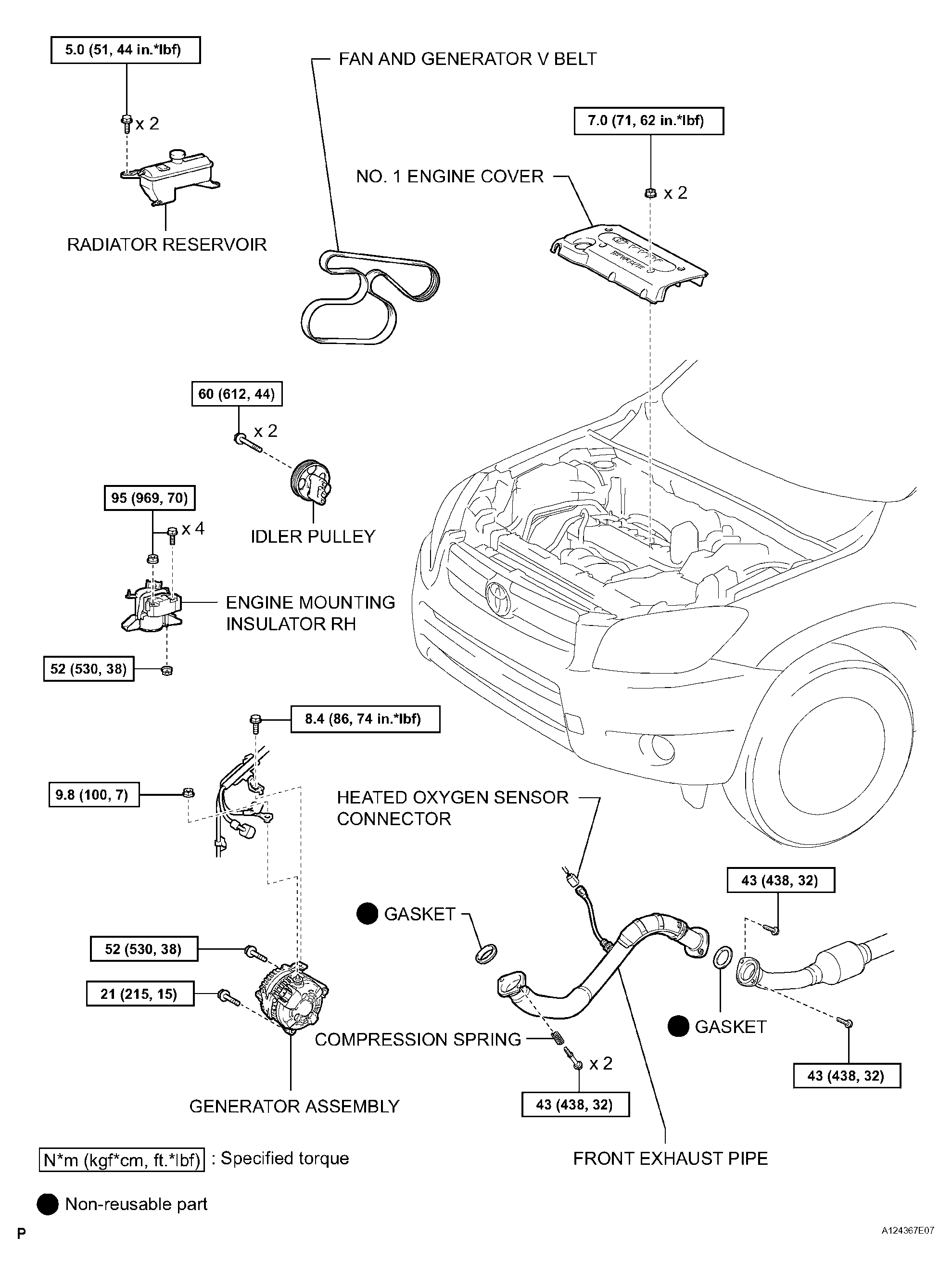

Fig 2: Identifying Cylinder Head Replacement Components With Torque Specifications (2 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

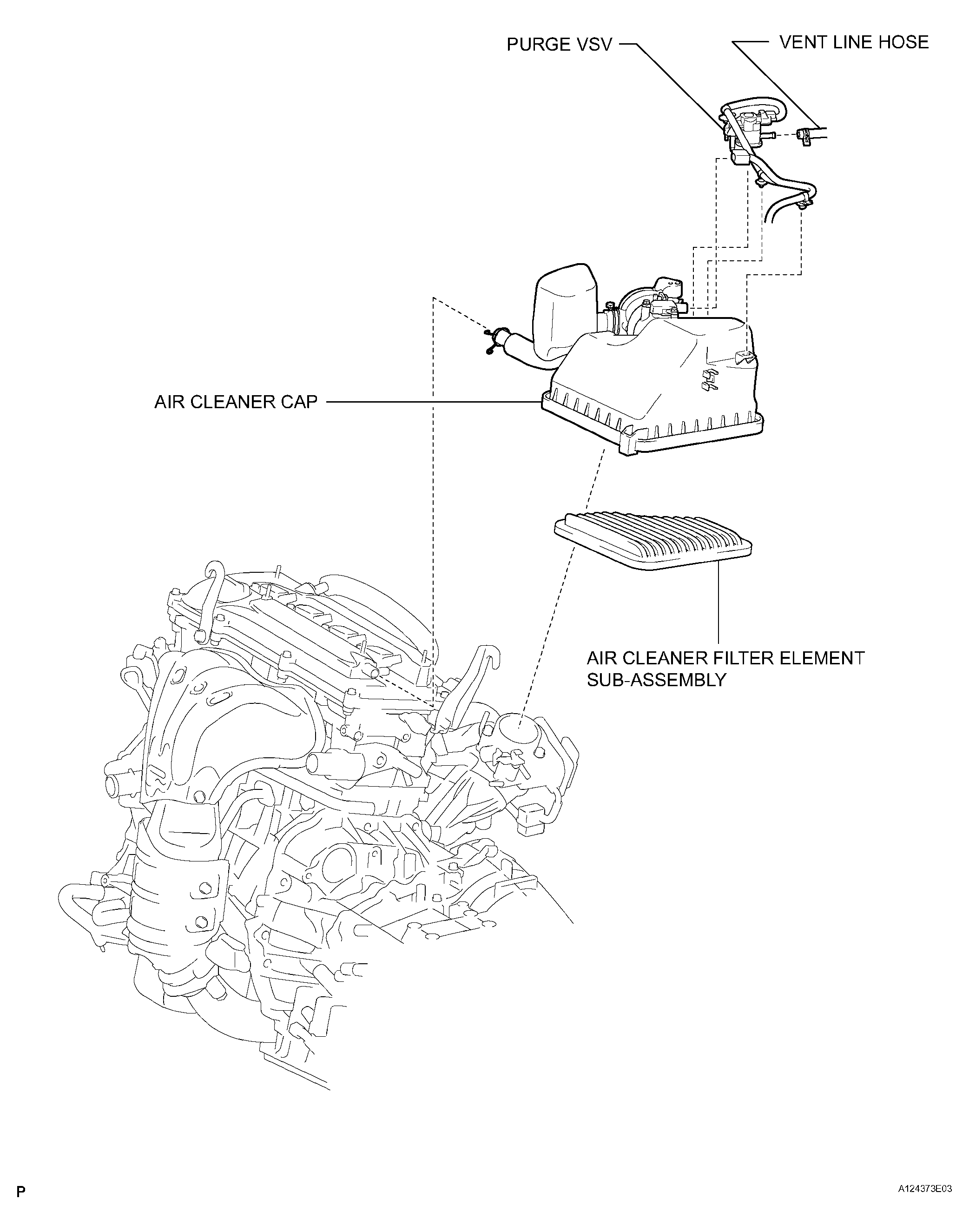

Fig 3: Identifying Cylinder Head Replacement Components (3 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

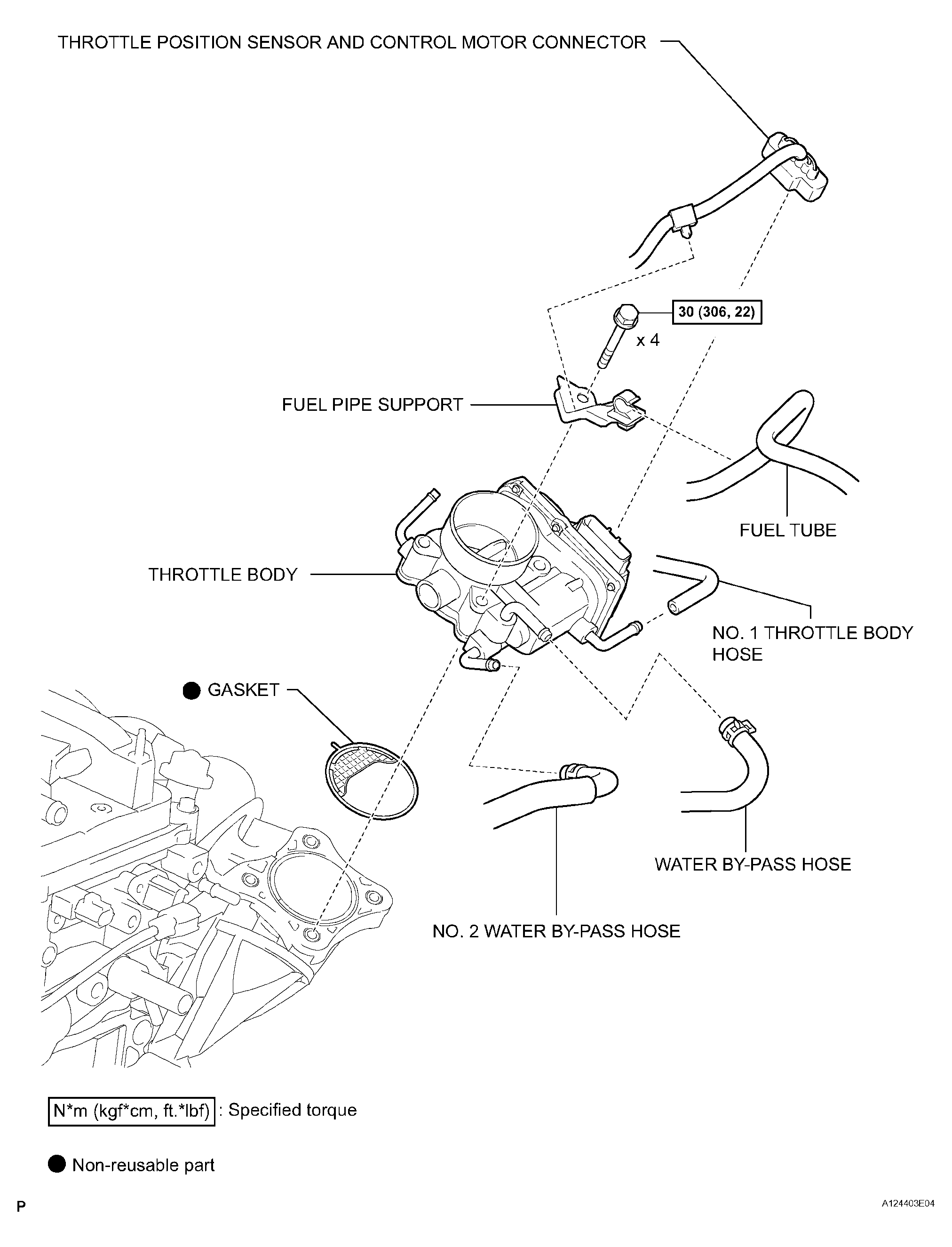

Fig 4: Identifying Cylinder Head Replacement Components With Torque Specifications (4 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

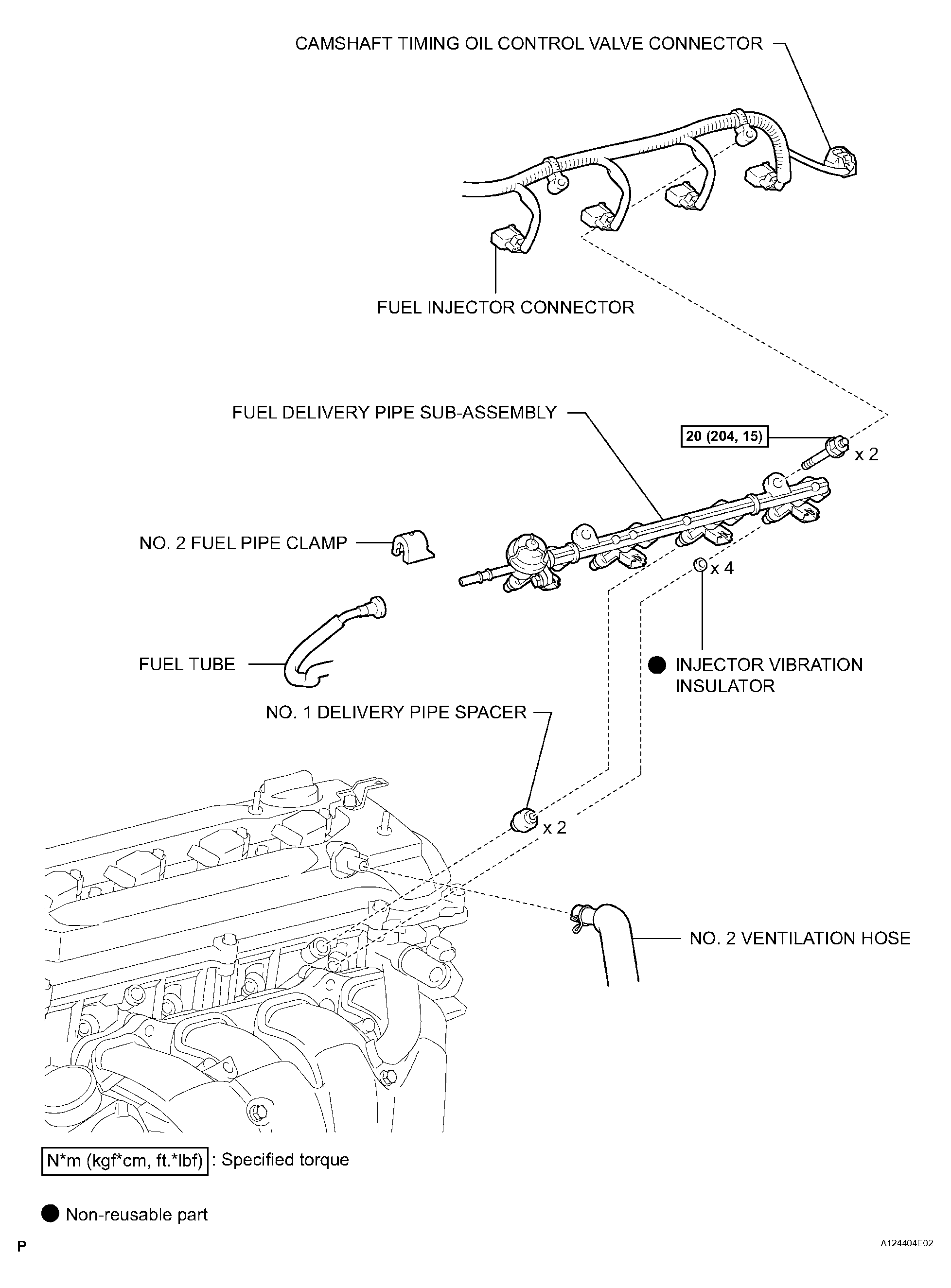

Fig 5: Identifying Cylinder Head Replacement Components With Torque Specifications (5 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

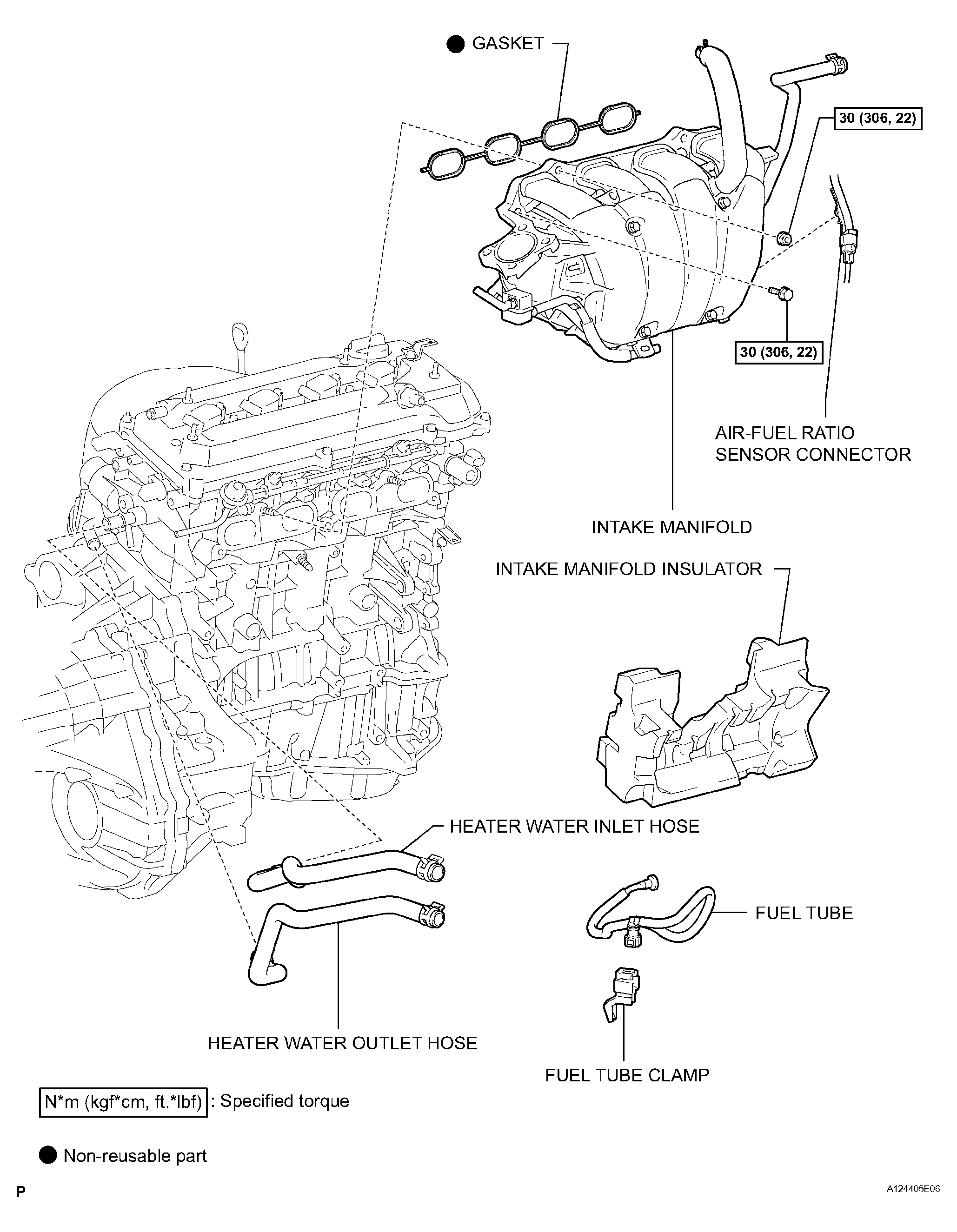

Fig 6: Identifying Cylinder Head Replacement Components With Torque Specifications (6 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

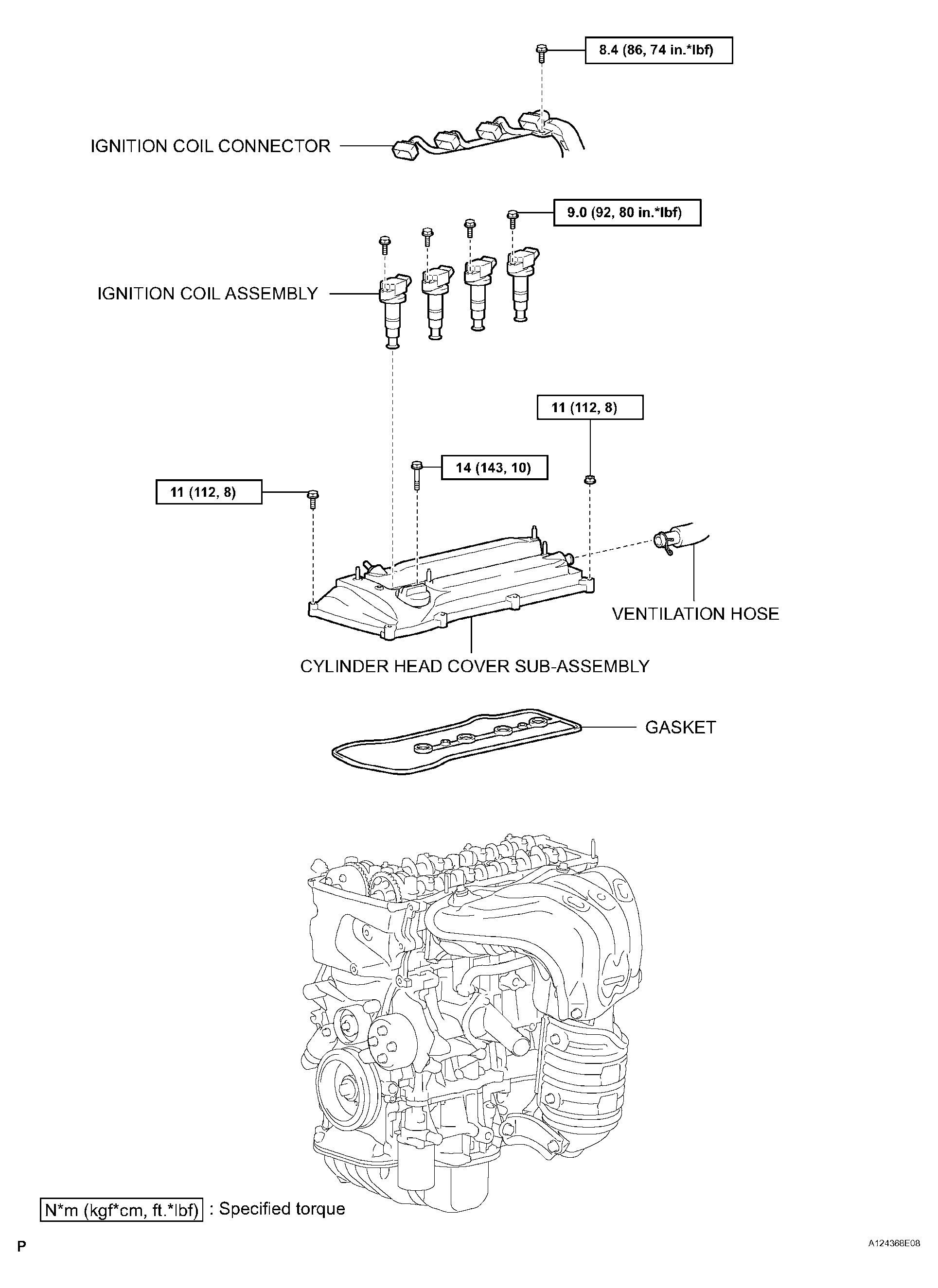

Fig 7: Identifying Cylinder Head Replacement Components With Torque Specifications (7 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

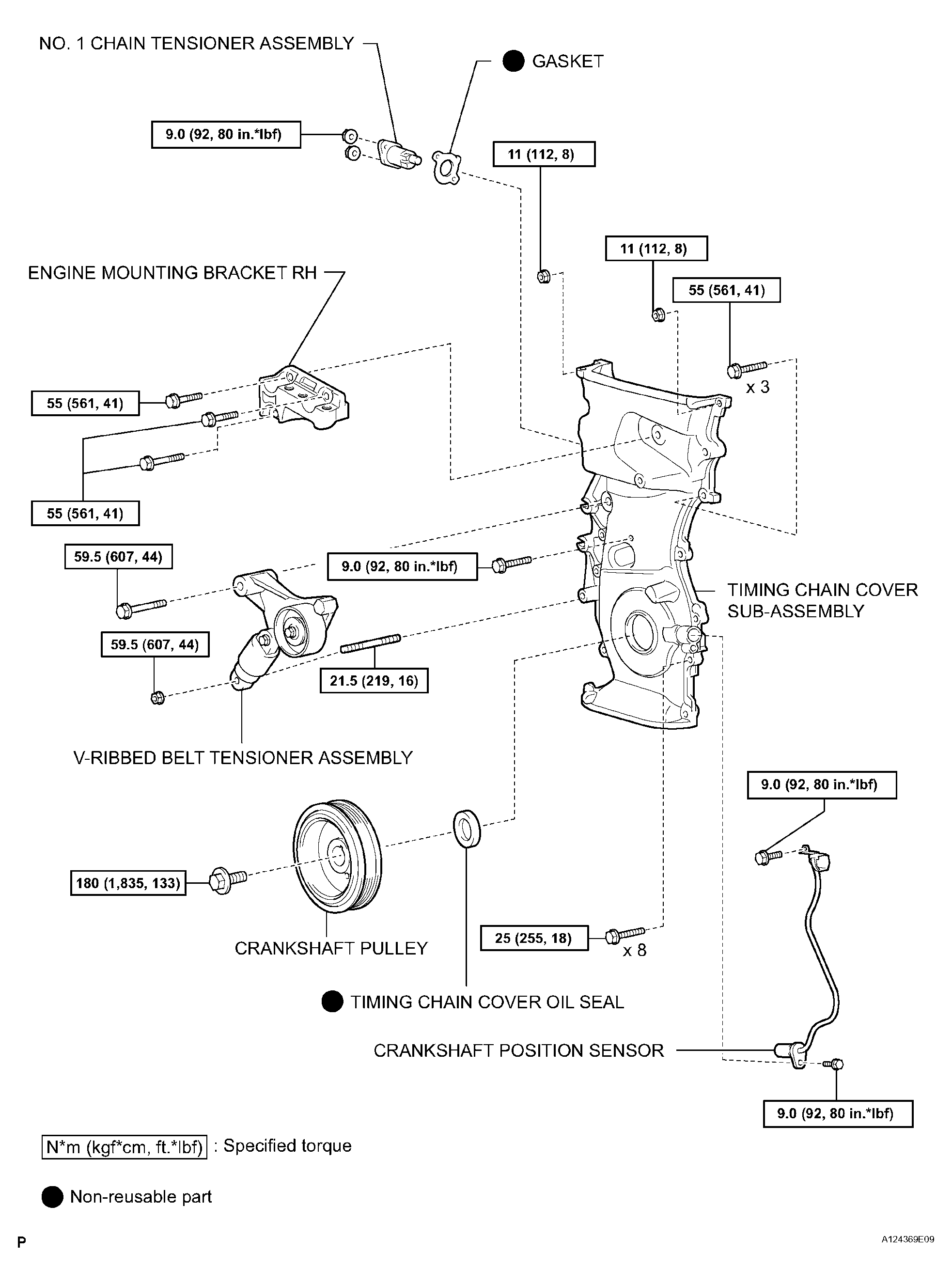

Fig 8: Identifying Cylinder Head Replacement Components With Torque Specifications (8 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

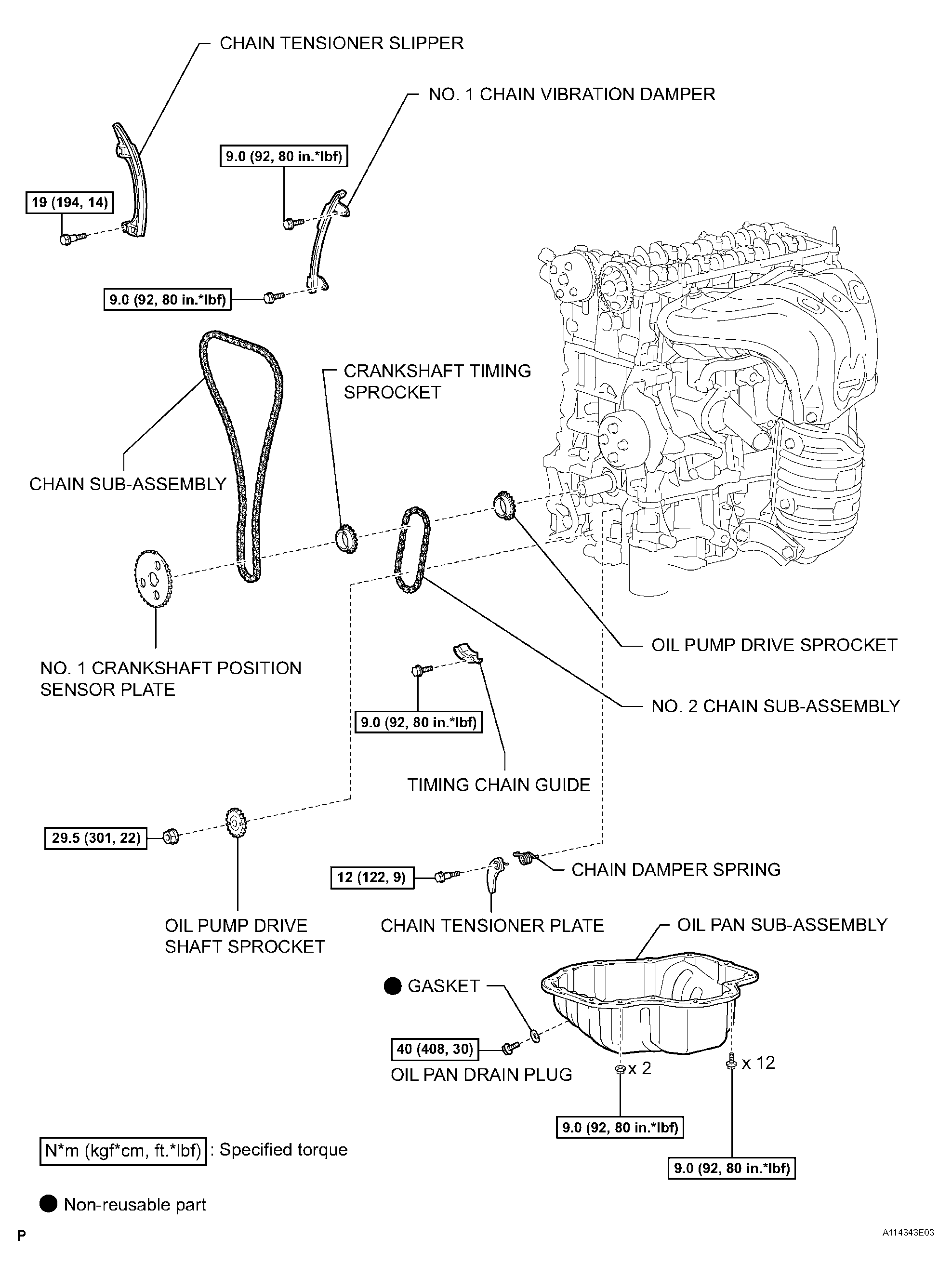

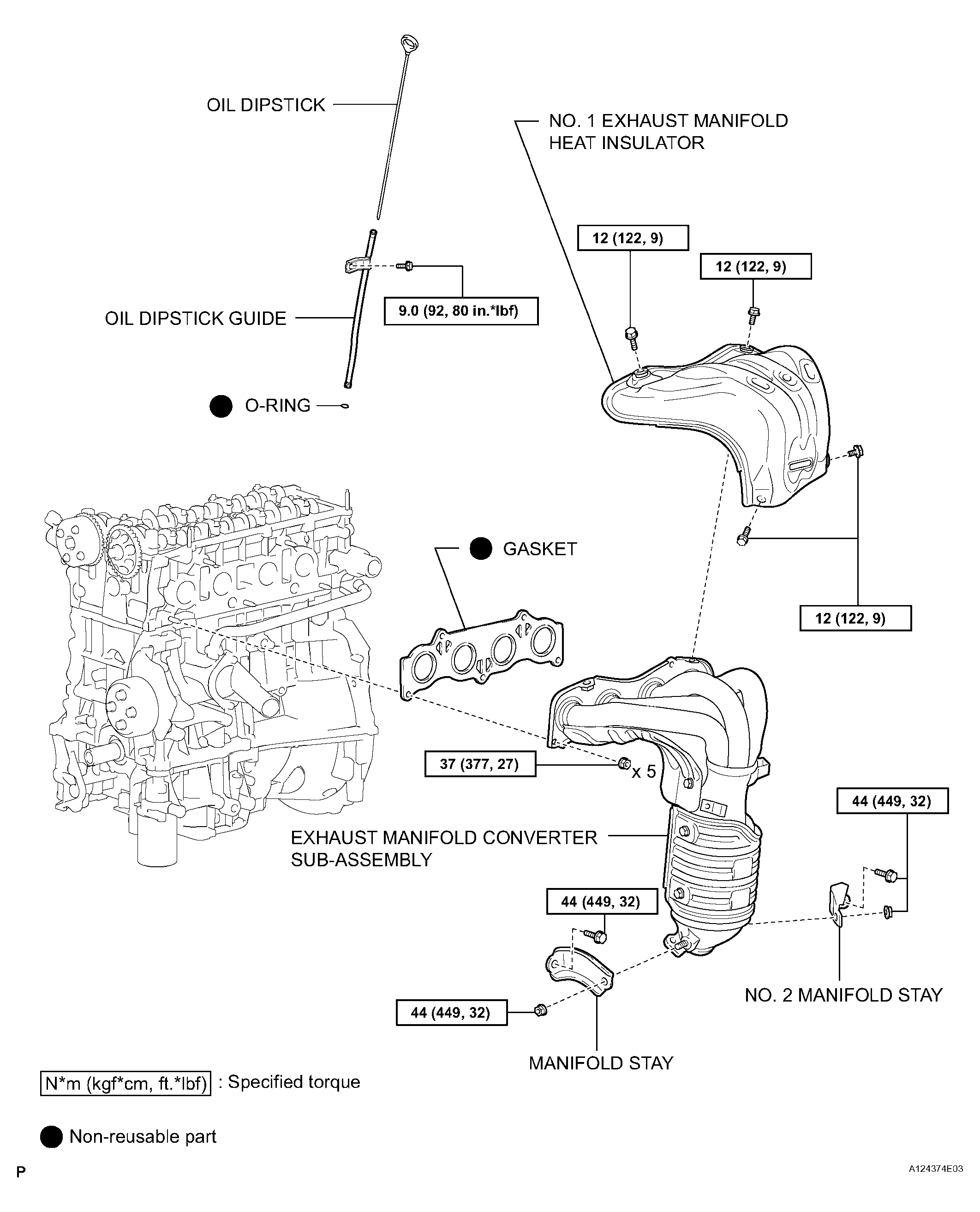

Fig 9: Identifying Cylinder Head Replacement Components With Torque Specifications (9 Of 13)

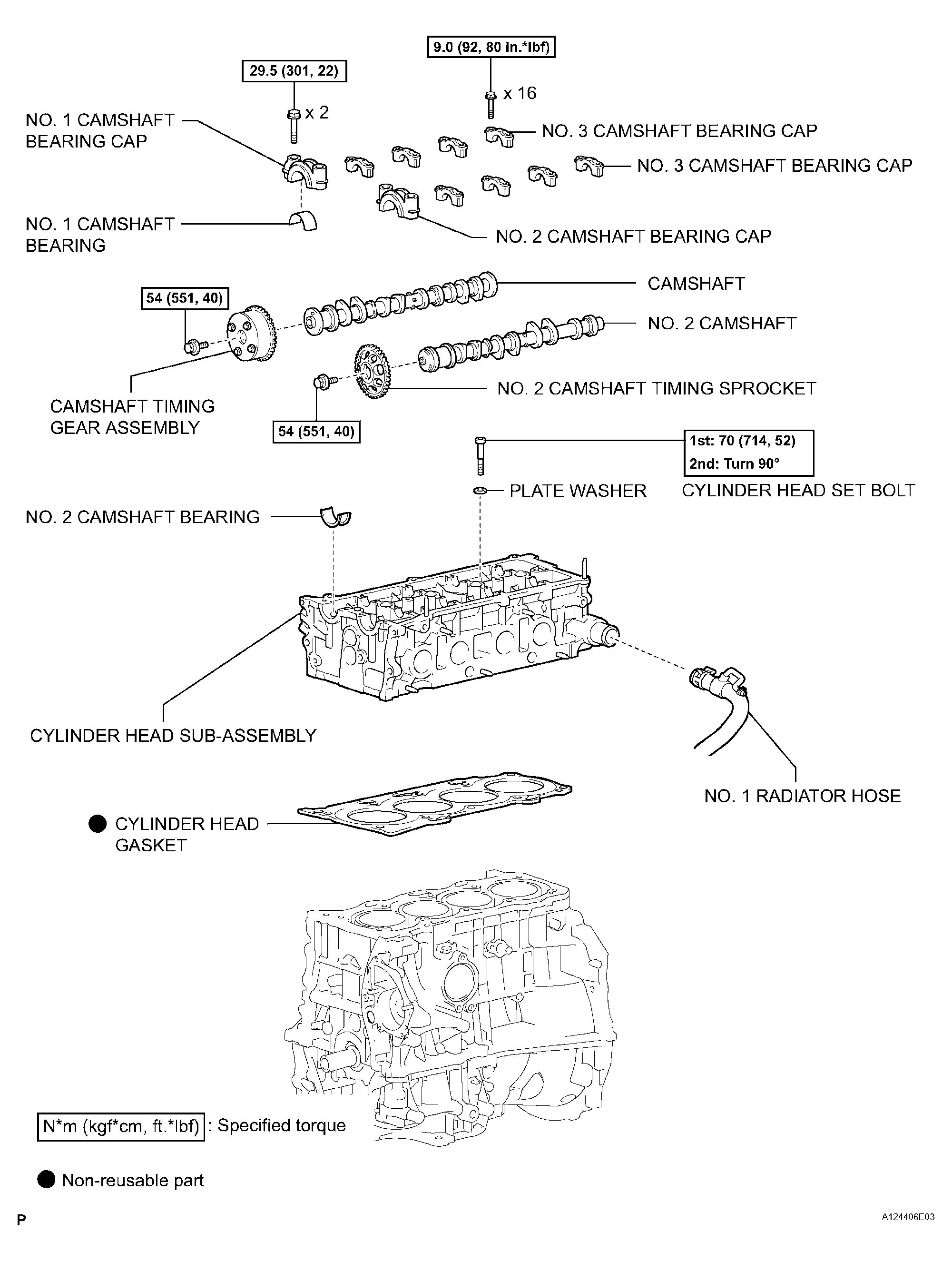

Fig 10: Identifying Cylinder Head Replacement Components With Torque Specifications (10 Of 13)

Fig 11: Identifying Cylinder Head Replacement Components With Torque Specifications (11 Of 13)

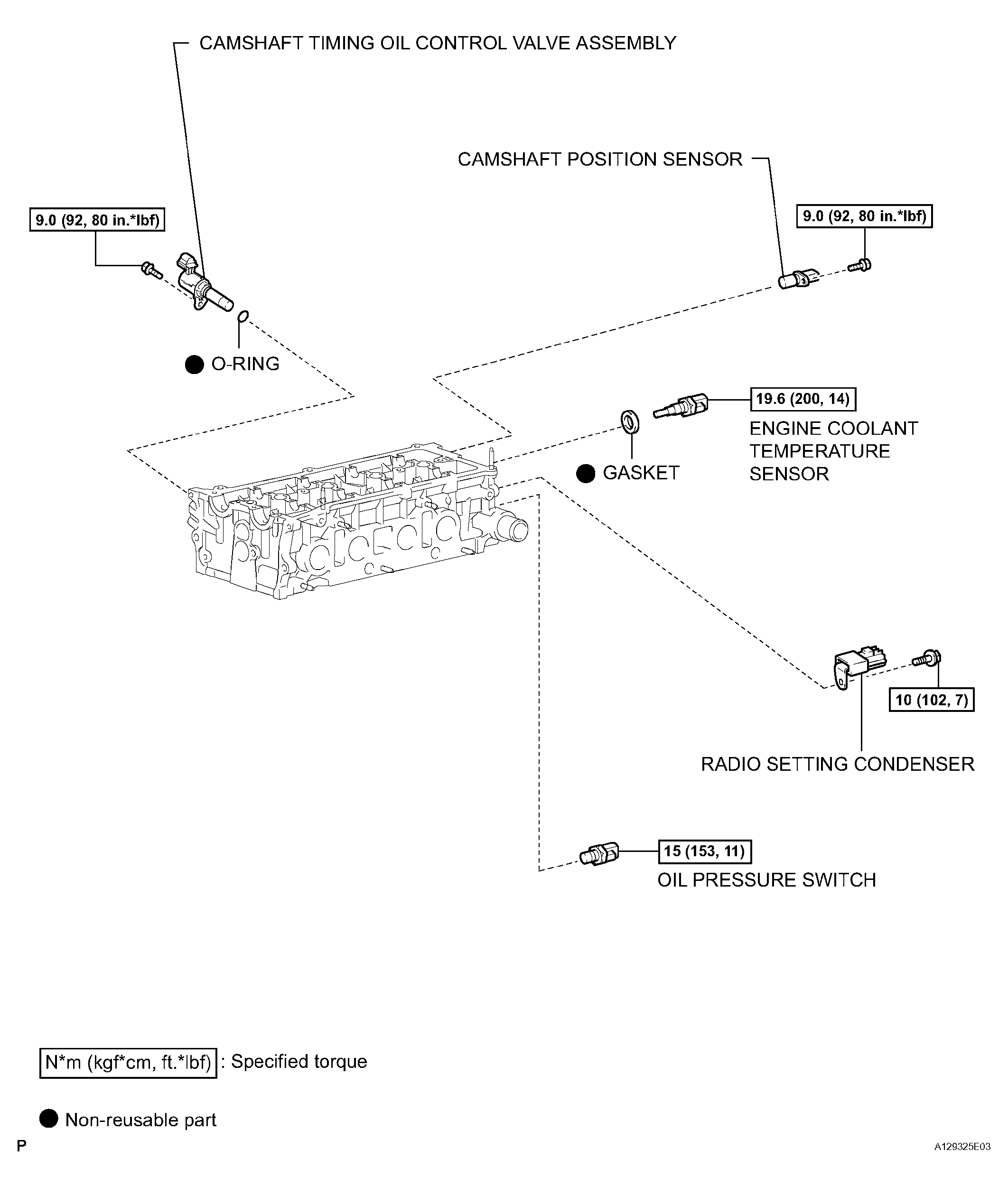

Fig 12: Identifying Cylinder Head Replacement Components With Torque Specifications (12 Of 13)

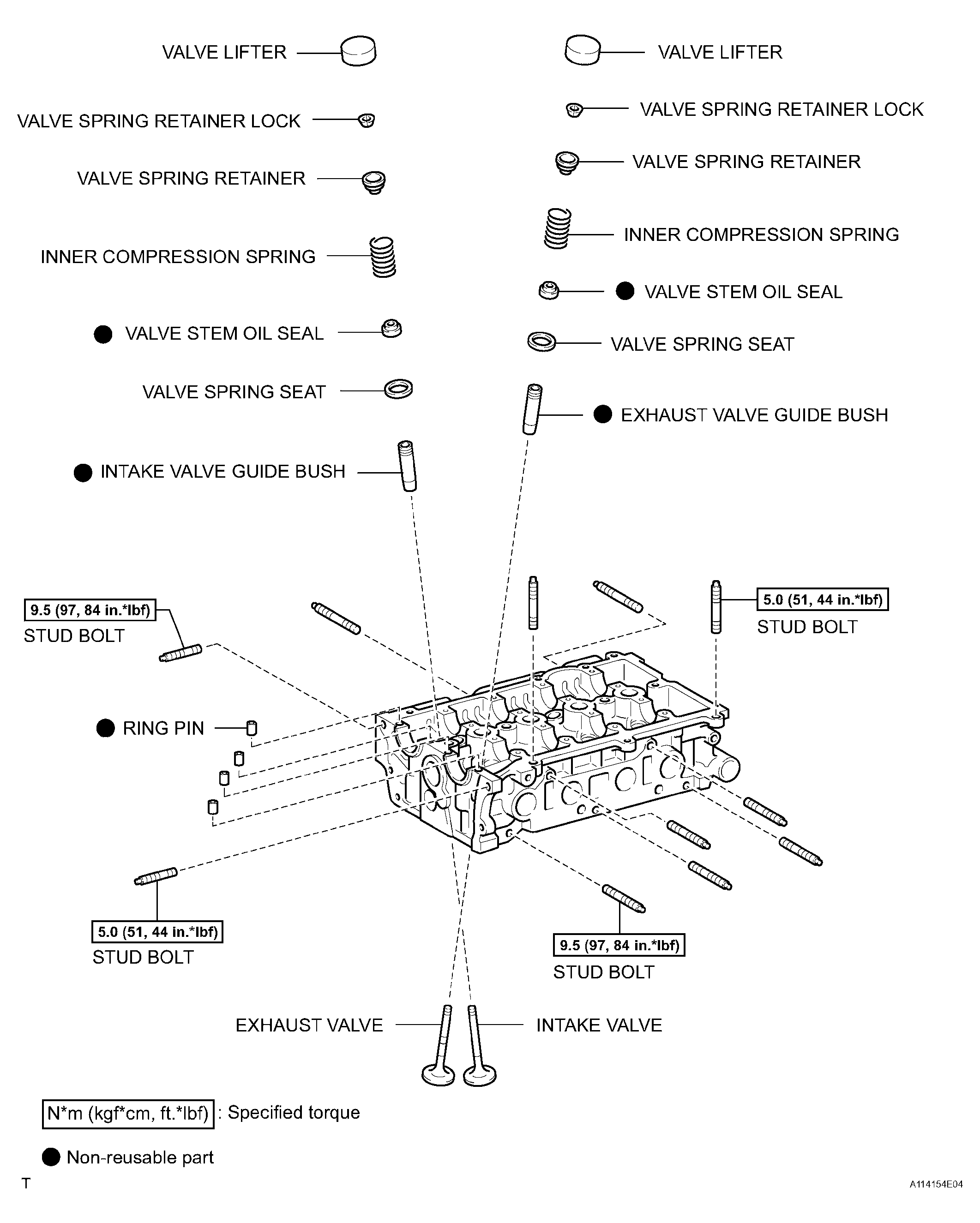

Fig 13: Identifying Cylinder Head Replacement Components With Torque Specifications (13 Of 13)
