Rear Axle Hub And Bearing: Components

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

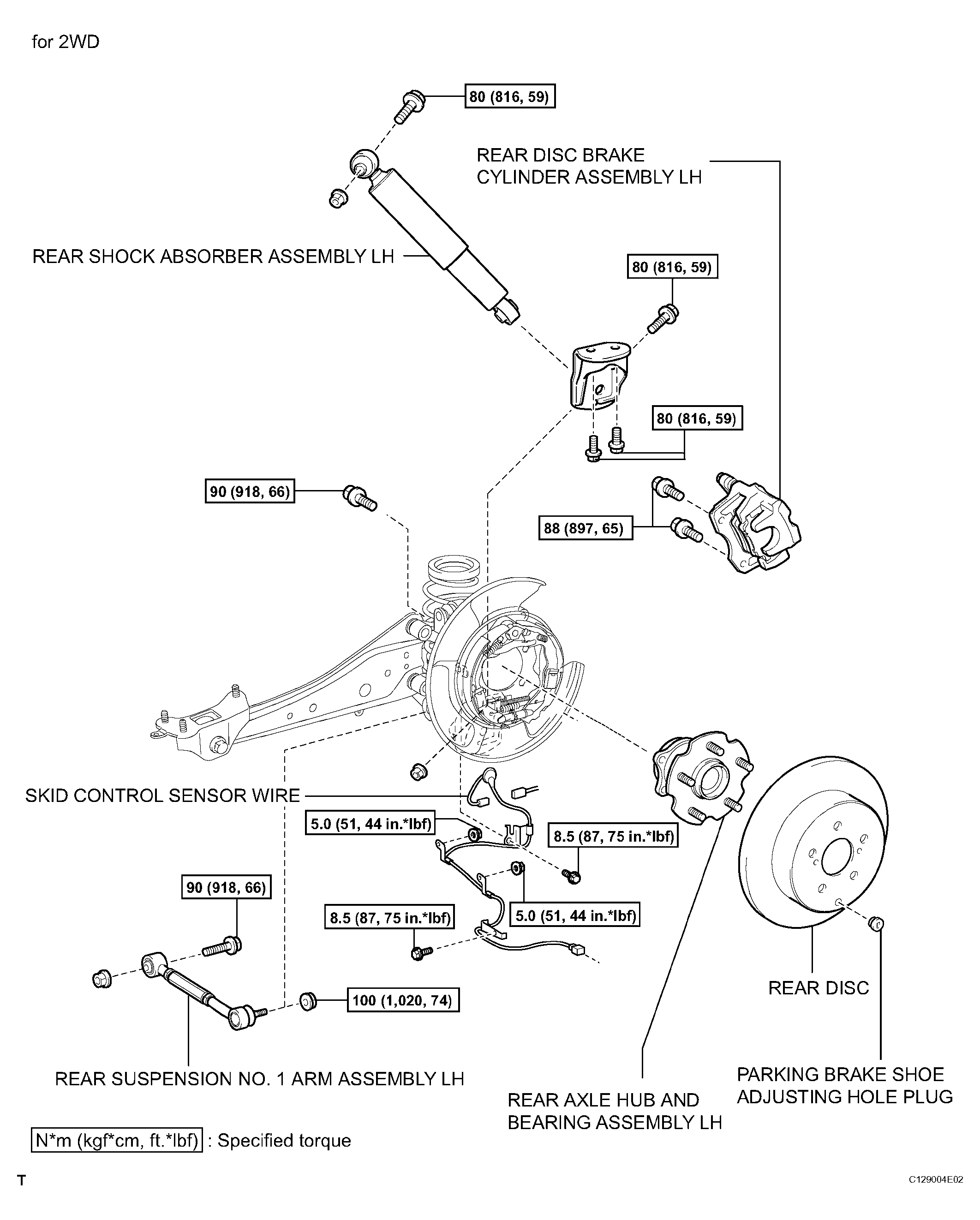

Fig 1: Rear Axle Hub And Bearing Replacement Components With Torque Specifications (2WD)
G04489155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

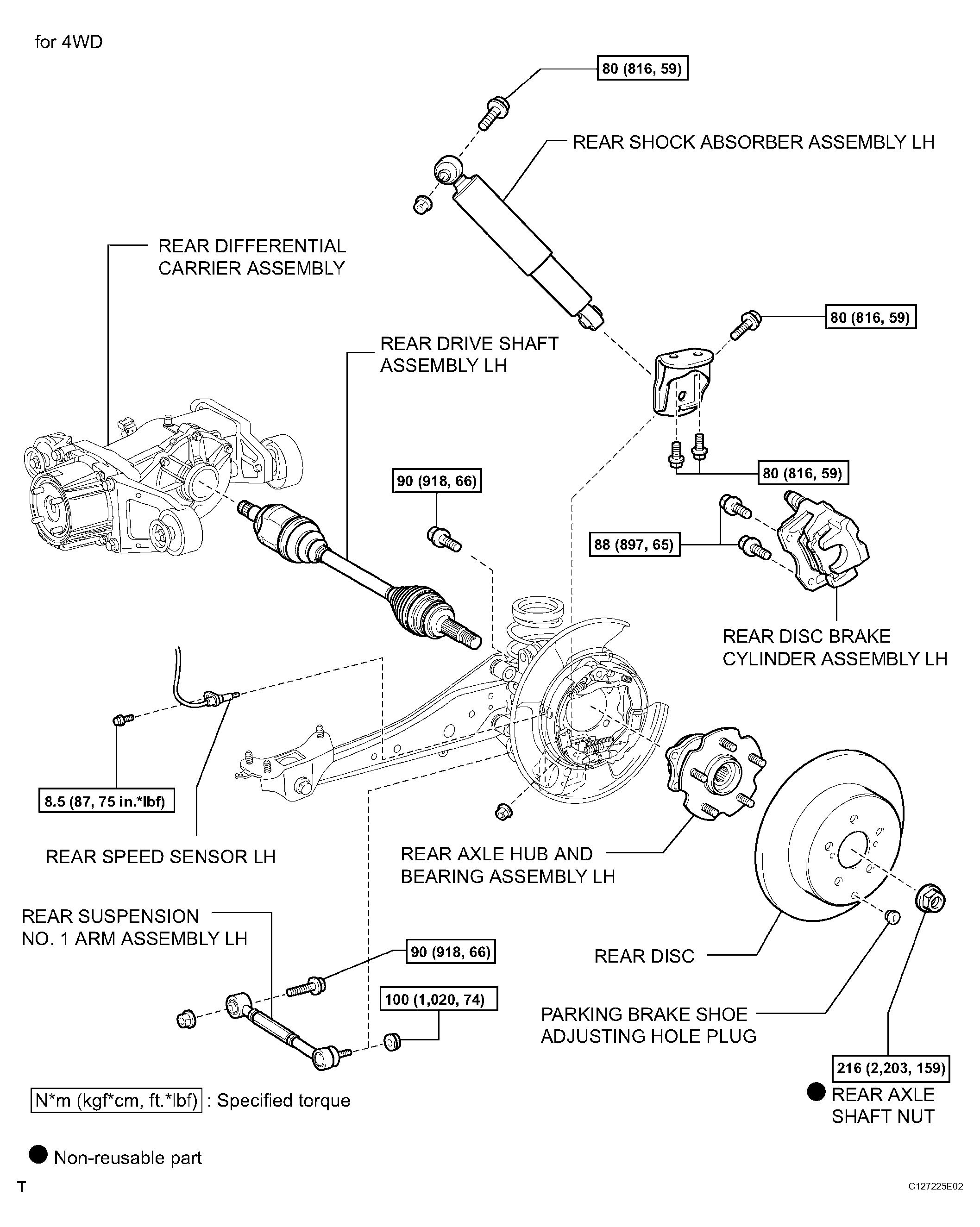

Fig 2: Rear Axle Hub And Bearing Replacement Components With Torque Specifications (4WD)
G04489156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
